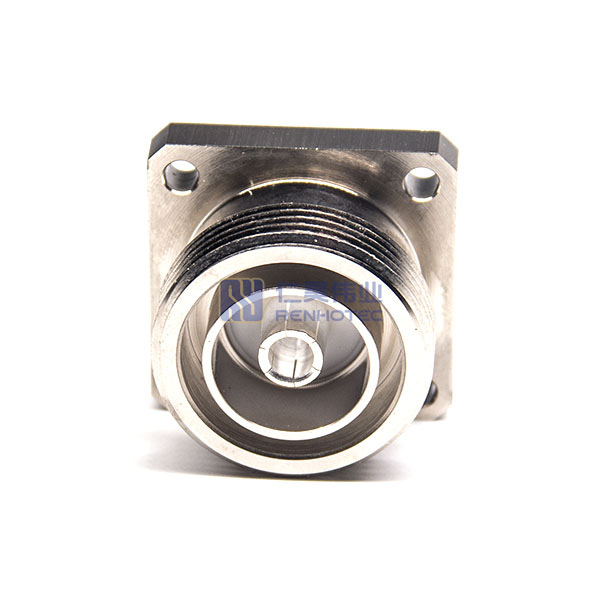

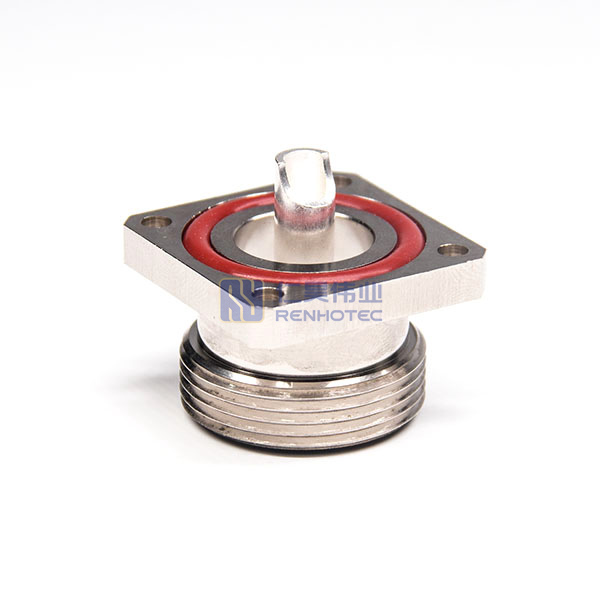

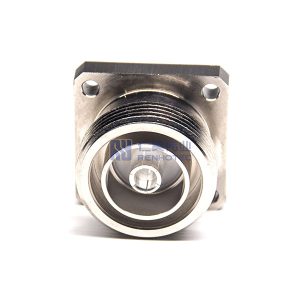

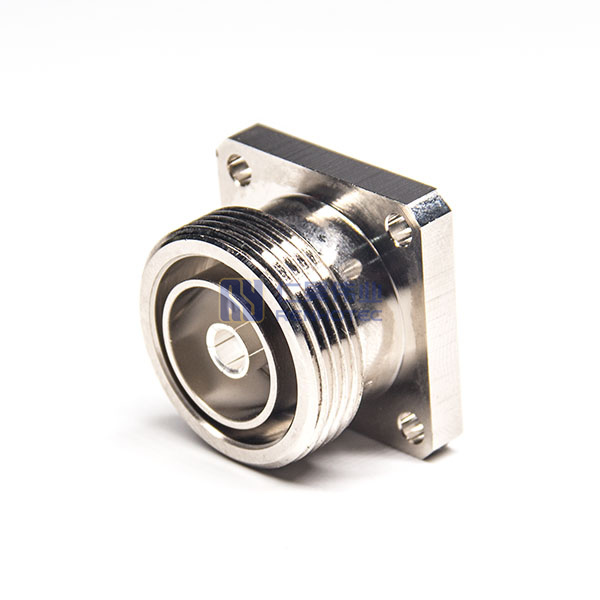

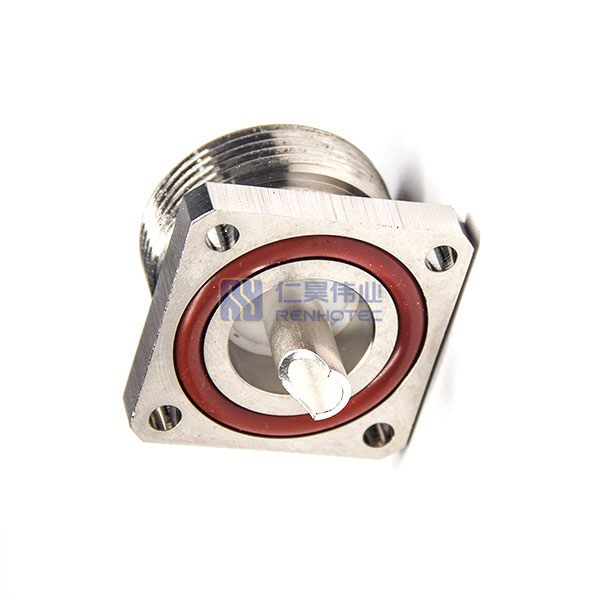

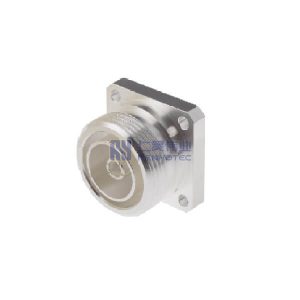

DIN 7/16 Разъем Прямой Джек Паяльник Панель Монтаж 4 Отверстие Фланец RG174 50 Ом — RHT-618-0455
Метрические размеры интерфейса разъема серии 7-16: 7 мм OD внутреннего контакта, 16 мм ID внешнего контакта. Обеспечивают превосходные характеристики по возвратным потерям и интермодуляционным искажениям (IMD). Разъем 7-16 очень прочный, чрезвычайно стабильный и водонепроницаемый, он является идеальным выбором для антивибрационных и экологических приложений. Они имеют предварительно смонтированную прокладку, которая защищает от пыли и воды (IP68) в соответствии с IEC 169.
Интерфейс
Product Specification
RF Series | DIN 7/16 |
||
---|---|---|---|
Connector Type | Jack |
||
Orientation | Straight |
||
Contact Type | Female Pin |
||
Contact Termination Style | Solder |
||
Shield Termination | Solder |
||
Mounting Type | Panel Mount |
||
Mounting Feature | 4 Hole Flange |
||
Fastening Type | Threaded |
||
Cable Type | RG174 |
||
Number of Ports | 1 |
||
Impedance | 50 ohm |
||
Shell Material | Copper Alloy |
||
Shell Finish | Nickel Plated |
||
Insulator Material | PTFE |
||
Contact Material | Brass |
||
Contact Finish | Silver Plated |
||
Temperature Range | -40°C to +85°C |
||
Mating Durability | ≥ 500 Cycles |
||
Insultation Resistance | 5000MΩ Min |
||
Rated Voltage | 500 Volts RMS Max Continuous |
||
Dielectric Withstanding Voltage | 2300 VRMS Max |
||
RF Series | DIN 7/16 |
Connector Type | Jack |
Orientation | Straight |
Contact Type | Female Pin |
Contact Termination Style | Solder |
Shield Termination | Solder |
Mounting Type | Panel Mount |
Mounting Feature | 4 Hole Flange |
Fastening Type | Threaded |
Cable Type | RG174 |
Number of Ports | 1 |
Impedance | 50 ohm |
Shell Material | Copper Alloy |
Shell Finish | Nickel Plated |
Insulator Material | PTFE |
Contact Material | Brass |
Contact Finish | Silver Plated |
Temperature Range | -40°C to +85°C |
Mating Durability | ≥ 500 Cycles |
Insultation Resistance | 5000MΩ Min |
Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 2300 VRMS Max |
