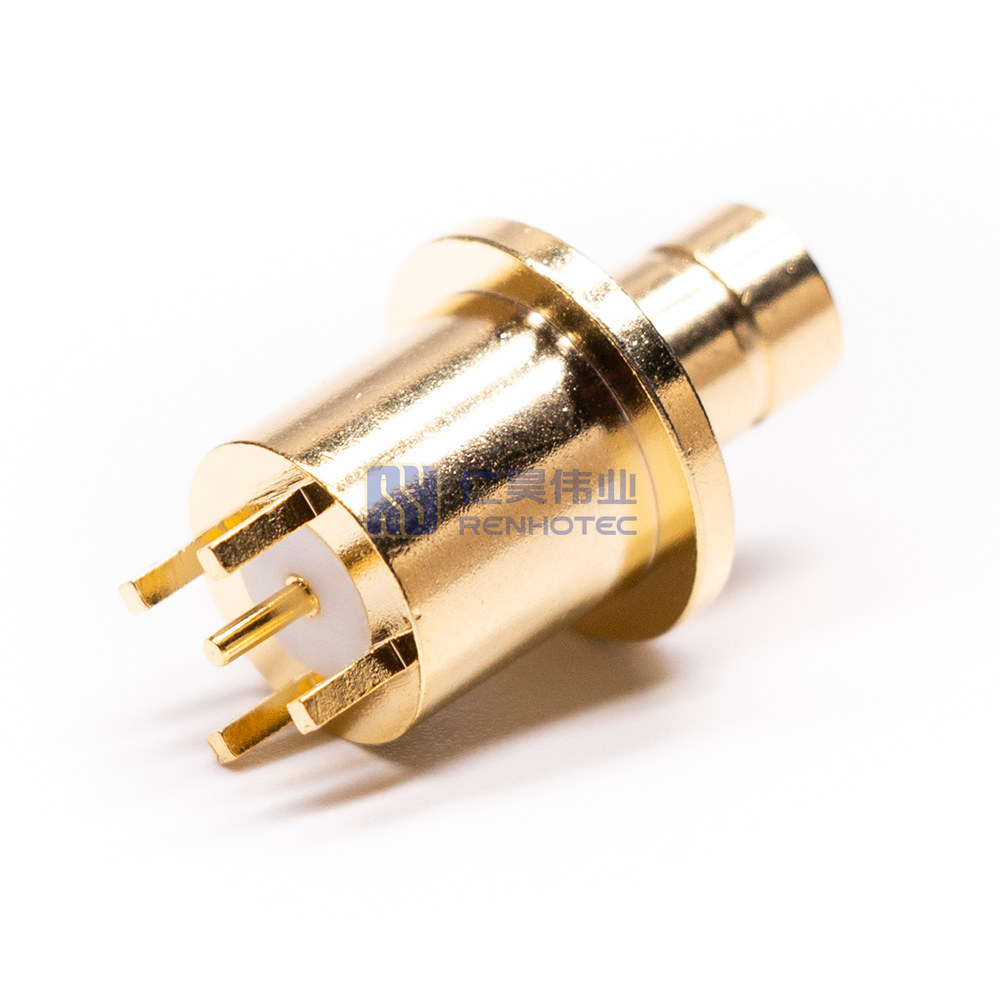

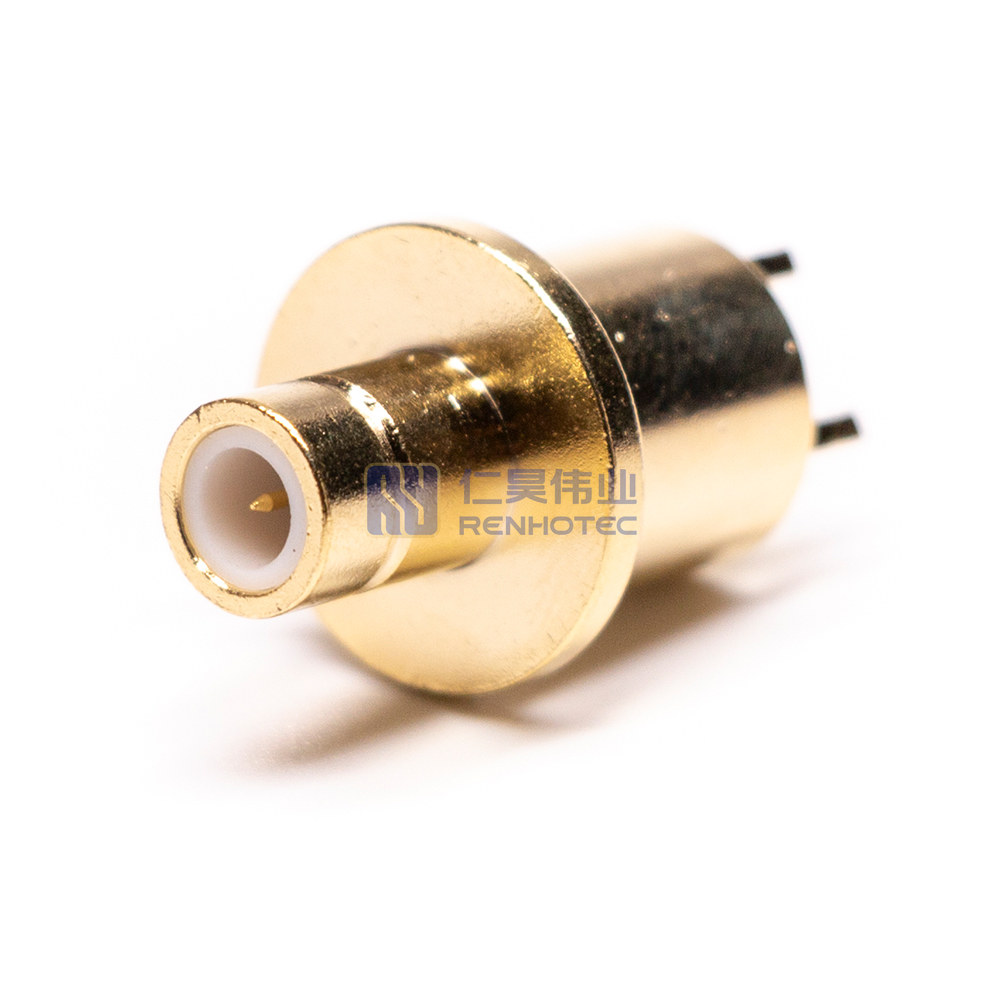

SMZ Разъем Прямой Джек Мужской Контакт Панель Монтаж Сквозное Отверстие 75 Ом — RHT-700-0008

Разъемы SMZ 75 Ом предназначены для обеспечения хорошо согласованного импеданса системы для критически важных телекоммуникационных и CATV-приложений. Серия SMZ представляет собой защелкивающуюся серию с интерфейсом, аналогичным серии SMB, но более крупным. Эти разъемы рассчитаны на частоту до 2 ГГц, но успешно используются и на частотах выше 4 ГГц.

Сценарии применения

Product Specification

RF Series

SMZ Type
Connector Type

Jack
Orientation

Straight
Contact Type

Male Pin
Contact Termination Style

Solder
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Fastening Type

Snap On
Number of Ports

1
Продукция не найдена

75 ohm
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Insulator Material

Teflon White
Contact Material

Brass
Contact Finish

Gold Plated
Продукция не найдена

DC – 3 GHz for 75 ohm
Rated Voltage

500 V rms.
Dielectric Withstanding Voltage

1500 V rms
Insultation Resistance

5GW
Center Contact Resistance

3mW.
Outer Contact Resistance

2.5mW.
Temperature Range

-65℃ to +165℃
RF Series

SMZ Type

 Connector Type

Jack
Orientation

Straight

 Contact Type

Male Pin
Contact Termination Style

Solder

 Mounting Type

Panel Mount
Mounting Feature

Through Hole

 Fastening Type

Snap On
Number of Ports

1

 Продукция не найдена

75 ohm
Shell Material

Copper Alloy

 Shell Finish

Gold Plated
Insulator Material

Teflon White

 Contact Material

Brass
Contact Finish

Gold Plated

 Продукция не найдена

DC – 3 GHz for 75 ohm
Rated Voltage

500 V rms.

 Dielectric Withstanding Voltage

1500 V rms
Insultation Resistance

5GW

 Center Contact Resistance

3mW.
Outer Contact Resistance

2.5mW.

 Temperature Range

-65℃ to +165℃
RF Series

SMZ Type
Connector Type

Jack
Orientation

Straight
Contact Type

Male Pin
Contact Termination Style

Solder
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Fastening Type

Snap On
Number of Ports

1
Продукция не найдена

75 ohm
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Insulator Material

Teflon White
Contact Material

Brass
Contact Finish

Gold Plated
Продукция не найдена

DC – 3 GHz for 75 ohm
Rated Voltage

500 V rms.
Dielectric Withstanding Voltage

1500 V rms
Insultation Resistance

5GW
Center Contact Resistance

3mW.
Outer Contact Resistance

2.5mW.
Temperature Range

-65℃ to +165℃
