Quick View

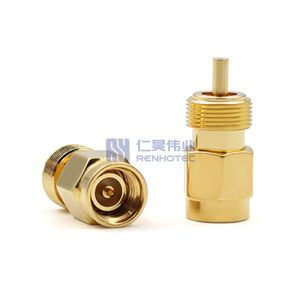

3.5 Male Bulkhead Connector for Terminal DC-18GHz – RHT-3.5-JYD1

Connector Type: Plug
Contact Finish: Gold Plated
Contact Material: Brass
Contact Type: Male Pin
Frequency Range: DC-18GHz
Impedance: 50 ohm
RF Series: 3.5mm
Shell Finish: Gold Plated
Shell Material: Brass
Quick View

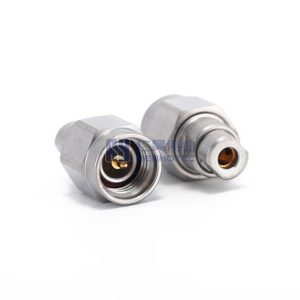

3.5mm Male Connector for Gore 3506 Cable DC-26.5Ghz – RHT-3.5-J3506G

Connector Type: Plug
Contact Finish: Gold Plated
Contact Material: Beryllium Copper
Contact Type: Male Pin
Frequency Range: DC-26.5GHz
Impedance: 50 ohm
RF Series: 3.5mm
Shell Material: Stainless Steel
Quick View

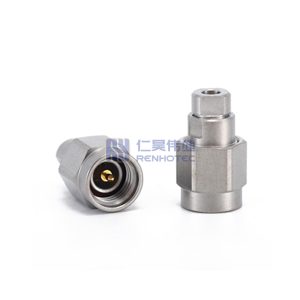

3.5mm Male Connector for Gore3506 Cable DC-26.5Ghz – RHT-3.5-J3506AG

Connector Type: Plug
Contact Finish: Gold Plated
Contact Material: Beryllium Copper
Contact Type: Male Pin
Frequency Range: DC-26.5GHz
Impedance: 50 ohm
RF Series: 3.5mm
Shell Material: Stainless Steel
Quick View

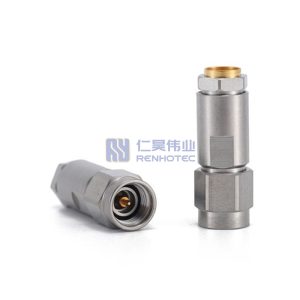

3.5mm Male wave Connector for Gore 3449 Cable DC-18 Ghz – RHT-3.5-J3449G

Connector Type: Plug
Contact Finish: Gold Plated
Contact Material: Beryllium Copper
Contact Type: Male Pin
Frequency Range: DC-18 GHz
Impedance: 50 ohm
Shell Material: Stainless Steel
Quick View

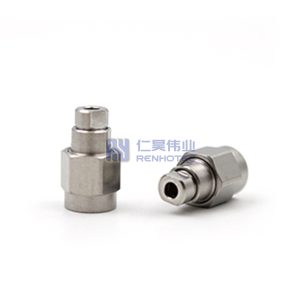

Milimeter wave Connector stainless Steel 3.5mm Male for .086/RG405 Cable DC-26.5Ghz – RHT-3.5-JB2AG

Connector Type: Plug
Contact Finish: Gold Plated
Contact Material: Beryllium Copper
Contact Type: Male Pin
Frequency Range: DC-26.5GHz
Impedance: 50 ohm
RF Series: 3.5mm
Shell Finish: Passivated
Shell Material: Stainless Steel
Quick View

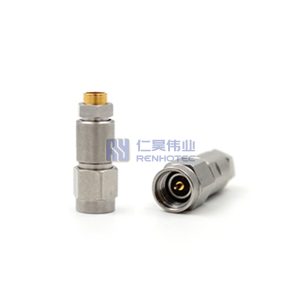

Milimeter Wave Connector Stainless Steel 3.5mm Male for CXN3507 Cable DC-26.5Ghz – RHT-3.5-J3507AG

Connector Type: Plug
Contact Finish: Gold Plated
Contact Material: Beryllium Copper
Contact Type: Male Pin
Frequency Range: DC-26.5GHz
Impedance: 50 ohm
RF Series: 3.5mm
Shell Finish: Passivated
Shell Material: Stainless Steel
