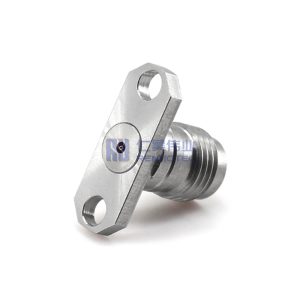

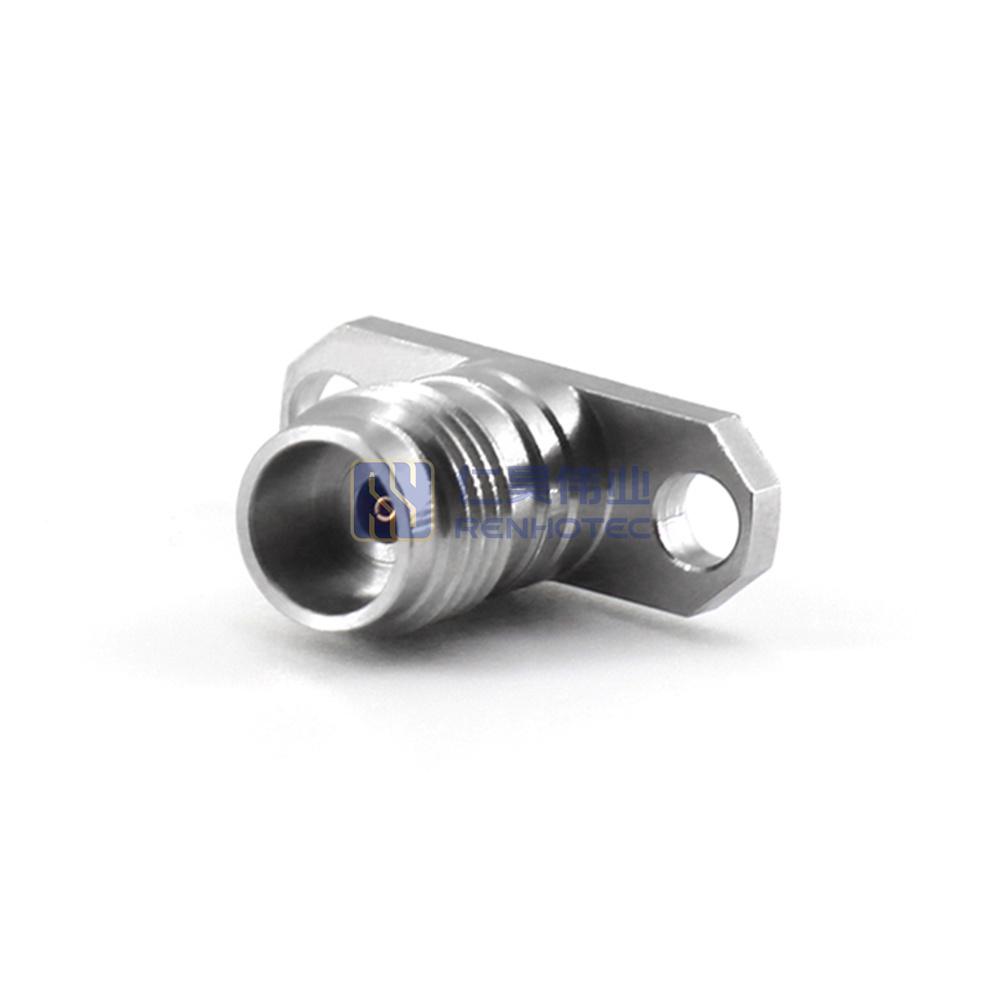

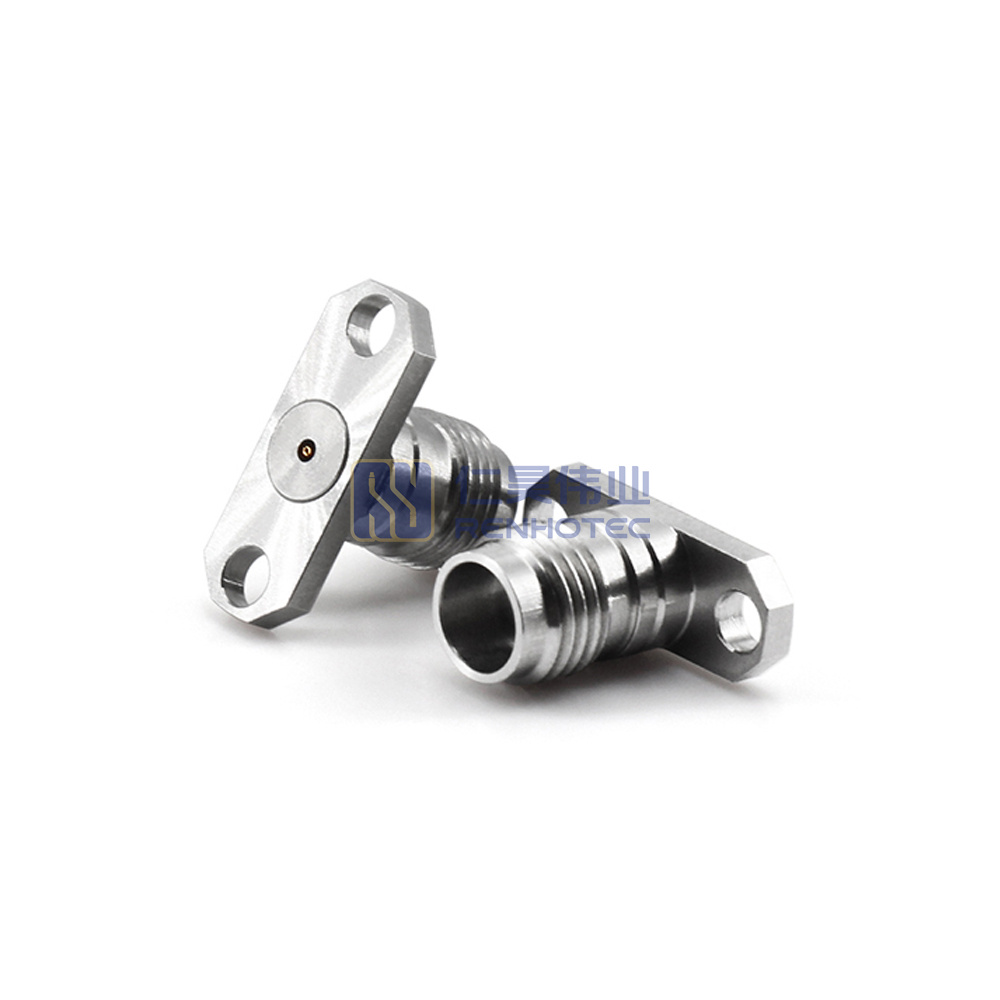

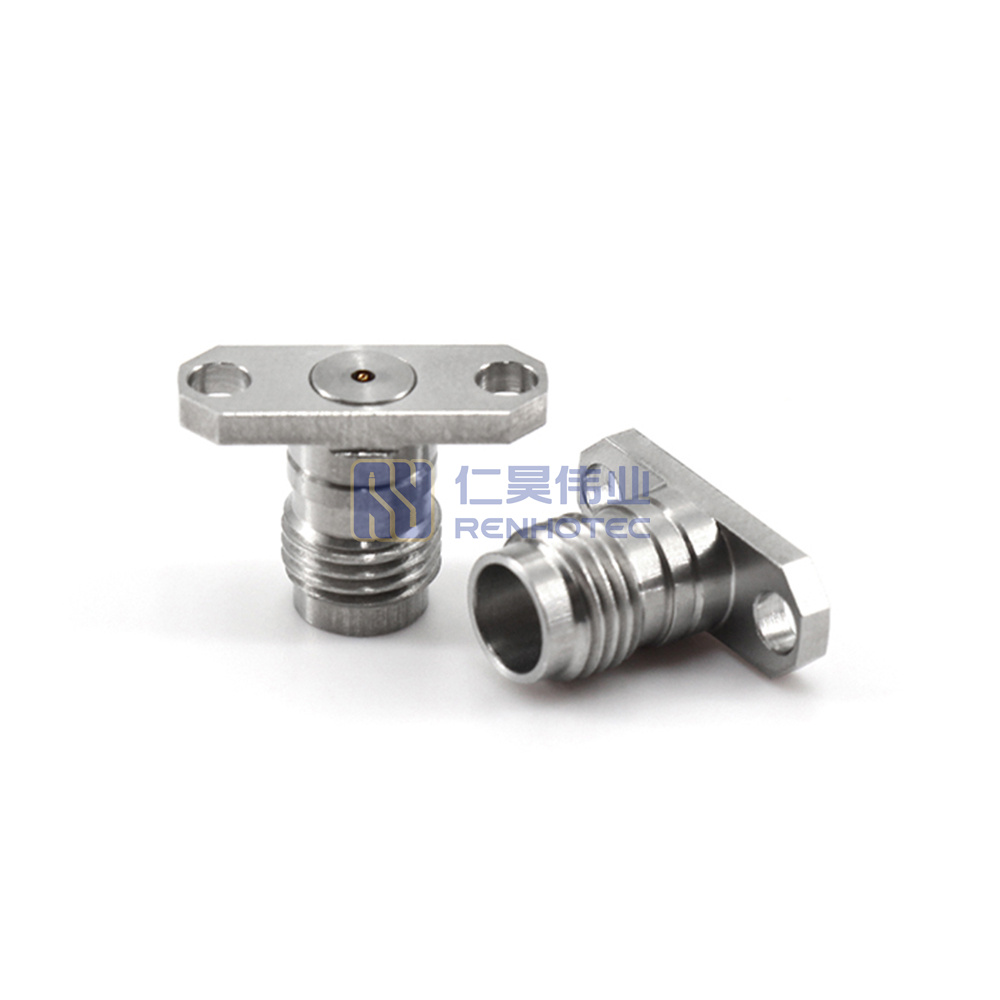

1.85mm Female High Frequency RF Connectors DC-67GHz Stainless Steel Material – RHT-18FS23F04-M

Product Specification

RF Series

1.85mm
Connector Type

Jack
Orientation

Straight
Contact Type

Female
Mounting Type

Panel Mount
Mounting Feature

Flange
Number of Ports

1
Impedance

50 ohm
Frequency Range

DC-67GHz
Shell Material

Stainless Steel
Insulator Material

PTFE
Contact Material

Beryllium Bronze
Contact Finish

Gold Plated
Insultation Resistance

≥5000Ω
Temperature Range

-55℃ to 165℃
RF Series

1.85mm

 Connector Type

Jack
Orientation

Straight

 Contact Type

Female
Mounting Type

Panel Mount

 Mounting Feature

Flange
Number of Ports

1

 Impedance

50 ohm
Frequency Range

DC-67GHz

 Shell Material

Stainless Steel
Insulator Material

PTFE

 Contact Material

Beryllium Bronze
Contact Finish

Gold Plated

 Insultation Resistance

≥5000Ω
Temperature Range

-55℃ to 165℃
RF Series

1.85mm
Connector Type

Jack
Orientation

Straight
Contact Type

Female
Mounting Type

Panel Mount
Mounting Feature

Flange
Number of Ports

1
Impedance

50 ohm
Frequency Range

DC-67GHz
Shell Material

Stainless Steel
Insulator Material

PTFE
Contact Material

Beryllium Bronze
Contact Finish

Gold Plated
Insultation Resistance

≥5000Ω
Temperature Range

-55℃ to 165℃
