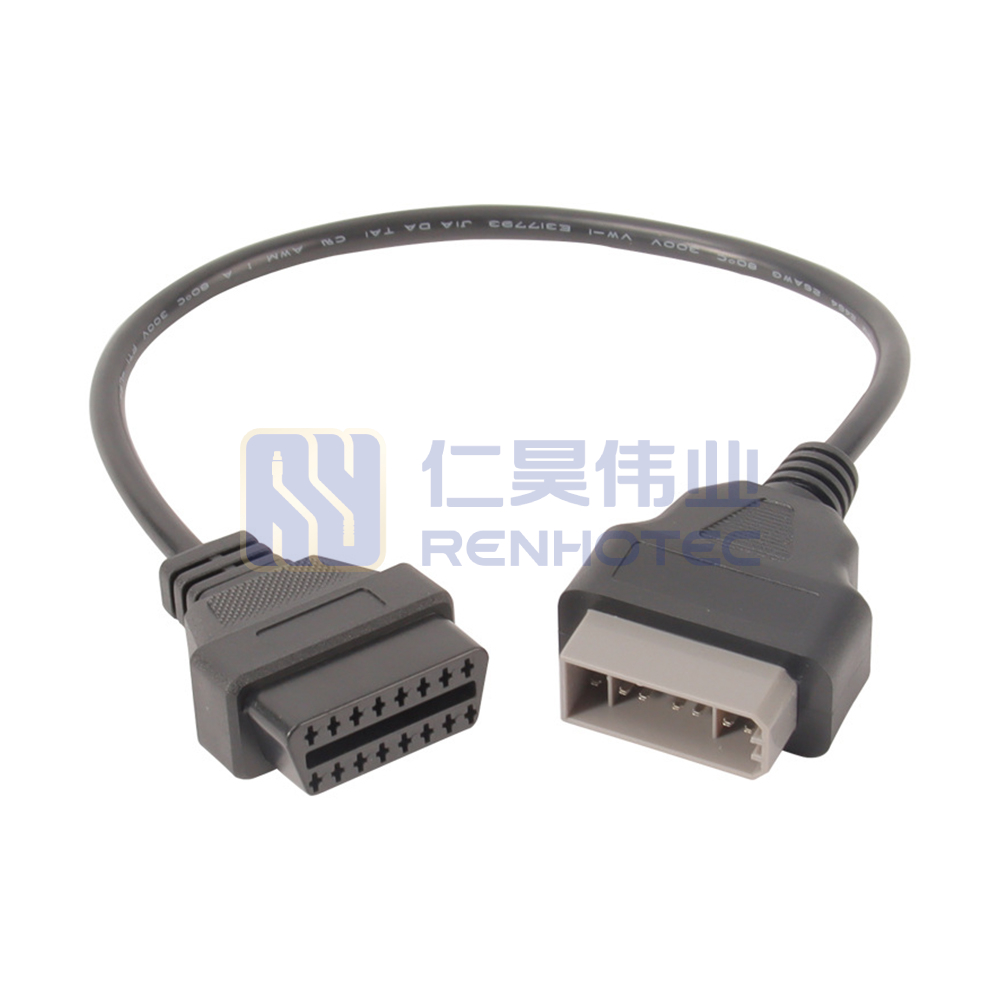

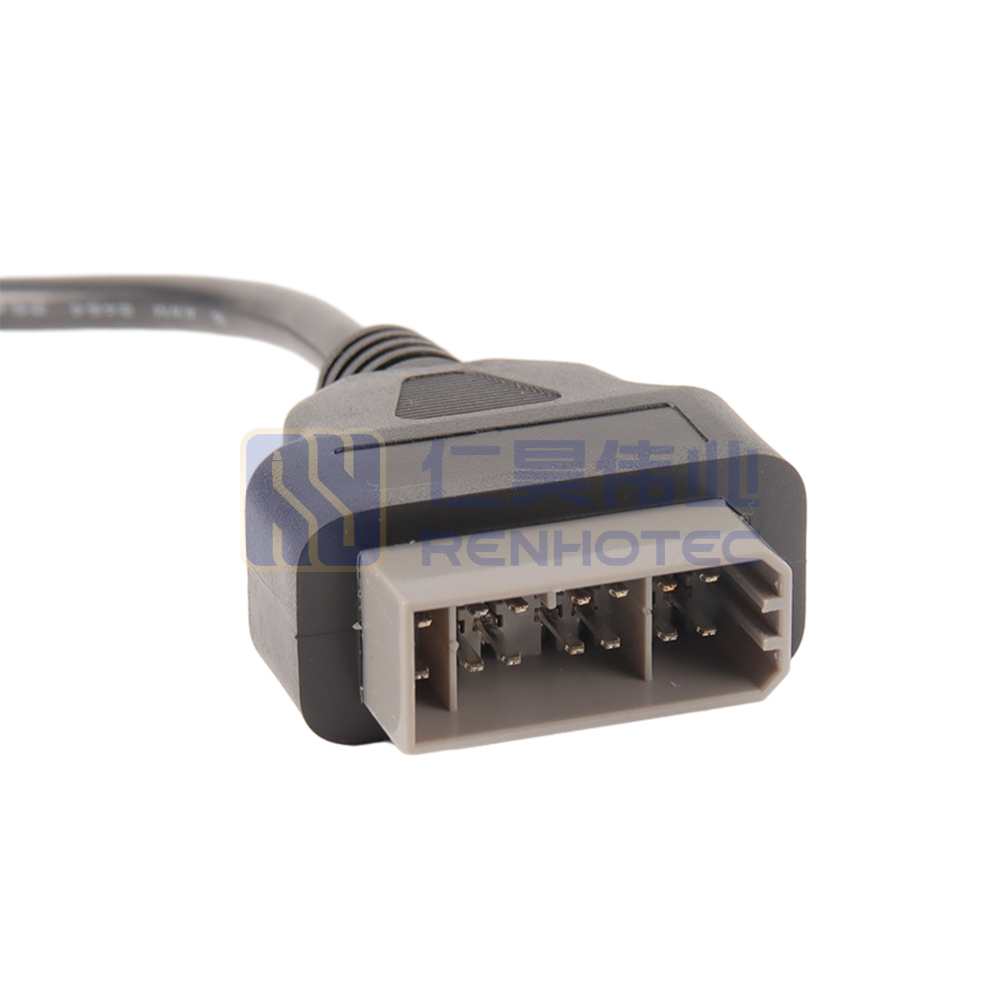

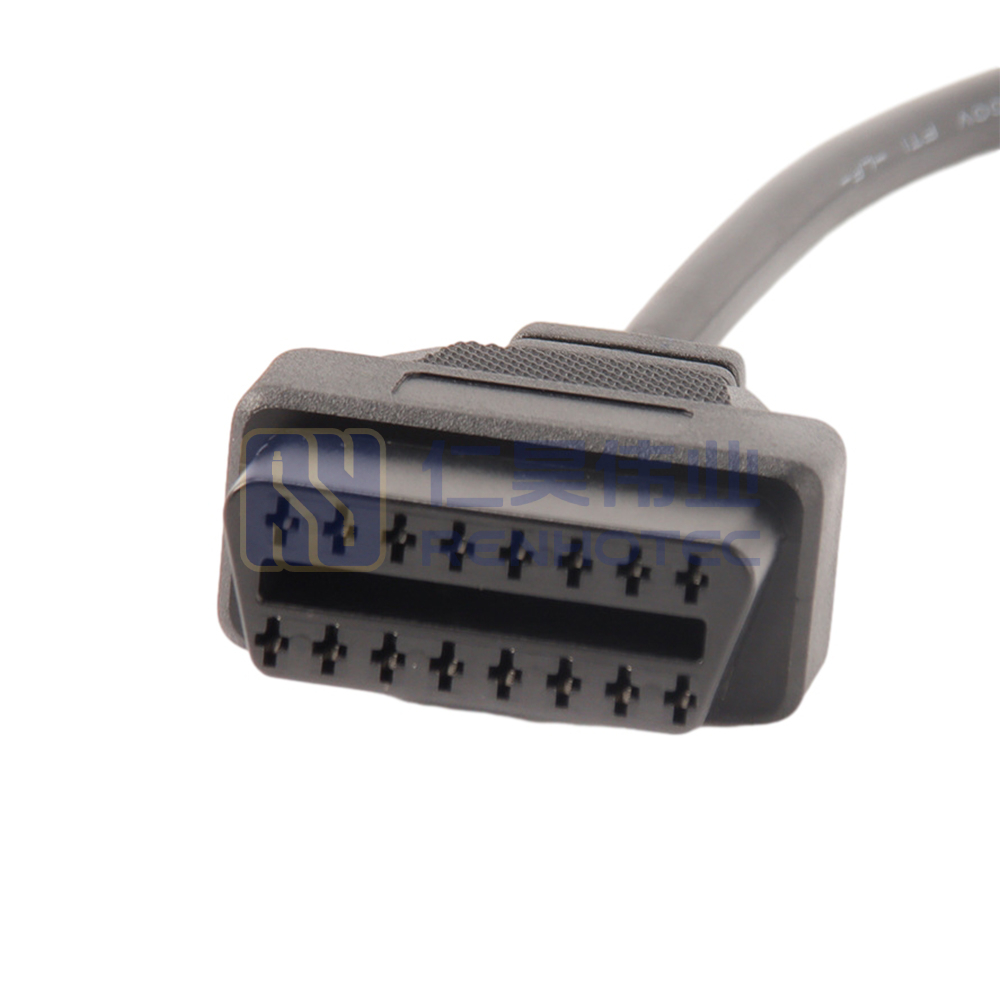

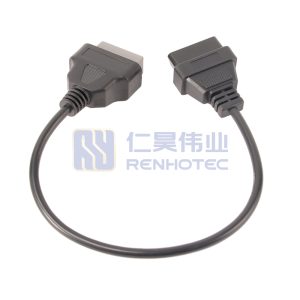

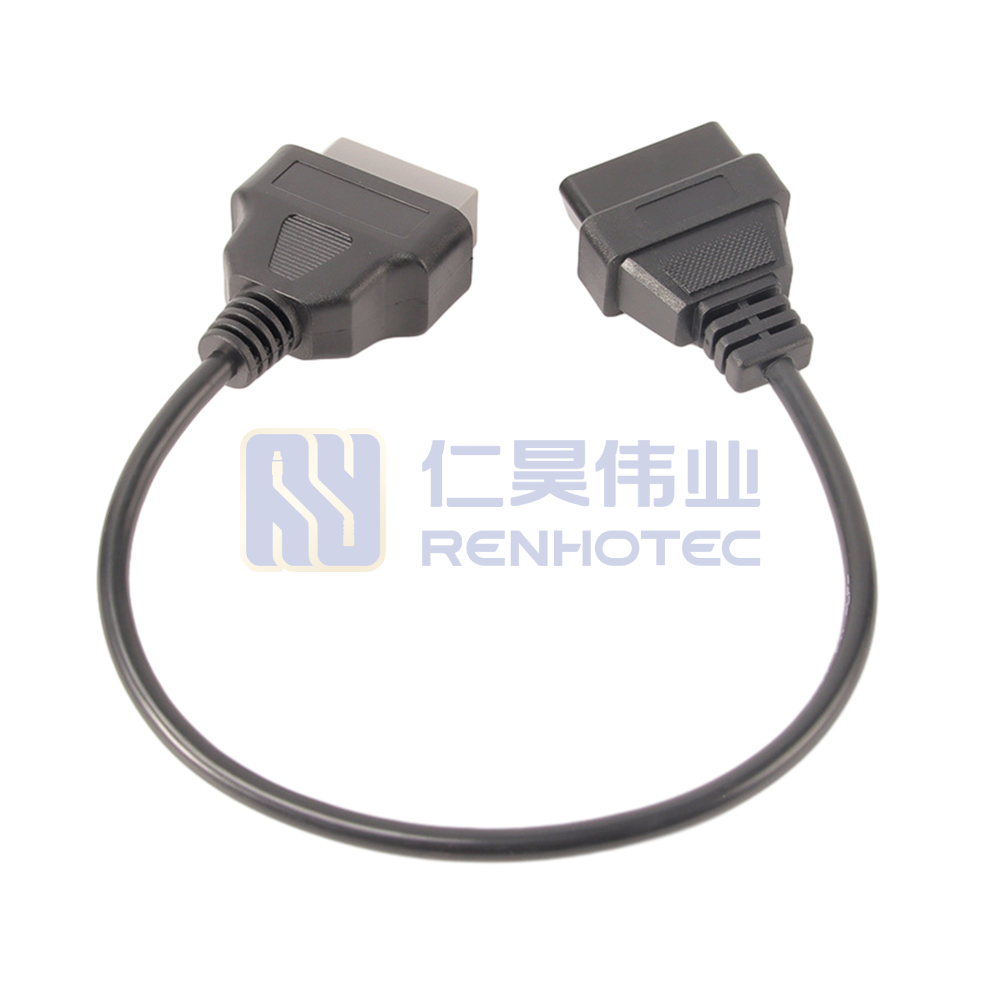

14Pin to 16Pin OBD2 Adapter Connector Diagnostic Cable for Nissan

The 14Pin to 16Pin OBD2 adapter connector diagnostic cable for Nissan ensures a reliable connection for diagnostics, helping you keep your vehicle in optimal condition.

Car Brand

OBD (On-Board Diagnostics) automotive harnesses are specialized cables designed to link a vehicle??s Electronic Control Unit (ECU) with diagnostic equipment. They play a critical role in modern automotive diagnostics by enabling fault detection, real-time performance monitoring, and efficient data transmission. These harnesses serve as essential conduits, allowing technicians to access and interpret vehicle data for troubleshooting and maintenance.

Features of OBD Cable Harness

OBD_CONNECTOR

Highly Compatible

The diagnostic harness equipped with a standard OBD II interface is widely compatible with most models around the world, including sedans, SUVs and trucks. Support for OBDII protocol ensures easy connection to the vehicle ECU for fault diagnosis, data reading and repair.

Versatile Multi-Pin

Supports multiple OBD harness types, including 16-pin and 22pin configurations, making it ideal for specialty, older, and diverse vehicles.Ensures reliable connectivity for advanced tasks like ECU reflashing, system programming, and compatibility with unique vehicle protocols.

OBD CABLE
OBD CABLE

Flexible and Bendable

Features a flexible, bendable design for this OBD extension cable, with an optimal ength for easy connection between OBD scan tools and vehicle ports. Perfect for tight spaces, it ensures stable signal transmission, catering to DIY enthusiasts and professional technicians alike.

Pin Assignments of OBD

OBD_CONNECTOR

OBD pin assignments define each pin??s function on an OBD connector for vehiclediagnostic tool communication.

  • The OBD2 standard (16pin J1962) includes: Pin 1 (reserved), Pin 2 (J1850 positive), Pins 4+5 (ground), Pin 6 (CAN high), Pin 7 (K-line), Pin 14 (CAN low), Pin 16 (+12V power), used for post-1996 vehicles.
  • OBD1 (12/16-pin) varies by model with basic functions; vehicle-specific (e.g., BMW 20-pin, Subaru 9-pin) or heavy-duty (J1939 9-pin) harnesses require dedicated adapters.
OBD_CONNECTOR
OBD_CONNECTOR

Versatile Solutions for Vehicle Diagnostics

OBD cables, such as 16-pin OBD2 and multi-pin adapters (e.g., 22-pin), are critical for vehicle diagnostics, enabling communication between diagnostc tools and a vehicle??s ECU. Their key applications include:

OBD CABLE
OBD CABLE
OBD CABLE

Fault Diagnosis: Reading and clearing fault codes to identify and fix vehicle issues.

RealTime Data Monitoring: Tracking live data like engine performance, fuel efficiency, and sensor readings.

System Repairs & Programming: Supporting ECU reflashing, system programmng, and custom diagnostics for advanced repairs.

Compatible Vehicle Types

  • Post-1996 Cars & Trucks: OBD2-compliant vehicles (using 16-pin connectors) like sedans, SUVs, and light trucks.
  • Older Models: OBD1 vehicles (12/16-pin, varying by model) for classic cars and early trucks.
  • Specialty Vehicles: Unique systems like BMW (20-pin) and Subaru (9-pin) requiring specific adapters.
  • Heavy-Duty Equipment: Commercial vehicles and machinery using J1939 9-pin connectors.

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods
