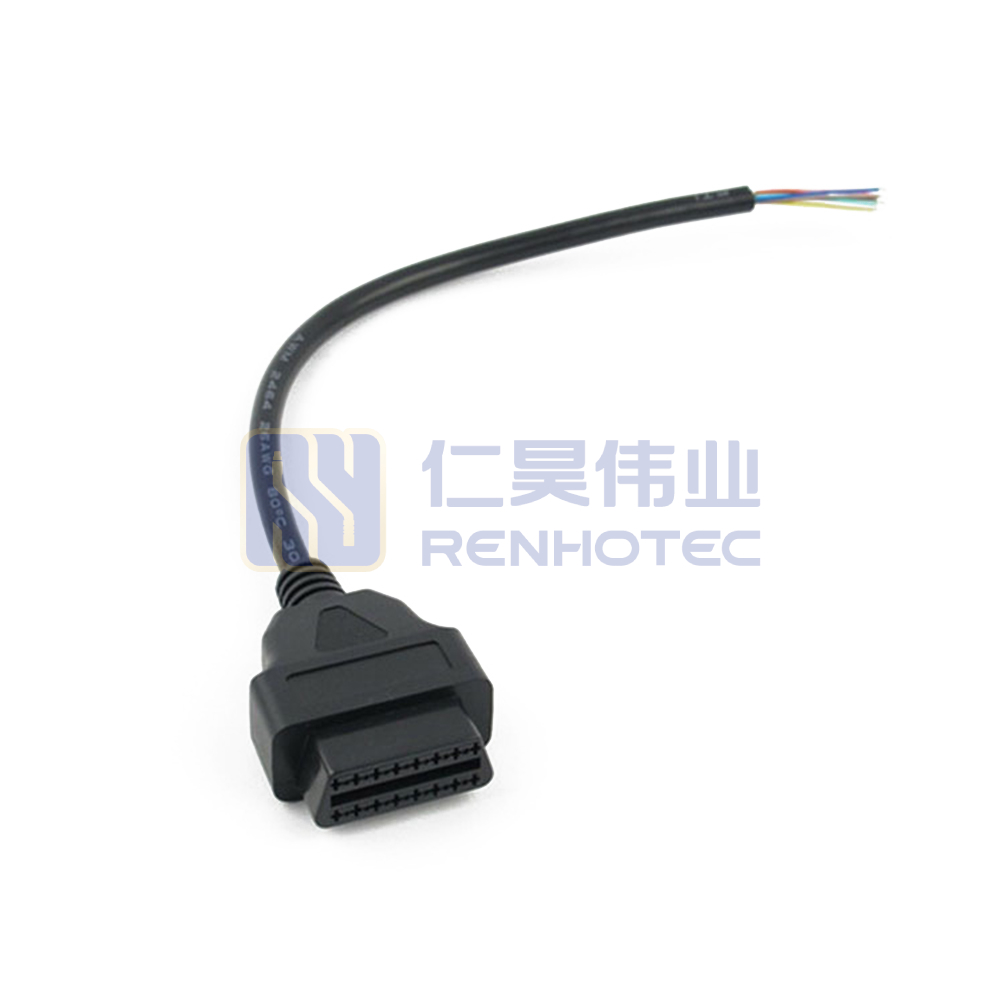

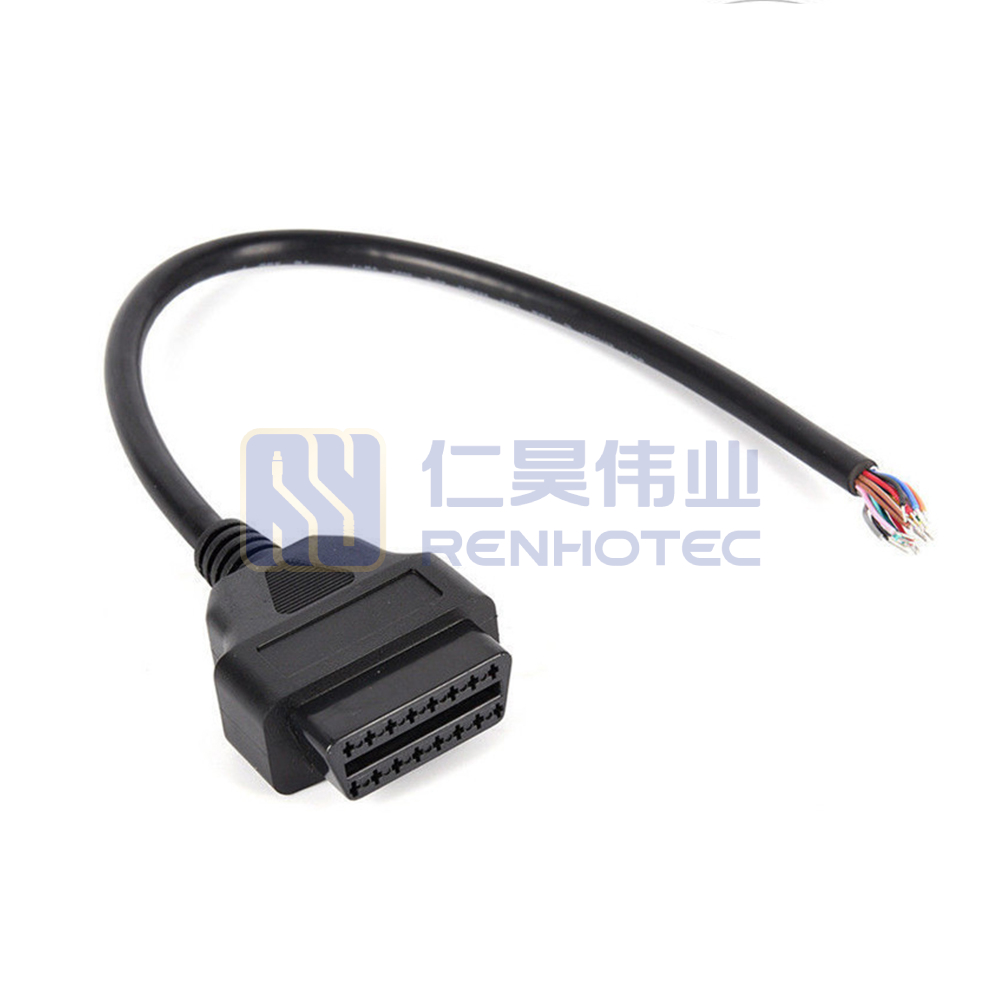

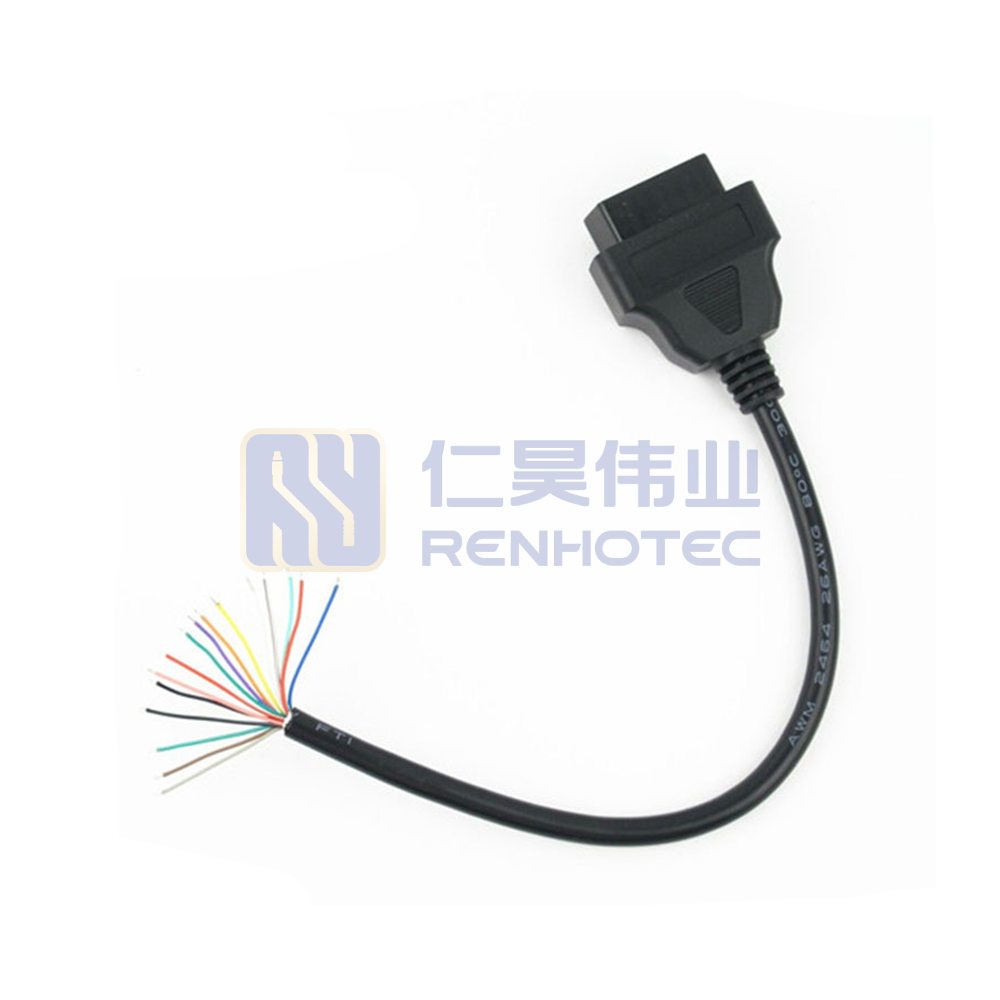

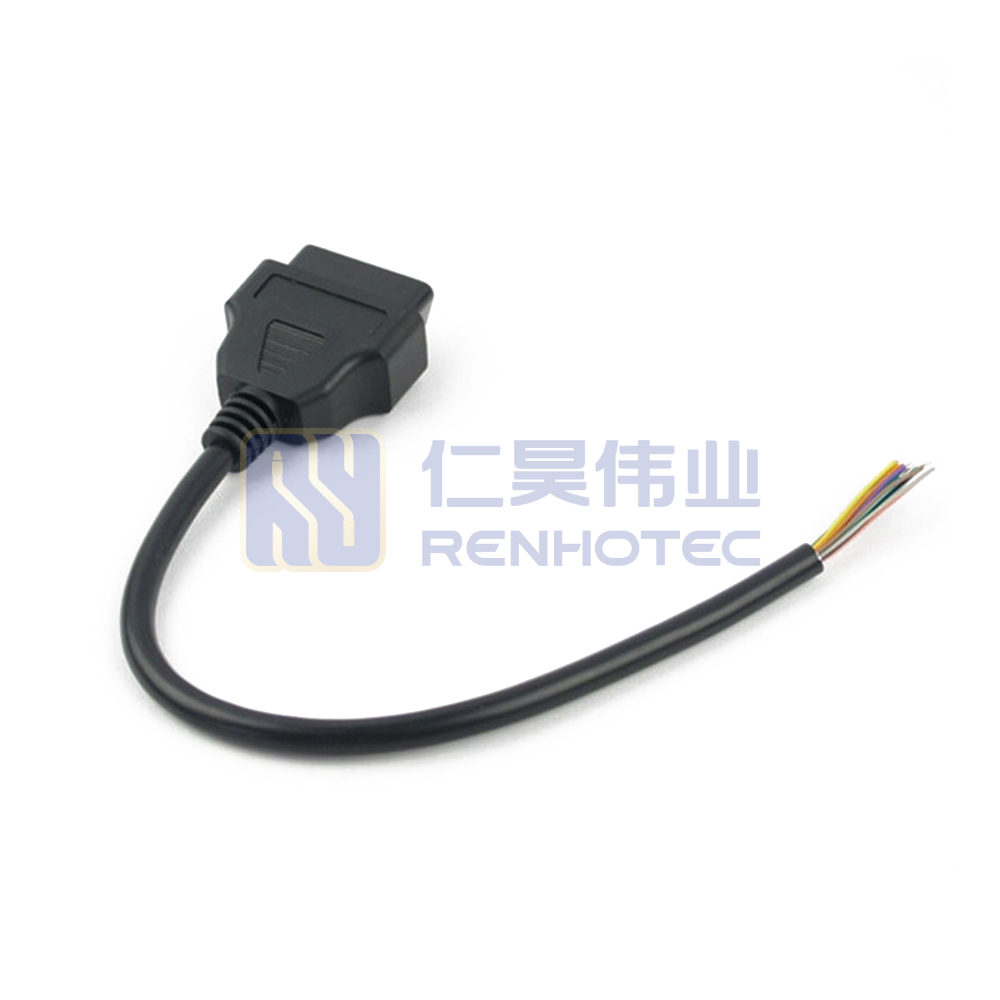

The 16-pin OBD2 female to open cable facilitates the connection of various diagnostic tools and improves the efficiency of troubleshooting. It is a must-have choice for every car owner and maintenance technician.
OBD (On-Board Diagnostics) automotive harnesses are specialized cables designed to link a vehicle??s Electronic Control Unit (ECU) with diagnostic equipment. They play a critical role in modern automotive diagnostics by enabling fault detection, real-time performance monitoring, and efficient data transmission. These harnesses serve as essential conduits, allowing technicians to access and interpret vehicle data for troubleshooting and maintenance.
The diagnostic harness equipped with a standard OBD II interface is widely compatible with most models around the world, including sedans, SUVs and trucks. Support for OBDII protocol ensures easy connection to the vehicle ECU for fault diagnosis, data reading and repair.
Supports multiple OBD harness types, including 16-pin and 22pin configurations, making it ideal for specialty, older, and diverse vehicles.Ensures reliable connectivity for advanced tasks like ECU reflashing, system programming, and compatibility with unique vehicle protocols.
Features a flexible, bendable design for this OBD extension cable, with an optimal ength for easy connection between OBD scan tools and vehicle ports. Perfect for tight spaces, it ensures stable signal transmission, catering to DIY enthusiasts and professional technicians alike.
OBD pin assignments define each pin??s function on an OBD connector for vehiclediagnostic tool communication.
OBD cables, such as 16-pin OBD2 and multi-pin adapters (e.g., 22-pin), are critical for vehicle diagnostics, enabling communication between diagnostc tools and a vehicle??s ECU. Their key applications include:
Fault Diagnosis: Reading and clearing fault codes to identify and fix vehicle issues.
RealTime Data Monitoring: Tracking live data like engine performance, fuel efficiency, and sensor readings.
System Repairs & Programming: Supporting ECU reflashing, system programmng, and custom diagnostics for advanced repairs.
| 1st Connector | OBD2 Female |
||
|---|---|---|---|
| 1st Connector Number of Positions | 16 Pin |
||
| 1st Connector Orientation | Straight |
||
| Cable length | 20cm |
||
| Cable Color | Black |
||
| Cable Type | Round |
||
| Operating Temperature | -10 to +80（℃） |
||
| 1st Connector | OBD2 Female |
1st Connector Number of Positions | 16 Pin |
| 1st Connector Orientation | Straight |
Cable length | 20cm |
| Cable Color | Black |
Cable Type | Round |
| Operating Temperature | -10 to +80（℃） |
| Application | Automobiles |
|---|---|
| Application | Automobiles |
| 1st Connector | OBD2 Female |
|---|---|
| 1st Connector Number of Positions | 16 Pin |
| 1st Connector Orientation | Straight |
| Cable length | 20cm |
| Cable Color | Black |
| Cable Type | Round |
| Operating Temperature | -10 to +80（℃） |
| Application | Automobiles |
