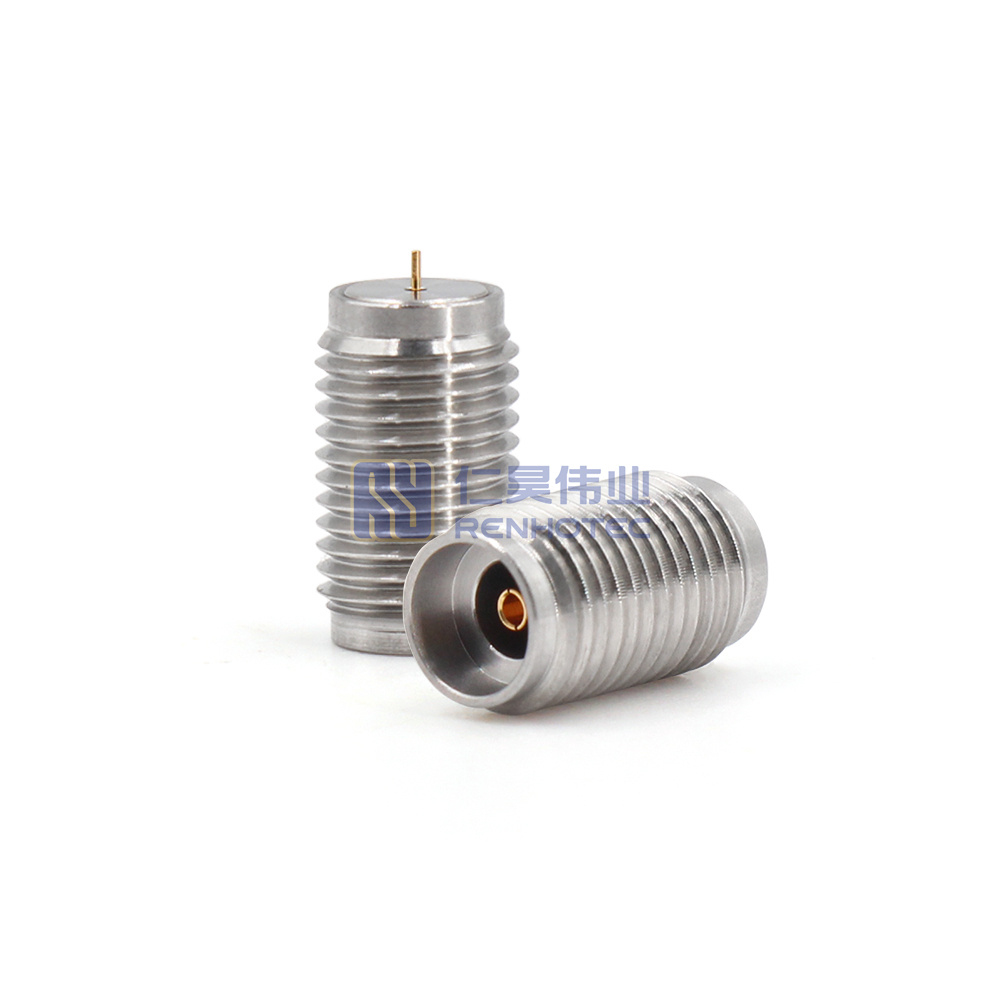

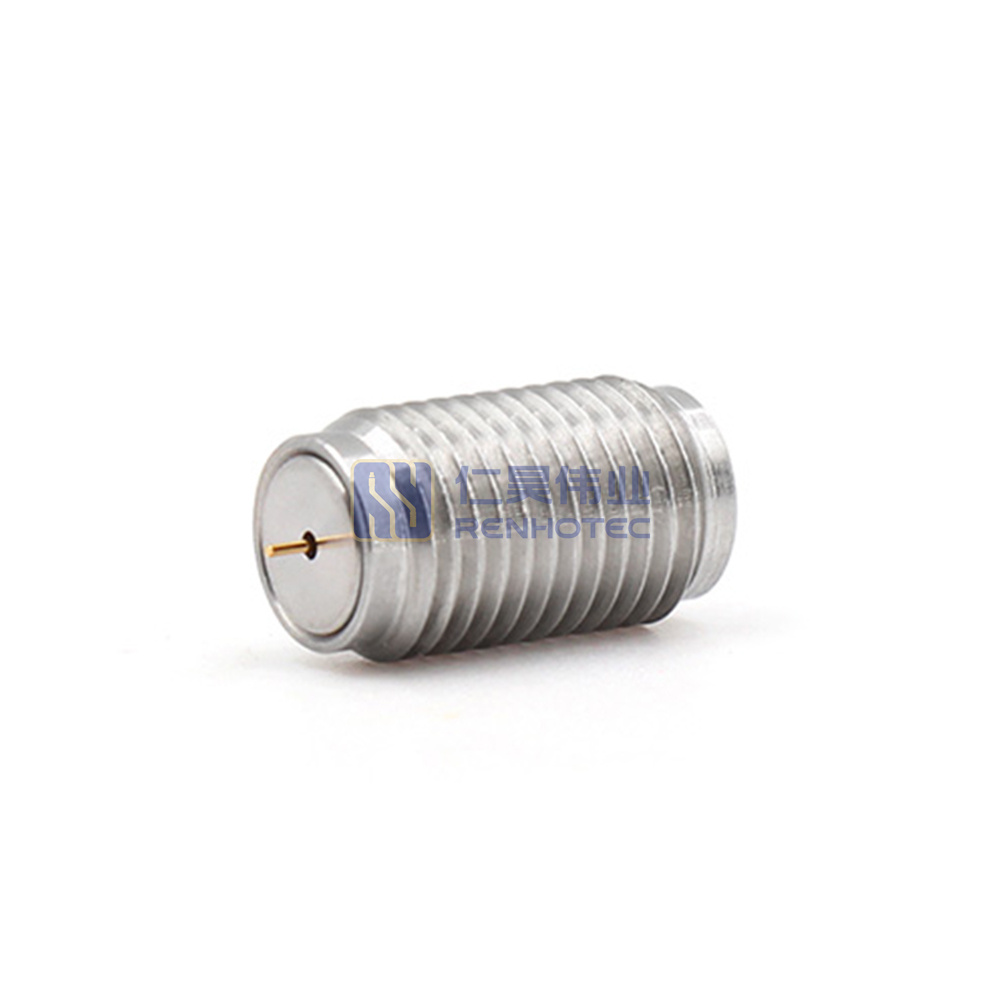

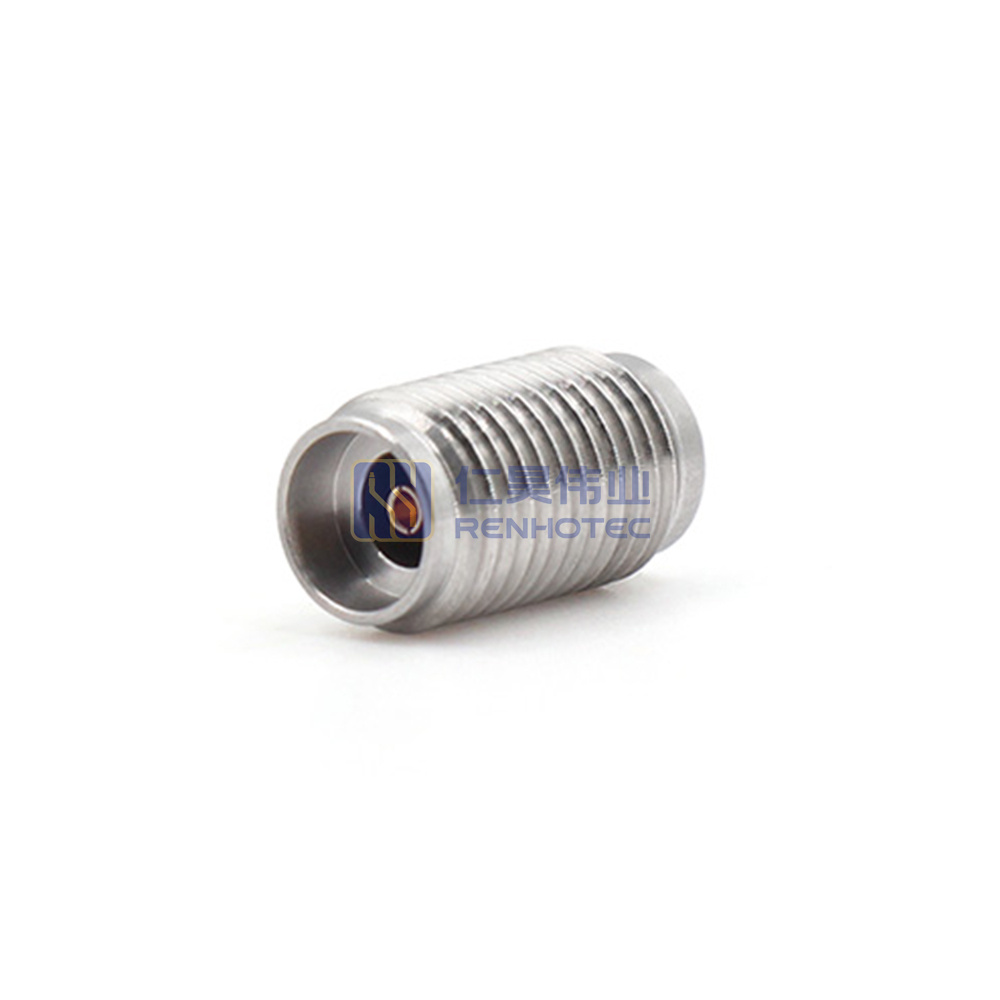

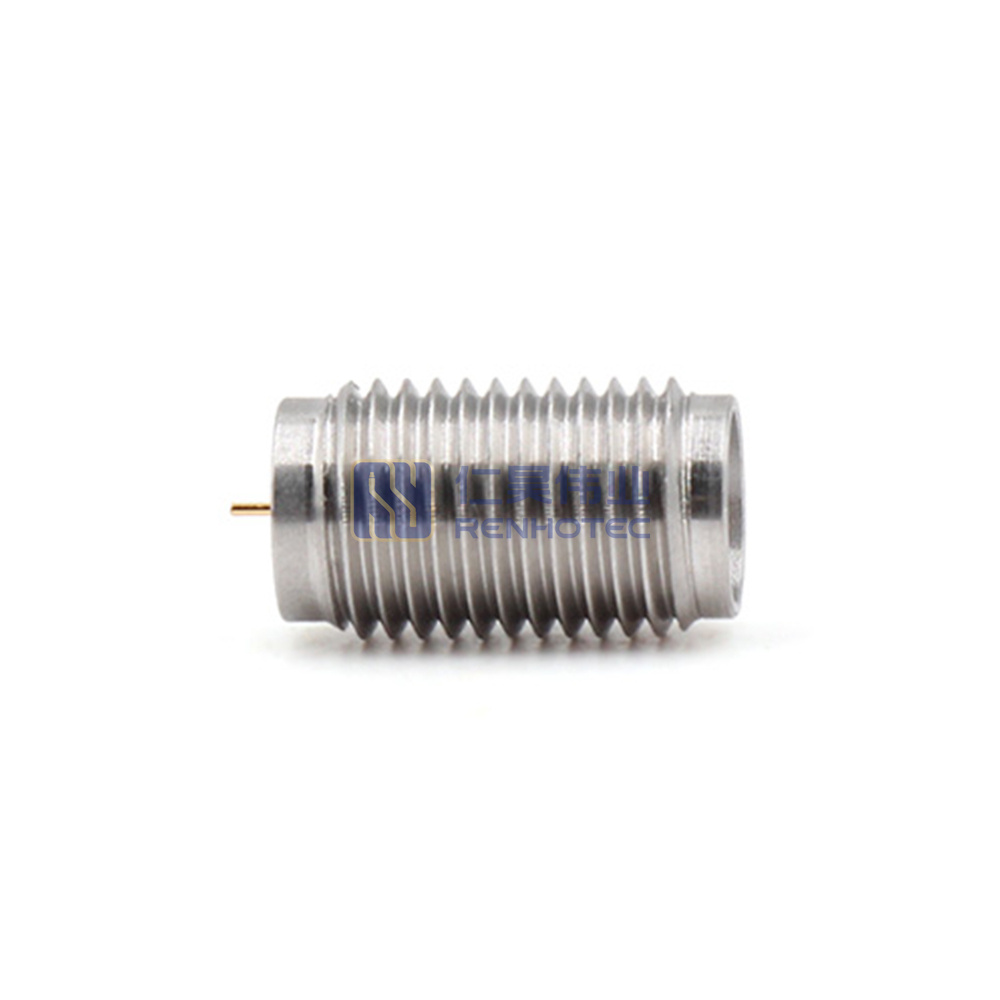

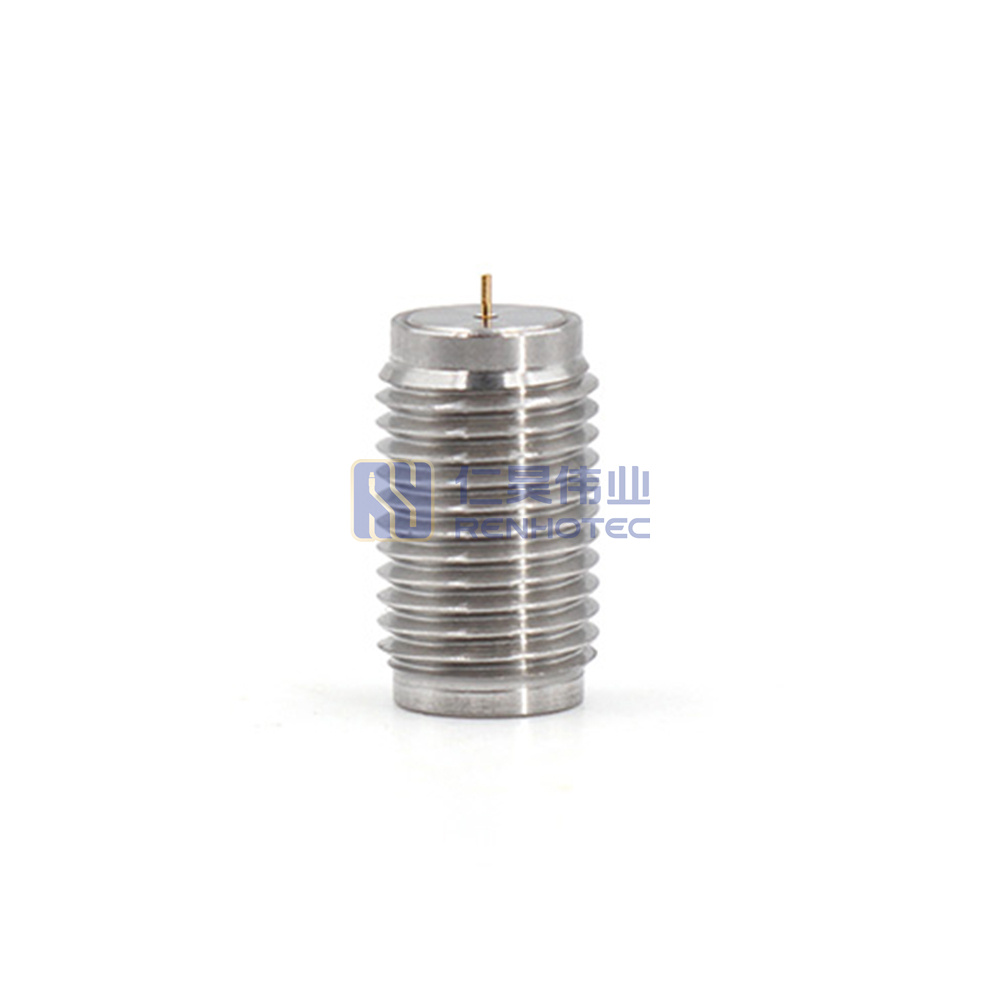

2.92mm Female High Frequency RF Connectors DC-40GHz Stainless Steel Material – RHT-29FD12Y02-047M

The 2.92mm connector, also known as a K connector, is a precision coaxial connector used in high-frequency applications. Known for its excellent electrical performance and mechanical stability, this connector operates at frequencies up to 40 GHz, making it suitable for microwave and high-speed digital applications. The 2.92mm connector features a bayonet coupling mechanism for quick and secure mating, ensuring reliable connections in critical applications such as telecommunications, test and measurement equipment, and laboratory setups. Its small size and high-frequency capabilities make it a preferred choice for engineers and technicians working with advanced RF systems.

• High performance up to 40 GHz
• Low VSWR
• Excellent return loss and insertion loss
• Ruggedized construction for repeatability
• Compitable to mate with SMA, 3.5 mm and other K or 2.92 mm connectors

Cable Mount

Panel Mount

2.92mm Adaptor

5G mmWave Networks and Communications Infrastructure

Wireless Network Antenna

High-frequency, small cell-based wireless access points

Radar

Test and measurement instrumentation

High-speed, SATCOM, and instrumentation applications

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods
