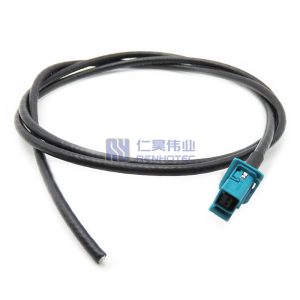

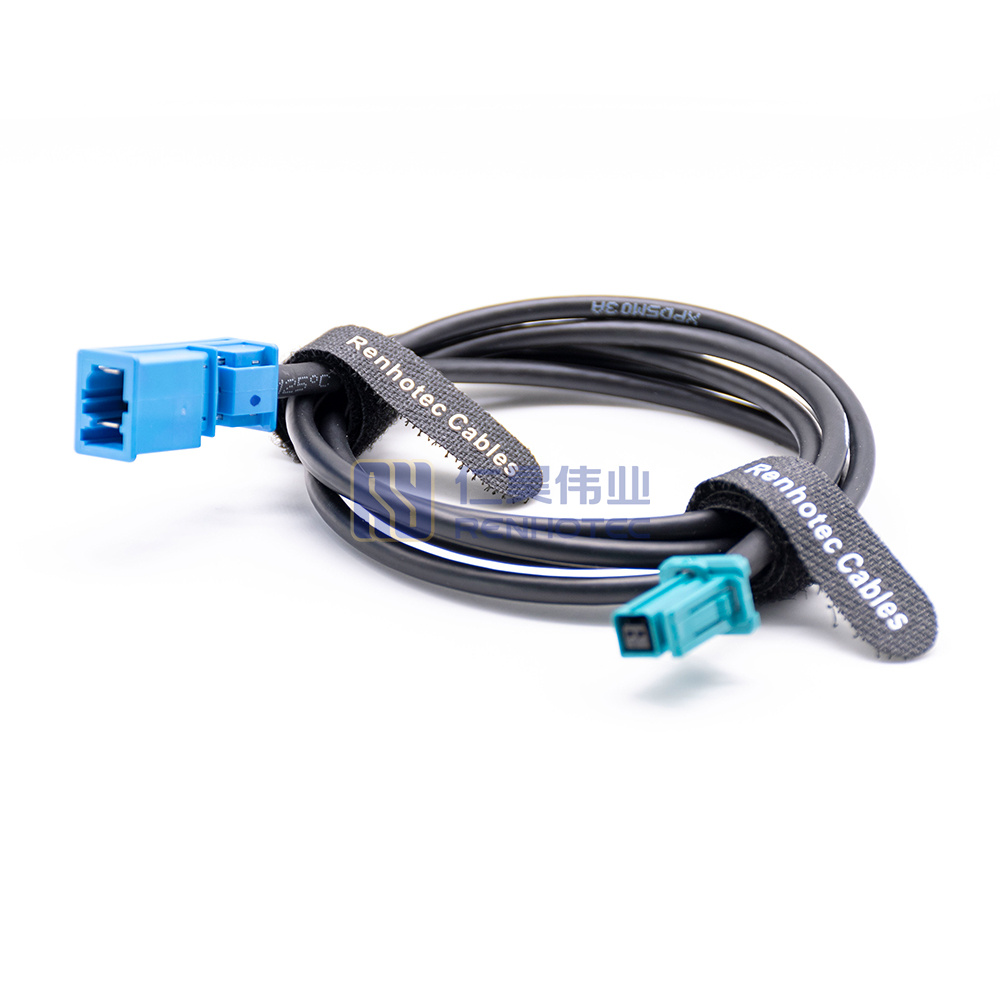

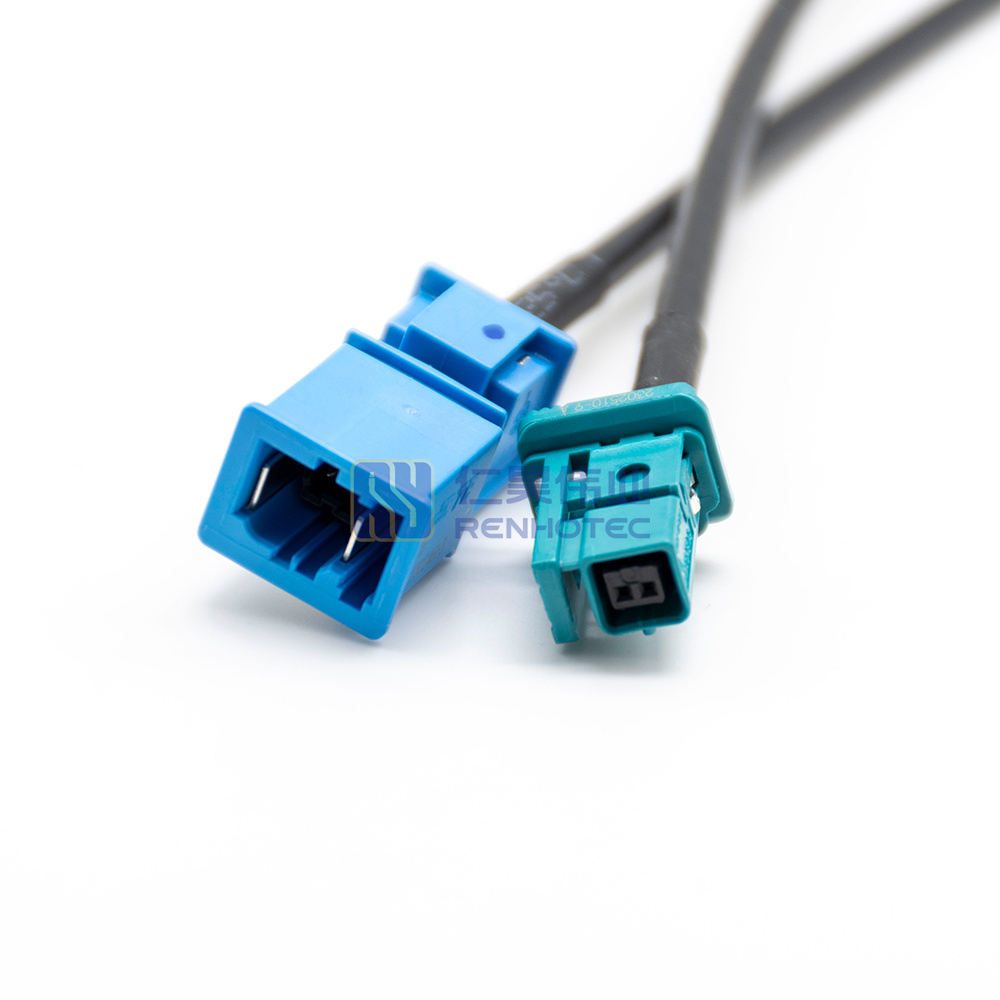

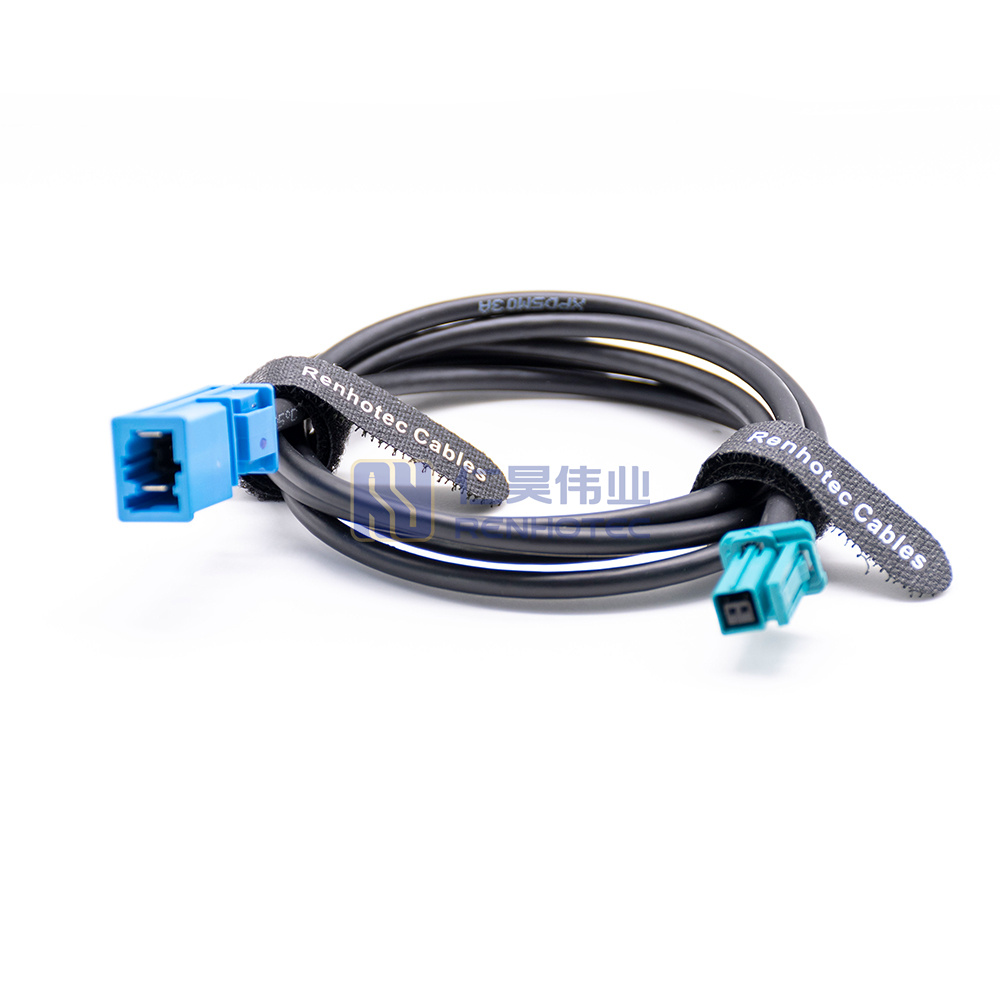

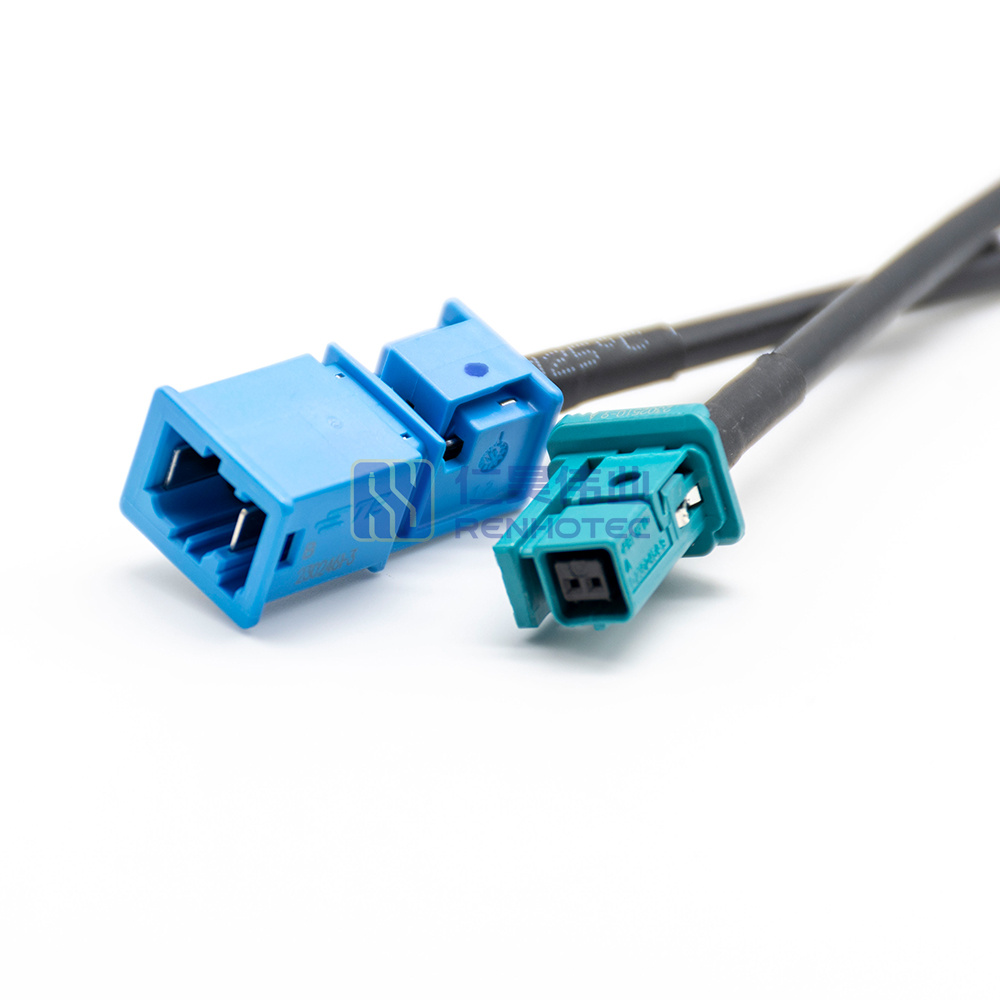

2302510-9 Automotive Ethernet Cable Assemblies,C Code Male to Z Code Female

  • Primary and secondary lock
  • High cable retention force
  • High coding efficiency (different codings on plastichousings to avoid misconnections)
  • No contact pin damage possible
  • Optional Connector Position Assurance (CPA)

Automotive Ethernet Cable Assemblies

Automotive Ethernet Cable Assemblies are modular and scalable miniaturized data connector system for Automotive Ethernet. It can transmit up to 1?Gbps according to IEEE 100BASE-T1 and 1000BASE-T1 standards, and up to 4?Gbps, based on alternative technologies. It offers true automotive robustness and is compatible with both unshielded Twisted Pair (UTP) and Shielded Twisted Pair (STP) variants.

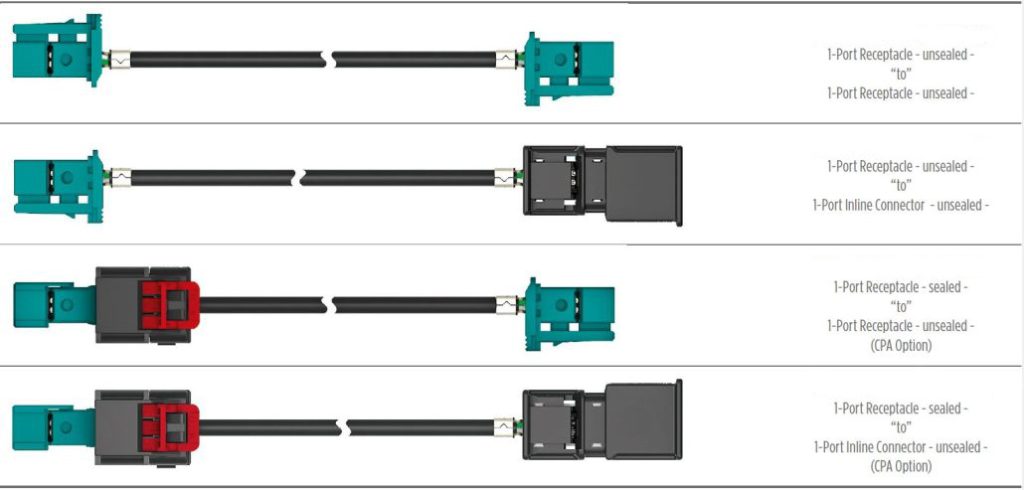

Automotive Ethernet Cable Assemblies offer 600mm to 10m cable lengths and female/female, male, and male/male gender options. These cable assemblies include no connector, plug, receptacle, and socket connector ends. Automotive Ethernet Cable Assemblies are Miniaturized Automotive Terminals for Ethernet applications.

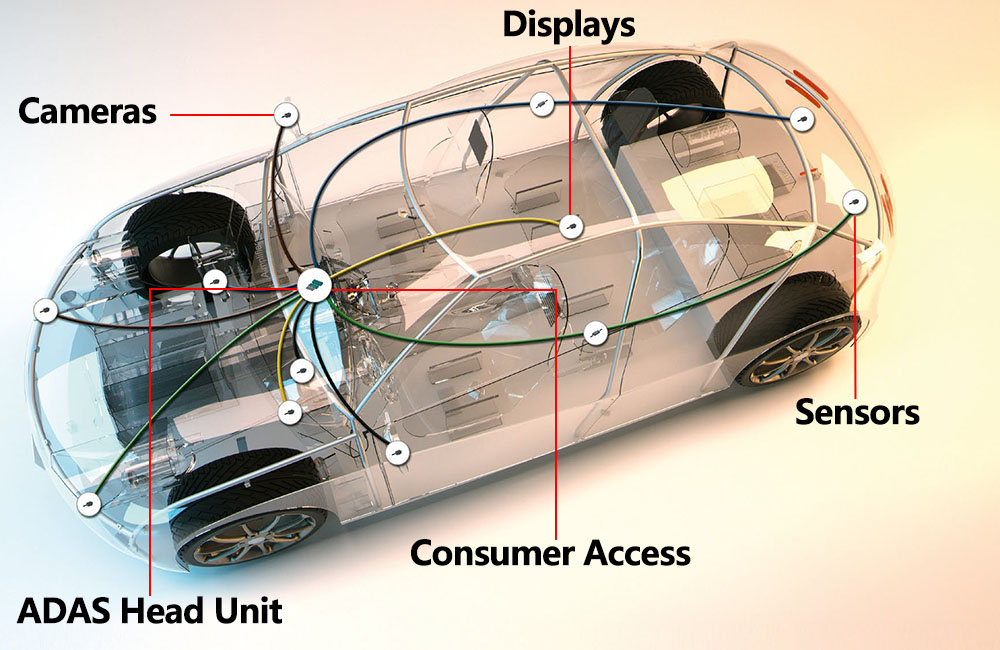

Application

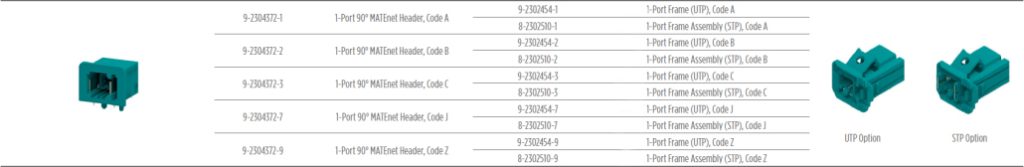

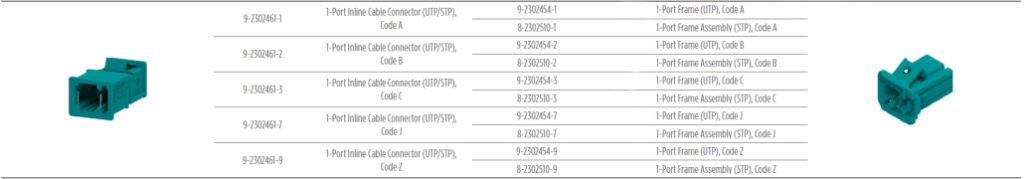

Product Portfolio Overview

Automotive Ethernet Cable Assemblies

Product Specification

1st Connector

2302510-9, Z Code
1st Contact Type

Female Pin
1st Connector Orientation

Straight
2nd Connector

2302461-3, C Code
2nd Contact Type

Male Pin
2nd Connector Orientation

Straight
Plastic Housing

PA, PBT
Contact Material

Copper
Insulator Material

PA, LCP
Impedance

100 ohm
1st Connector

2302510-9, Z Code

 1st Contact Type

Female Pin
1st Connector Orientation

Straight

 2nd Connector

2302461-3, C Code
2nd Contact Type

Male Pin

 2nd Connector Orientation

Straight
Plastic Housing

PA, PBT

 Contact Material

Copper
Insulator Material

PA, LCP

 Impedance

100 ohm
1st Connector

2302510-9, Z Code
1st Contact Type

Female Pin
1st Connector Orientation

Straight
2nd Connector

2302461-3, C Code
2nd Contact Type

Male Pin
2nd Connector Orientation

Straight
Plastic Housing

PA, PBT
Contact Material

Copper
Insulator Material

PA, LCP
Impedance

100 ohm
Drawing for 2302510-9 Automotive Ethernet Cable Assemblies C Code Male to Z Code FemaleDownload

Looking for a Bulk Order Quotation?

You've come to the right place! Simply fill out the form below and our dedicated team will get back to you with a comprehensive quote within one business day.
