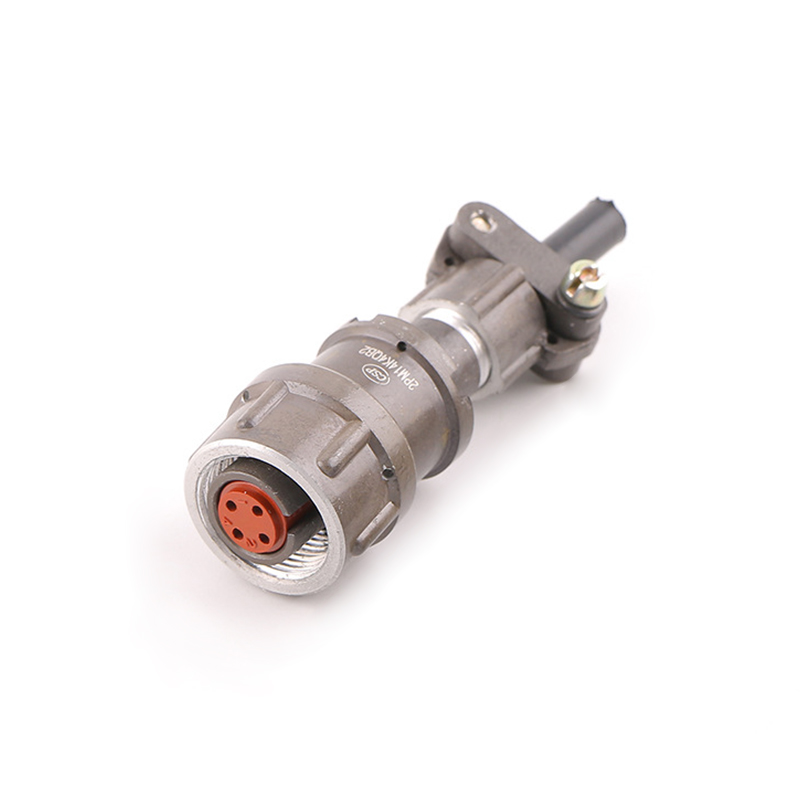

2PM14K4QB2 4-Pin Circular Connector for Russian 2PM Standard

  • Robust: Built to Russian military specs for extreme conditions. Machined brass shell and precious metal contacts.
  • High contact density: Up to 37 gold or silver-plated contacts in a small circular interface. Enables power/signal transmission between armored vehicles, aircraft and weapons.
  • Keyed and locked: Shell is keyed and thread-locked to prevent disconnection under heavy vibration. Ensures proper mating even in low visibility.
  • Environmentally sealed: Meet IP68, immersible to 200m. Silicone/polyurethane seals block moisture, oils, chemicals from -60°C to +125°C.
  • 5Customizable: Available with alternative platings (gold, silver), insulations (PTFE,PEI), inserts (fiber optic), protections (EMI/RFI shielding) and mounts (cable, panel) for specialized military uses.

About Russian Standard 2PM Connector

2PM series connector mainly adopts the technology of Russian connector, which is widely used in electrical connection and signal transmission between equipment, and its unique shape and structure design can make up some defects in use of many other similar connectors, such as the unique design of the shell threading hole and the tail screw, make it more convenient and scientific to use. The structural design of the internal insulator and pin socket also enhances its unique stability and reliability. This series of connectors also has a certain waterproof performance, which can prevent outdoor rain and other phenomena. Now there are mainly 2PM14-4, 2PM18 -4, 2PM18-7 and other specifications, its special structure and performance have won the general recognition of the market.

2PM Connector

How to Choose

2PM14

2PM14

2PM18

2PM18

2PM22

2PM22

2PM24

2PM24

2PM27

2PM27

2PM30

2PM30

Detail-10

How to Order

How to Order

Dimensions

Product Specification

Connector Type

Plug
Orientation

Straight
Contact Type

Female Pin
Number of Ports

4
Fastening Type

Threaded
Mounting Type

Cable Mount
Mounting Feature

–
Contact Termination Style

Solder
Shell Material

Aluminum Alloy
Shell Finish

Anodizing
Insulator Material

Rubberwood PBT
Contact Material

Brass
Contact Finish

Silver Plated
Rated Voltage

400V
Temperature Range

-60°C~+150°C
Connector Type

Plug

 Orientation

Straight
Contact Type

Female Pin

 Number of Ports

4
Fastening Type

Threaded

 Mounting Type

Cable Mount
Mounting Feature

–

 Contact Termination Style

Solder
Shell Material

Aluminum Alloy

 Shell Finish

Anodizing
Insulator Material

Rubberwood PBT

 Contact Material

Brass
Contact Finish

Silver Plated

 Rated Voltage

400V
Temperature Range

-60°C~+150°C

Specifications

Shielding

Unshielded
Shielding

Unshielded
Connector Type

Plug
Orientation

Straight
Contact Type

Female Pin
Number of Ports

4
Shell Size

2PM14
Fastening Type

Threaded
Mounting Type

Cable Mount
Mounting Feature

–
Contact Termination Style

Solder
Shell Material

Aluminum Alloy
Shell Finish

Anodizing
Insulator Material

Rubberwood PBT
Contact Material

Brass
Contact Finish

Silver Plated
Shielding

Unshielded
Rated Voltage

400V
Rated Current

5A
Temperature Range

-60°C~+150°C
