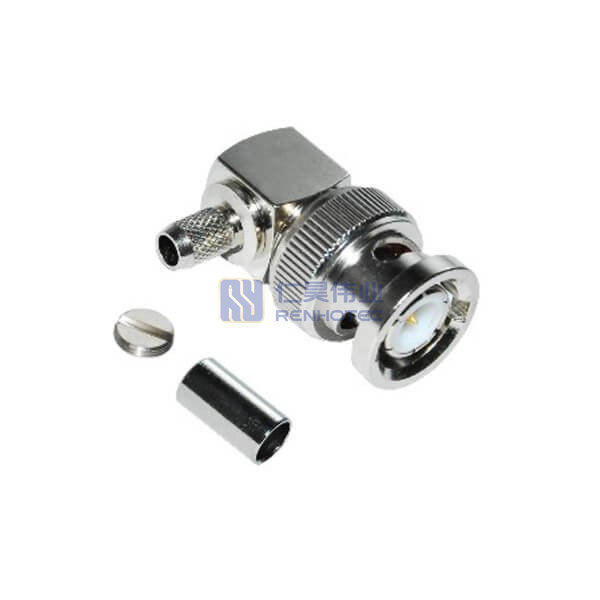

BNC Connector Right Angle Male Cable Type RG316 50 Ohm – RHT-610-0076

Ensure seamless connectivity with this high-quality BNC Connector Right Angle Male Cable Type RG316 50 Ohm. SKU: RHT-610-0076. Designed for reliable performance and durability.

BNC RF Connectors are used in surveillance projects for the output of camera equipment when the wire and the camera connection head. It is composed of five independent signal connectors for RGB three primary colors signal and line synchronization and field synchronization. BNC RF Connectors can isolate the video input signal, so that the signal interference between each other is reduced and the signal bandwidth , so that the best signal response can be achieved. Because coaxial cable is a shielded cable with the advantages of long transmission distance and signal stability, BNC RF Connectors are now also used in a large number of communication systems.

Compact Design for less installation space required

Bayonet coupling mechanism provides positive, quick mating and un-mating

50 and 75 ohm irpedance desighs allowcustomers to matchimpedance to system requirements

Desians available for many common BNC coaxial cable types

Complete Variety

BNC Cable Connector

Crimp Type

Solder Type

Compression Type

Twist-on Type

BNC PCB/Panel Connector

Through Hole

Edge Mount

SMT Type

Bulkhead Type

Product Application

Instrumentation

Computer/LAN

Satellite Communications

Automotive/ Aerospace

Broadcasting

Cable Modems

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

After sales system

Actively follow up andpromptly address anyissues

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

BNC Type
Connector Type

Plug
Contact Type

Male Pin
Orientation

Right Angle
Fastening Type

Bayonet
Number of Ports

1
Contact Termination Style

Solder
Shield Termination

Crimp
Impedance

50 ohm
Mounting Type

Cable Mount
Insulator Material

Teflon White
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Contact Material

Copper Alloy
Contact Finish

Gold Plated
Frequency Range

0-4 GHz for 50 ohm
VSWR

R/A type ≦ 1.30/3GHz, Straight type ≦ 1.22/3GHz
Dielectric Withstanding Voltage

1500 V rms
Working Voltage

500 V rms
Center Contact Resistance

≦ 1.5 MΩ (Milliohms Max.)
Outer Contact Resistance

≦ 2.0 MΩ (Milliohms Max.)
Insultation Resistance

≥5 × 10³MΩ (Milliohms min.)
Mating Durability

≥ 500 Cycles
Environmental Characteristics

POM -40℃~+60℃, Teflon -55℃~+155℃
RF Series

BNC Type

 Connector Type

Plug
Contact Type

Male Pin

 Orientation

Right Angle
Fastening Type

Bayonet

 Number of Ports

1
Contact Termination Style

Solder

 Shield Termination

Crimp
Impedance

50 ohm

 Mounting Type

Cable Mount
Insulator Material

Teflon White

 Shell Material

Copper Alloy
Shell Finish

Nickel Plated

 Contact Material

Copper Alloy
Contact Finish

Gold Plated

 Frequency Range

0-4 GHz for 50 ohm
VSWR

R/A type ≦ 1.30/3GHz, Straight type ≦ 1.22/3GHz

 Dielectric Withstanding Voltage

1500 V rms
Working Voltage

500 V rms

 Center Contact Resistance

≦ 1.5 MΩ (Milliohms Max.)
Outer Contact Resistance

≦ 2.0 MΩ (Milliohms Max.)

 Insultation Resistance

≥5 × 10³MΩ (Milliohms min.)
Mating Durability

≥ 500 Cycles

 Environmental Characteristics

POM -40℃~+60℃, Teflon -55℃~+155℃
RF Series

BNC Type
Connector Type

Plug
Contact Type

Male Pin
Orientation

Right Angle
Fastening Type

Bayonet
Number of Ports

1
Contact Termination Style

Solder
Shield Termination

Crimp
Impedance

50 ohm
Mounting Type

Cable Mount
Insulator Material

Teflon White
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Contact Material

Copper Alloy
Contact Finish

Gold Plated
Frequency Range

0-4 GHz for 50 ohm
VSWR

R/A type ≦ 1.30/3GHz, Straight type ≦ 1.22/3GHz
Dielectric Withstanding Voltage

1500 V rms
Working Voltage

500 V rms
Center Contact Resistance

≦ 1.5 MΩ (Milliohms Max.)
Outer Contact Resistance

≦ 2.0 MΩ (Milliohms Max.)
Insultation Resistance

≥5 × 10³MΩ (Milliohms min.)
Mating Durability

≥ 500 Cycles
Environmental Characteristics

POM -40℃~+60℃, Teflon -55℃~+155℃

Yes, HD-BNC connectors provide higher clarity and better performance. HD-SDI also includes Mini SDI, which is smaller in size and can save space.

50-ohm BNC connectors are the most common and are suitable for most general applications, typically used in high-frequency ranges.

75-ohm BNC connectors usually provide better performance in lower frequency ranges, such as in television broadcasting and radio frequency spectrum analysis.

Ensure that the connector is fully inserted and locked by rotating it. Make sure the connection point is clean, free from dirt or oxidation, and use high-quality connectors and appropriate tools.

Nickel-plated BNC connectors are widely used in various general environments. They offer good cost-effectiveness, excellent corrosion resistance, and durability, but have higher signal loss in high-frequency applications compared to gold-plated ones.

Gold-plated BNC connectors have superior conductivity and oxidation resistance, but are more expensive.

Brass: Excellent conductivity, corrosion resistance, durability, and ease of machining. Costs slightly higher than zinc alloy.

Zinc Alloy: Lightweight and cost-effective. Conductivity and corrosion resistance are slightly lower than brass.

For harsh environments, brass BNC connectors are recommended.
