Do you offer HD-SDI BNC connectors?

Yes, HD-BNC connectors provide higher clarity and better performance. HD-SDI also includes Mini SDI, which is smaller in size and can save space.

What are the differences between 50Ω and 75Ω BNC connectors?

50-ohm BNC connectors are the most common and are suitable for most general applications, typically used in high-frequency ranges. 75-ohm BNC connectors usually provide better performance in lower frequency ranges, such as in television broadcasting and radio frequency spectrum analysis.

How to ensure the correct installation and reliability of BNC connectors?

Ensure that the connector is fully inserted and locked by rotating it. Make sure the connection point is clean, free from dirt or oxidation, and use high-quality connectors and appropriate tools.

What are the advantages and disadvantages of nickel-plated and gold-plated BNC connectors?

Nickel-plated BNC connectors are widely used in various general environments. They offer good cost-effectiveness, excellent corrosion resistance, and durability, but have higher signal loss in high-frequency applications compared to gold-plated ones. Gold-plated BNC connectors have superior conductivity and oxidation resistance, but are more expensive.

What are the advantages and disadvantages of brass and zinc alloy BNC connectors?

Brass: Excellent conductivity, corrosion resistance, durability, and ease of machining. Costs slightly higher than zinc alloy. Zinc Alloy: Lightweight and cost-effective. Conductivity and corrosion resistance are slightly lower than brass. For harsh environments, brass BNC connectors are recommended.

SKU: RHT-610-1044 Categories: BNC Connector, RF Connectors Datasheet

Authorized Sellers

Request for Quotation

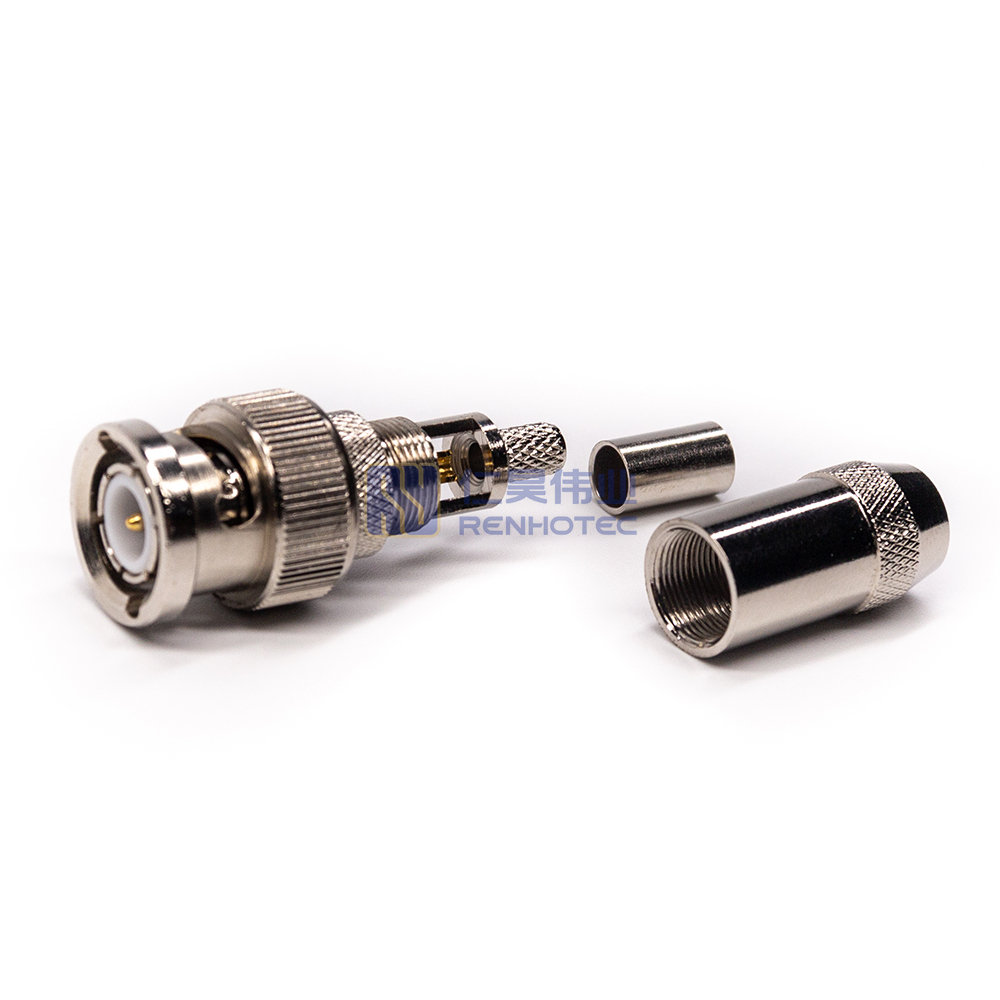

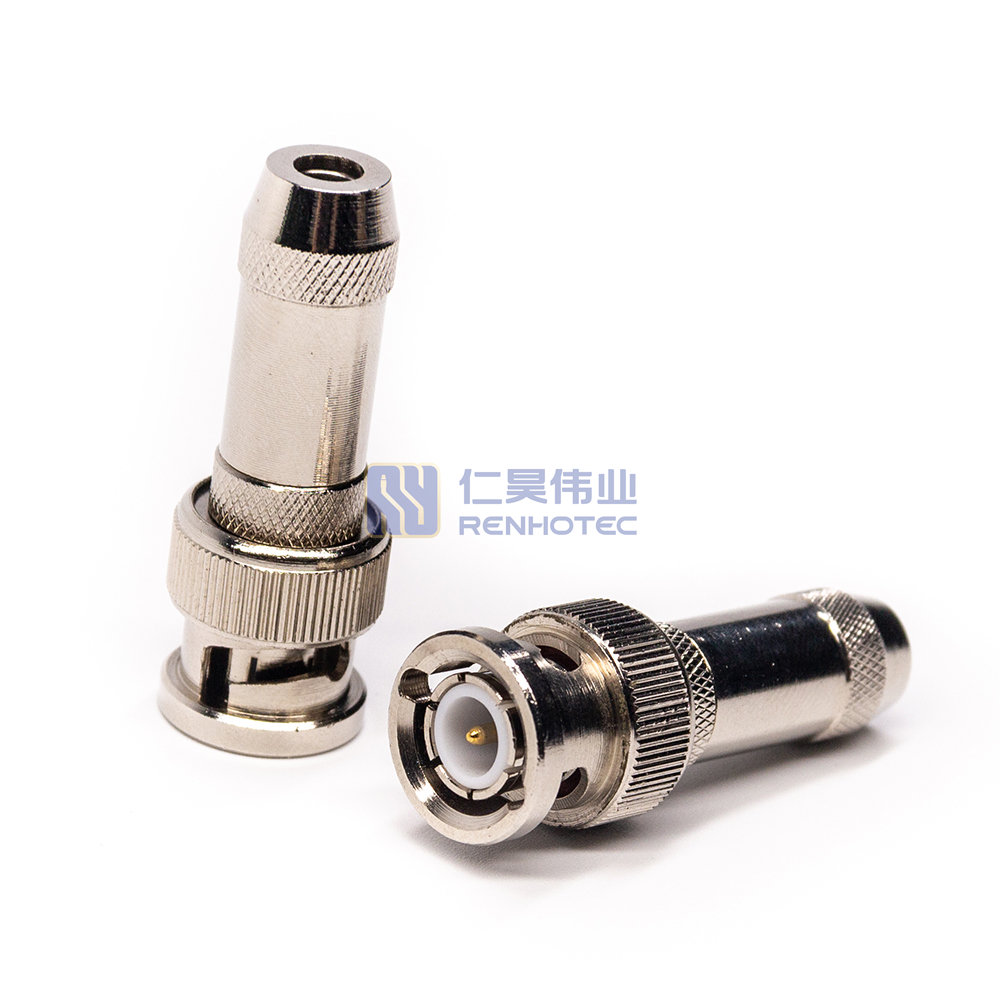

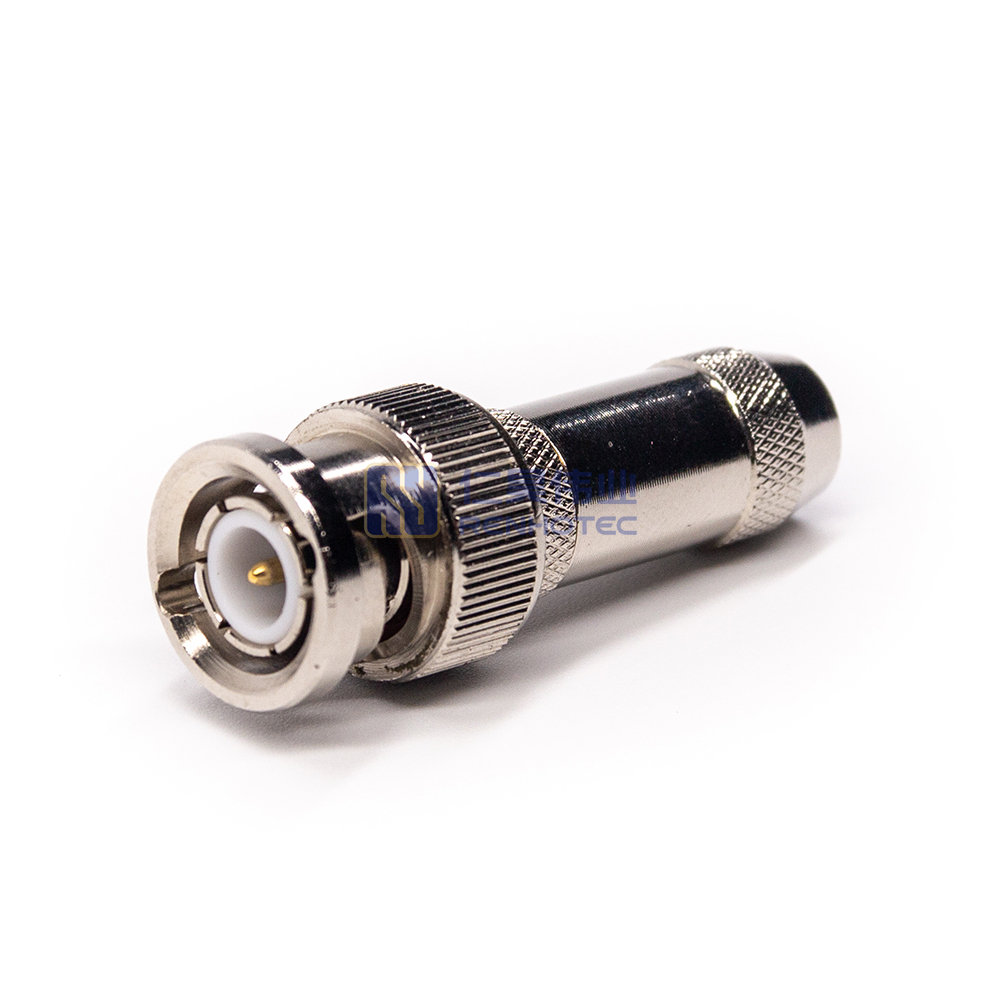

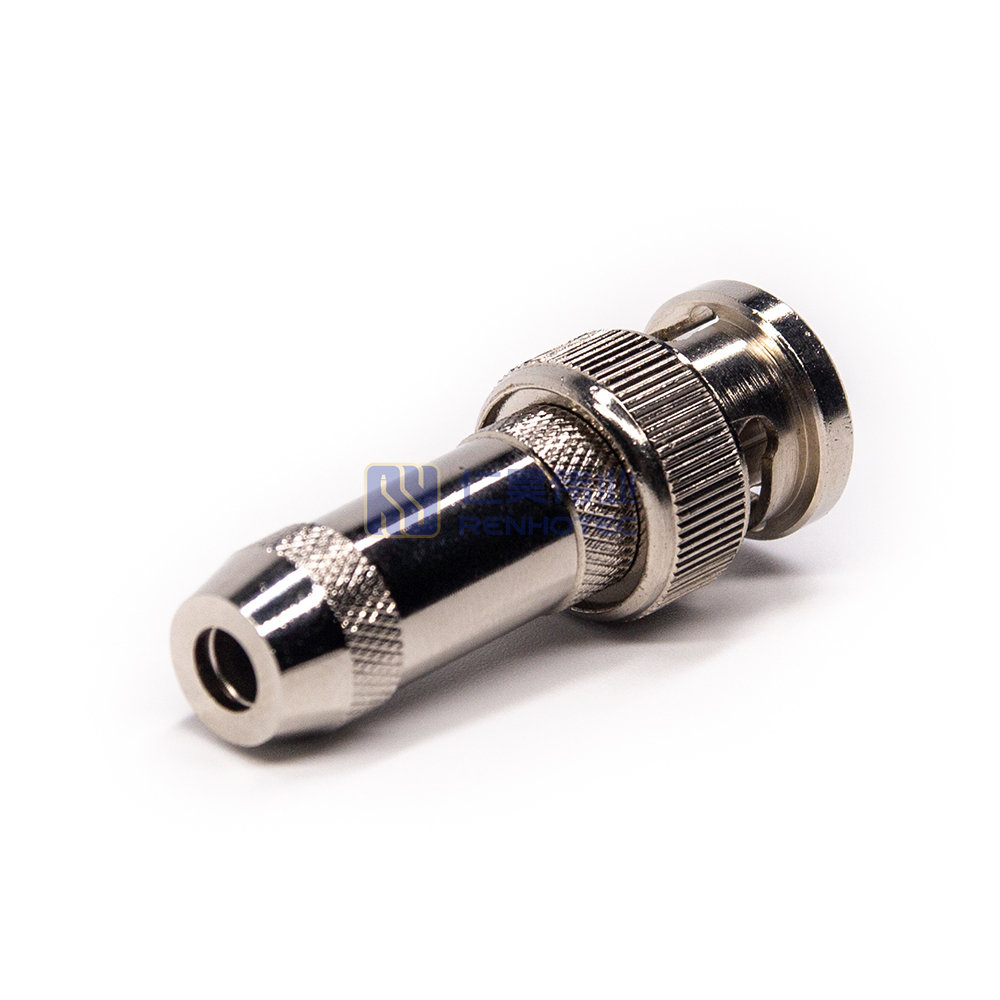

BNC Connector Straight Male Plug Cable RG316 50 Ohm – RHT-610-1044

Ensure seamless connectivity with the BNC Connector Straight Male Plug Cable RG316 50 Ohm – RHT-610-1044. This high-quality cable features a straight male plug design and 50 Ohm resistance for optimal performance. Ideal for various electronic applications, this connector ensures reliable signal transmission.

BNC Coaxial Connectors

Own factory

Support customization

Real shooting

STRICTLY SELECT MATERIALS AND GUARD DETAILS

BNC RF Connectors are used in surveillance projects for the output of camera equipment when the wire and the camera connection head. It is composed of five independent signal connectors for RGB three primary colors signal and line synchronization and field synchronization. BNC RF Connectors can isolate the video input signal, so that the signal interference between each other is reduced and the signal bandwidth , so that the best signal response can be achieved. Because coaxial cable is a shielded cable with the advantages of long transmission distance and signal stability, BNC RF Connectors are now also used in a large number of communication systems.

Compact Design for less installation space required
