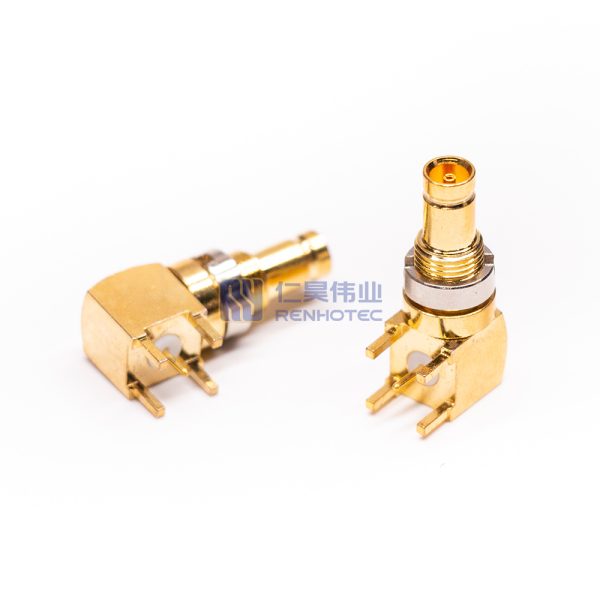

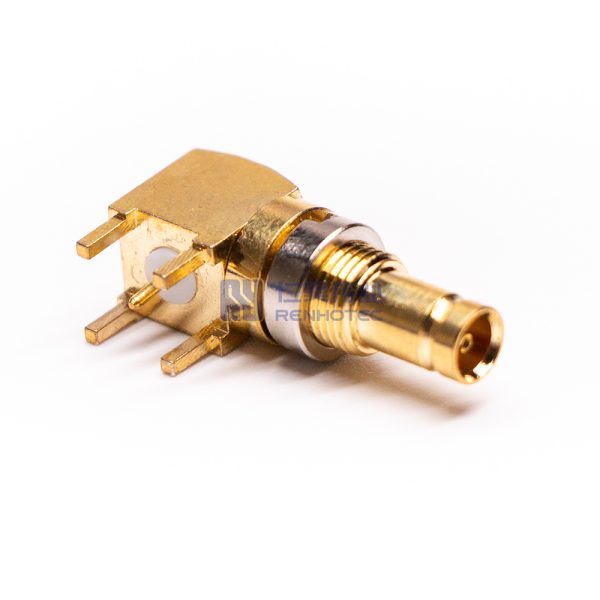

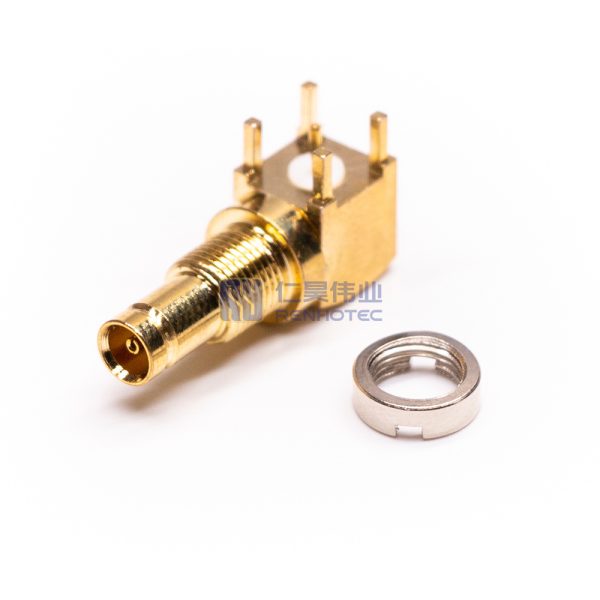

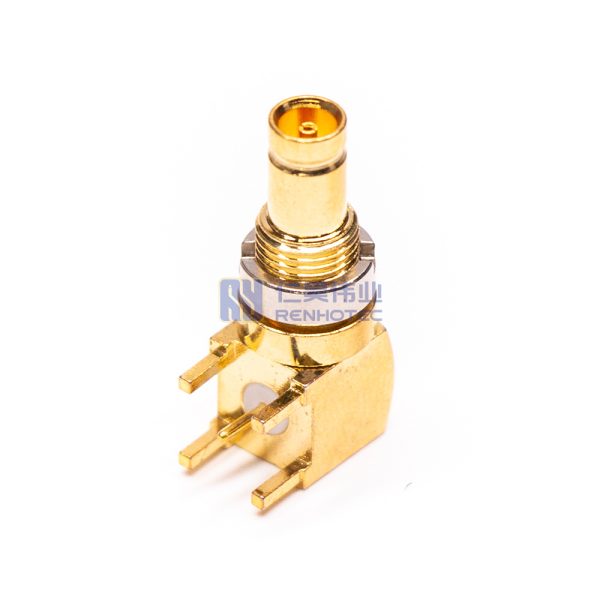

DIN 1.0/2.3 Connector Right Angle Jack Solder Panel Mount 75ohm – RHT-618-0725

High-quality DIN 1.0/2.3 Connector Right Angle Jack suitable for panel mounting. Features a 75ohm impedance. Designed for dependable and secure connections. Ideal for various audio and video applications requiring reliable signal transmission.

The 1.0-2.3 connector series was originally launched by the European Telecommunications Market in the 1990s. Compact design allows dense connector packaging, which is an ideal solution for applications with space constraints. It has 50 Ω and 75 Ω impedance for choice and is compatible with the most widely used cable sizes. The push/pull lock and release feature makes it really easy to use.

DIN 1.0-2.3 connectors are available to perform at 50 ohm with a maximum frequency of 10 GHz. As well as 75 ohm with a maximum frequency of 4 GHz. These performance specifications support high data rates for AES Audio, SD video, HD video, 3Gb/s video, and other high-density digital broadcast formats.

Interface

Product Specification

RF Series

DIN 1.0/2.3
Connector Type

Jack
Orientation

Right Angle
Contact Type

Female Pin
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Fastening Type

Snap On
Number of Ports

1
Impedance

75 ohm
Frequency Range

DC-3 GHz for 75 ohm, DC-10 GHz for 50 ohm
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Insulator Material

PTFE
Contact Material

Brass
Contact Finish

Gold Plated
Temperature Range

-65°C to +165°C
Mating Durability

≥ 500 Cycles
Insultation Resistance

10000MΩ Min
Rated Voltage

250 Volts RMS Max Continuous
Dielectric Withstanding Voltage

750 VRMS Max
RF Series

DIN 1.0/2.3

 Connector Type

Jack
Orientation

Right Angle

 Contact Type

Female Pin
Contact Termination Style

Solder

 Shield Termination

Solder
Mounting Type

Panel Mount

 Mounting Feature

Through Hole
Fastening Type

Snap On

 Number of Ports

1
Impedance

75 ohm

 Frequency Range

DC-3 GHz for 75 ohm, DC-10 GHz for 50 ohm
Shell Material

Copper Alloy

 Shell Finish

Gold Plated
Insulator Material

PTFE

 Contact Material

Brass
Contact Finish

Gold Plated

 Temperature Range

-65°C to +165°C
Mating Durability

≥ 500 Cycles

 Insultation Resistance

10000MΩ Min
Rated Voltage

250 Volts RMS Max Continuous

 Dielectric Withstanding Voltage

750 VRMS Max
RF Series

DIN 1.0/2.3
Connector Type

Jack
Orientation

Right Angle
Contact Type

Female Pin
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Fastening Type

Snap On
Number of Ports

1
Impedance

75 ohm
Frequency Range

DC-3 GHz for 75 ohm, DC-10 GHz for 50 ohm
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Insulator Material

PTFE
Contact Material

Brass
Contact Finish

Gold Plated
Temperature Range

-65°C to +165°C
Mating Durability

≥ 500 Cycles
Insultation Resistance

10000MΩ Min
Rated Voltage

250 Volts RMS Max Continuous
Dielectric Withstanding Voltage

750 VRMS Max
