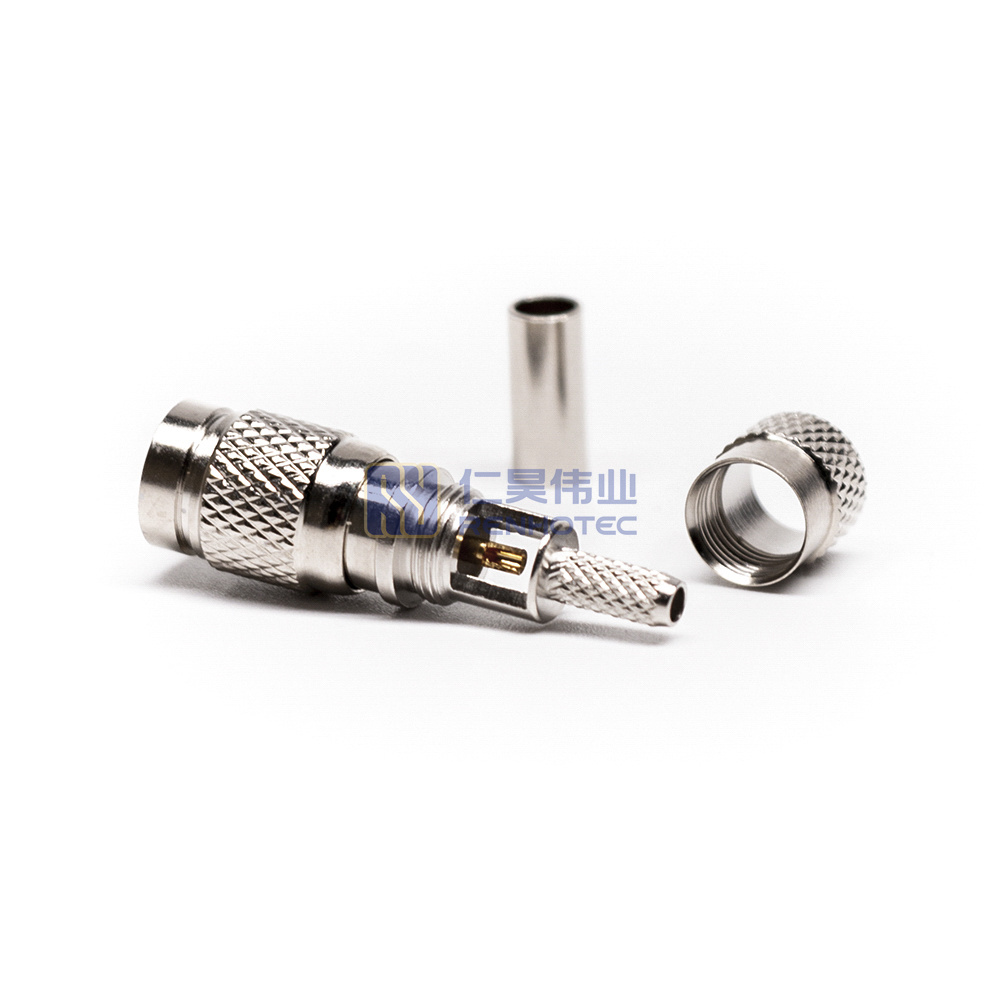

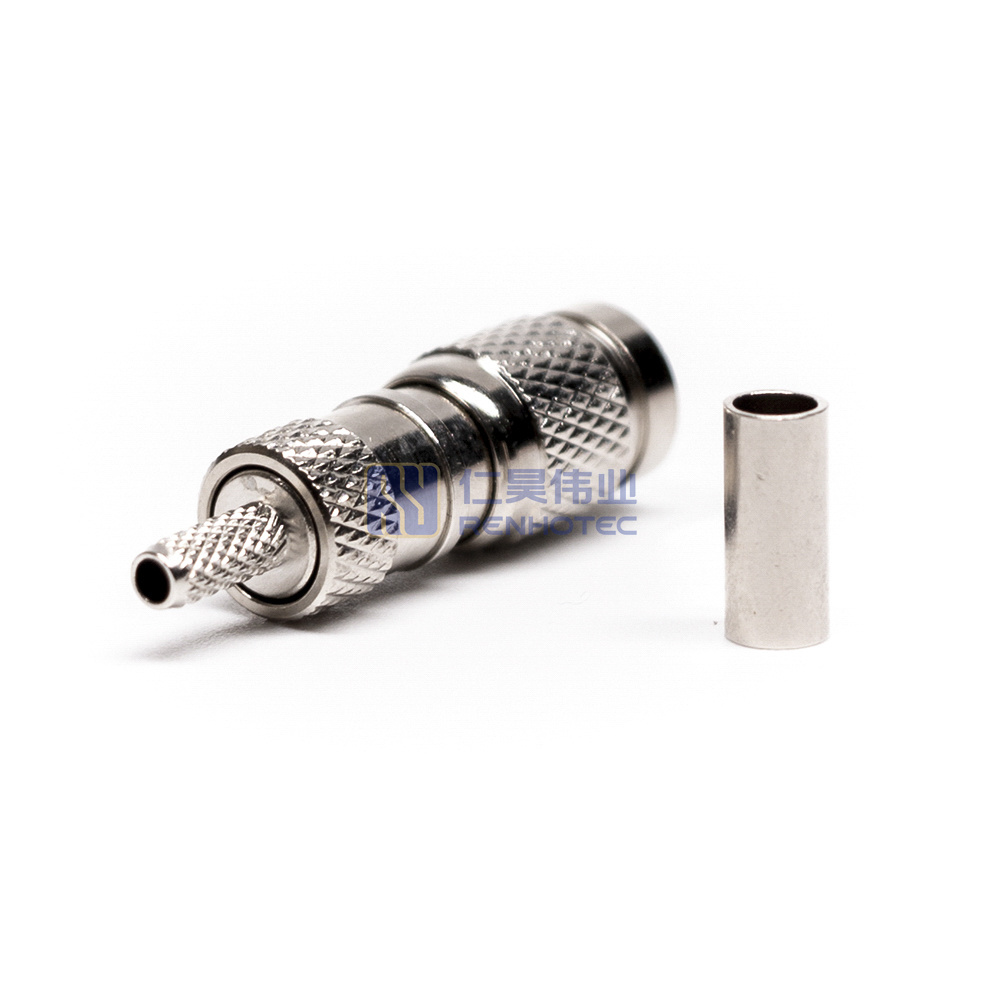

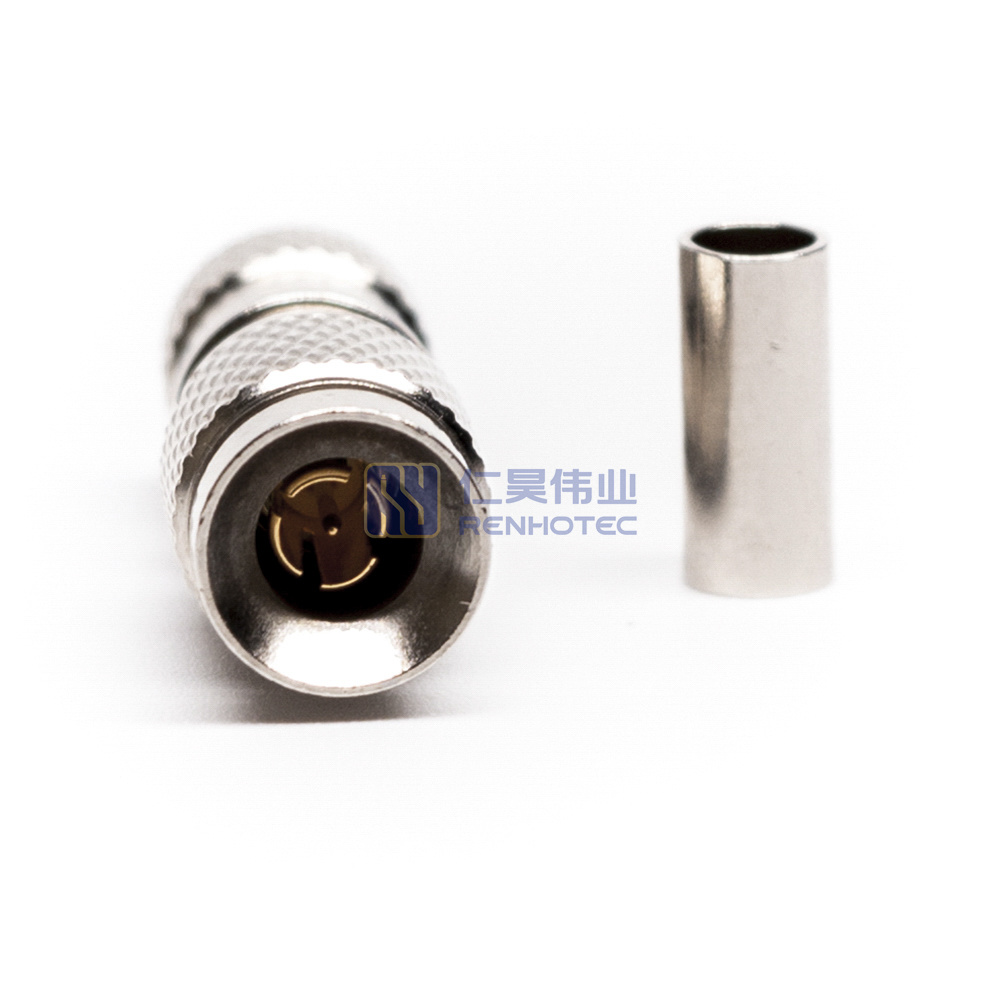

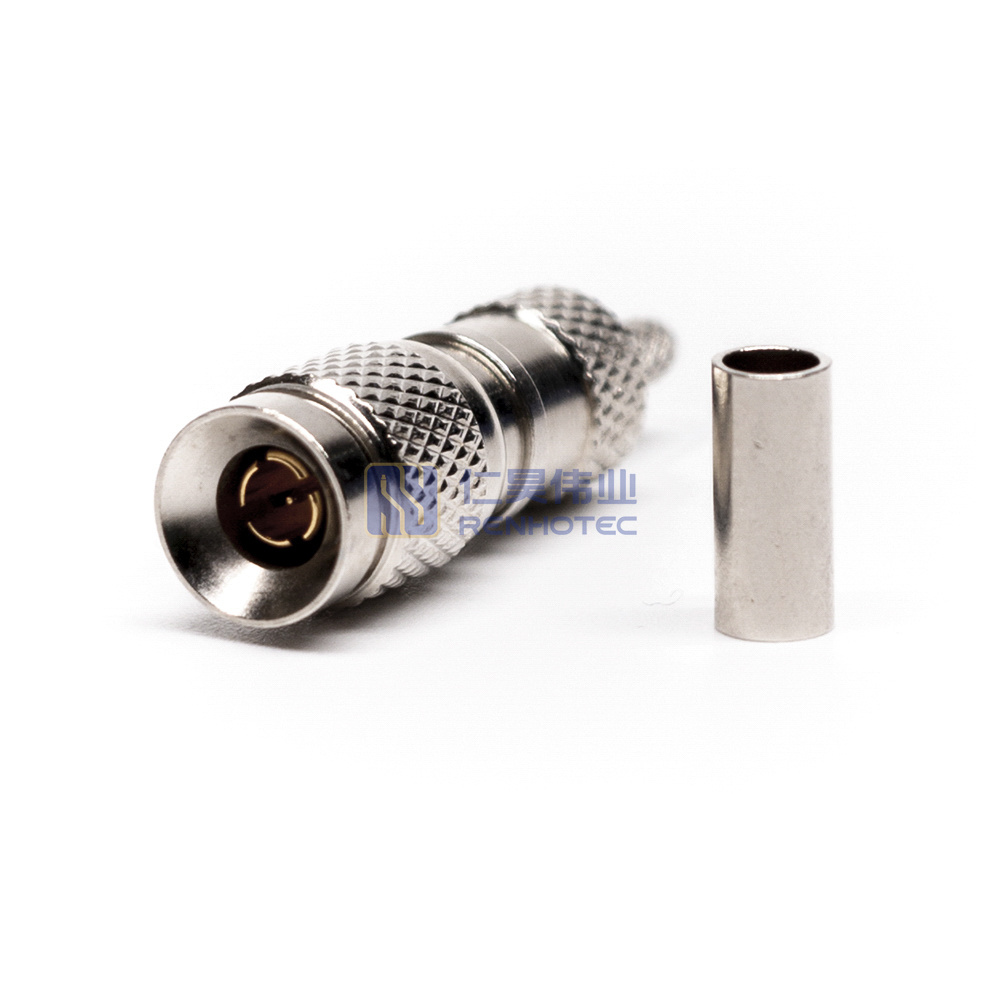

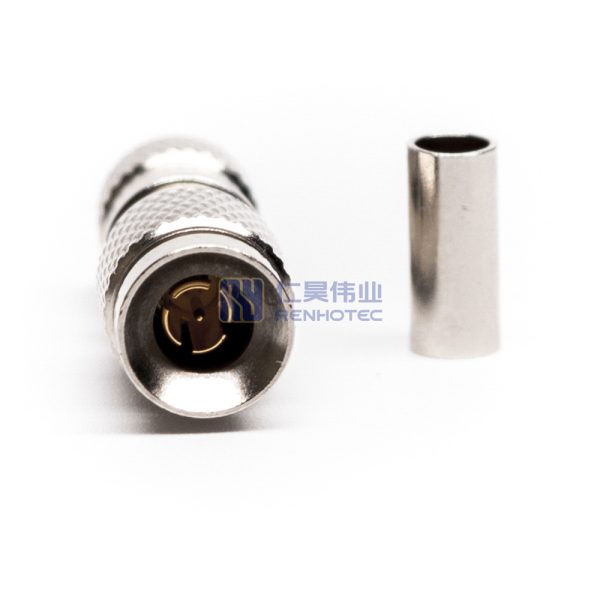

DIN 1.0/2.3 Connector Straight Male Crimp Cable Type 1855A 75ohm – RHT-618-0690

High-quality straight male crimp cable connector for DIN 1.0/2.3 applications. Designed for Type 1855A 75ohm cables, this connector ensures secure and reliable connections. Ideal for various communication and RF signal transmission systems.

The 1.0-2.3 connector series was originally launched by the European Telecommunications Market in the 1990s. Compact design allows dense connector packaging, which is an ideal solution for applications with space constraints. It has 50 Ω and 75 Ω impedance for choice and is compatible with the most widely used cable sizes. The push/pull lock and release feature makes it really easy to use.

DIN 1.0-2.3 connectors are available to perform at 50 ohm with a maximum frequency of 10 GHz. As well as 75 ohm with a maximum frequency of 4 GHz. These performance specifications support high data rates for AES Audio, SD video, HD video, 3Gb/s video, and other high-density digital broadcast formats.

Interface

Product Specification

RF Series

DIN 1.0/2.3
Connector Type

Plug
Orientation

Straight
Contact Type

Male Pin
Contact Termination Style

Crimp
Shield Termination

Crimp
Mounting Type

Cable Mount
Fastening Type

Snap On
Number of Ports

1
Impedance

75 ohm
Frequency Range

DC-3 GHz for 75 ohm, DC-10 GHz for 50 ohm
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Insulator Material

PTFE
Contact Material

Brass
Contact Finish

Gold Plated
Temperature Range

-65°C to +165°C
Mating Durability

≥ 500 Cycles
Insultation Resistance

10000MΩ Min
Rated Voltage

250 Volts RMS Max Continuous
Dielectric Withstanding Voltage

750 VRMS Max
RF Series

DIN 1.0/2.3

 Connector Type

Plug
Orientation

Straight

 Contact Type

Male Pin
Contact Termination Style

Crimp

 Shield Termination

Crimp
Mounting Type

Cable Mount

 Fastening Type

Snap On
Number of Ports

1

 Impedance

75 ohm
Frequency Range

DC-3 GHz for 75 ohm, DC-10 GHz for 50 ohm

 Shell Material

Copper Alloy
Shell Finish

Nickel Plated

 Insulator Material

PTFE
Contact Material

Brass

 Contact Finish

Gold Plated
Temperature Range

-65°C to +165°C

 Mating Durability

≥ 500 Cycles
Insultation Resistance

10000MΩ Min

 Rated Voltage

250 Volts RMS Max Continuous
Dielectric Withstanding Voltage

750 VRMS Max
RF Series

DIN 1.0/2.3
Connector Type

Plug
Orientation

Straight
Contact Type

Male Pin
Contact Termination Style

Crimp
Shield Termination

Crimp
Mounting Type

Cable Mount
Fastening Type

Snap On
Number of Ports

1
Impedance

75 ohm
Frequency Range

DC-3 GHz for 75 ohm, DC-10 GHz for 50 ohm
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Insulator Material

PTFE
Contact Material

Brass
Contact Finish

Gold Plated
Temperature Range

-65°C to +165°C
Mating Durability

≥ 500 Cycles
Insultation Resistance

10000MΩ Min
Rated Voltage

250 Volts RMS Max Continuous
Dielectric Withstanding Voltage

750 VRMS Max
