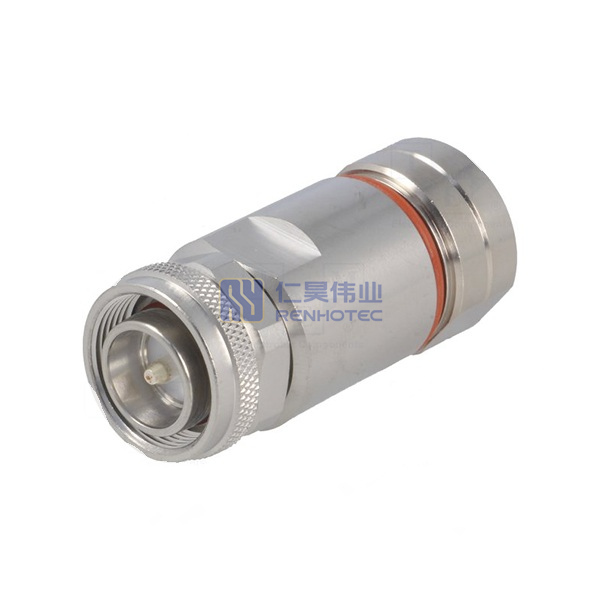

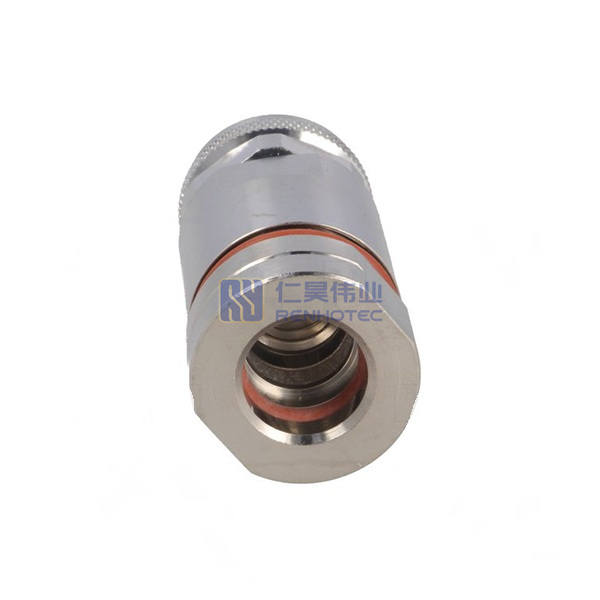

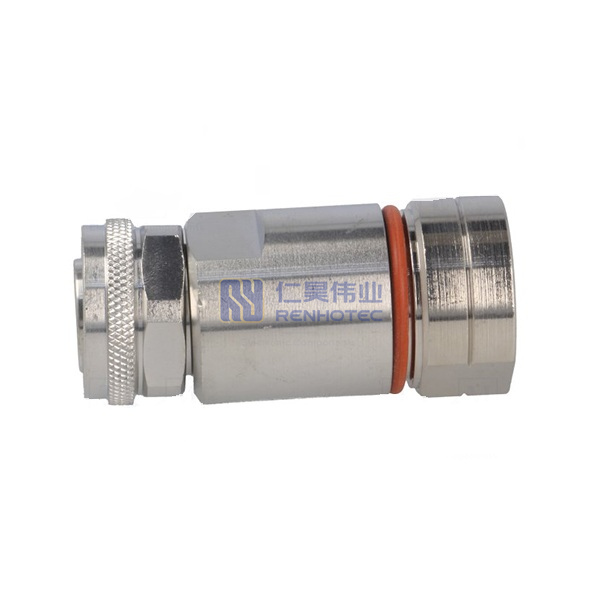

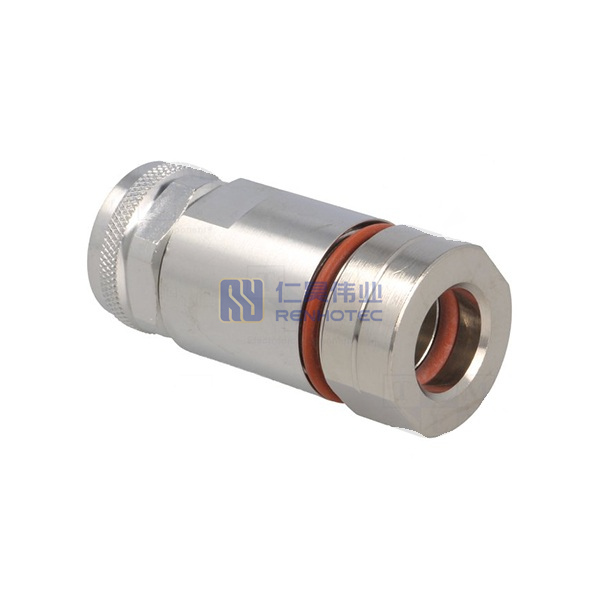

DIN 4.3/10 Connector Straight Male Clamp Cable Type 50ohm – RHT-644-0020

High-quality DIN 4.3/10 connector with straight male clamp for secure connections. Suitable for cables with 50ohm impedance. RHT-644-0020 provides reliable performance for your RF applications.

4.3-10 the connector is solid in design, small in size, and light in weight. It can be used in high-density and lightweight applications. It complies with IP67 standards when used, can be dustproof and waterproof, and provides excellent VSWR performance up to 6 GHz.

Regardless of the coupling torque, individual electrical and mechanical components can produce very stable PIM performance and easier installation. Silver plated contact and white bronze plated body has high conductivity, corrosion resistance, and durability.

Interface

Product Specification

RF Series

DIN 4.3/10
Connector Type

Plug
Orientation

Straight
Contact Type

Male Pin
Shield Termination

Clamp
Mounting Type

Cable Mount
Fastening Type

Threaded
Number of Ports

1
Impedance

50 ohm
Frequency Range

DC-6GHz
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Insulator Material

PTFE
Contact Material

Beryllium Copper
Contact Finish

Silver Plated
Temperature Range

-40°C to +85°C
Mating Durability

≥ 100 Cycles
Insultation Resistance

5000MΩ Min
Rated Voltage

500 Volts RMS Max Continuous
Dielectric Withstanding Voltage

2500 V rms
