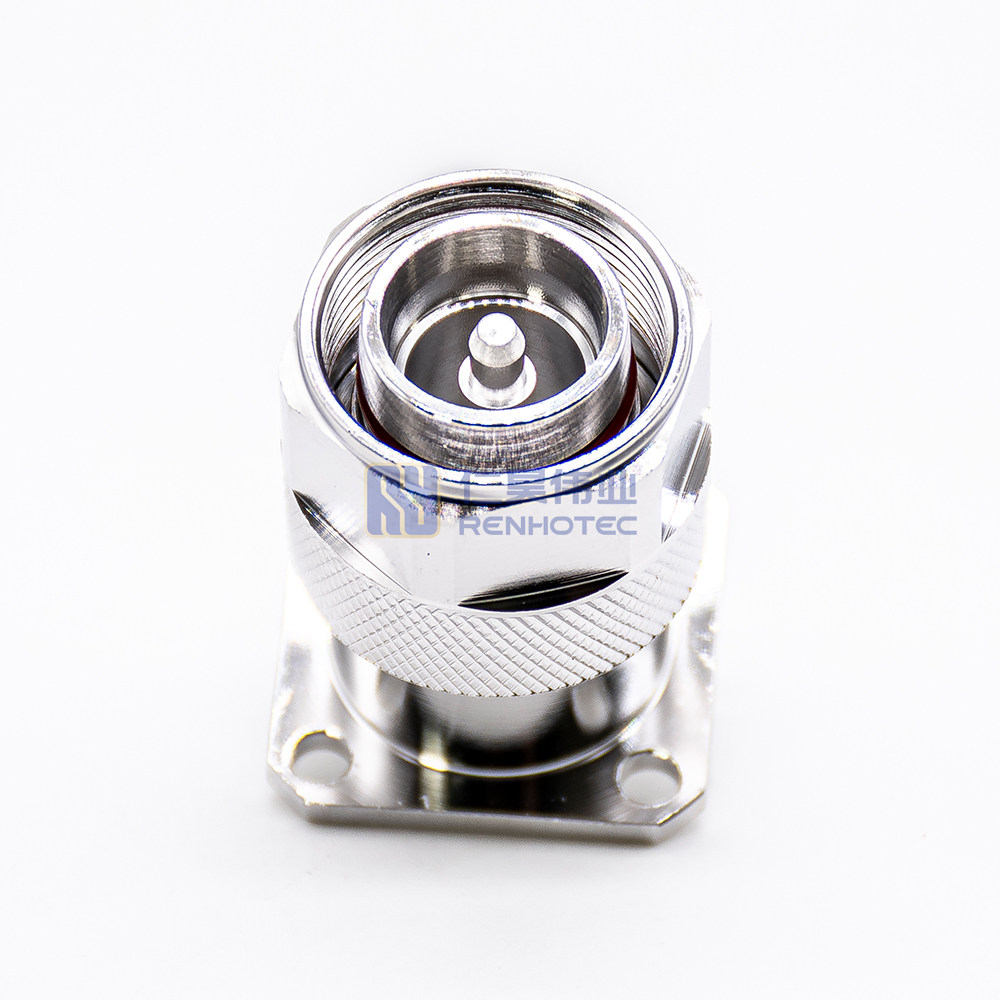

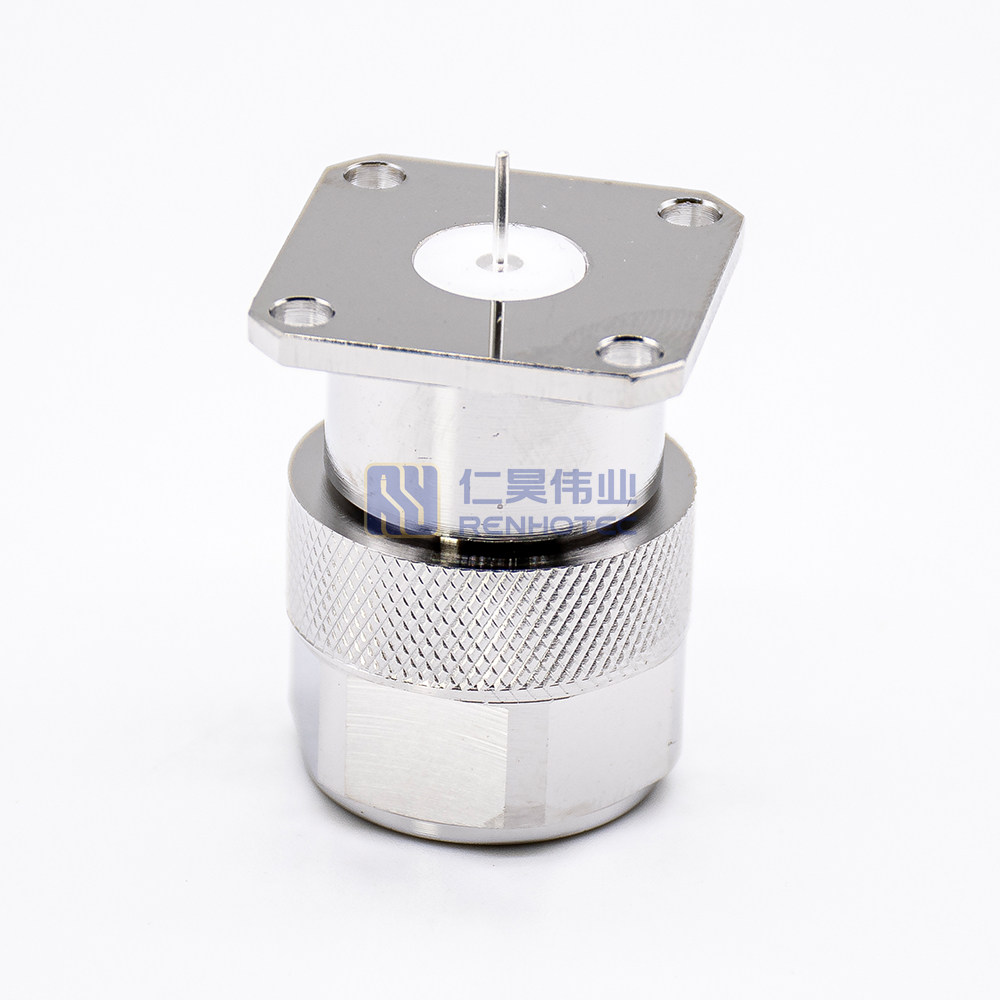

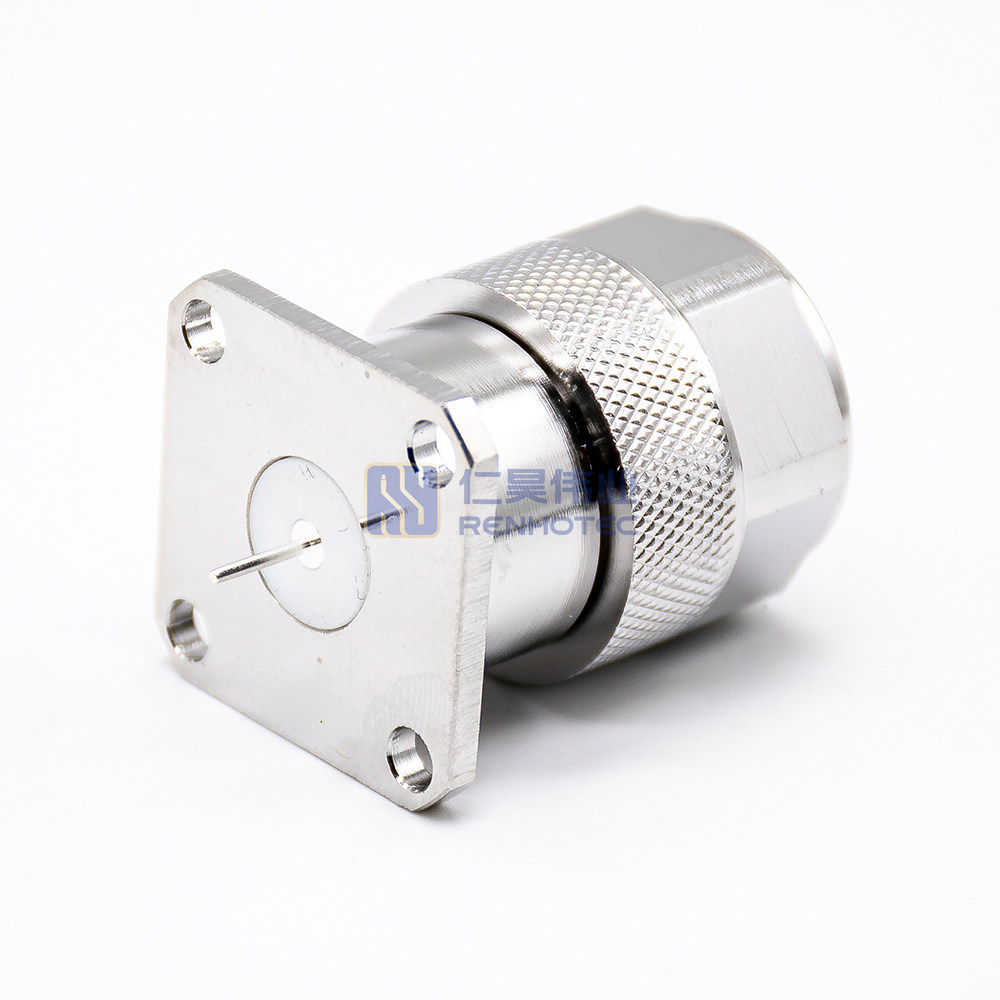

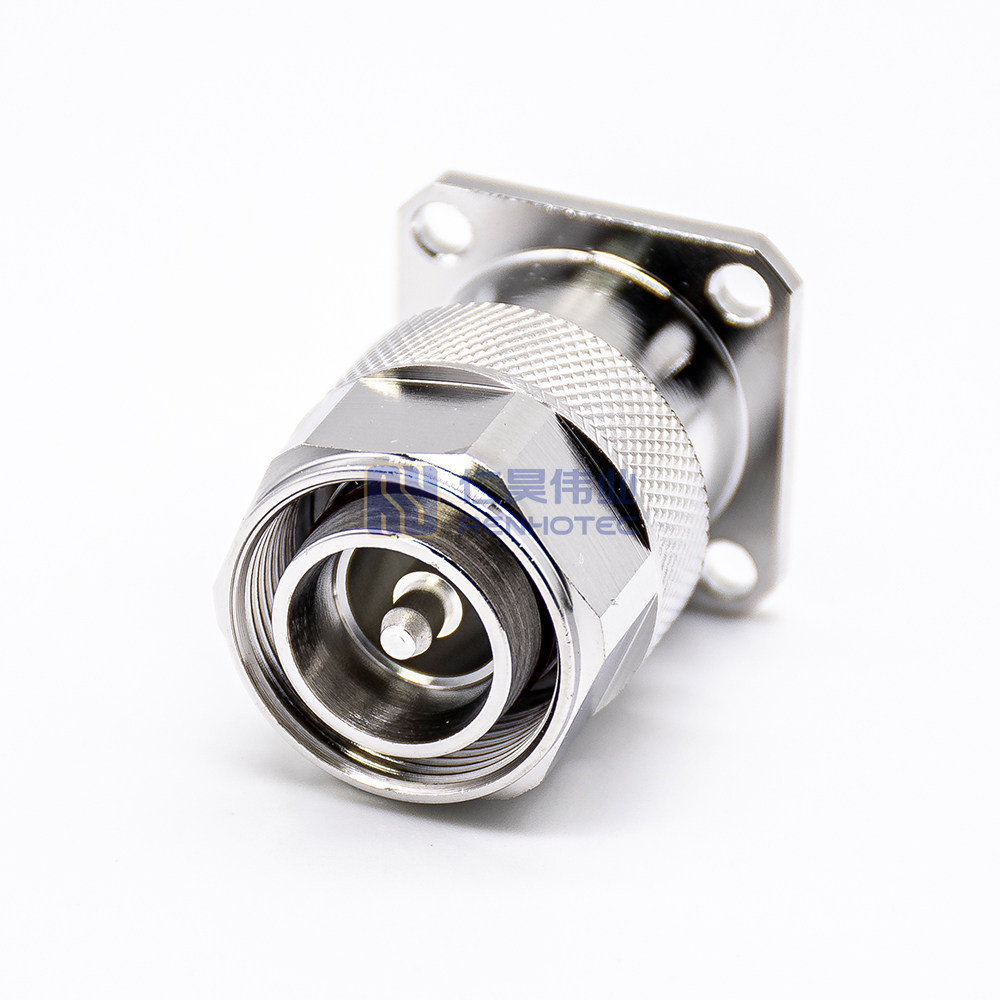

DIN 4.3/10 Connector Straight Male Solder Panel Mount 4 Hole Flange 50ohm – RHT-644-0017

High-quality DIN 4.3/10 Connector featuring a straight male solder design, ideal for panel mounting with a 4 hole flange. This 50ohm connector ensures reliable and efficient signal transmission in various applications.

4.3-10 the connector is solid in design, small in size, and light in weight. It can be used in high-density and lightweight applications. It complies with IP67 standards when used, can be dustproof and waterproof, and provides excellent VSWR performance up to 6 GHz.

Regardless of the coupling torque, individual electrical and mechanical components can produce very stable PIM performance and easier installation. Silver plated contact and white bronze plated body has high conductivity, corrosion resistance, and durability.

Interface

Product Specification

RF Series

DIN 4.3/10
Connector Type

Plug
Orientation

Straight
Contact Type

Male Pin
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

4 Hole Flange
Fastening Type

Threaded
Number of Ports

1
Impedance

50 ohm
Frequency Range

DC-6GHz
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Insulator Material

PTFE
Contact Material

Beryllium Copper
Contact Finish

Silver Plated
Temperature Range

-40°C to +85°C
Mating Durability

≥ 100 Cycles
Insultation Resistance

5000MΩ Min
Rated Voltage

500 Volts RMS Max Continuous
Dielectric Withstanding Voltage

2500 V rms
RF Series

DIN 4.3/10

 Connector Type

Plug
Orientation

Straight

 Contact Type

Male Pin
Contact Termination Style

Solder

 Shield Termination

Solder
Mounting Type

Panel Mount

 Mounting Feature

4 Hole Flange
Fastening Type

Threaded

 Number of Ports

1
Impedance

50 ohm

 Frequency Range

DC-6GHz
Shell Material

Copper Alloy

 Shell Finish

Nickel Plated
Insulator Material

PTFE

 Contact Material

Beryllium Copper
Contact Finish

Silver Plated

 Temperature Range

-40°C to +85°C
Mating Durability

≥ 100 Cycles

 Insultation Resistance

5000MΩ Min
Rated Voltage

500 Volts RMS Max Continuous

 Dielectric Withstanding Voltage

2500 V rms
RF Series

DIN 4.3/10
Connector Type

Plug
Orientation

Straight
Contact Type

Male Pin
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

4 Hole Flange
Fastening Type

Threaded
Number of Ports

1
Impedance

50 ohm
Frequency Range

DC-6GHz
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Insulator Material

PTFE
Contact Material

Beryllium Copper
Contact Finish

Silver Plated
Temperature Range

-40°C to +85°C
Mating Durability

≥ 100 Cycles
Insultation Resistance

5000MΩ Min
Rated Voltage

500 Volts RMS Max Continuous
Dielectric Withstanding Voltage

2500 V rms
