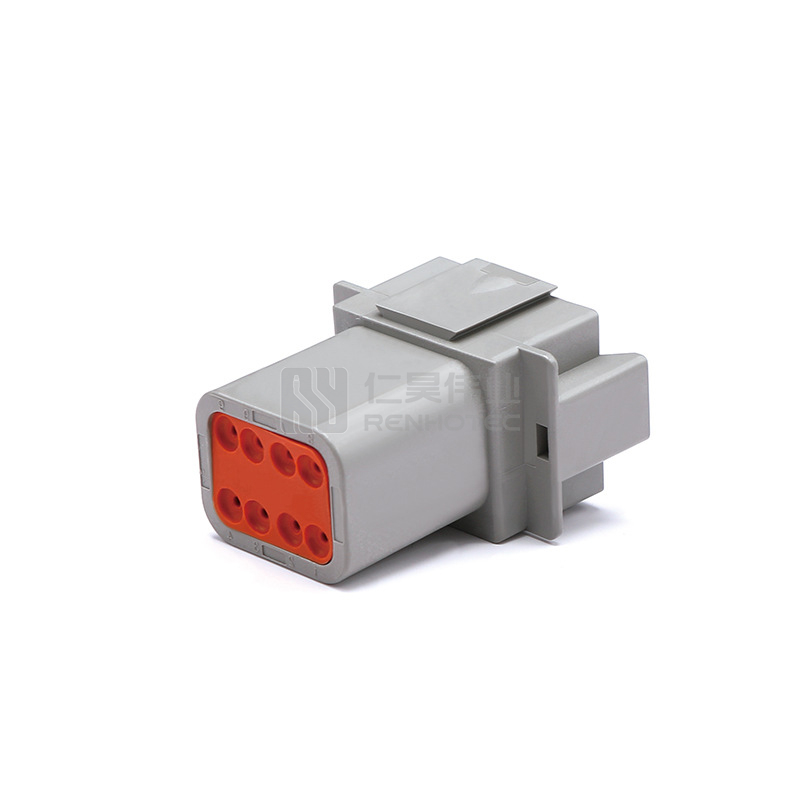

DT04-8P 8 PINs male automotive connector waterproof DT Series

  • Accommodates wire sizes 12-20 AWG
  • Available in 2, 3, 4, 6, 8, 12 and 48 cavity arrangements
  • Available for inline, flange mount and PCB mount installations
  • Wedgelocks assure contact alignment and retention

DT Series Products Overview

product overview

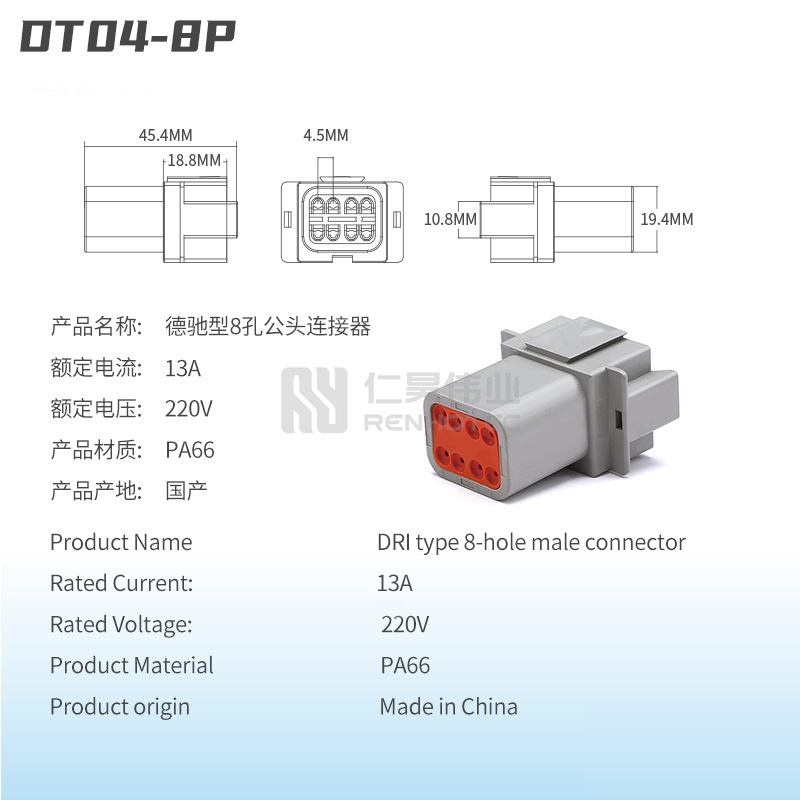

Product Dimensions

2-way

DT Series 2-Way Connectors

3-way

DT Series 3-Way Connectors

4-way

DT Series 4-Way Connectors

DT Series 6-Way Connectors

DT Series 8-Way Connectors

DT Series 12-Way Connectors

Where would I use DT series connectors?

DT series connectors thrive in extreme environments. Robust and versatile, DT series connectors install quickly and function reliably in any heavy-duty application from marine to industrial.
Bayonet locks provide fast, foolproof mating. Fully sealed to IP67, DT series connectors protect signals even in harsh conditions.

application——1

Product Specification

Series

DT Series
Shell Material

Thermoplastic
Operating Temperature

-67°F (-55°C) to +257°F (+125°C)
IP Rating

IP67
Color

Grey
Shape

Rectangular
Number of Ports

8
Series

DT Series

 Shell Material

Thermoplastic
Operating Temperature

-67°F (-55°C) to +257°F (+125°C)

 IP Rating

IP67
Color

Grey

 Shape

Rectangular
Number of Ports

8
Series

DT Series
Shell Material

Thermoplastic
Operating Temperature

-67°F (-55°C) to +257°F (+125°C)
IP Rating

IP67
Color

Grey
Shape

Rectangular
Number of Ports

8
