DTM06-12S
DTM06-12S
DTM06-12S
DTM06-12S
SKU: DTM06-12S Category: Tags: ,

Authorized Sellers


Request for Quotation

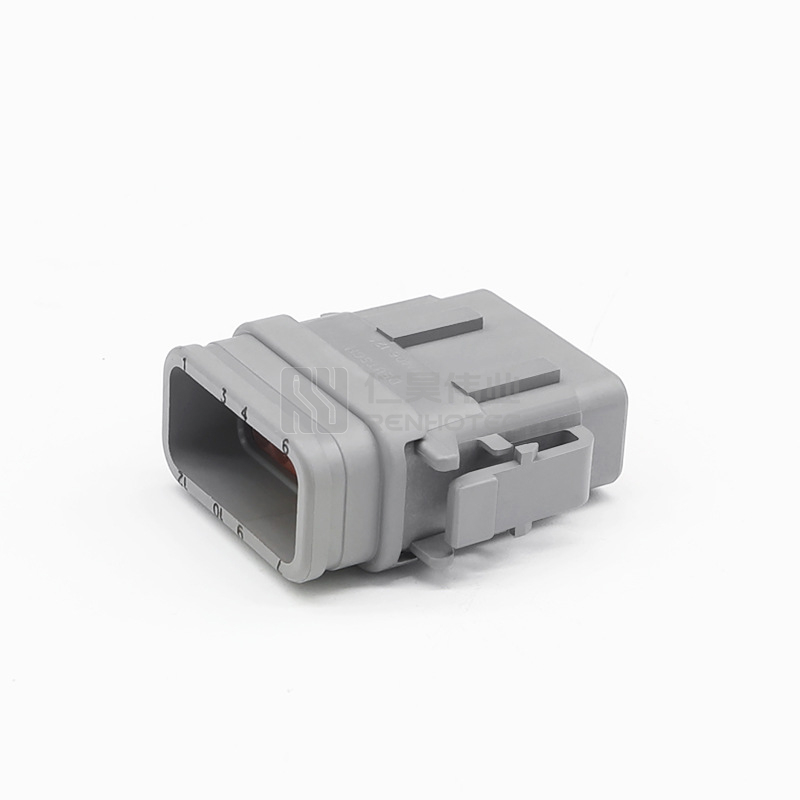

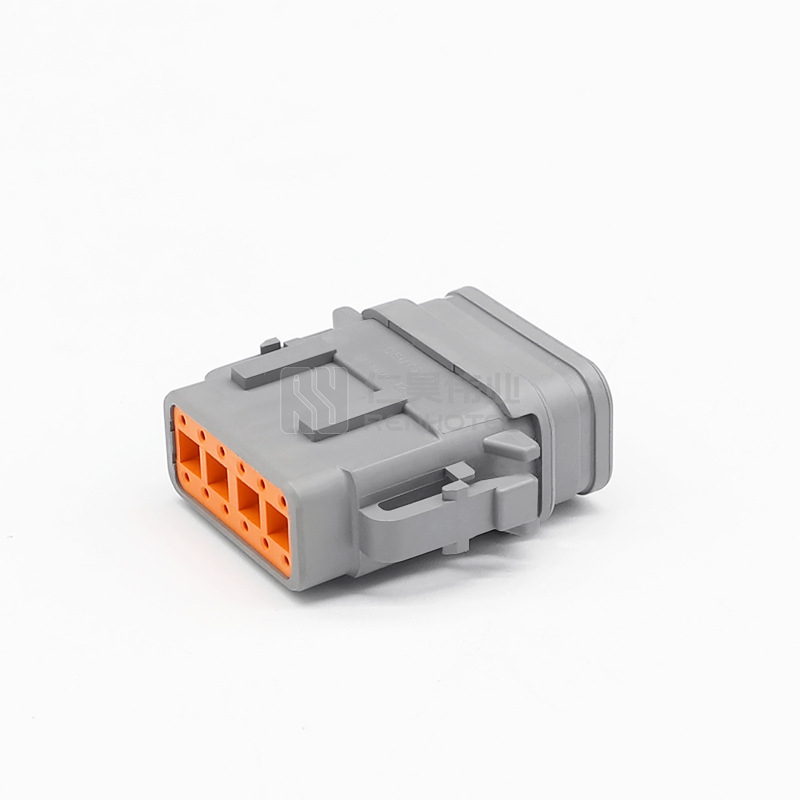

DTM06-12S 12 PINs female automotive connector waterproof DTM Series

  • Accommodates wire sizes 12-20 AWG
  • Available in 2, 3, 4, 6, 8, 12 and 48 cavity arrangements
  • Available for inline, flange mount and PCB mount installations
  • Wedgelocks assure contact alignment and retention

DTM Series Products Overview

DTM Series Overview

Product Dimensions

DTM Series 2-Way Connectors

DTM 3-WAY-1

DTM Series 3-Way Connectors

DTM 4-WAY-1

DTM Series 4-Way Connectors

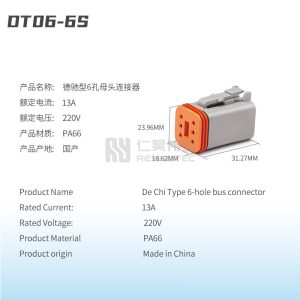

DTM Series 6-Way Connectors

DTM 8-WAY-1

DTM Series 8-Way Connectors

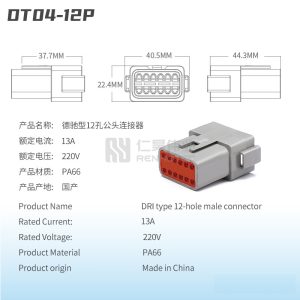

DTM 12-WAY-1

DTM Series 12-Way Connectors

Where would I use DTM series connectors?

DTM series connectors thrive in extreme environments. Robust and versatile, DTM series connectors install quickly and function reliably in any heavy-duty application from marine to industrial.
Bayonet locks provide fast, foolproof mating. Fully sealed to IP67, DTM series connectors protect signals even in harsh conditions.

application——1

Product Specification

Series

DTM Series
Shell Material

Thermoplastic
Operating Temperature

-67°F (-55°C) to +257°F (+125°C)
IP Rating

IP67
Color

Grey
Shape

Rectangular
Number of Ports

12
Series

DTM Series

 Shell Material

Thermoplastic
Operating Temperature

-67°F (-55°C) to +257°F (+125°C)

 IP Rating

IP67
Color

Grey

 Shape

Rectangular
Number of Ports

12
Series

DTM Series
Shell Material

Thermoplastic
Operating Temperature

-67°F (-55°C) to +257°F (+125°C)
IP Rating

IP67
Color

Grey
Shape

Rectangular
Number of Ports

12
