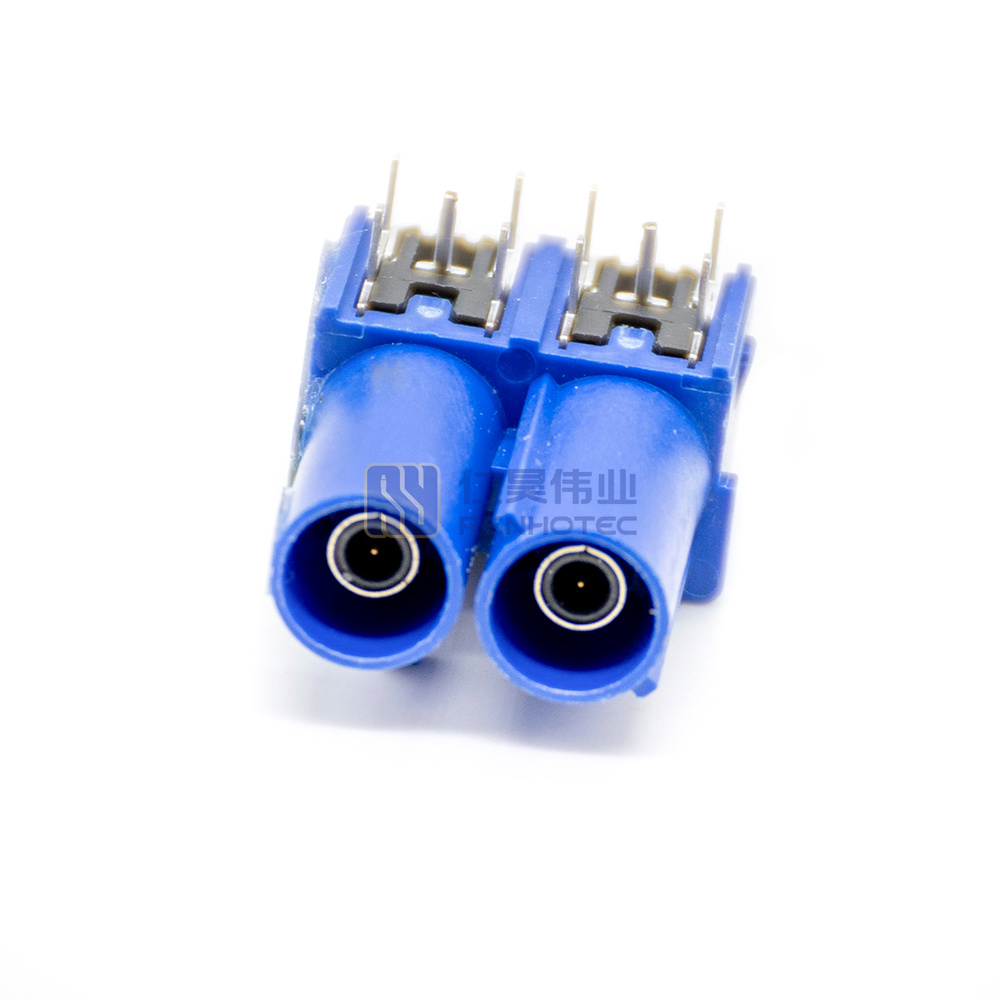

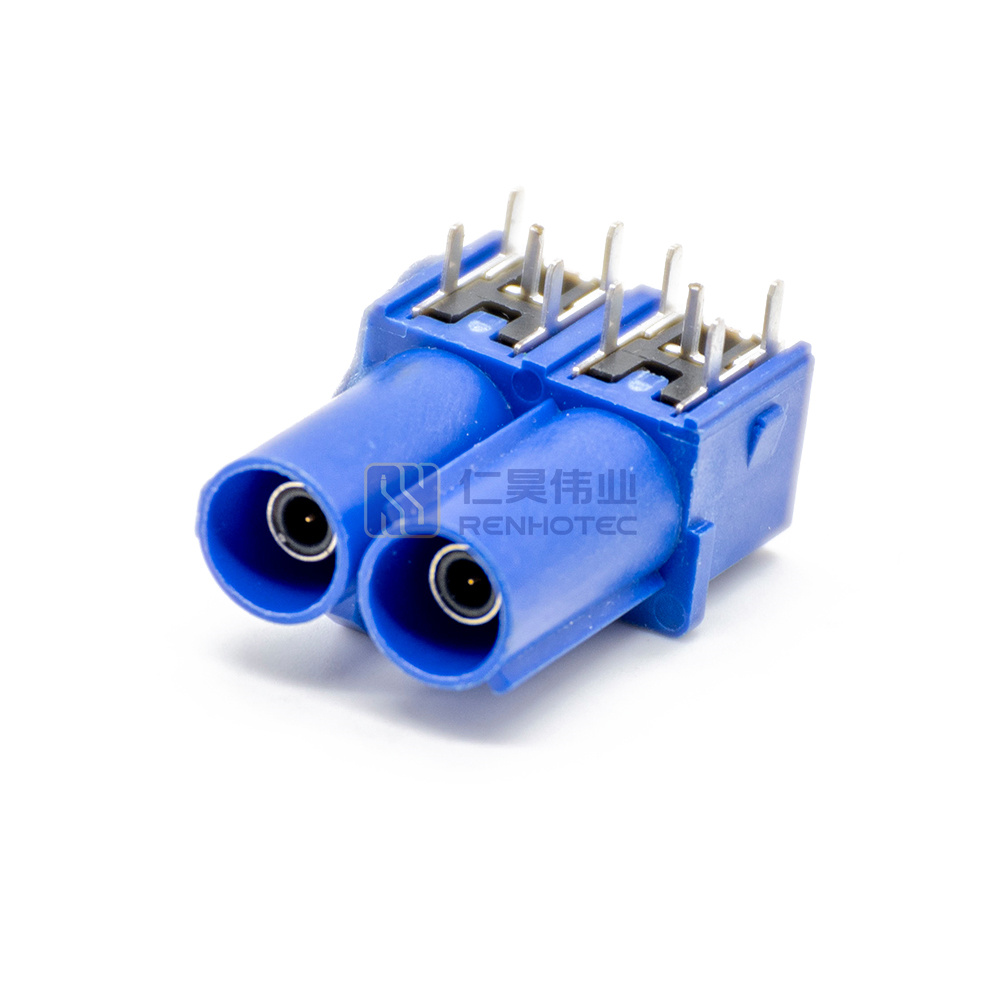

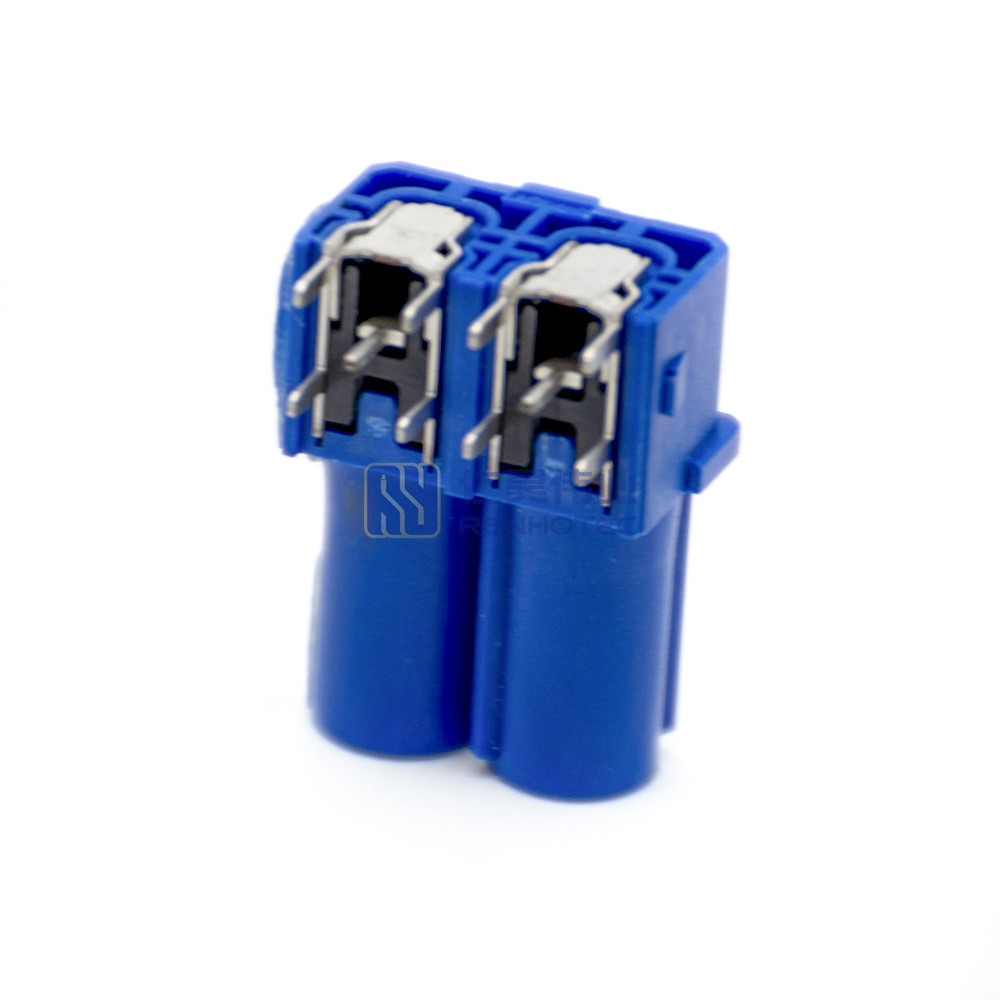

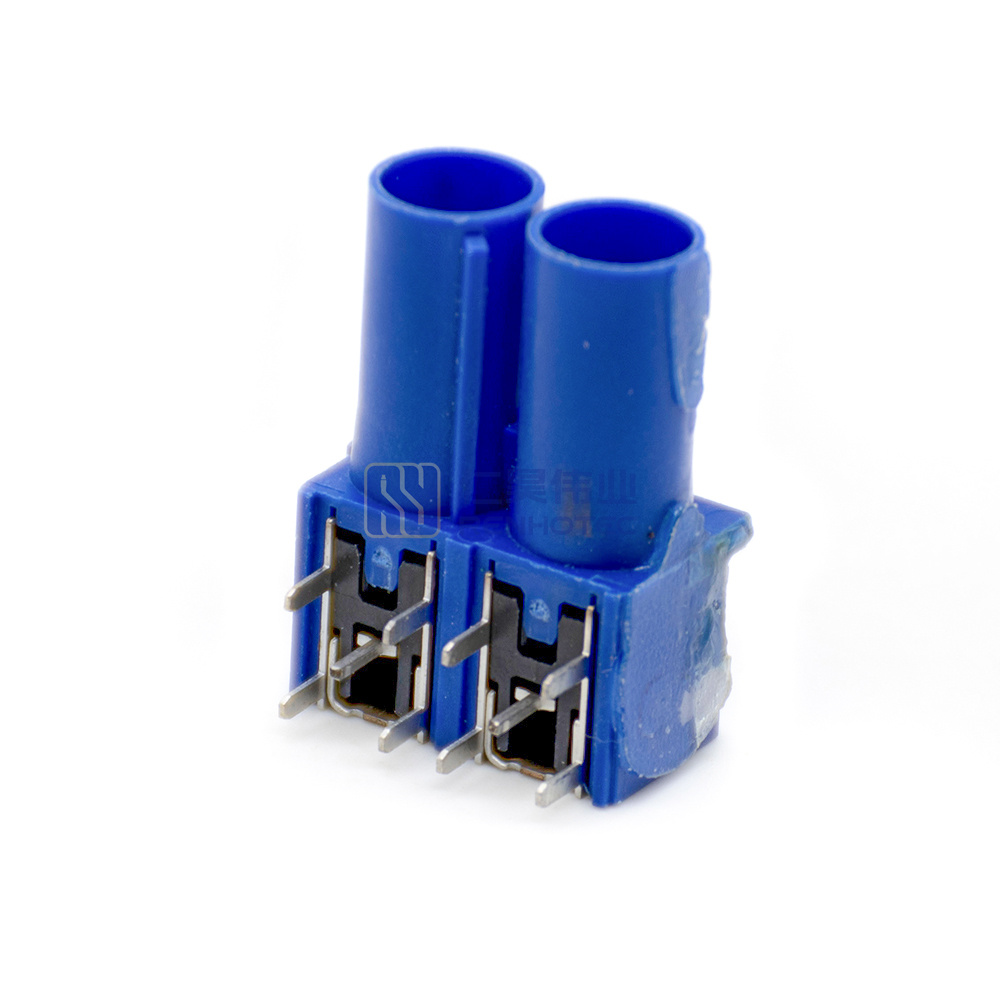

Dual Fakra Connector Plug Right Angle Male Pin Panel Mount Through Hole Blue C Code Solder – 101-11-10004

This high-quality dual Fakra connector features a right-angle male pin design, panel mount, and through-hole installation. The blue color adds visual distinction, while the C code designation ensures compatibility. Ideal for various electronic applications that require secure and reliable connections.

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

  • Secure primary locking system with tactile and audible locking
  • Shock and vibration resistant coded housing
  • Protection against unintentional opening by protective bar and protective strips
  • High axial holding power of the coaxial insert due to secondary locking
  • Mechanical and color coding system with 14 different codes
  • Fastening groove for cable connectors for chassis mounting
  • Coaxial insert and cable freely rotatable in the housing
  • Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
  • Efficient, automated further processing option
  • Customized packaging possible
Code A B C D E F G
Color Deep Black Cream White Signal Blue Bordeaux Violet Leaf Green Brown Blue Gray
Application Radio with phantom supply Radio without phantom supply GPS telematics or navigation GSM Cellular Phone TV (UHF) TV (VHF) SDARS terrestrial
Code H I K L M N Z
Color Violet Beige Curry Yellow Carmine Red Pastel Orange Pastel Green Water Blue
Application GPS telematics and navigation Bluetooth Controlled
Parking Heating		 SDARS satellite Not defined Keyless entry
Tire pressure monitoring		 Not defined Neutral


Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Specifications

Style

Dual Fakra
Style

Dual Fakra

Product Specification

Connector Type

Plug
Orientation

Right Angle
Contact Type

Male Pin
Mounting Type

Cable Mount
Mounting Feature

Through Hole
Fastening Type

Push-On
Cable Type

RG174, RG316
Number of Ports

2
Impedance

50 ohm
Frequency - Max

6GHz
Plastic Housing

PA66+30%GF
Shell Material

Zinc Alloy
Shell Finish

Nickel Plated
Insulator Material

PTFE
Contact Material

Copper Alloy
Contact Finish

Gold Plated
Cable Color

Blue
Temperature Range

-40°C to +105°C
Withstand Voltage

750V r.m.s
Operating Voltage

335V r.m.s at sea level
Mating Durability

≥ 25 Cycles
Insultation Resistance

≥1000MΩ
Anti-error Force

≥40N
Latch Holding Force

≥110N
Connector Type

Plug

 Orientation

Right Angle
Contact Type

Male Pin

 Mounting Type

Cable Mount
Mounting Feature

Through Hole

 Fastening Type

Push-On
Cable Type

RG174, RG316

 Number of Ports

2
Impedance

50 ohm

 Frequency - Max

6GHz
Plastic Housing

PA66+30%GF

 Shell Material

Zinc Alloy
Shell Finish

Nickel Plated

 Insulator Material

PTFE
Contact Material

Copper Alloy

 Contact Finish

Gold Plated
Cable Color

Blue

 Temperature Range

-40°C to +105°C
Withstand Voltage

750V r.m.s

 Operating Voltage

335V r.m.s at sea level
Mating Durability

≥ 25 Cycles

 Insultation Resistance

≥1000MΩ
Anti-error Force

≥40N

 Latch Holding Force

≥110N
Style

Dual Fakra
Connector Type

Plug
Orientation

Right Angle
Contact Type

Male Pin
Mounting Type

Cable Mount
Mounting Feature

Through Hole
Fastening Type

Push-On
Cable Type

RG174, RG316
Number of Ports

2
Impedance

50 ohm
Frequency - Max

6GHz
Plastic Housing

PA66+30%GF
Shell Material

Zinc Alloy
Shell Finish

Nickel Plated
Insulator Material

PTFE
Contact Material

Copper Alloy
Contact Finish

Gold Plated
Cable Color

Blue
Temperature Range

-40°C to +105°C
Withstand Voltage

750V r.m.s
Operating Voltage

335V r.m.s at sea level
Mating Durability

≥ 25 Cycles
Insultation Resistance

≥1000MΩ
Anti-error Force

≥40N
Latch Holding Force

≥110N
