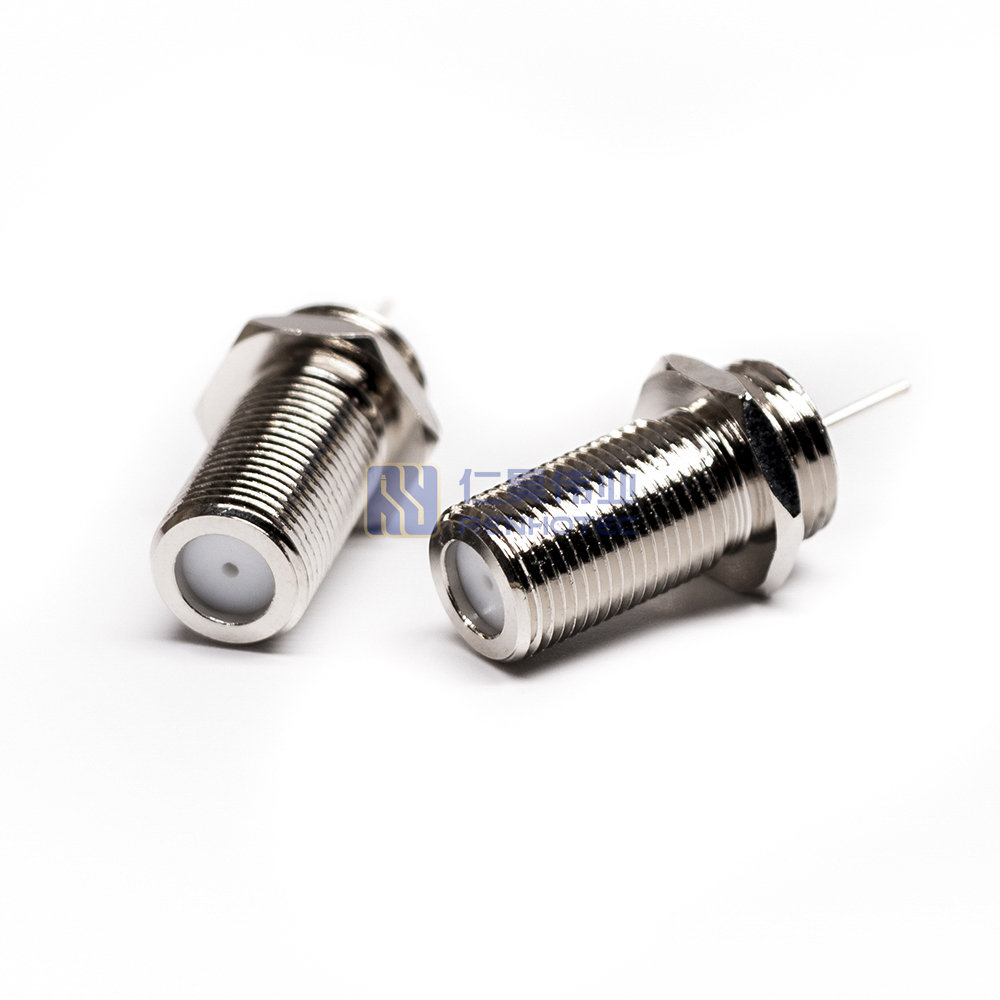

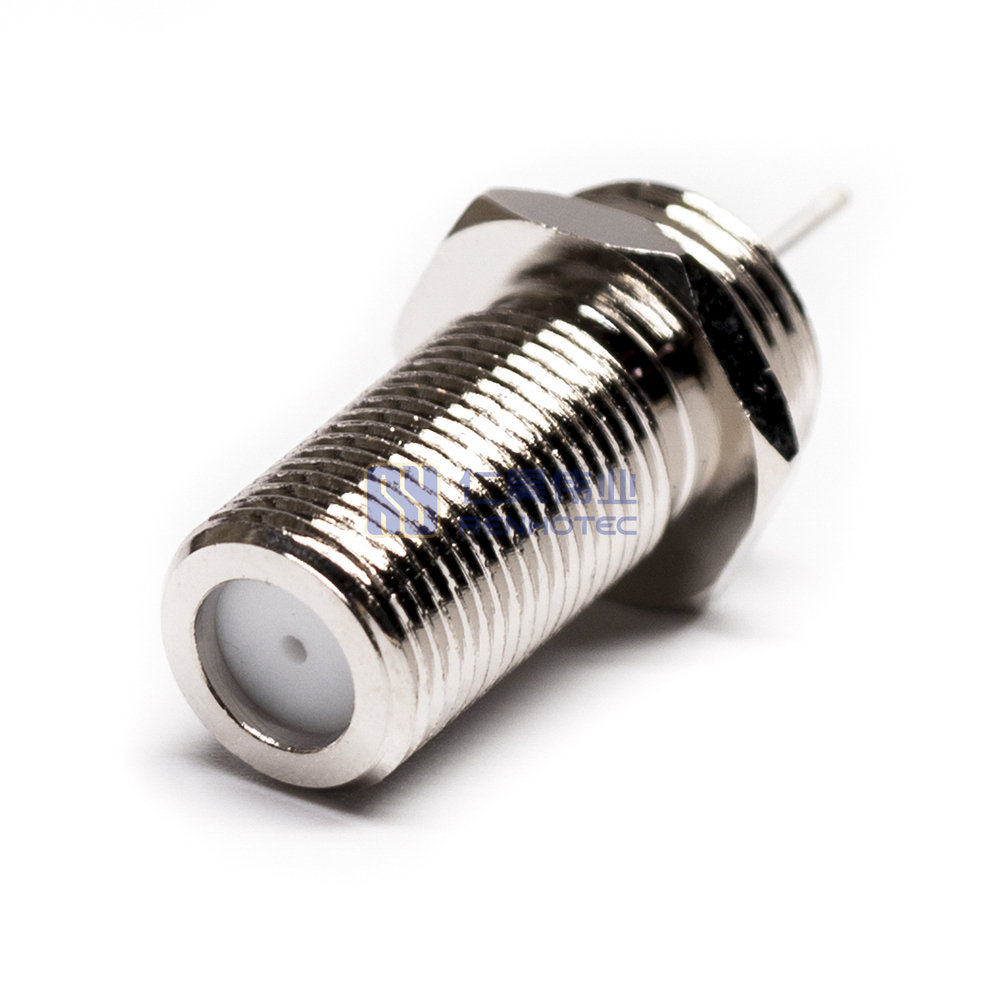

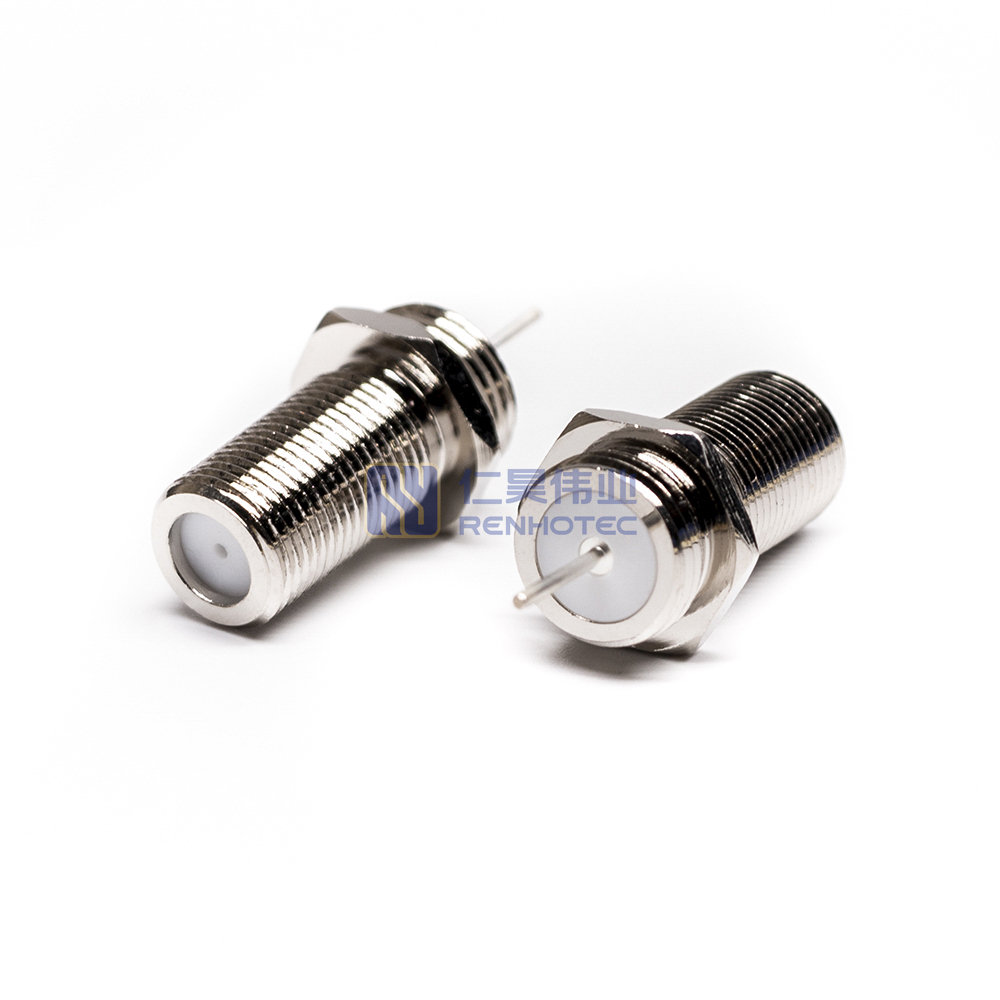

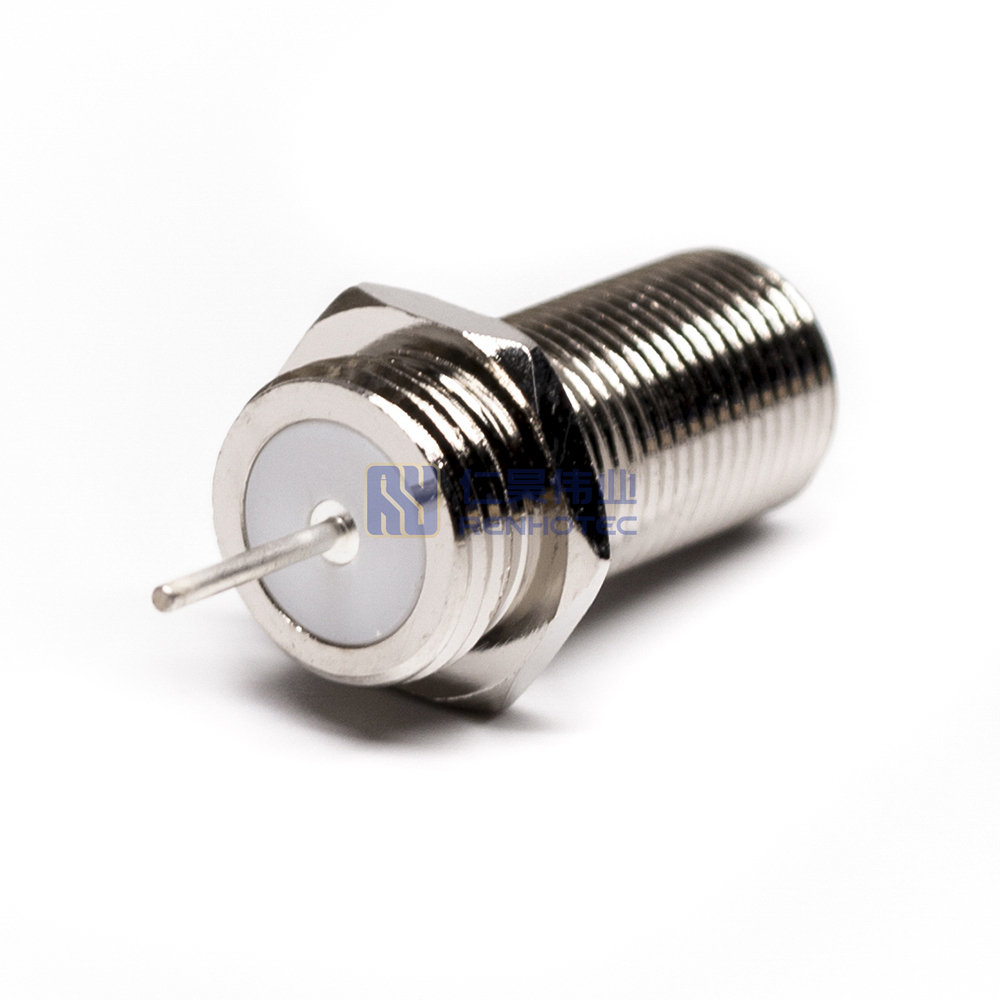

F Type Connector Jack Straight Panel Mount Bulkhead – RHT-611-0026

This F Type connector features a straight panel mount bulkhead design, making it ideal for secure and stable connections. Its durable construction ensures reliable performance in various applications.

The F-type connector (also F-connector) is a coaxial RF connector. It is commonly used for “over-the-air” terrestrial TV, and cable TV. and commonly used for satellite TV and cable modems. Usually used with RG-6/U cable or with RG-59/U cable.

The F connector is an inexpensive, gendered, threaded, compression connector for radio frequency signals. It has a good 75 ?? impedance match for frequencies well over 1 GHz[2] and has usable bandwidth up to several GHz.

Application

Product Specification

RF Series

F Type
Connector Type

Jack
Contact Type

Female Pin
Orientation

Straight
Mounting Type

Panel Mount
Mounting Feature

Bulkhead
Contact Termination Style

Solder
Fastening Type

3/8-32 Threaded
Impedance

75 ohm
Insulator Material

POM
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Contact Material

Brass
Contact Finish

Nickel Plated
VSWR

R/A type ≦ 1.3MAX, Straight type≦1.2 MAX
Frequency Range

DC-1GHz
Center Contact Resistance

≦ 10 MΩ (Milliohms Max.)
Outer Contact Resistance

≦ 5 MΩ (Milliohms Max.)
Insultation Resistance

≥1000MΩ
Mating Durability

≥ 500 Cycles
Contact Retention

20 in-lbs min.
Temperature Range

-40°C to +140°C
RF Series

F Type

 Connector Type

Jack
Contact Type

Female Pin

 Orientation

Straight
Mounting Type

Panel Mount

 Mounting Feature

Bulkhead
Contact Termination Style

Solder

 Fastening Type

3/8-32 Threaded
Impedance

75 ohm

 Insulator Material

POM
Shell Material

Copper Alloy

 Shell Finish

Nickel Plated
Contact Material

Brass

 Contact Finish

Nickel Plated
VSWR

R/A type ≦ 1.3MAX, Straight type≦1.2 MAX

 Frequency Range

DC-1GHz
Center Contact Resistance

≦ 10 MΩ (Milliohms Max.)

 Outer Contact Resistance

≦ 5 MΩ (Milliohms Max.)
Insultation Resistance

≥1000MΩ

 Mating Durability

≥ 500 Cycles
Contact Retention

20 in-lbs min.

 Temperature Range

-40°C to +140°C
RF Series

F Type
Connector Type

Jack
Contact Type

Female Pin
Orientation

Straight
Mounting Type

Panel Mount
Mounting Feature

Bulkhead
Contact Termination Style

Solder
Fastening Type

3/8-32 Threaded
Impedance

75 ohm
Insulator Material

POM
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Contact Material

Brass
Contact Finish

Nickel Plated
VSWR

R/A type ≦ 1.3MAX, Straight type≦1.2 MAX
Frequency Range

DC-1GHz
Center Contact Resistance

≦ 10 MΩ (Milliohms Max.)
Outer Contact Resistance

≦ 5 MΩ (Milliohms Max.)
Insultation Resistance

≥1000MΩ
Mating Durability

≥ 500 Cycles
Contact Retention

20 in-lbs min.
Temperature Range

-40°C to +140°C
Drawing for F Type Connector Jack Straight Panel Mount BulkheadDownload
