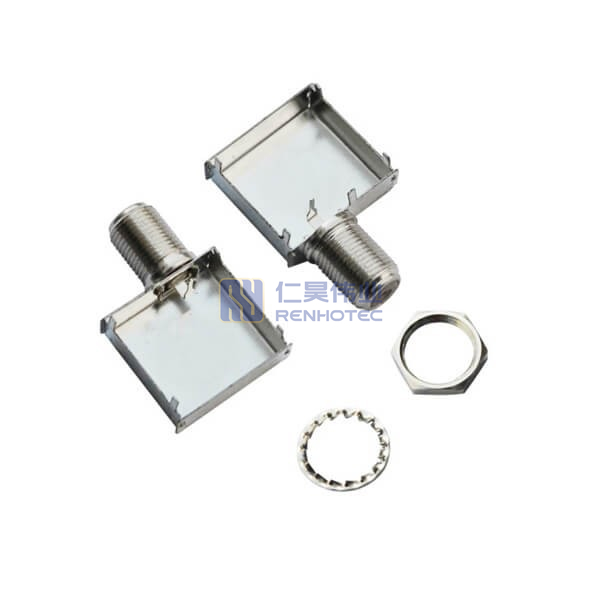

F Type Connector Right Angle Jack Panel Mount Through Hole – RHT-611-0012

Ensure secure and convenient connections with this right angle jack panel mount F Type connector. Designed for through-hole installation, this connector is reliable and efficient for various electronic applications.

The F connector is a coaxial cable connector widely used in television and radio equipment. It is threaded to provide a reliable electrical connection and resistance to interference, and is commonly used to connect equipment such as antennas, modems, and satellite television receivers.The housing of the F connector is usually made of a metallic material, which helps to minimize signal attenuation and interference.
?
These connectors typically operate in the frequency range from a few hundred MHz to 3 GHz and are suitable for a wide variety of video and data transmission applications.F connectors are relatively simple to install and are therefore widely used in both home and commercial equipment. When installing, ensure that the connection is dry and clean to maintain optimal signal transmission quality.

Support high frequency transmission, reduce signal loss.

Made of nickel-plated or gold-plated material, anti-corrosion and long life.

Threaded design ensures firm connection and prevents loosening.

Suitable for a variety of coaxial cables, such as RG6, RG59, etc.

Complete Variety

F Type PCB/Panel Connector

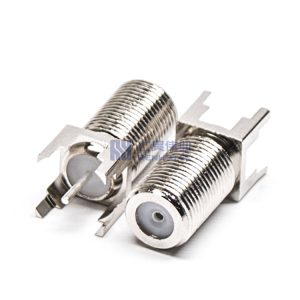

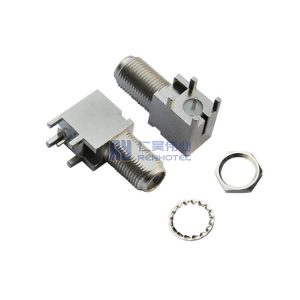

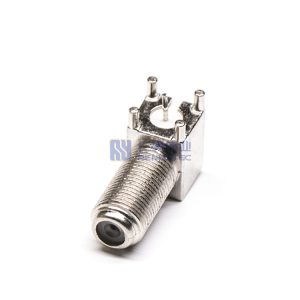

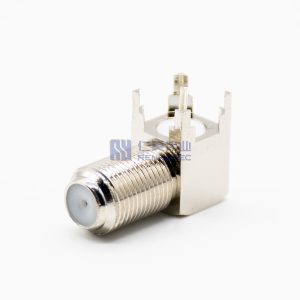

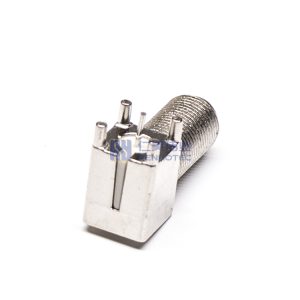

F Connector R-A Through Hole

Through Hole

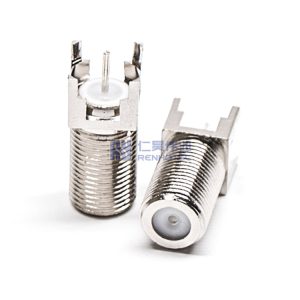

Flange Mount

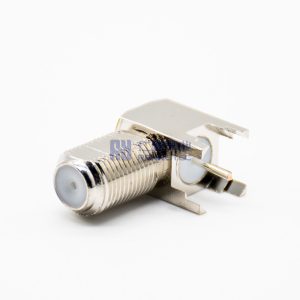

F Connector Edge Mount

Edge Type

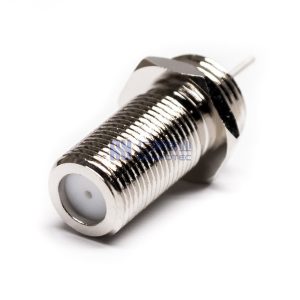

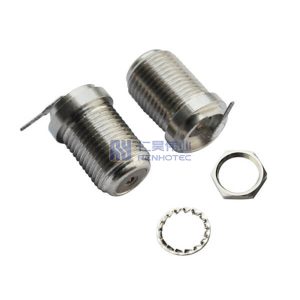

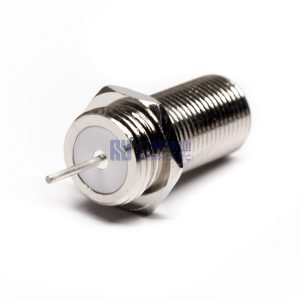

F Connector Bulkhead

Bulkhead

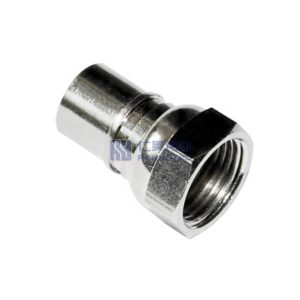

F Type Cable Connector

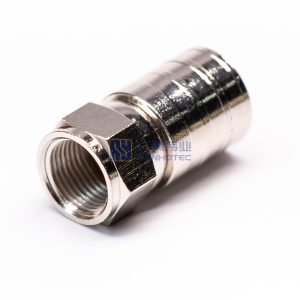

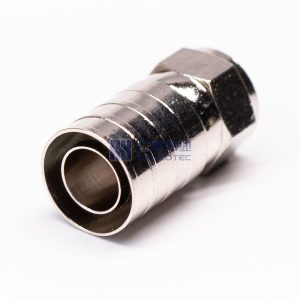

F Connector Crimp

Crimp Type

Solder Type

Compression

Crimp on

Product Application

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

F Type
Connector Type

Jack
Contact Type

Female Pin
Orientation

Right Angle
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Contact Termination Style

Solder
Fastening Type

3/8-32 Threaded
Impedance

75 ohm
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
VSWR

R/A type ≦ 1.3MAX, Straight type≦1.2 MAX
Frequency Range

DC-1GHz
Center Contact Resistance

≦ 10 MΩ (Milliohms Max.)
Outer Contact Resistance

≦ 5 MΩ (Milliohms Max.)
Insultation Resistance

≥1000MΩ
Mating Durability

≥ 500 Cycles
Contact Retention

20 in-lbs min.
Temperature Range

-40°C to +140°C
RF Series

F Type

 Connector Type

Jack
Contact Type

Female Pin

 Orientation

Right Angle
Mounting Type

Panel Mount

 Mounting Feature

Through Hole
Contact Termination Style

Solder

 Fastening Type

3/8-32 Threaded
Impedance

75 ohm

 Shell Material

Copper Alloy
Shell Finish

Nickel Plated

 VSWR

R/A type ≦ 1.3MAX, Straight type≦1.2 MAX
Frequency Range

DC-1GHz

 Center Contact Resistance

≦ 10 MΩ (Milliohms Max.)
Outer Contact Resistance

≦ 5 MΩ (Milliohms Max.)

 Insultation Resistance

≥1000MΩ
Mating Durability

≥ 500 Cycles

 Contact Retention

20 in-lbs min.
Temperature Range

-40°C to +140°C
RF Series

F Type
Connector Type

Jack
Contact Type

Female Pin
Orientation

Right Angle
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Contact Termination Style

Solder
Fastening Type

3/8-32 Threaded
Impedance

75 ohm
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
VSWR

R/A type ≦ 1.3MAX, Straight type≦1.2 MAX
Frequency Range

DC-1GHz
Center Contact Resistance

≦ 10 MΩ (Milliohms Max.)
Outer Contact Resistance

≦ 5 MΩ (Milliohms Max.)
Insultation Resistance

≥1000MΩ
Mating Durability

≥ 500 Cycles
Contact Retention

20 in-lbs min.
Temperature Range

-40°C to +140°C
Drawing for F Type Connector Right Angle Jack Panel Mount Through HoleDownload
