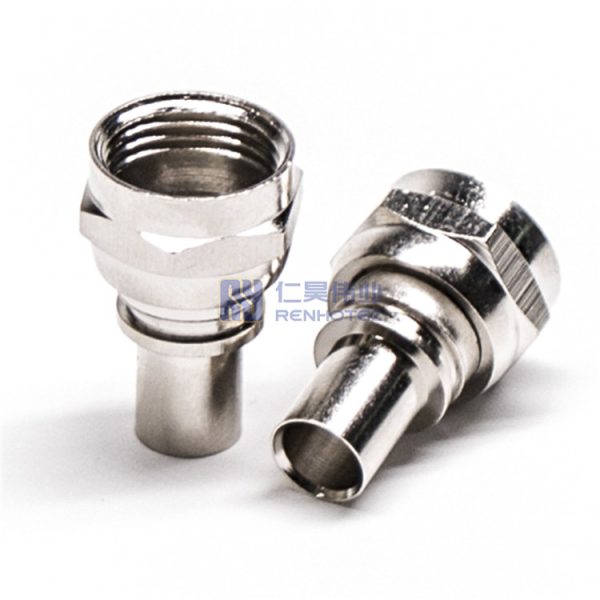

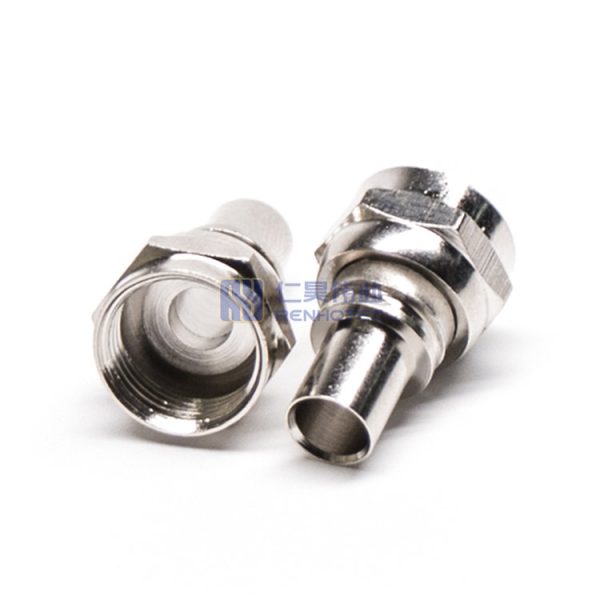

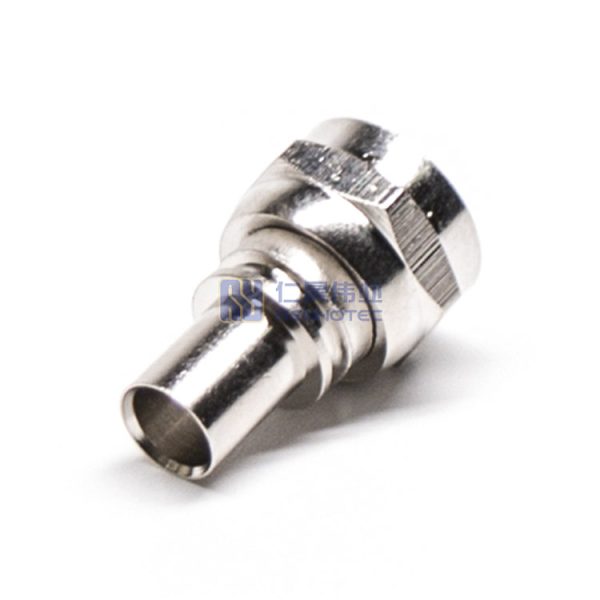

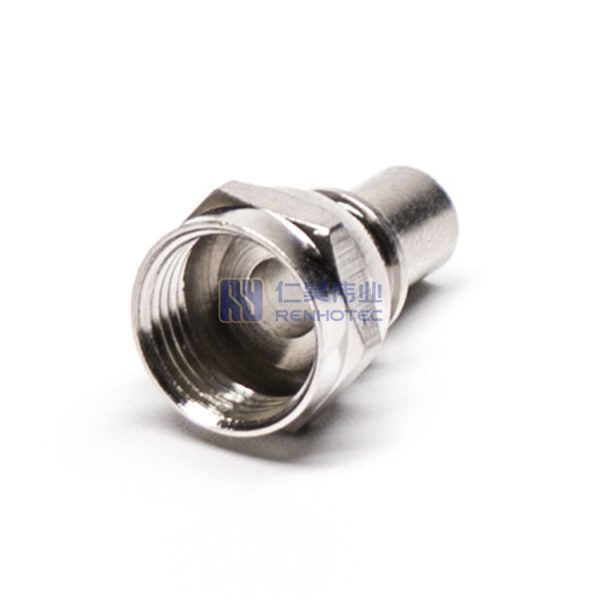

F Type Connector Straight Male Compression Cable Type Bulkhead RG58 – RHT-611-0037

High-quality F Type Connector designed for RG58 cables, featuring a straight male compression design and bulkhead compatibility. Ensures a secure and reliable connection for your cable applications.

The F connector is a coaxial cable connector widely used in television and radio equipment. It is threaded to provide a reliable electrical connection and resistance to interference, and is commonly used to connect equipment such as antennas, modems, and satellite television receivers.The housing of the F connector is usually made of a metallic material, which helps to minimize signal attenuation and interference.
?
These connectors typically operate in the frequency range from a few hundred MHz to 3 GHz and are suitable for a wide variety of video and data transmission applications.F connectors are relatively simple to install and are therefore widely used in both home and commercial equipment. When installing, ensure that the connection is dry and clean to maintain optimal signal transmission quality.

Support high frequency transmission, reduce signal loss.

Made of nickel-plated or gold-plated material, anti-corrosion and long life.

Threaded design ensures firm connection and prevents loosening.

Suitable for a variety of coaxial cables, such as RG6, RG59, etc.

Complete Variety

F Type PCB/Panel Connector

F Connector R-A Through Hole

Through Hole

Flange Mount

F Connector Edge Mount

Edge Type

F Connector Bulkhead

Bulkhead

F Type Cable Connector

F Connector Crimp

Crimp Type

Solder Type

Compression

Crimp on

Product Application

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

F Type
Connector Type

Plug
Orientation

Straight
Shield Termination

Compression
Mounting Type

Cable Mount
Fastening Type

3/8-32 Threaded
Impedance

75 ohm
Insulator Material

POM
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Contact Material

Brass
Contact Finish

Nickel Plated
VSWR

R/A type ≦ 1.3MAX, Straight type≦1.2 MAX
Frequency Range

DC-1GHz
Center Contact Resistance

≦ 10 MΩ (Milliohms Max.)
Outer Contact Resistance

≦ 5 MΩ (Milliohms Max.)
Insultation Resistance

≥1000MΩ
Mating Durability

≥ 500 Cycles
Contact Retention

20 in-lbs min.
Temperature Range

-40°C to +140°C
RF Series

F Type

 Connector Type

Plug
Orientation

Straight

 Shield Termination

Compression
Mounting Type

Cable Mount

 Fastening Type

3/8-32 Threaded
Impedance

75 ohm

 Insulator Material

POM
Shell Material

Copper Alloy

 Shell Finish

Nickel Plated
Contact Material

Brass

 Contact Finish

Nickel Plated
VSWR

R/A type ≦ 1.3MAX, Straight type≦1.2 MAX

 Frequency Range

DC-1GHz
Center Contact Resistance

≦ 10 MΩ (Milliohms Max.)

 Outer Contact Resistance

≦ 5 MΩ (Milliohms Max.)
Insultation Resistance

≥1000MΩ

 Mating Durability

≥ 500 Cycles
Contact Retention

20 in-lbs min.

 Temperature Range

-40°C to +140°C
RF Series

F Type
Connector Type

Plug
Orientation

Straight
Shield Termination

Compression
Mounting Type

Cable Mount
Fastening Type

3/8-32 Threaded
Impedance

75 ohm
Insulator Material

POM
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Contact Material

Brass
Contact Finish

Nickel Plated
VSWR

R/A type ≦ 1.3MAX, Straight type≦1.2 MAX
Frequency Range

DC-1GHz
Center Contact Resistance

≦ 10 MΩ (Milliohms Max.)
Outer Contact Resistance

≦ 5 MΩ (Milliohms Max.)
Insultation Resistance

≥1000MΩ
Mating Durability

≥ 500 Cycles
Contact Retention

20 in-lbs min.
Temperature Range

-40°C to +140°C
Drawing for F Type Connector Straight Male Compression Cable Type Bulkhead RG58Download
