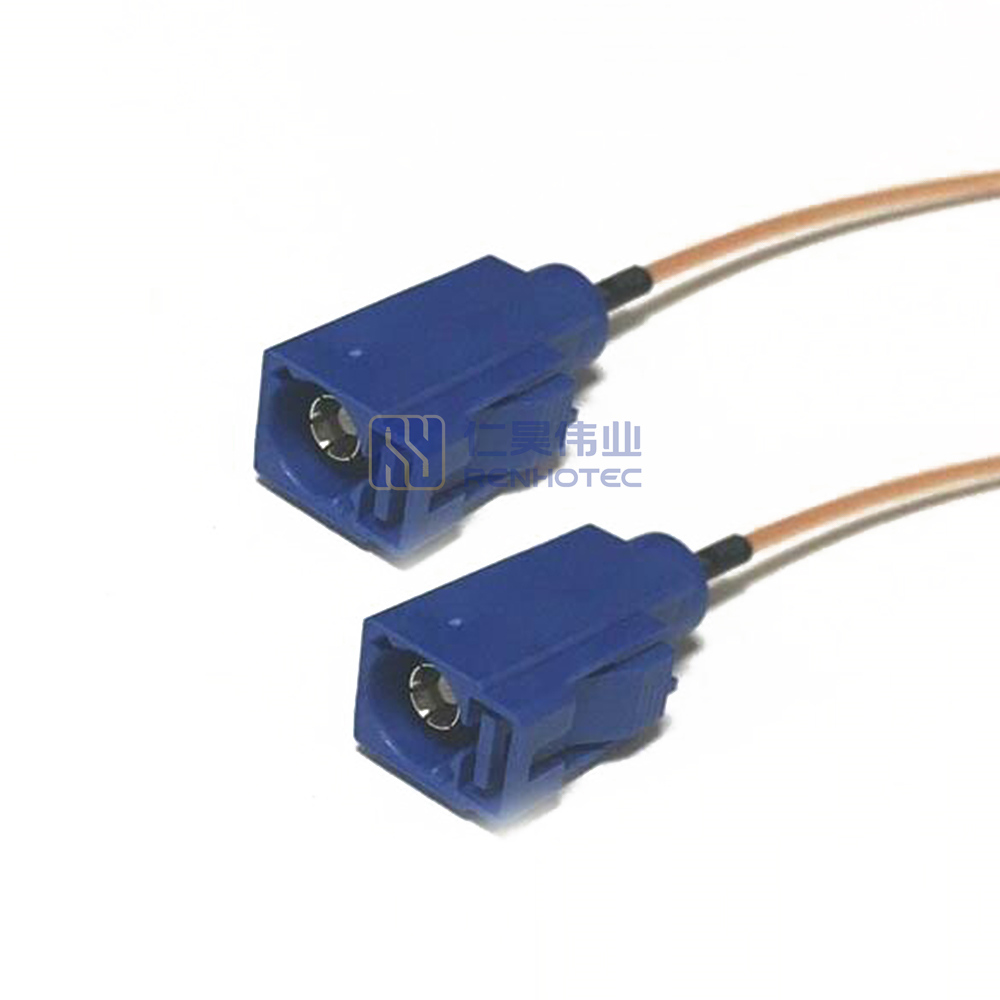

Fakra C Jack to Fakra C Jack RF Cable Assemblies with RG178 Cable – RHT-605-6193

  • Fakra C Jack to Fakra C Jack RF cable assemblies with RG178 cable ensure high-quality, low-loss signal transmission for automotive and communication systems.
  • High-performance RG178 cable offers excellent frequency response and minimal signal degradation, ensuring reliable communication in demanding environments.
  • The Fakra C Jack connectors provide secure, stable connections for automotive, GPS, and wireless applications, offering durability and reliability.
  • RG178 cable construction is flexible yet durable, making it ideal for use in tight spaces and rugged environments where performance is critical.
  • Designed for seamless integration with automotive and communication devices, ensuring quick and easy setup for efficient connectivity.

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

  • Secure primary locking system with tactile and audible locking
  • Shock and vibration resistant coded housing
  • Protection against unintentional opening by protective bar and protective strips
  • High axial holding power of the coaxial insert due to secondary locking
  • Mechanical and color coding system with 14 different codes
  • Fastening groove for cable connectors for chassis mounting
  • Coaxial insert and cable freely rotatable in the housing
  • Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
  • Efficient, automated further processing option
  • Customized packaging possible
Code A B C D E F G
Color Deep Black Cream White Signal Blue Bordeaux Violet Leaf Green Brown Blue Gray
Application Radio with phantom supply Radio without phantom supply GPS telematics or navigation GSM Cellular Phone TV (UHF) TV (VHF) SDARS terrestrial
Code H I K L M N Z
Color Violet Beige Curry Yellow Carmine Red Pastel Orange Pastel Green Water Blue
Application GPS telematics and navigation Bluetooth Controlled
Parking Heating
SDARS satellite Not defined Keyless entry
Tire pressure monitoring
Not defined Neutral


Our Advantages

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Cable Style

Fakra C to Fakra C

RF Cable 1st Connector

Fakra C Jack

1st Contact Type

Female Pin

1st Connector Orientation

Straight

RF Cable 2nd Connector

Fakra C Jack

2nd Contact Type

Female Pin

2nd Connector Orientation

Straight

Impedance

50 ohm

Cable Color

Brown

Frequency Range

DC-14GHz

Temperature Range

-40°C to +85°C

Cable Type

RG178

RF Cable Style

Fakra C to Fakra C

RF Cable 1st Connector

Fakra C Jack

1st Contact Type

Female Pin

1st Connector Orientation

Straight

RF Cable 2nd Connector

Fakra C Jack

2nd Contact Type

Female Pin

2nd Connector Orientation

Straight

Impedance

50 ohm

Cable Color

Brown

Frequency Range

DC-14GHz

Temperature Range

-40°C to +85°C

Cable Type

RG178

RF Cable Style

Fakra C to Fakra C

RF Cable 1st Connector

Fakra C Jack

1st Contact Type

Female Pin

1st Connector Orientation

Straight

RF Cable 2nd Connector

Fakra C Jack

2nd Contact Type

Female Pin

2nd Connector Orientation

Straight

Impedance

50 ohm

Cable Color

Brown

Frequency Range

DC-14GHz

Temperature Range

-40°C to +85°C

Cable Type

RG178

Drawing for Fakra C Jack to Fakra C Jack RF Cable Assemblies with RG178 Cable - RHT-605-6193Download
