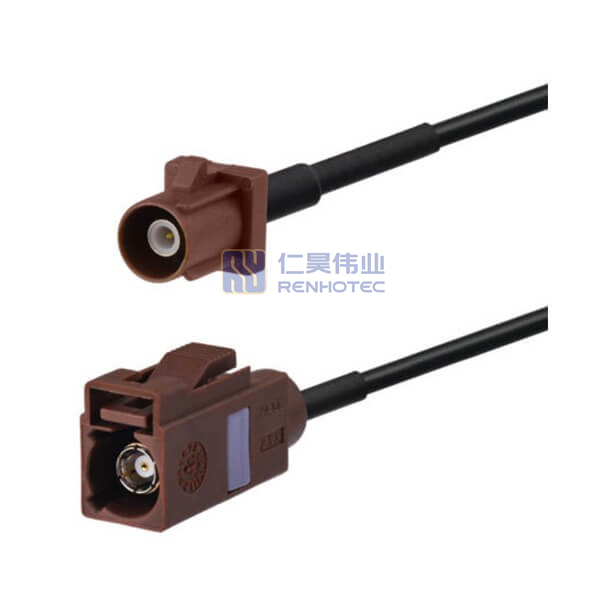

Fakra F Plug to Fakra F Jack RF Cable Assemblies – RHT-605-6472

  • Fakra F Plug to Fakra F Jack RF cable assemblies ensure stable and reliable signal transmission for automotive and communication systems.
  • Perfect for connecting antennas, infotainment systems, GPS, and other automotive electronics with Fakra F connectors.
  • Designed for seamless integration with automotive systems, providing secure connections in demanding environments.
  • Constructed with high-quality, durable materials to withstand vibrations, temperature changes, and moisture typical in automotive settings.
  • Optimized for low signal loss and high-frequency performance, ensuring clear communication in automotive and RF applications.

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

  • Secure primary locking system with tactile and audible locking
  • Shock and vibration resistant coded housing
  • Protection against unintentional opening by protective bar and protective strips
  • High axial holding power of the coaxial insert due to secondary locking
  • Mechanical and color coding system with 14 different codes
  • Fastening groove for cable connectors for chassis mounting
  • Coaxial insert and cable freely rotatable in the housing
  • Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
  • Efficient, automated further processing option
  • Customized packaging possible
Code A B C D E F G
Color Deep Black Cream White Signal Blue Bordeaux Violet Leaf Green Brown Blue Gray
Application Radio with phantom supply Radio without phantom supply GPS telematics or navigation GSM Cellular Phone TV (UHF) TV (VHF) SDARS terrestrial
Code H I K L M N Z
Color Violet Beige Curry Yellow Carmine Red Pastel Orange Pastel Green Water Blue
Application GPS telematics and navigation Bluetooth Controlled
Parking Heating		 SDARS satellite Not defined Keyless entry
Tire pressure monitoring		 Not defined Neutral


Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Cable Style

Fakra F to Fakra F
RF Cable 1st Connector

Fakra F Plug
1st Contact Type

Male Pin
1st Connector Orientation

Straight
RF Cable 2nd Connector

Fakra F Jack
2nd Contact Type

Female Pin
2nd Connector Orientation

Straight
Impedance

50 ohm
Cable Color

Black
Frequency Range

0-6GHz
Temperature Range

-65°C to +165°C
Cable length

2m
RF Cable Style

Fakra F to Fakra F

 RF Cable 1st Connector

Fakra F Plug
1st Contact Type

Male Pin

 1st Connector Orientation

Straight
RF Cable 2nd Connector

Fakra F Jack

 2nd Contact Type

Female Pin
2nd Connector Orientation

Straight

 Impedance

50 ohm
Cable Color

Black

 Frequency Range

0-6GHz
Temperature Range

-65°C to +165°C

 Cable length

2m
RF Cable Style

Fakra F to Fakra F
RF Cable 1st Connector

Fakra F Plug
1st Contact Type

Male Pin
1st Connector Orientation

Straight
RF Cable 2nd Connector

Fakra F Jack
2nd Contact Type

Female Pin
2nd Connector Orientation

Straight
Impedance

50 ohm
Cable Color

Black
Frequency Range

0-6GHz
Temperature Range

-65°C to +165°C
Cable length

2m
