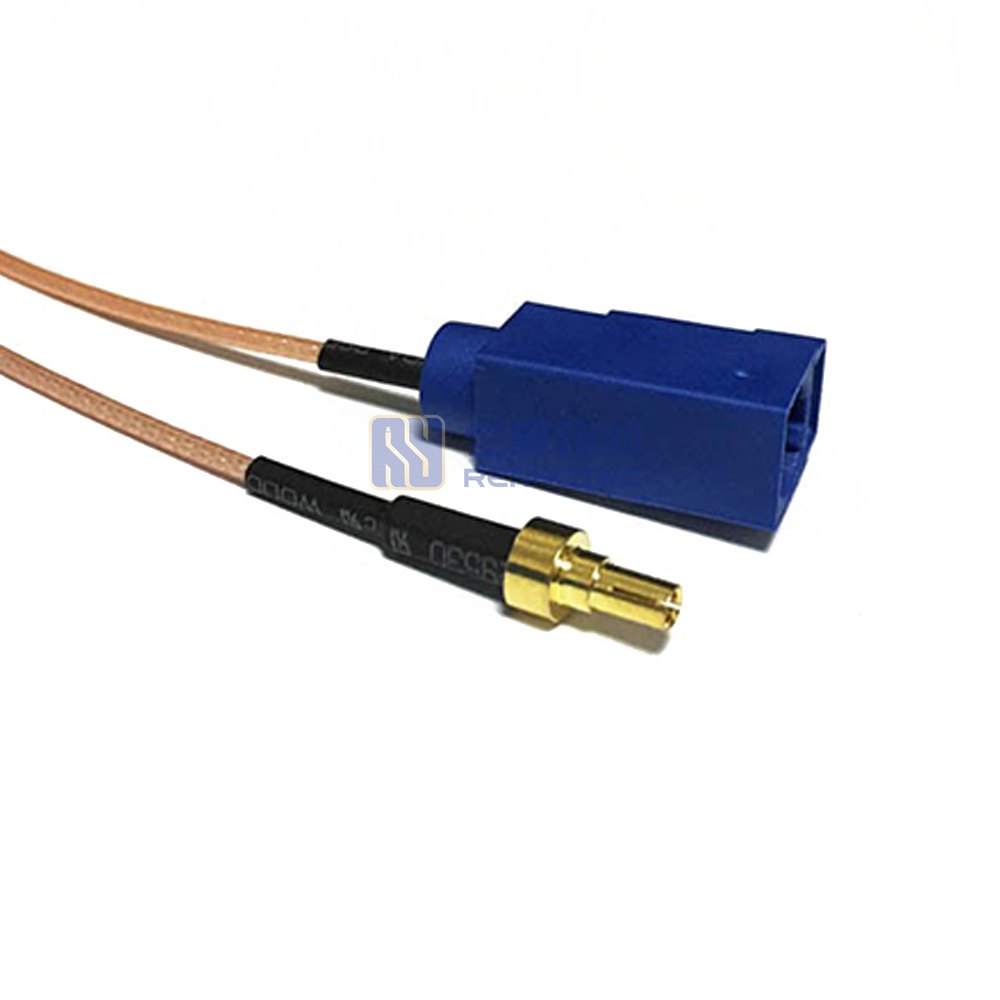

Fakra C Jack to CRC9 Plug RF Cable Assemblies with RG178 Cable – RHT-605-6184

  • Fakra C Jack to CRC9 Plug RF cable assemblies provide reliable signal transmission for automotive and telecommunication applications.
  • Utilizes high-quality RG178 cable for low-loss, flexible, and high-performance signal integrity even in challenging environments.
  • Fakra C Jack ensures secure and vibration-resistant connectivity, ideal for automotive and industrial use where durability is essential.
  • CRC9 Plug offers robust RF connection, commonly used in wireless communications, ensuring minimal signal loss for critical systems.
  • RG178 cable offers great flexibility, excellent shielding, and resistance to external interference, ensuring clear signal transmission.

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

  • Secure primary locking system with tactile and audible locking
  • Shock and vibration resistant coded housing
  • Protection against unintentional opening by protective bar and protective strips
  • High axial holding power of the coaxial insert due to secondary locking
  • Mechanical and color coding system with 14 different codes
  • Fastening groove for cable connectors for chassis mounting
  • Coaxial insert and cable freely rotatable in the housing
  • Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
  • Efficient, automated further processing option
  • Customized packaging possible
Code A B C D E F G
Color Deep Black Cream White Signal Blue Bordeaux Violet Leaf Green Brown Blue Gray
Application Radio with phantom supply Radio without phantom supply GPS telematics or navigation GSM Cellular Phone TV (UHF) TV (VHF) SDARS terrestrial
Code H I K L M N Z
Color Violet Beige Curry Yellow Carmine Red Pastel Orange Pastel Green Water Blue
Application GPS telematics and navigation Bluetooth Controlled
Parking Heating		 SDARS satellite Not defined Keyless entry
Tire pressure monitoring		 Not defined Neutral


Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Cable Style

Fakra C to CRC9
RF Cable 1st Connector

Fakra Jack
1st Contact Type

Female Pin
1st Connector Orientation

Straight
RF Cable 2nd Connector

CRC9 Plug
2nd Contact Type

Male Pin
2nd Connector Orientation

Straight
Impedance

50 ohm
Cable Color

Brown
Frequency Range

DC-14GHz
Temperature Range

-40°C to +85°C
Cable Type

RG178
RF Cable Style

Fakra C to CRC9

 RF Cable 1st Connector

Fakra Jack
1st Contact Type

Female Pin

 1st Connector Orientation

Straight
RF Cable 2nd Connector

CRC9 Plug

 2nd Contact Type

Male Pin
2nd Connector Orientation

Straight

 Impedance

50 ohm
Cable Color

Brown

 Frequency Range

DC-14GHz
Temperature Range

-40°C to +85°C

 Cable Type

RG178
RF Cable Style

Fakra C to CRC9
RF Cable 1st Connector

Fakra Jack
1st Contact Type

Female Pin
1st Connector Orientation

Straight
RF Cable 2nd Connector

CRC9 Plug
2nd Contact Type

Male Pin
2nd Connector Orientation

Straight
Impedance

50 ohm
Cable Color

Brown
Frequency Range

DC-14GHz
Temperature Range

-40°C to +85°C
Cable Type

RG178
