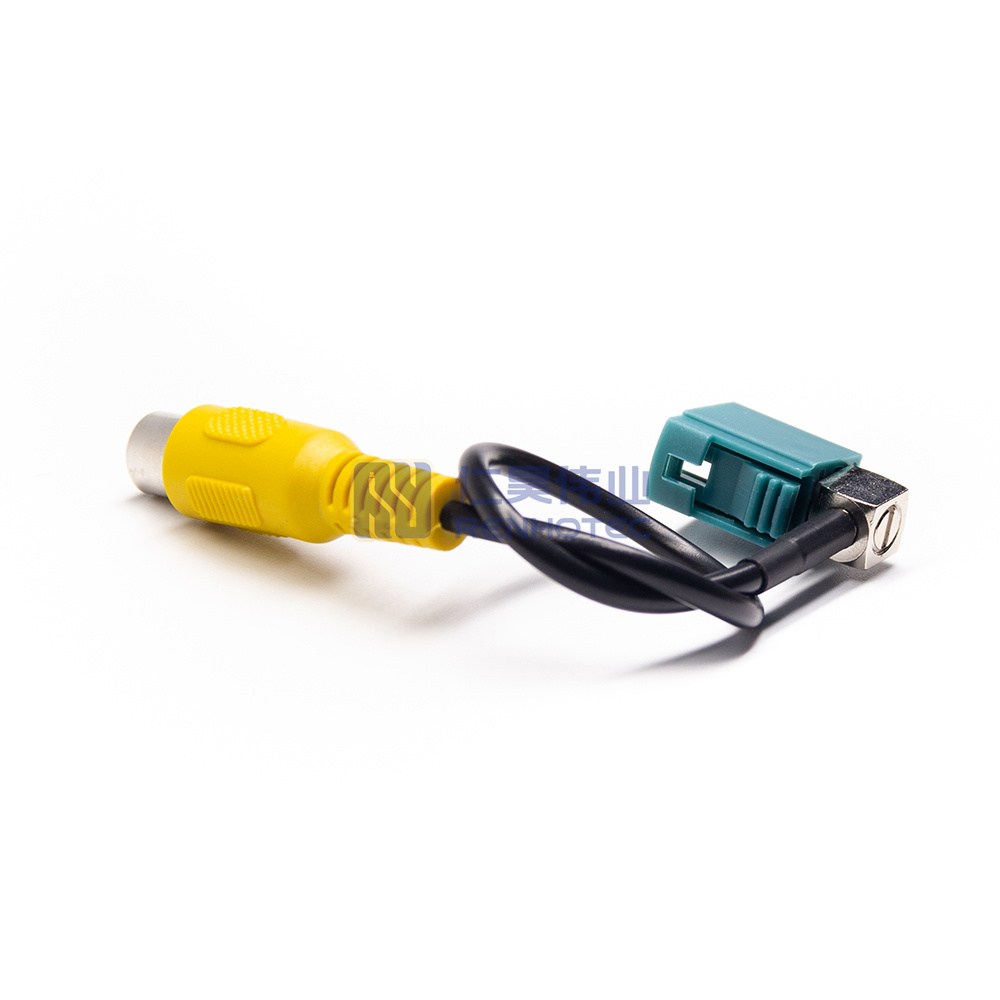

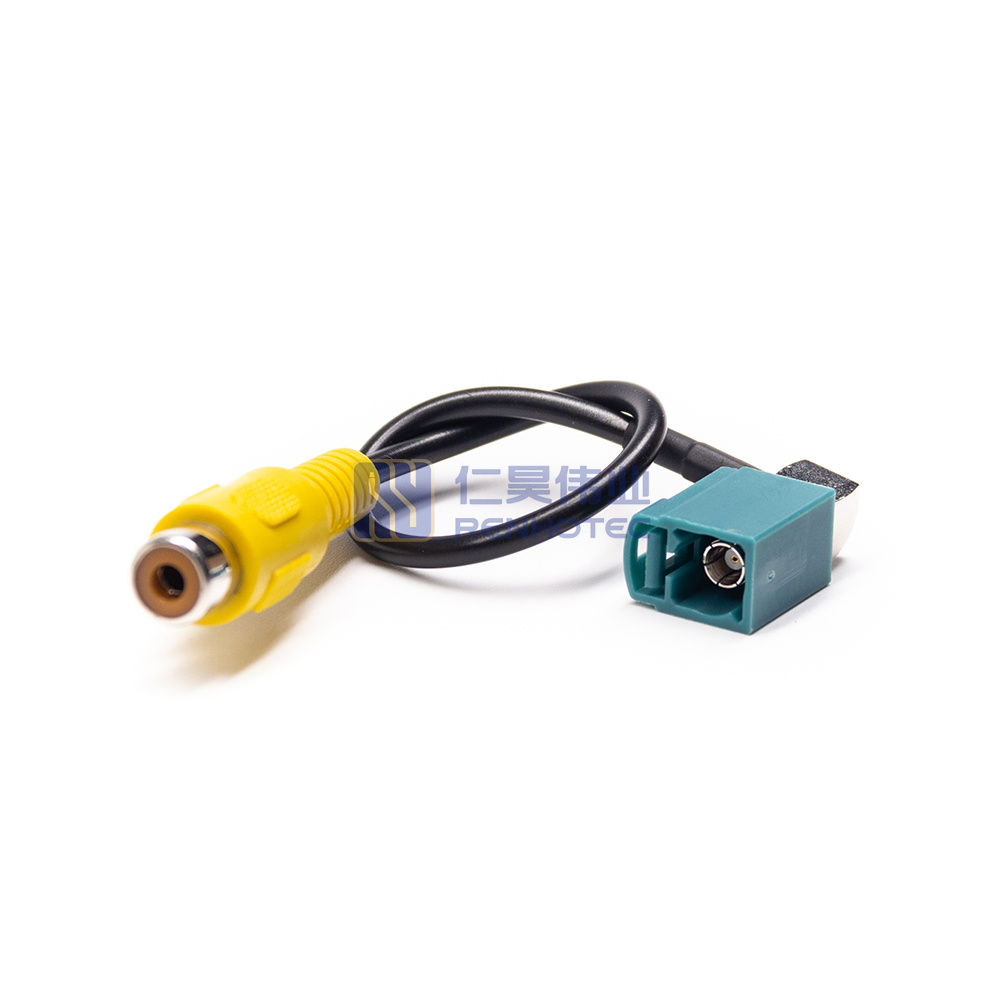

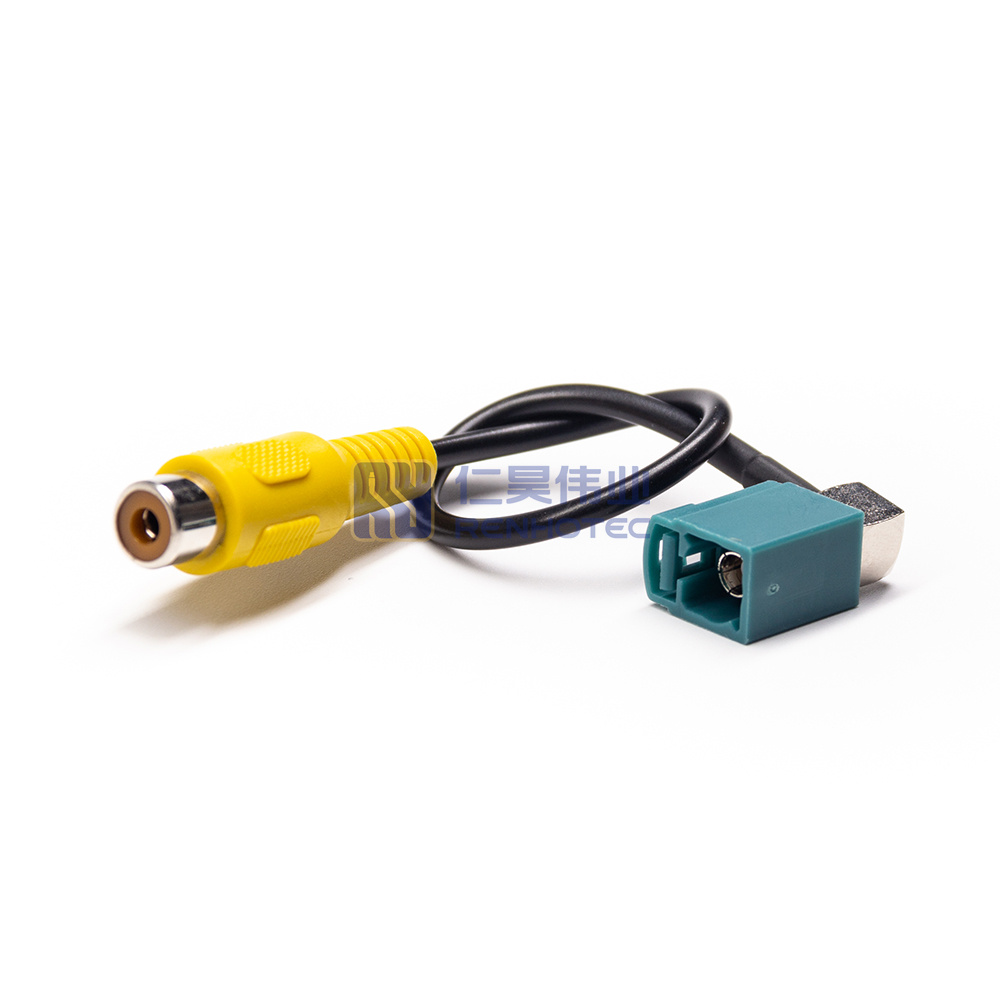

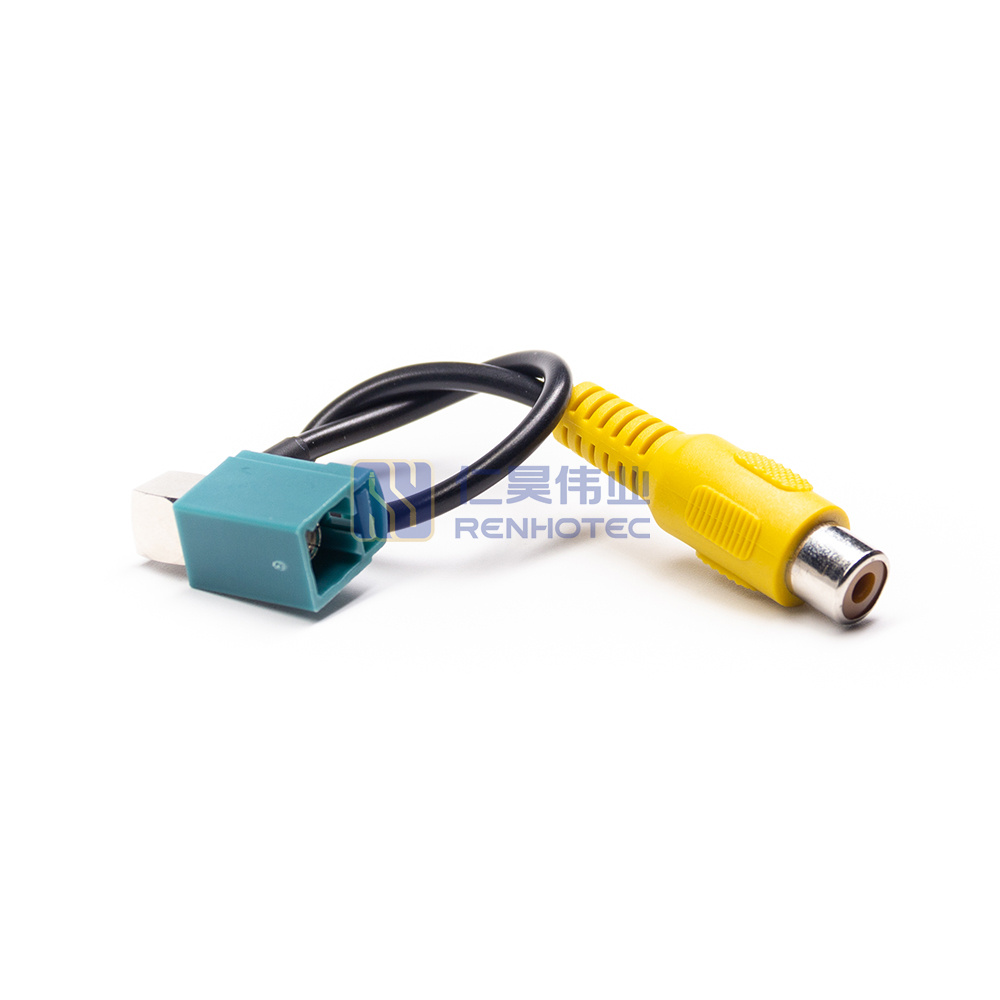

Fakra Right Angle Female Z Code to RCA Female Extension Cable RG174

  • Fakra Right Angle Female Z Code to RCA Female extension cable designed for secure and efficient signal transfer in automotive and AV systems.
  • Built with RG174 coaxial cable for optimal signal quality and minimal loss, ensuring stable connections for audio, video, and data applications.
  • Right-angle Fakra Z connector provides space-saving installation in tight automotive environments while maintaining a secure, reliable connection.
  • Durable construction, designed to withstand harsh conditions, including high temperatures, moisture, and vibrations typical in automotive environments.
  • Ideal for connecting automotive systems like infotainment, cameras, and external AV equipment to RCA-compatible devices.

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

  • Secure primary locking system with tactile and audible locking
  • Shock and vibration resistant coded housing
  • Protection against unintentional opening by protective bar and protective strips
  • High axial holding power of the coaxial insert due to secondary locking
  • Mechanical and color coding system with 14 different codes
  • Fastening groove for cable connectors for chassis mounting
  • Coaxial insert and cable freely rotatable in the housing
  • Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
  • Efficient, automated further processing option
  • Customized packaging possible
Code A B C D E F G
Color Deep Black Cream White Signal Blue Bordeaux Violet Leaf Green Brown Blue Gray
Application Radio with phantom supply Radio without phantom supply GPS telematics or navigation GSM Cellular Phone TV (UHF) TV (VHF) SDARS terrestrial
Code H I K L M N Z
Color Violet Beige Curry Yellow Carmine Red Pastel Orange Pastel Green Water Blue
Application GPS telematics and navigation Bluetooth Controlled
Parking Heating		 SDARS satellite Not defined Keyless entry
Tire pressure monitoring		 Not defined Neutral


Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Specifications

Style

Fakra to RCA
Style

Fakra to RCA

Product Specification

1st Connector

Fakra Jack, Z Code
1st Connector Orientation

Right Angle
2nd Connector

RCA Jack
2nd Connector Orientation

Straight
Plastic Housing

PA66+30%GF
Contact Material

Copper
Insulator Material

PTFE
Impedance

50 ohm
Frequency - Max

6GHz
Insultation Resistance

≥5 × 10³MΩ (Milliohms min.)
Operating Voltage

335V r.m.s at sea level
Withstand Voltage

1000V r.m.s at sea level
Core Connection Resistance

≤ 20 MΩ
Mating Durability

≥ 25 Cycles
Latch Holding Force

≥110N
Anti-error Force

≥40N
Operating Temperature

-40°C to +85°C
1st Connector

Fakra Jack, Z Code

 1st Connector Orientation

Right Angle
2nd Connector

RCA Jack

 2nd Connector Orientation

Straight
Plastic Housing

PA66+30%GF

 Contact Material

Copper
Insulator Material

PTFE

 Impedance

50 ohm
Frequency - Max

6GHz

 Insultation Resistance

≥5 × 10³MΩ (Milliohms min.)
Operating Voltage

335V r.m.s at sea level

 Withstand Voltage

1000V r.m.s at sea level
Core Connection Resistance

≤ 20 MΩ

 Mating Durability

≥ 25 Cycles
Latch Holding Force

≥110N

 Anti-error Force

≥40N
Operating Temperature

-40°C to +85°C
Style

Fakra to RCA
1st Connector

Fakra Jack, Z Code
1st Connector Orientation

Right Angle
2nd Connector

RCA Jack
2nd Connector Orientation

Straight
Plastic Housing

PA66+30%GF
Contact Material

Copper
Insulator Material

PTFE
Impedance

50 ohm
Frequency - Max

6GHz
Insultation Resistance

≥5 × 10³MΩ (Milliohms min.)
Operating Voltage

335V r.m.s at sea level
Withstand Voltage

1000V r.m.s at sea level
Core Connection Resistance

≤ 20 MΩ
Mating Durability

≥ 25 Cycles
Latch Holding Force

≥110N
Anti-error Force

≥40N
Operating Temperature

-40°C to +85°C
