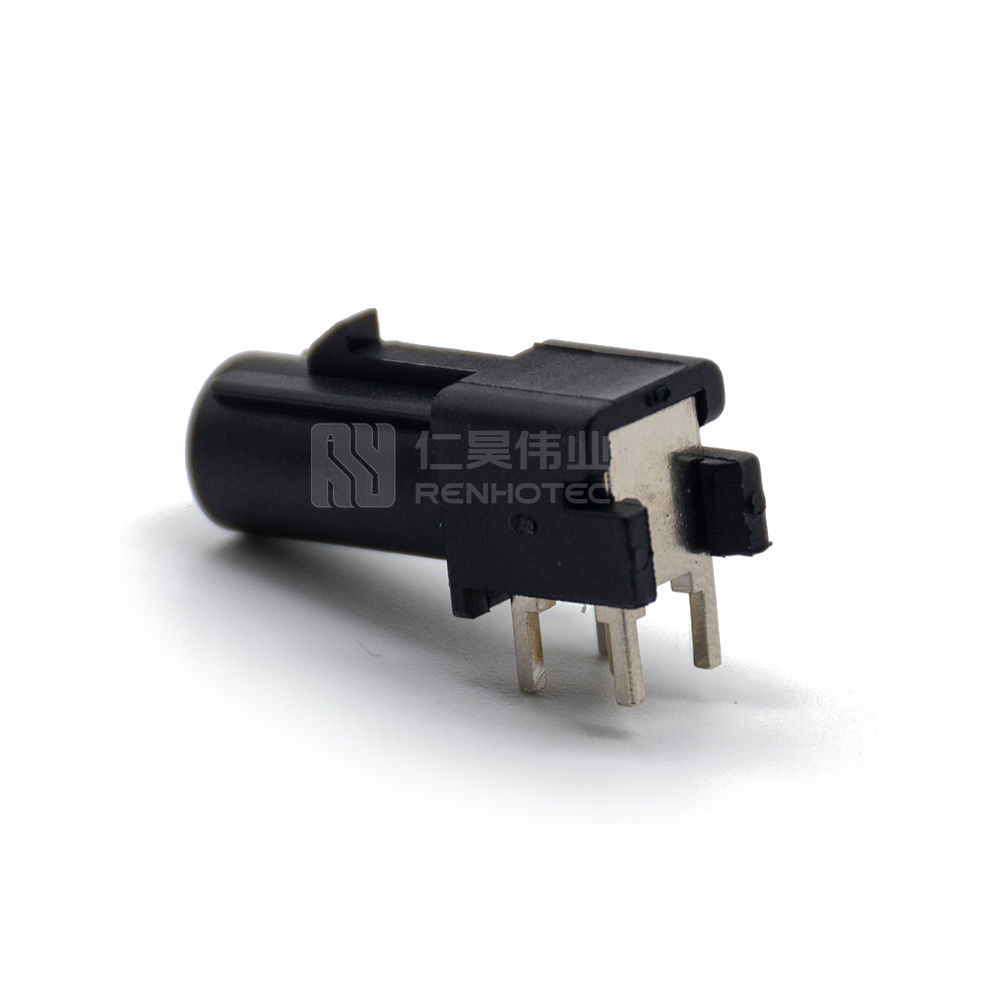

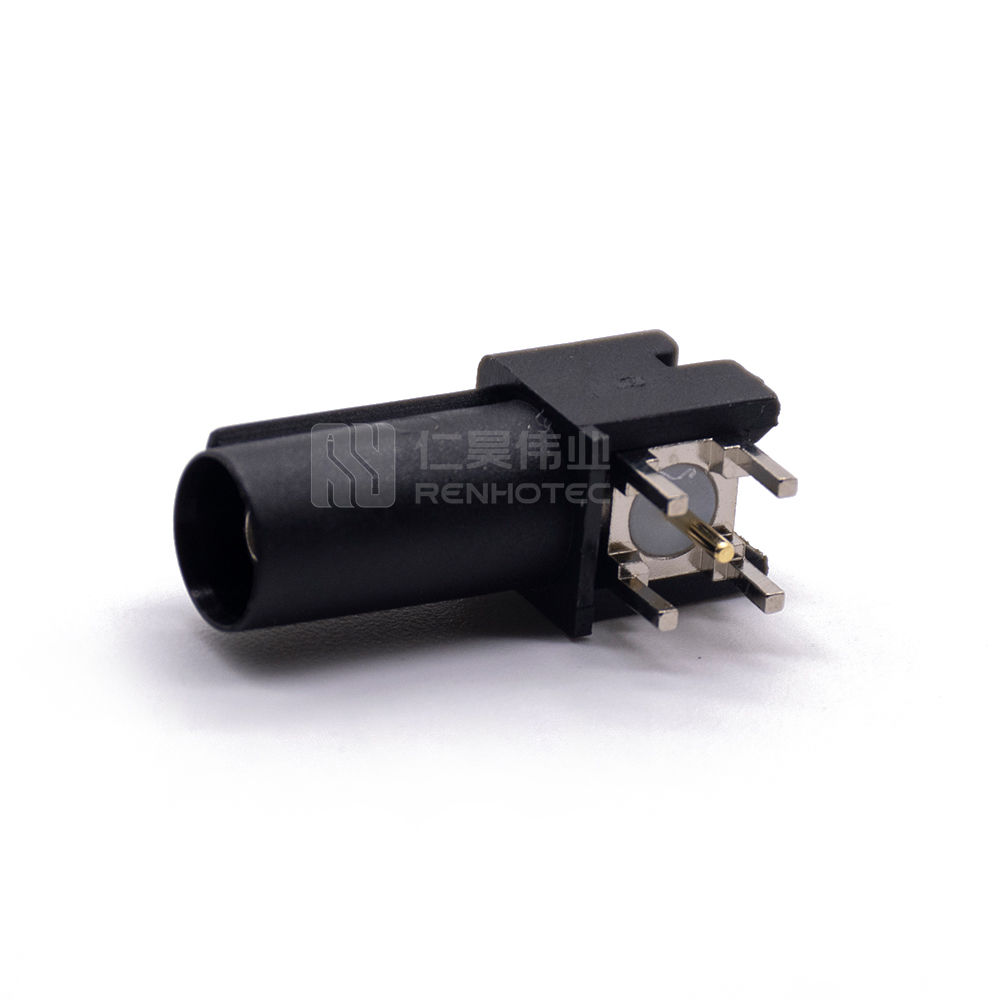

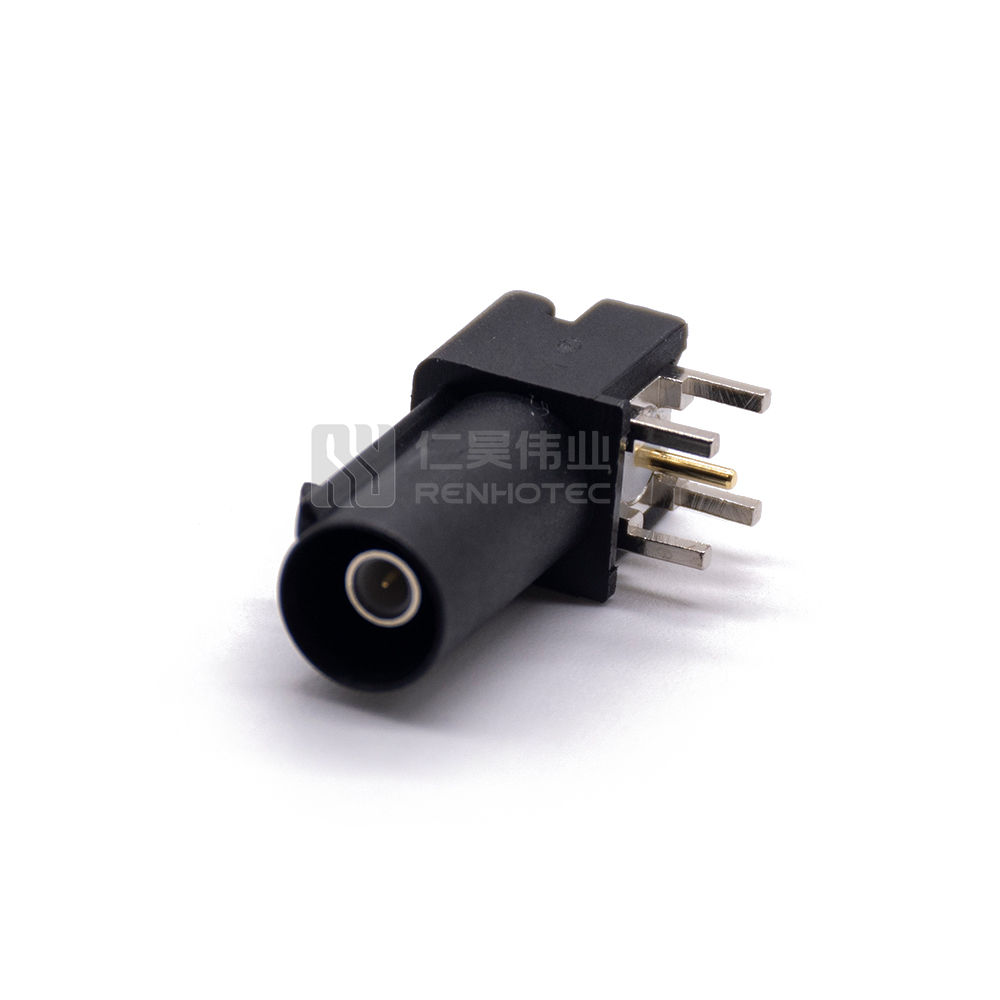

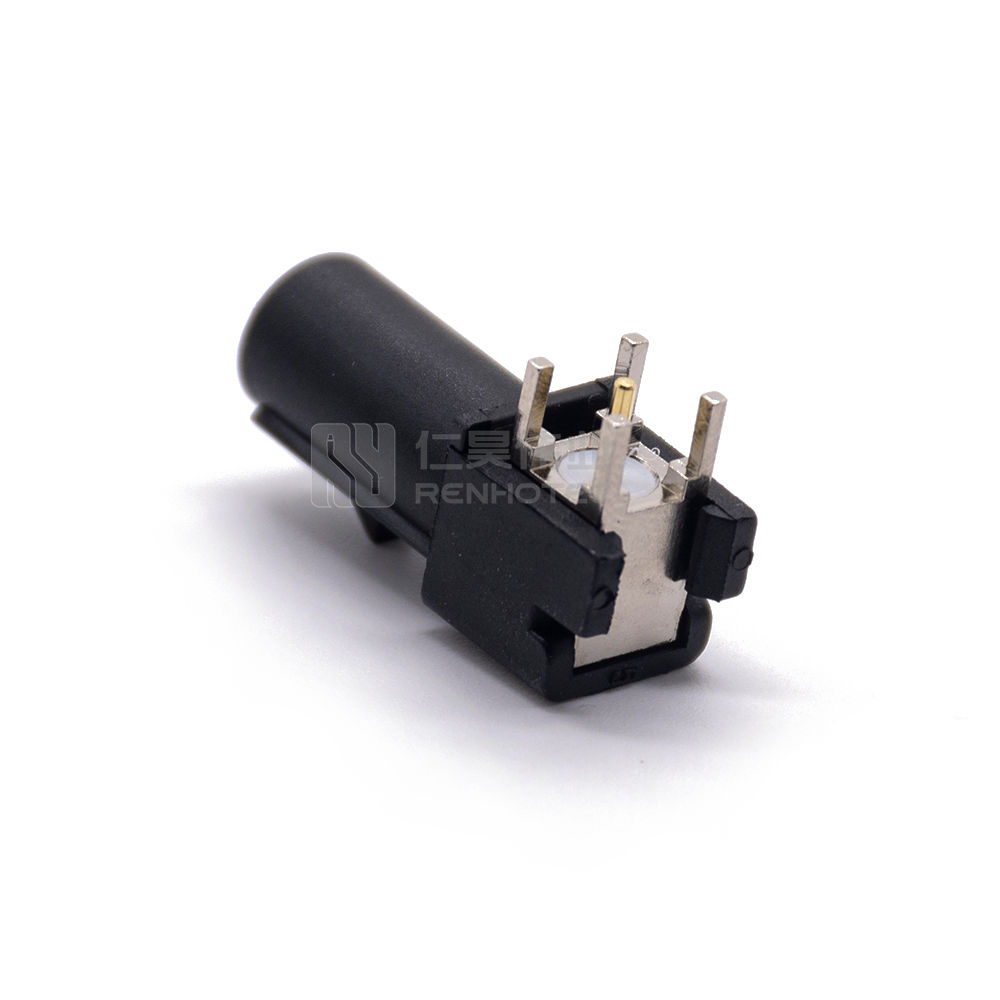

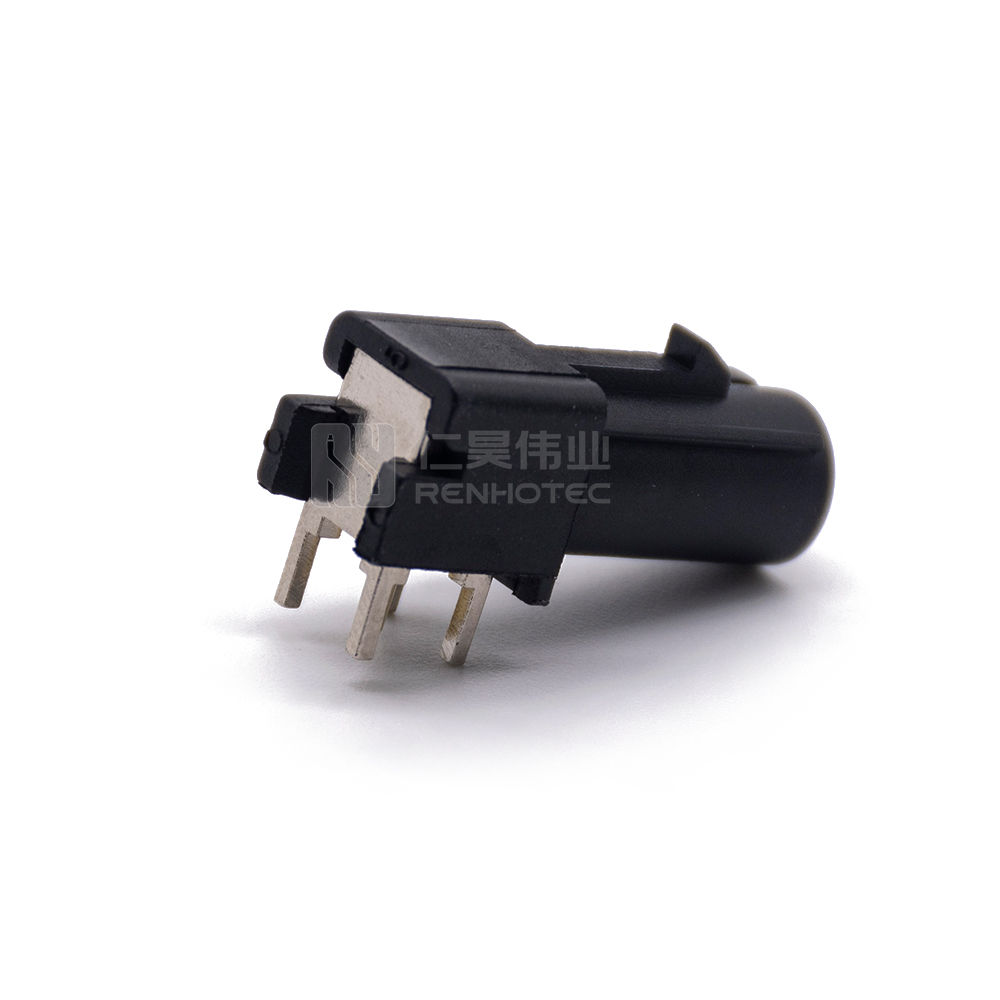

Fakra Socket Right Angle Male Pin Black A Code Panel Mount Through Hole – 101-11-10198

  • Fakra Socket Right Angle Male Pin Black A Code (101-11-10198) designed for automotive RF signal applications, including GPS, antennas, and communication systems.
  • Right angle male pin configuration provides a space-saving and efficient solution for connecting automotive electronic systems.
  • Black A Code ensures easy identification and compatibility with automotive RF connectors for seamless integration and secure connections.
  • Panel mount through hole provides stable, durable, and reliable mounting, ideal for long-term automotive applications.
  • Engineered to withstand extreme automotive conditions like temperature fluctuations, moisture, and vibrations, ensuring long-lasting performance.

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

  • Secure primary locking system with tactile and audible locking
  • Shock and vibration resistant coded housing
  • Protection against unintentional opening by protective bar and protective strips
  • High axial holding power of the coaxial insert due to secondary locking
  • Mechanical and color coding system with 14 different codes
  • Fastening groove for cable connectors for chassis mounting
  • Coaxial insert and cable freely rotatable in the housing
  • Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
  • Efficient, automated further processing option
  • Customized packaging possible
Code A B C D E F G
Color Deep Black Cream White Signal Blue Bordeaux Violet Leaf Green Brown Blue Gray
Application Radio with phantom supply Radio without phantom supply GPS telematics or navigation GSM Cellular Phone TV (UHF) TV (VHF) SDARS terrestrial
Code H I K L M N Z
Color Violet Beige Curry Yellow Carmine Red Pastel Orange Pastel Green Water Blue
Application GPS telematics and navigation Bluetooth Controlled
Parking Heating		 SDARS satellite Not defined Keyless entry
Tire pressure monitoring		 Not defined Neutral


Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

Fakra
Connector Type

Plug
Orientation

Right Angle
Contact Type

Male Pin
Contact Termination Style

Plug Board
Mounting Type

Panel Mount
Fastening Type

Push-On
Number of Ports

1
Impedance

50 ohm
Frequency - Max

6GHz
Shell Material

Zinc Alloy
Shell Finish

Nickel Plated
Contact Material

Copper Alloy
Contact Finish

Gold Plated
Color

Black
RF Series

Fakra

 Connector Type

Plug
Orientation

Right Angle

 Contact Type

Male Pin
Contact Termination Style

Plug Board

 Mounting Type

Panel Mount
Fastening Type

Push-On

 Number of Ports

1
Impedance

50 ohm

 Frequency - Max

6GHz
Shell Material

Zinc Alloy

 Shell Finish

Nickel Plated
Contact Material

Copper Alloy

 Contact Finish

Gold Plated
Color

Black
RF Series

Fakra
Connector Type

Plug
Orientation

Right Angle
Contact Type

Male Pin
Contact Termination Style

Plug Board
Mounting Type

Panel Mount
Fastening Type

Push-On
Number of Ports

1
Impedance

50 ohm
Frequency - Max

6GHz
Shell Material

Zinc Alloy
Shell Finish

Nickel Plated
Contact Material

Copper Alloy
Contact Finish

Gold Plated
Color

Black
