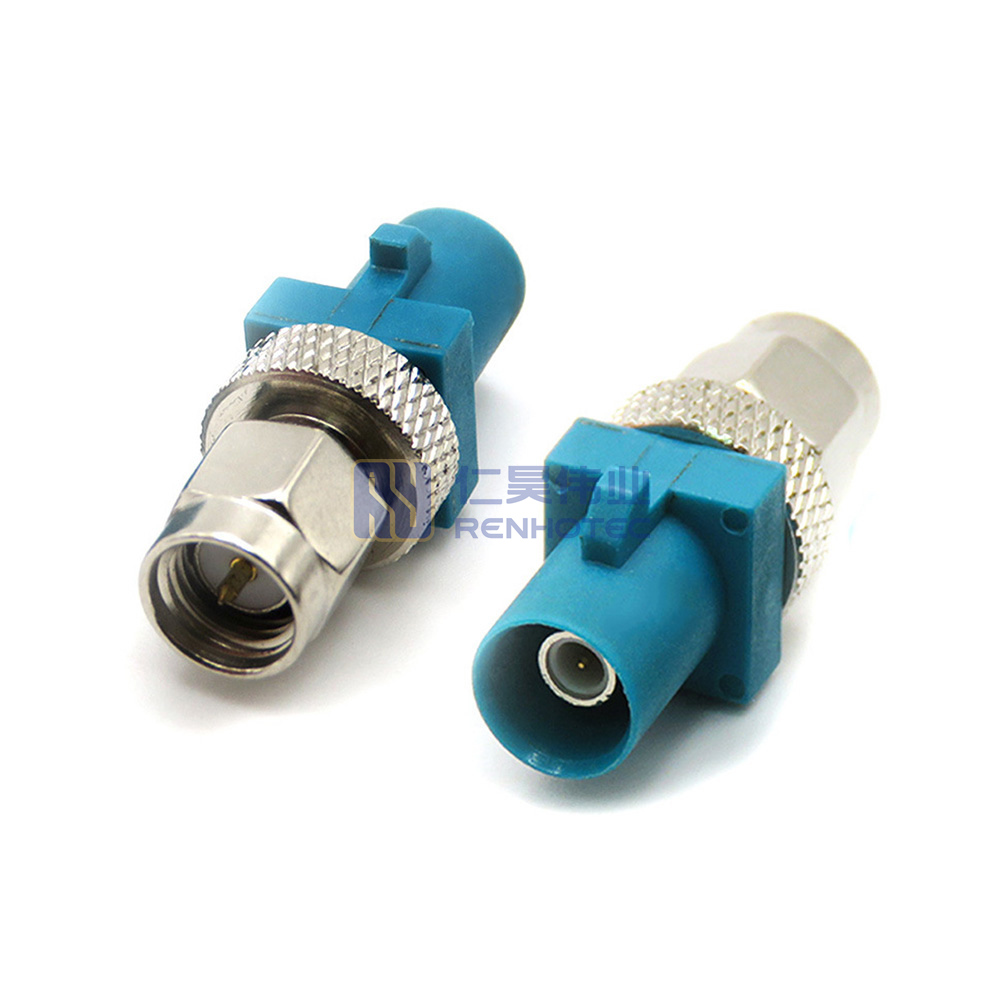

Fakra Z to SMA Male Adapter

  • Fakra Z to SMA male adapter for connecting automotive systems with SMA-compatible RF devices.
  • Durable construction ensures reliable signal transmission even in harsh automotive environments.
  • Compact design allows for easy installation in tight spaces, making it ideal for small or constrained setups.
  • Perfect for automotive applications such as GPS, communication, and infotainment systems requiring an SMA connection.
  • Provides secure and stable connectivity between Fakra Z and SMA-equipped devices for optimal signal performance.

RF adapters for changing gender or as connector protectors in precision test and measurement applications are commonly available. They are also used to transfer signals between connector interfaces. Coaxial adapters are available in 50 ohm and 75 ohm designs. Standard polarity and reverse polarity Jack to Jack, Plug to Jack, and Plug to Plug adapters are available across most RF interfaces. The polarity of an interface can change by changing the center contact from male to female or from female to male, depending on the adapter interface.

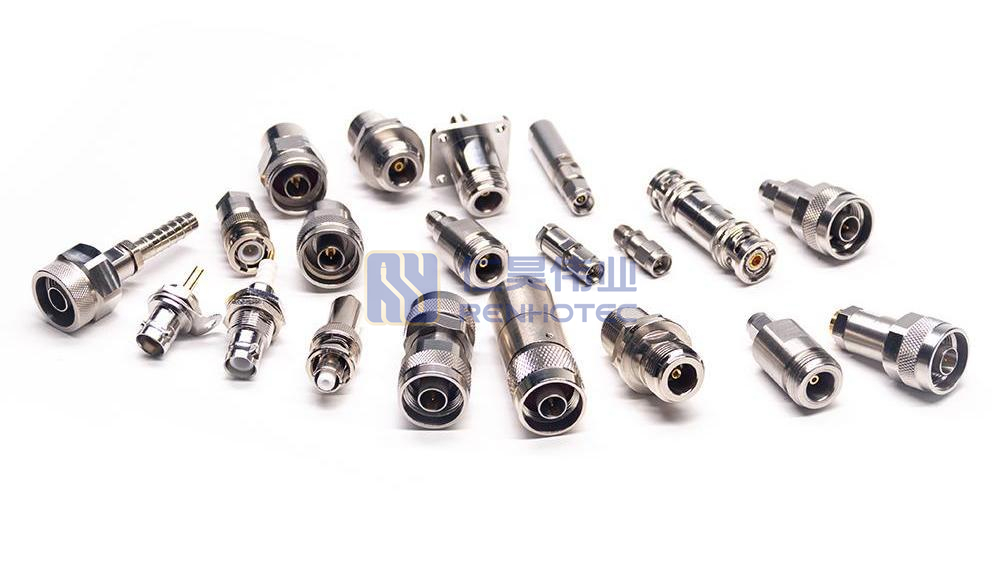

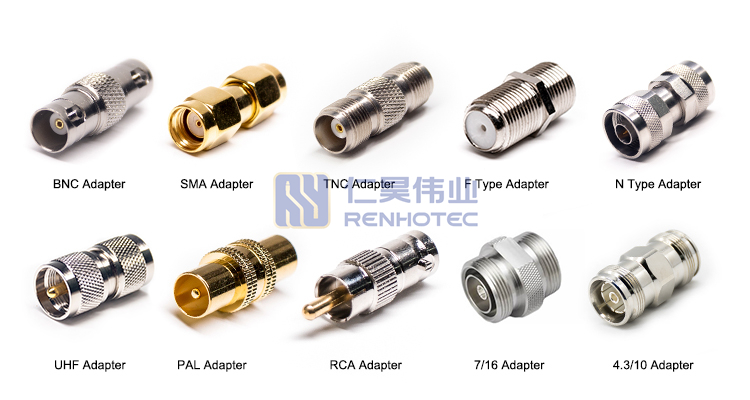

RF Adapter Series

Industry Application

Product Specification

Adapter Style

SMA to Fakra
Convert From(Adapter 1)

SMA
1st Connector

Plug
1st Contact Type

Male Pin
Convert To(Adapter 2)

Fakra
2nd Connector

Plug
2nd Contact Type

Male Pin
Orientation

Straight
Impedance

50 ohm
Operating Voltage

335V max
Insulation Resistance

≥1000MΩ
VSWR

≤1.5
Operating Temperature

-40°C～+100°C
Adapter Style

SMA to Fakra

 Convert From(Adapter 1)

SMA
1st Connector

Plug

 1st Contact Type

Male Pin
Convert To(Adapter 2)

Fakra

 2nd Connector

Plug
2nd Contact Type

Male Pin

 Orientation

Straight
Impedance

50 ohm

 Operating Voltage

335V max
Insulation Resistance

≥1000MΩ

 VSWR

≤1.5
Operating Temperature

-40°C～+100°C

Durability (Matings)

≧500
Durability (Matings)

≧500
Adapter Style

SMA to Fakra
Convert From(Adapter 1)

SMA
1st Connector

Plug
1st Contact Type

Male Pin
Convert To(Adapter 2)

Fakra
2nd Connector

Plug
2nd Contact Type

Male Pin
Orientation

Straight
Impedance

50 ohm
Operating Voltage

335V max
Insulation Resistance

≥1000MΩ
VSWR

≤1.5
Durability (Matings)

≧500
Operating Temperature

-40°C～+100°C
