SKU: RHT-JMC-340 Category:

Authorized Sellers


Request for Quotation

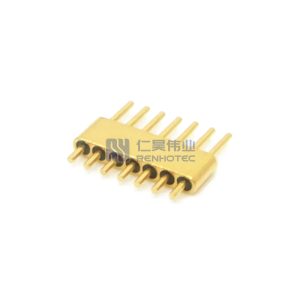

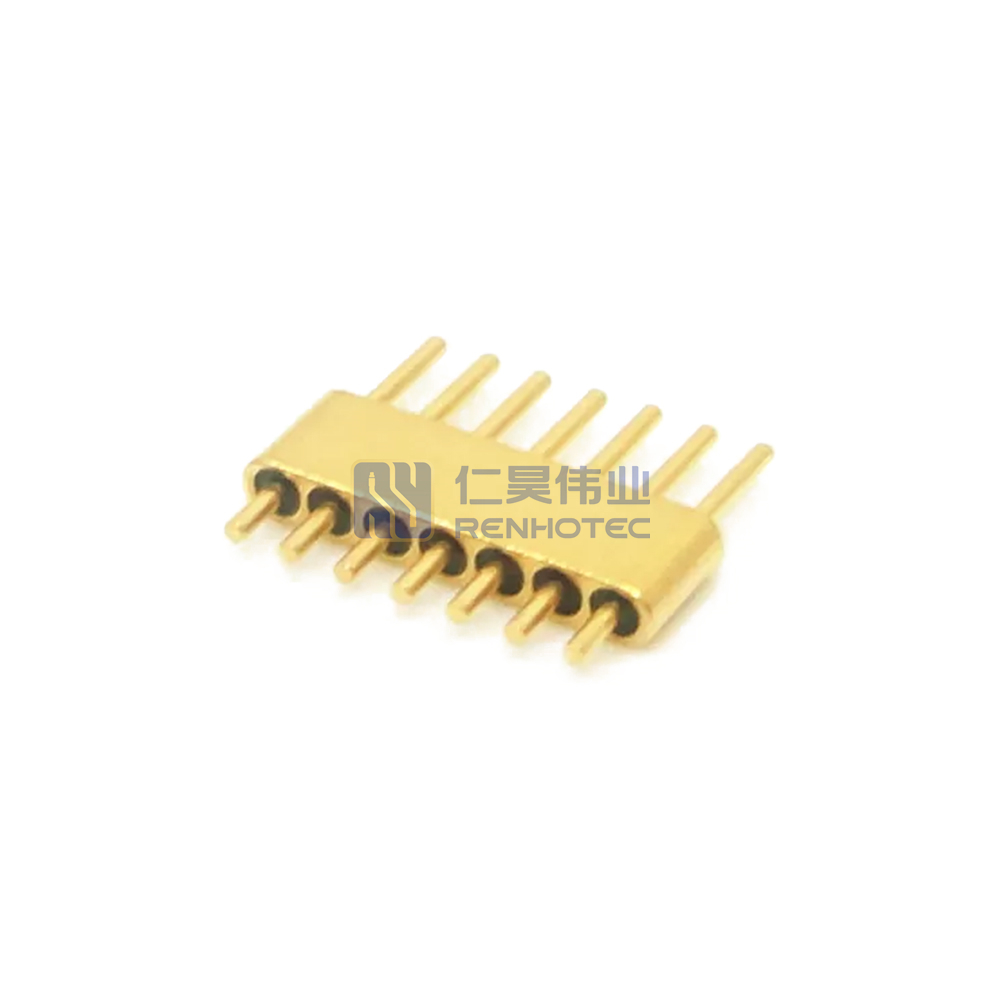

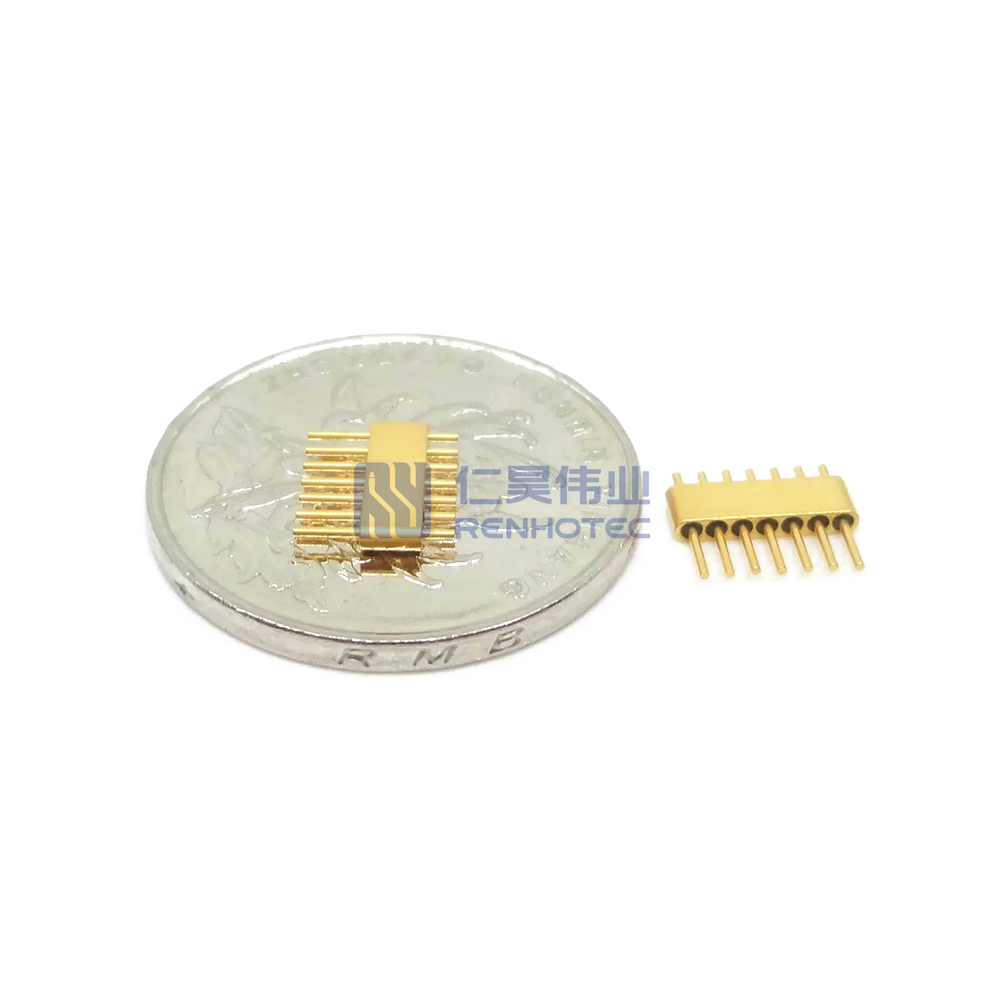

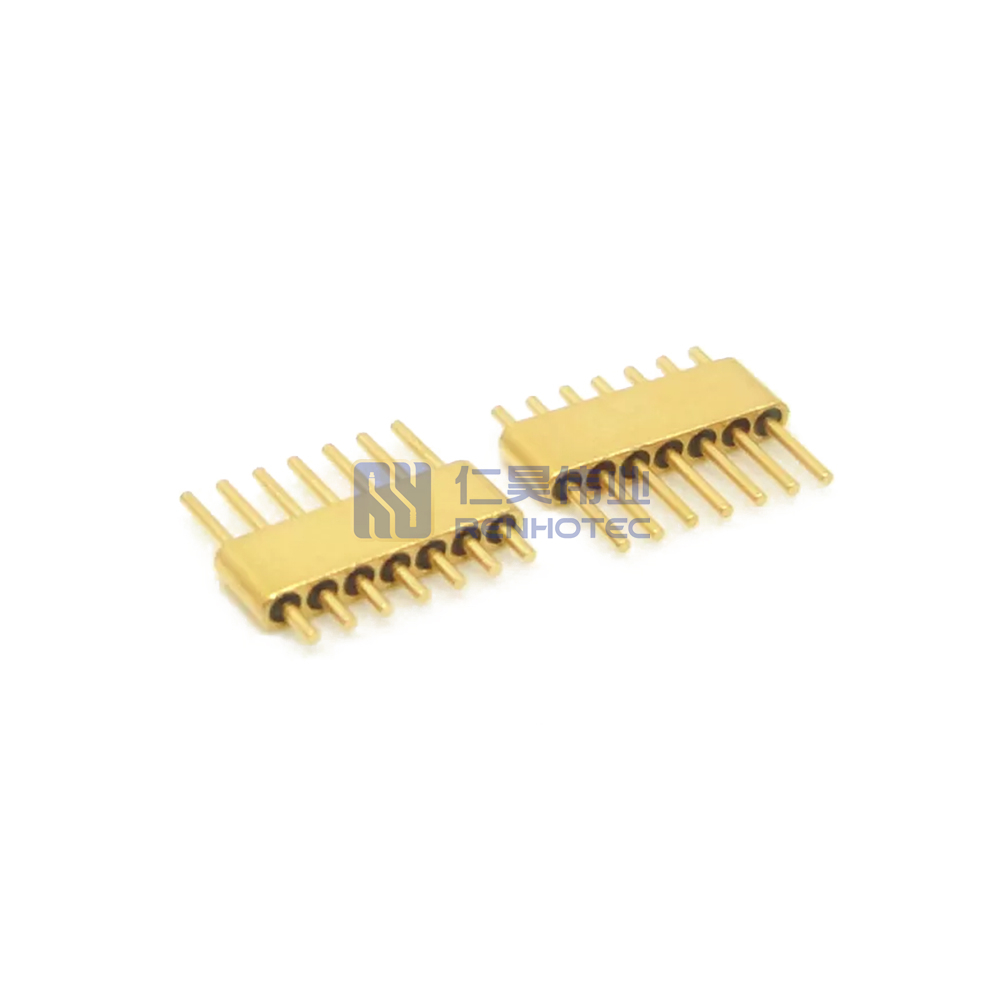

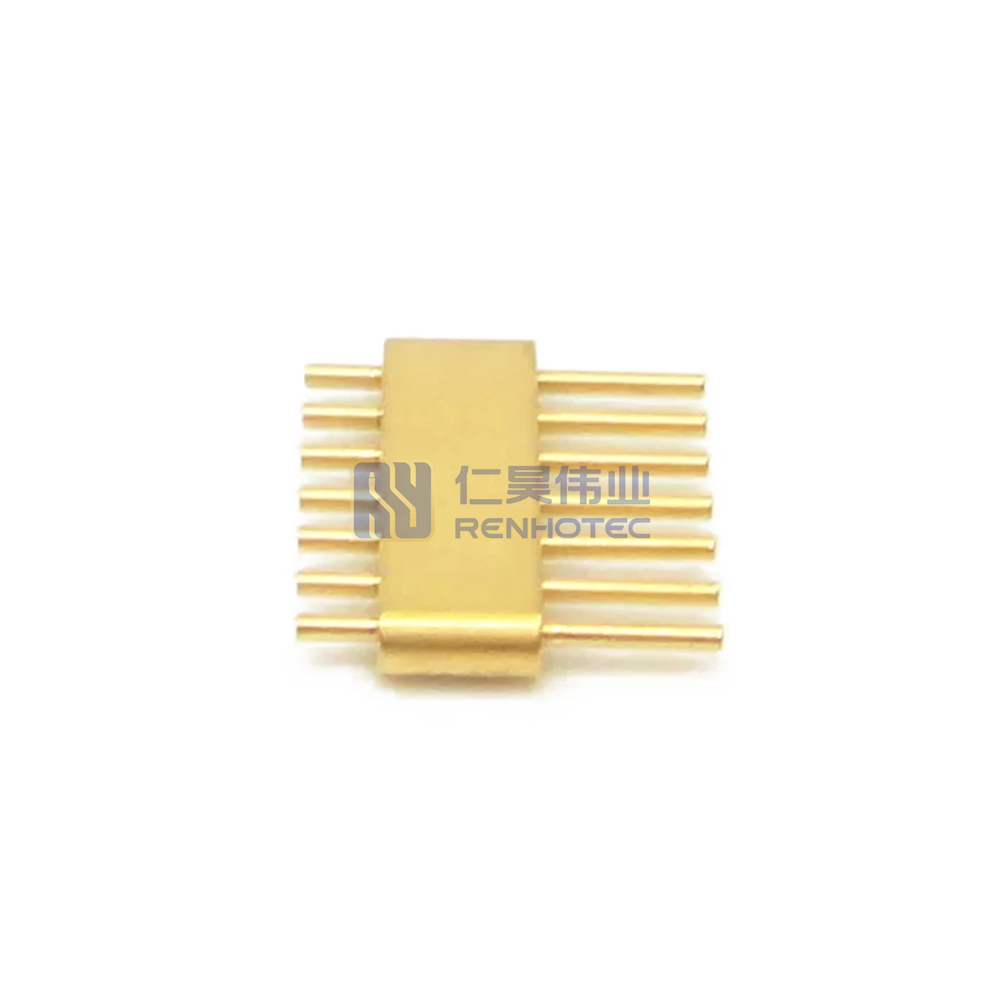

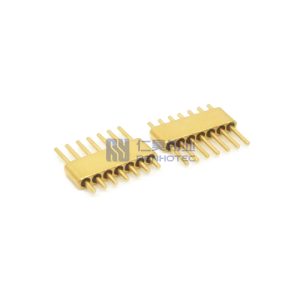

Gold Plated MultiPin Headers / Hermetic Glass to Metal Seals Kovar 4J29 Material

  • Gold plated contacts for enhanced conductivity and long-term corrosion resistance
  • Multi-pin header design allows efficient signal transmission in complex systems
  • Glass to metal hermetic seal ensures leak-proof, reliable performance in extreme conditions
  • Made from Kovar 4J29 for excellent thermal and mechanical stability in high-temperature applications
  • Ideal for aerospace, defense, medical, and high-reliability electronics systems

Glass-To-Metal-Seal-Connectors

Glass to Metal Hermetic RF/DC Feedthroughs/Seals /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components. The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The centerconductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

Structure

Glass insulator is composed of three parts: outer conductor/shell, glass medium and center conductor/pin.Its basic structure is shown in the figure.

Glass-To-Metal-Seal-Connectors-Structure

Reliability Requirements

Hermeticity

≤1.01325×10-³Pa·cm³/s/s

Salt spray

Glass insulators shall be tested without severe corrosion and spotting.

Temperature shock

There shall be no cosmetic or mechanical damage after testing.

Applications

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

Impedance

50 ohm
Number of Positions

7 Pin
Row

1
Shell Finish

Gold Plated
Shell Material

Kovar 4J29
Glass Material

7050, 7070, DM308
Glass Color

Green, White
Withstand Voltage

≥300V
Hermeticity Leak Rate

< 1.01325×10-3 Pa*cm³/s, < 1×10-9 ccHe/sec @ 1 atm, < 1×10-9 mbar*l/s
Insulation Resistance

≥1000MΩ for multi-pin, ≥2000MΩ for single pin
Operating Temperature

-65℃ to +260℃
Impedance

50 ohm

 Number of Positions

7 Pin
Row

1

 Shell Finish

Gold Plated
Shell Material

Kovar 4J29

 Glass Material

7050, 7070, DM308
Glass Color

Green, White

 Withstand Voltage

≥300V
Hermeticity Leak Rate

< 1.01325×10-3 Pa*cm³/s, < 1×10-9 ccHe/sec @ 1 atm, < 1×10-9 mbar*l/s

 Insulation Resistance

≥1000MΩ for multi-pin, ≥2000MΩ for single pin
Operating Temperature

-65℃ to +260℃
Impedance

50 ohm
Number of Positions

7 Pin
Row

1
Shell Finish

Gold Plated
Shell Material

Kovar 4J29
Glass Material

7050, 7070, DM308
Glass Color

Green, White
Withstand Voltage

≥300V
Hermeticity Leak Rate

< 1.01325×10-3 Pa*cm³/s, < 1×10-9 ccHe/sec @ 1 atm, < 1×10-9 mbar*l/s
Insulation Resistance

≥1000MΩ for multi-pin, ≥2000MΩ for single pin
Operating Temperature

-65℃ to +260℃
