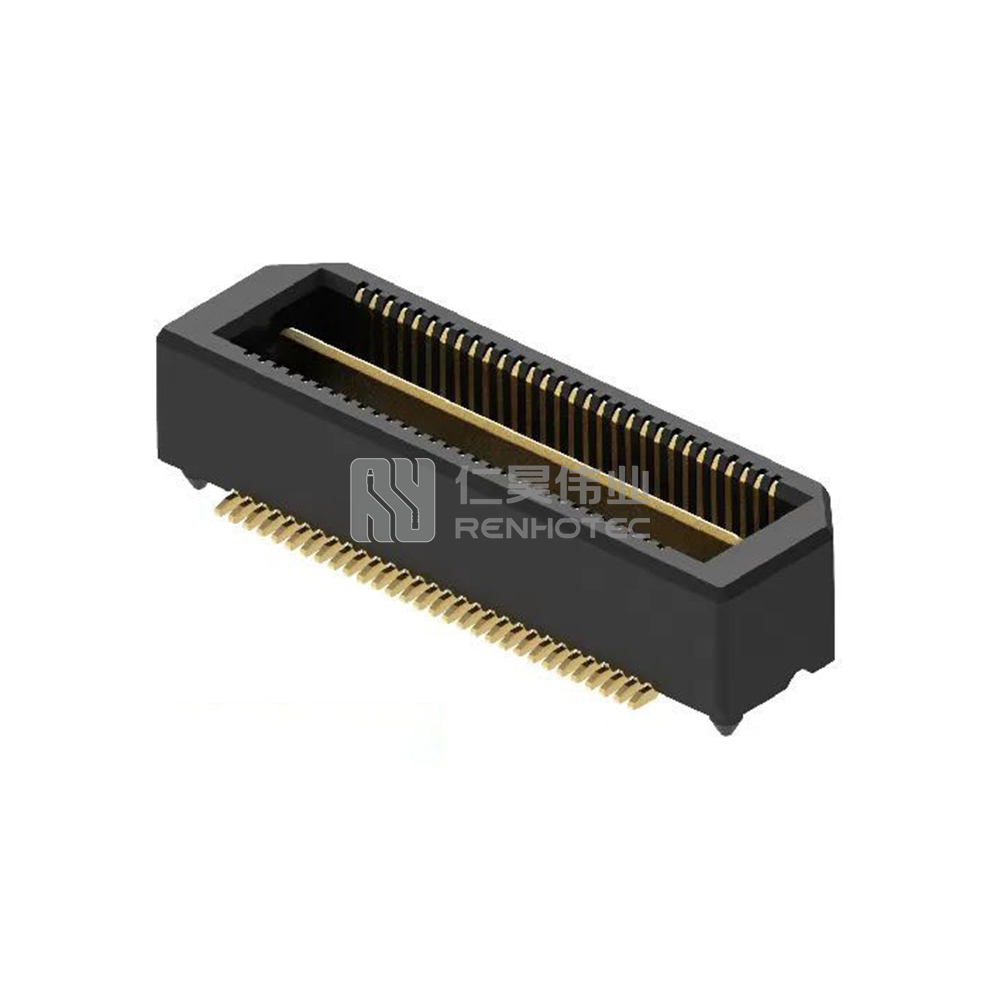

High-Speed Board to Board Connector Plug with Post Single-Ended Signaling – RH-37201-PMXXXXXXX01

The High-Speed Board to Board Connector Plug with Post Single-Ended Signaling (RH-37201-PMXXXXXXX01) offers efficient and reliable interconnection for high-speed signal transmission in electronic devices. It ensures seamless connectivity and precise performance.

High-Speed Board-to-Board Connectors are high-speed, reliable electrical connectors that are usually composed of headers, plugs, and connector housings.They are mainly used to connect board-level printed circuit boards (PCBs) to achieve signal transmission and power supply between circuit boards.

Unlike traditional connectors, high-speed board-to-board connectors usually have higher bandwidth and lower signal loss, which can support high-speed data transmission and longer distances.They usually use differential signal transmission, which means that they can transmit two signals at the same time, thereby improving transmission speed and signal integrity.In addition, high-speed board-to-board connectors can also support hot plugging and prevent misplugging, thereby improving system reliability and stability.

Product Features

High-Density Arrays

These high-density array connectors are available in a variety of pitches, stack heights, and configurations for maximum routing, grounding, and design flexibility.

High-Speed Dual-Row Strips (Mezzanines)

Board-to-board high-speed mezzanine connectors, strips, and systems with integral ground planes, rugged signal integrity optimized Edge Rate contacts, slim and low-profile stack heights, and performance up to 28 Gbps.

High-Speed Cards

High-speed card edge connector system with a choice of 0.50 mm, 0.60 mm, 0.65 mm, 0.80 mm, 1.00 mm, 1.27 mm, or 2.00 mm pitches in vertical, right-angle, and edge mount orientations.

Ultra-Micro Interconnects

Ultra-fine pitch connectors in low-profile and ultra-thin body configurations with performance up to 28 Gbps.

Product Advanmtages

1.Signal integrity and high-frequency characteristics: Able to maintain good signal integrity at high frequencies, prevent signal attenuation and crosstalk, and ensure the reliability of data transmission.

2.Contact devices and connection technology: Use advanced contact devices and connection technology, such as pins and contact points for high frequencies, to ensure stable electrical connections during high-speed data transmission.

3.Matching impedance control: Usually designed to a specific impedance (such as 50Ω) to ensure matching between the transmission line and the signal source, thereby minimizing reflections and losses.

4.Mechanical stability and durability: Have good mechanical stability and durability.They can withstand frequent use of plug-in and unplug operations while keeping the performance of the connector intact.

5.Sealing and environmental adaptability: For some applications, high-speed board-to-board connectors may have a sealing design to prevent dust, liquids or other foreign substances from entering the connector, thereby improving its reliability and stability in harsh environments.

6.Versatility and standard compatibility: Supports a variety of high-speed data transmission standards and can adapt to the needs of different devices and systems.

Product Application

Product Specification

Connector Type

Jack

Rated Voltage

175 V/AC

Insulation Resistance

5000MΩ Min

Mounting Feature

SMT

Contact Material

Copper Alloy

Contact Finish

Au

Center Contact Resistance

30 MΩ Max

Rated Current

2 AMP

Operating Temperature

-55°C~+125°C

Insulating Materials

Thermoplastic Plastics

Withstand Voltage

675 V/DC, V/AC

Connector Type

Jack

Rated Voltage

175 V/AC

Insulation Resistance

5000MΩ Min

Mounting Feature

SMT

Contact Material

Copper Alloy

Contact Finish

Au

Center Contact Resistance

30 MΩ Max

Rated Current

2 AMP

Operating Temperature

-55°C~+125°C

Insulating Materials

Thermoplastic Plastics

Withstand Voltage

675 V/DC, V/AC

Connector Type

Jack

Rated Voltage

175 V/AC

Insulation Resistance

5000MΩ Min

Mounting Feature

SMT

Contact Material

Copper Alloy

Contact Finish

Au

Center Contact Resistance

30 MΩ Max

Rated Current

2 AMP

Operating Temperature

-55°C~+125°C

Insulating Materials

Thermoplastic Plastics

Withstand Voltage

675 V/DC, V/AC

Drawing for High-Speed Board to Board Connector Plug with Post Single-Ended Signaling - RH-37201-PMXXXXXXX01Download
