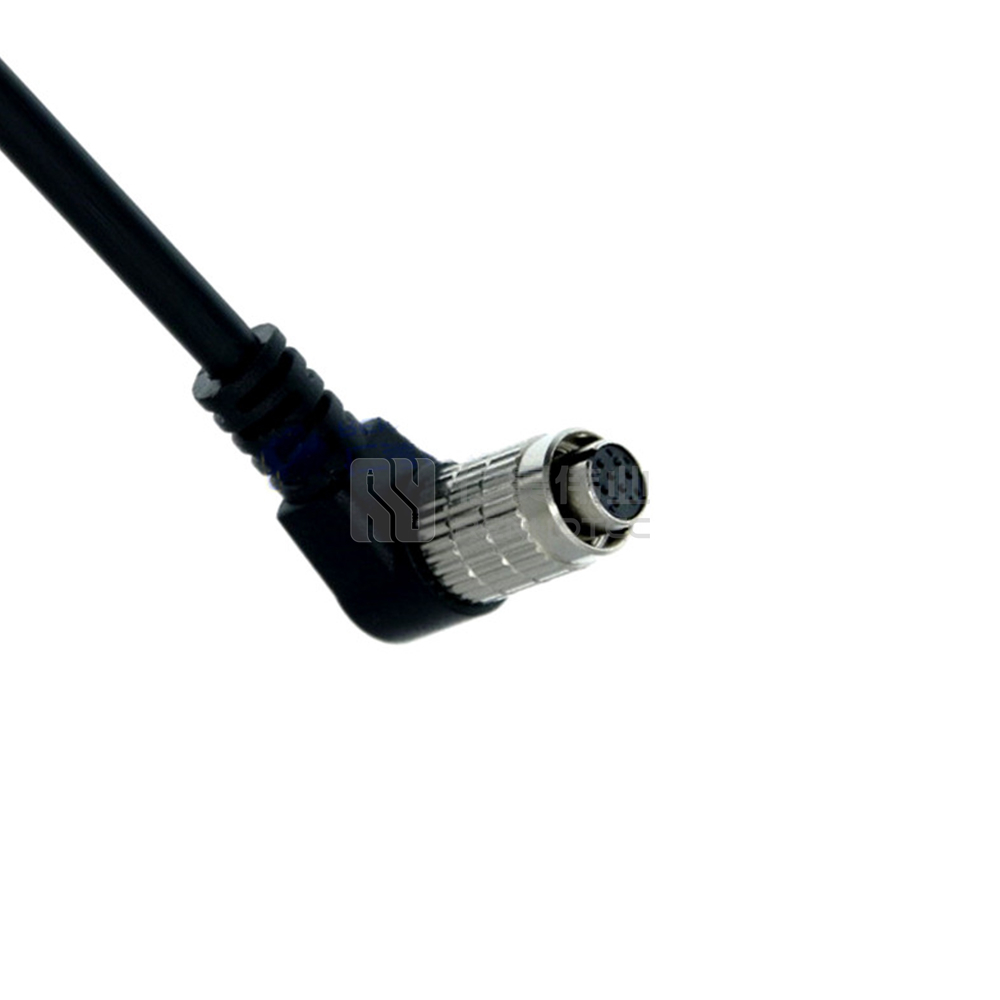

HR 8pin Female R/A HR25-7TP-8S Industrial Camera Trigger Cable Power Cable

  • Braided from tinned copper, not easy to oxidize, longer service life. Tinned end for easy installation
  • The connector adopts foolproof interface design, which improves working efficiency and is not easy to make mistakes
  • Wrapped with special PVC material, oil and abrasion resistant, more suitable for use in industrial environments
  • Standard cables and drag chain cables are available, and the drag chain cables have passed more than 10 million times of drag chain test
  • UL compliant with flame retardant rating up to VW-1
  • RoHS 2.0 and CE compliant

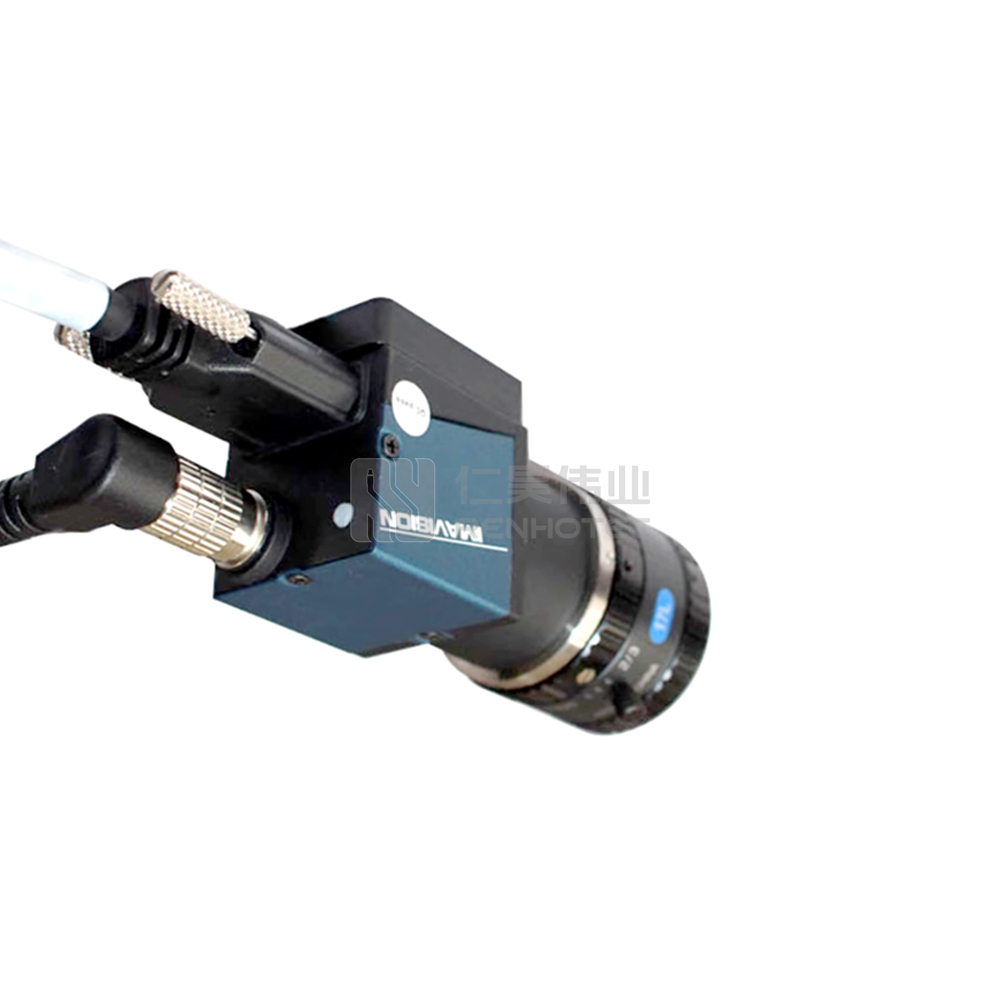

The industrial camera harness is used to connect its data transmission and maintain the power supply.Industrial camera harnesses can be divided into 4 categories according to the interface, Camera link cable, I/O cable, USB cable, Industrial Ethernet cable.

I/O cables are designed to provide power to the camera. These cables typically have a power connector on one end that plugs into a power source such as an AC outlet or power supply unit, and a data connector on the other end that plugs into the camera.I/O cables are an important part of an industrial camera system because they provide the necessary power to ensure that the equipment operates properly.

HR 8 Pin Connector Specifications

Product Features

01

A variety of connector types and cable sizes are available.

02

A variety of key directions are available, allowing you to install worry-free.

03

Can be customized according to customer’s requirements: Depending on the application, it can be used with power adapter; the tail can be connected to the terminal; M series I/O cable can also be customized.

04

Quickly provide drawings for your confirmation before sale, and a one-year warranty period after sale, so you have no worries before and after sale.

05

Fast delivery: Sample order – (3-5 days) Bulk order- (7-10 days)

Applications

Applicable Brands Basler, Dalsa, Hikvision, Dahua Technology, Daheng Optics, Imavision, Sony, JAI, AVT, PointGrey, IDS, Vieworks, The Imaging Source and so on

Product Specification

1st Connector Orientation

Right Angle
1st Connector Mounting Type

Cable Type
1st Connector Contact Termination

Solder
Cable Type

26AWG
Cable length

1m
Cable Color

Black
Temperature Range

-55°C to +85°C
1st Connector Orientation

Right Angle

 1st Connector Mounting Type

Cable Type
1st Connector Contact Termination

Solder

 Cable Type

26AWG
Cable length

1m

 Cable Color

Black
Temperature Range

-55°C to +85°C
1st Connector Orientation

Right Angle
1st Connector Mounting Type

Cable Type
1st Connector Contact Termination

Solder
Cable Type

26AWG
Cable length

1m
Cable Color

Black
Temperature Range

-55°C to +85°C
