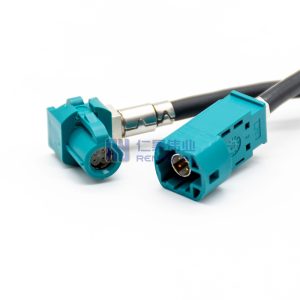

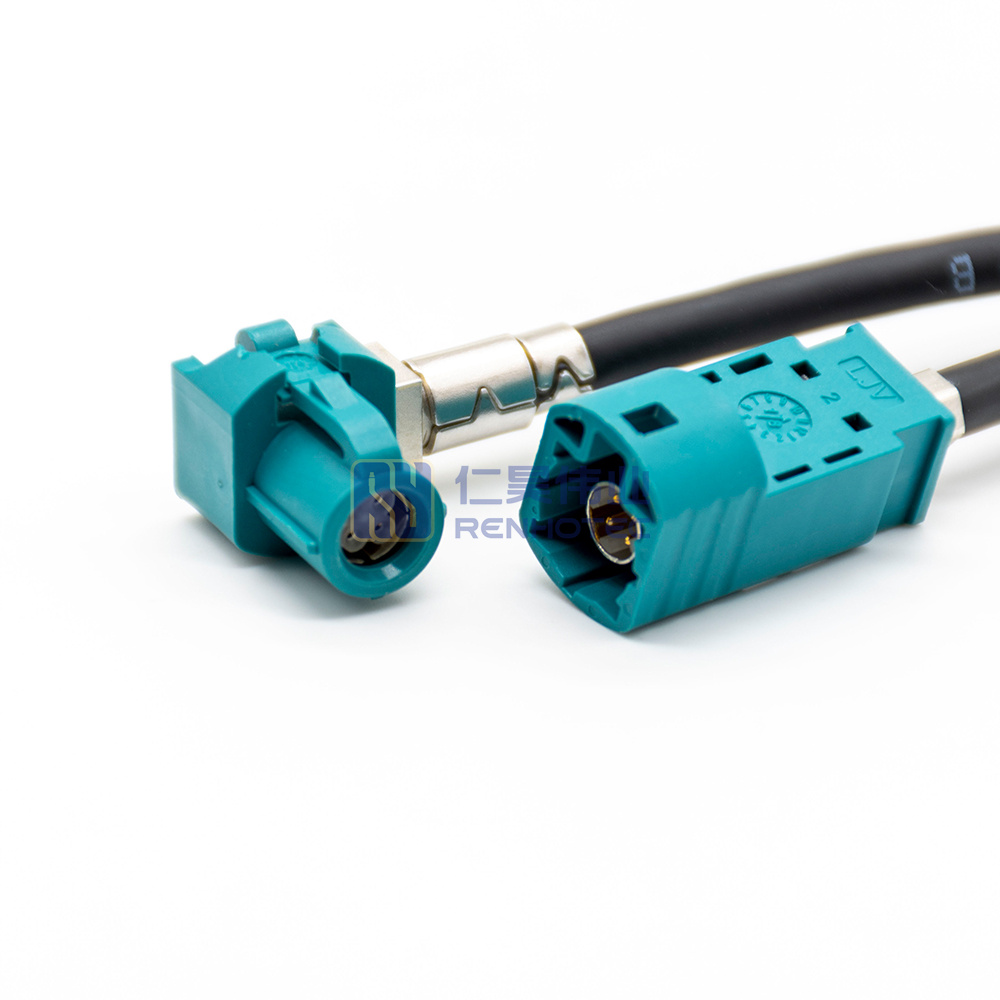

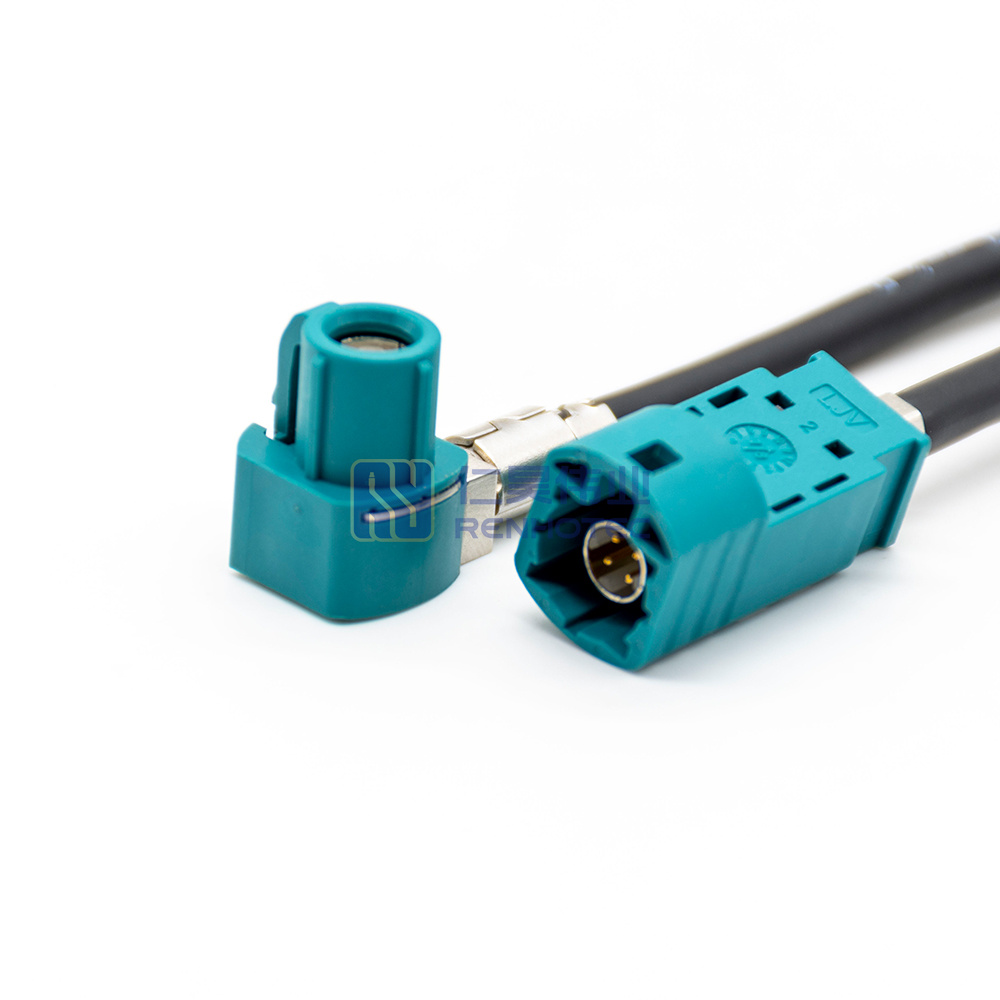

HSD 4P Z Coded Male to HSD 4P Z Coded Right Angle Female Extension Cable

  • High-speed shielded connection system suitable for digital data with performance up to 6 Gbps
  • Fully shielded connection system of different wire diameters and types
  • Compliant with LVDS (Low voltage differential signal), Ethernet and USB protocols
  • Full range of connectors for non-sealed and sealed applications
  • Extend the PCB connector product portfolio
  • High level of process automation and global manufacturing footprint
  • IDB 1394 Automotive Specification
  • USCAR 2, REV 5

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST, and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB) and designated shield connection systems. These connectors can be used for sealing applications.



HSD Interface Dimensions

HSD Connector Coding

Product Specification

Cable Style

HSD to HSD
1st Connector

HSD Z Plug
1st Contact Type

Male Pin
1st Connector Number of Positions

4 Pin
1st Connector Orientation

Straight
2nd Connector

HSD Z Jack
2nd Contact Type

Female Pin
2nd Connector Number of Positions

4 Pin
2nd Connector Orientation

Right Angle
Cable Type

4C*AWG26 Shielded PVC Cable OD4.6mm
Impedance

100 ohm
Operating Temperature

-40°C to +105°C
Cable Style

HSD to HSD

 1st Connector

HSD Z Plug
1st Contact Type

Male Pin

 1st Connector Number of Positions

4 Pin
1st Connector Orientation

Straight

 2nd Connector

HSD Z Jack
2nd Contact Type

Female Pin

 2nd Connector Number of Positions

4 Pin
2nd Connector Orientation

Right Angle

 Cable Type

4C*AWG26 Shielded PVC Cable OD4.6mm
Impedance

100 ohm

 Operating Temperature

-40°C to +105°C

Specifications

Shielding

Shielded
Shielding

Shielded
Cable Style

HSD to HSD
1st Connector

HSD Z Plug
1st Contact Type

Male Pin
1st Connector Number of Positions

4 Pin
1st Connector Orientation

Straight
2nd Connector

HSD Z Jack
2nd Contact Type

Female Pin
2nd Connector Number of Positions

4 Pin
2nd Connector Orientation

Right Angle
Cable Type

4C*AWG26 Shielded PVC Cable OD4.6mm
Impedance

100 ohm
Shielding

Shielded
Operating Temperature

-40°C to +105°C
