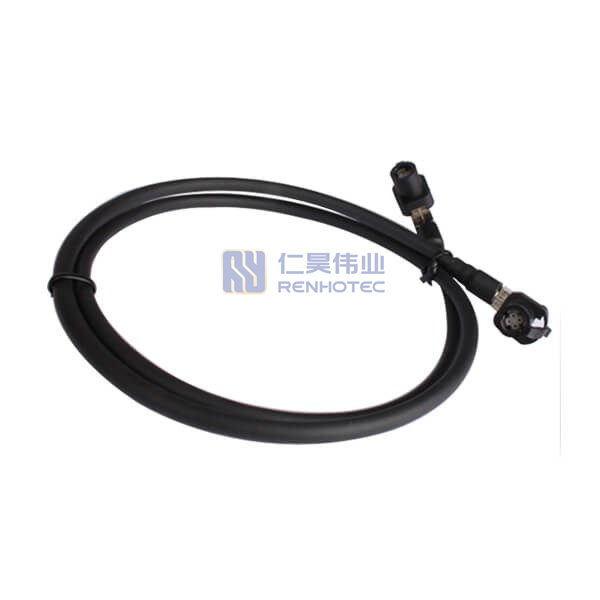

HSD A Jack to HSD A Jack Automotive Cable Assemblies with LVDS Cable

  • High-speed shielded connection system suitable for digital data with performance up to 6 Gbps
  • Fully shielded connection system of different wire diameters and types
  • Compliant with LVDS (Low voltage differential signal), Ethernet and USB protocols
  • Full range of connectors for non-sealed and sealed applications
  • Extend the PCB connector product portfolio
  • High level of process automation and global manufacturing footprint
  • IDB 1394 Automotive Specification
  • USCAR 2, REV 5

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST, and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB) and designated shield connection systems. These connectors can be used for sealing applications.



HSD Interface Dimensions

HSD Connector Coding

Product Specification

RF Cable Style

HSD A to HSD A
RF Cable 1st Connector

HSD A Jack
1st Contact Type

Female Pin
1st Connector Orientation

Right Angle
RF Cable 2nd Connector

HSD A Jack
2nd Contact Type

Female Pin
2nd Connector Orientation

Right Angle
Impedance

50 ohm
Cable Color

Black
Frequency Range

DC-14GHz
Temperature Range

-40°C to +85°C
Cable Type

LVDS
RF Cable Style

HSD A to HSD A

 RF Cable 1st Connector

HSD A Jack
1st Contact Type

Female Pin

 1st Connector Orientation

Right Angle
RF Cable 2nd Connector

HSD A Jack

 2nd Contact Type

Female Pin
2nd Connector Orientation

Right Angle

 Impedance

50 ohm
Cable Color

Black

 Frequency Range

DC-14GHz
Temperature Range

-40°C to +85°C

 Cable Type

LVDS
RF Cable Style

HSD A to HSD A
RF Cable 1st Connector

HSD A Jack
1st Contact Type

Female Pin
1st Connector Orientation

Right Angle
RF Cable 2nd Connector

HSD A Jack
2nd Contact Type

Female Pin
2nd Connector Orientation

Right Angle
Impedance

50 ohm
Cable Color

Black
Frequency Range

DC-14GHz
Temperature Range

-40°C to +85°C
Cable Type

LVDS
Drawing for HSD A Jack to HSD A Jack Automotive Cable Assemblies with LVDS CableDownload
