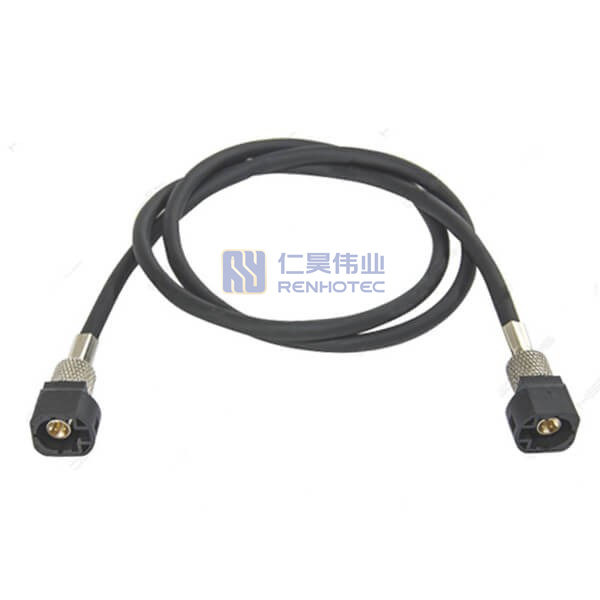

HSD A Plug to HSD A Plug Automotive Cable Assemblies with LVDS Cable

  • High-speed shielded connection system suitable for digital data with performance up to 6 Gbps
  • Fully shielded connection system of different wire diameters and types
  • Compliant with LVDS (Low voltage differential signal), Ethernet and USB protocols
  • Full range of connectors for non-sealed and sealed applications
  • Extend the PCB connector product portfolio
  • High level of process automation and global manufacturing footprint
  • IDB 1394 Automotive Specification
  • USCAR 2, REV 5

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST, and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB) and designated shield connection systems. These connectors can be used for sealing applications.



HSD Interface Dimensions

HSD Connector Coding

Product Specification

RF Cable Style

HSD A to HSD A
RF Cable 1st Connector

HSD A Plug
1st Contact Type

Male Pin
1st Connector Orientation

Straight
RF Cable 2nd Connector

HSD A Plug
2nd Contact Type

Male Pin
2nd Connector Orientation

Straight
Impedance

50 ohm
Cable Color

Black
Frequency Range

DC-14GHz
Temperature Range

-40°C to +85°C
Cable Type

LVDS
RF Cable Style

HSD A to HSD A

 RF Cable 1st Connector

HSD A Plug
1st Contact Type

Male Pin

 1st Connector Orientation

Straight
RF Cable 2nd Connector

HSD A Plug

 2nd Contact Type

Male Pin
2nd Connector Orientation

Straight

 Impedance

50 ohm
Cable Color

Black

 Frequency Range

DC-14GHz
Temperature Range

-40°C to +85°C

 Cable Type

LVDS
RF Cable Style

HSD A to HSD A
RF Cable 1st Connector

HSD A Plug
1st Contact Type

Male Pin
1st Connector Orientation

Straight
RF Cable 2nd Connector

HSD A Plug
2nd Contact Type

Male Pin
2nd Connector Orientation

Straight
Impedance

50 ohm
Cable Color

Black
Frequency Range

DC-14GHz
Temperature Range

-40°C to +85°C
Cable Type

LVDS
Drawing for HSD A Plug to HSD A Plug Automotive Cable Assemblies with LVDS CableDownload
