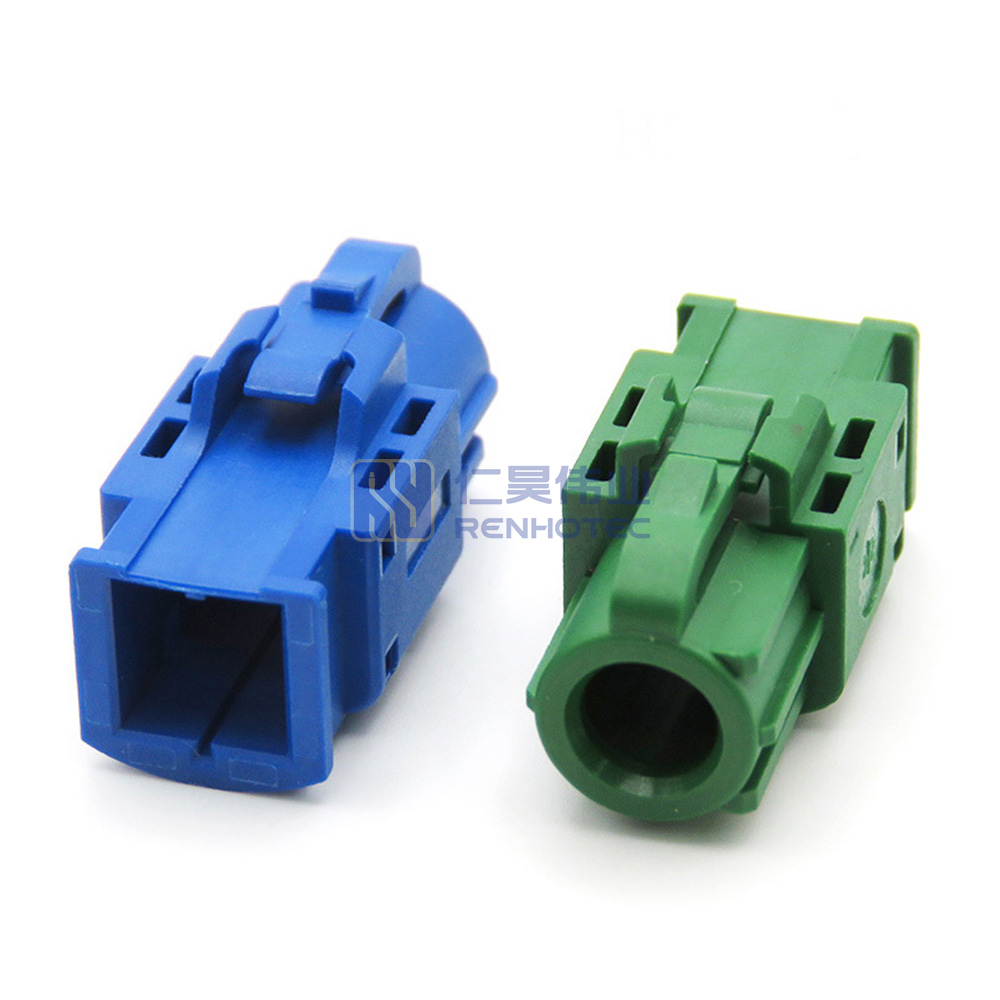

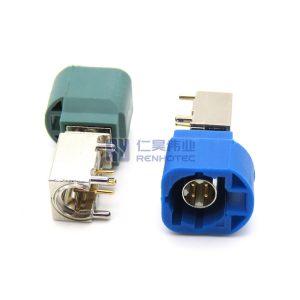

HSD Connector 4P Female

  • HSD 4P female connector designed for secure and reliable power and data transmission in various industrial and consumer electronics applications
  • High-quality construction with excellent resistance to wear, vibration, and external interference for long-lasting durability
  • Easy to install with reliable contact retention, ensuring stable connections even in demanding environments
  • Supports both power and data transmission, making it ideal for use in automotive, robotics, and industrial systems
  • Compatible with HSD systems, providing seamless integration into diverse setups for optimal connectivity

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST, and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB) and designated shield connection systems. These connectors can be used for sealing applications.

HSD stands for High Speed Data and is a 4-pin interface that can be used to create shielded high-speed connection systems. The interface is designed based on the “star-four principle”, which means that the opposite wires form a wire pair.

HSD plug and jack in schematic view with pin assignment

Code A B C D E F G
Color Jet black Cream Signal blue Claret violet Leaf green Nut brown Blue grey
Male
Female
Code H J K L M O Z
Color Heather violet Beige Curry Yellow green Pastel orange Pastel green Water blue
Male
Female


As included in the name, HSD serves the high speed data transfer. In addition to the interference safety just described, HSD offers high signal quality, which is why its main area of application is the automotive industry.

  • connects components of electrical engineering and electronics in vehicles
  • offers connection solutions for vehicle infotainment modules, camereas, device connectors for vehicle occupants and screens
  • creating connections for driver assistance systems

HSD connector systems can transmit USB signals, signals from LVDS cameras or from IEEE 1394. This makes HSD suitable for digital infotainment applications or head-up displays, HD entertainment, symmetrical networks, Ethernet data connections, telematics, video transmission via GVIF and also mobile phone base stations.

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

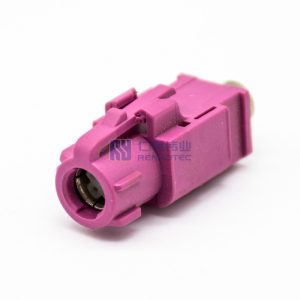

Product Specification

RF Series

HSD
Connector Type

Jack
Contact Type

Female Pin
Number of Ports

1
Number of Positions

4 Pin
Orientation

Straight
Mounting Type

Cable Type
Operating Voltage

335V max
VSWR

≤1.5
Operating Temperature

-40°C to +100°C

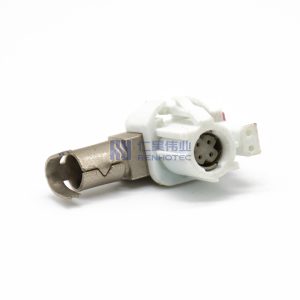

RF Series

HSD

 Connector Type

Jack
Contact Type

Female Pin

 Number of Ports

1
Number of Positions

4 Pin

 Orientation

Straight
Mounting Type

Cable Type

 Operating Voltage

335V max
VSWR

≤1.5

 Operating Temperature

-40°C to +100°C
RF Series

HSD
Connector Type

Jack
Contact Type

Female Pin
Number of Ports

1
Number of Positions

4 Pin
Orientation

Straight
Mounting Type

Cable Type
Operating Voltage

335V max
VSWR

≤1.5
Operating Temperature

-40°C to +100°C
