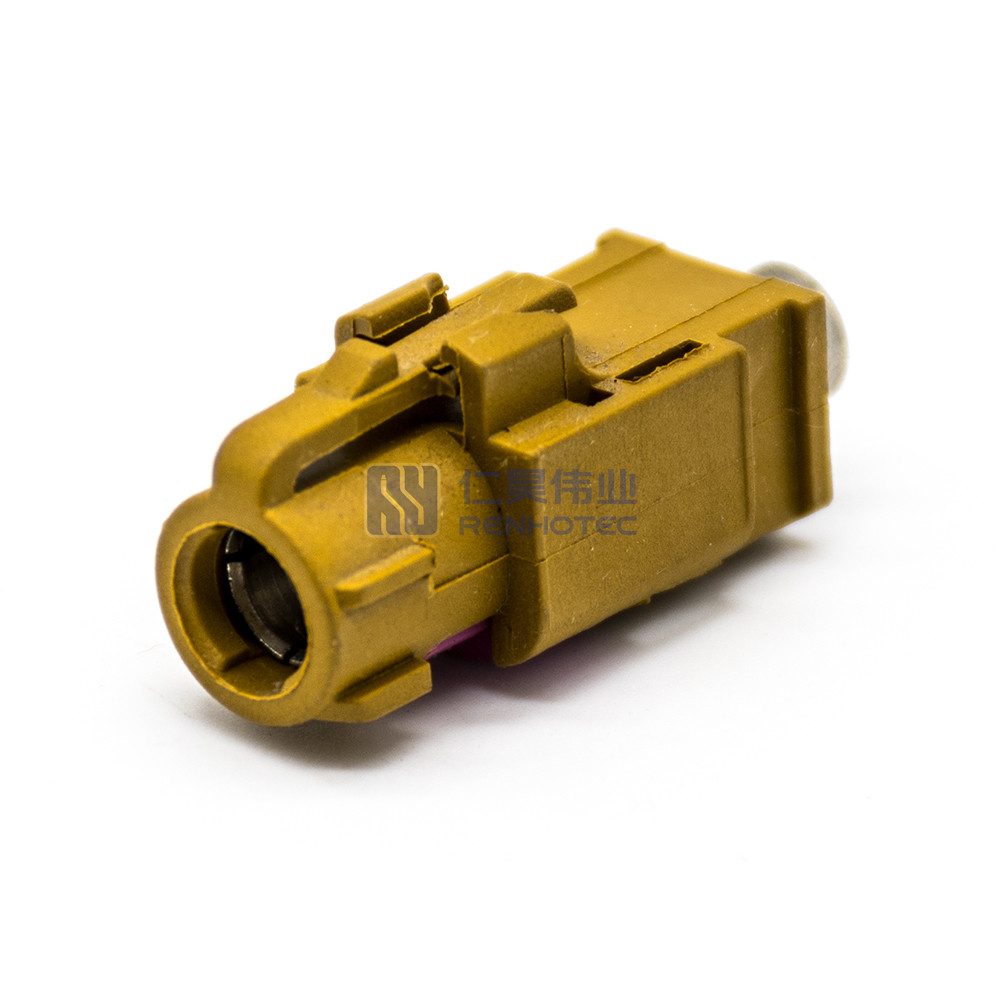

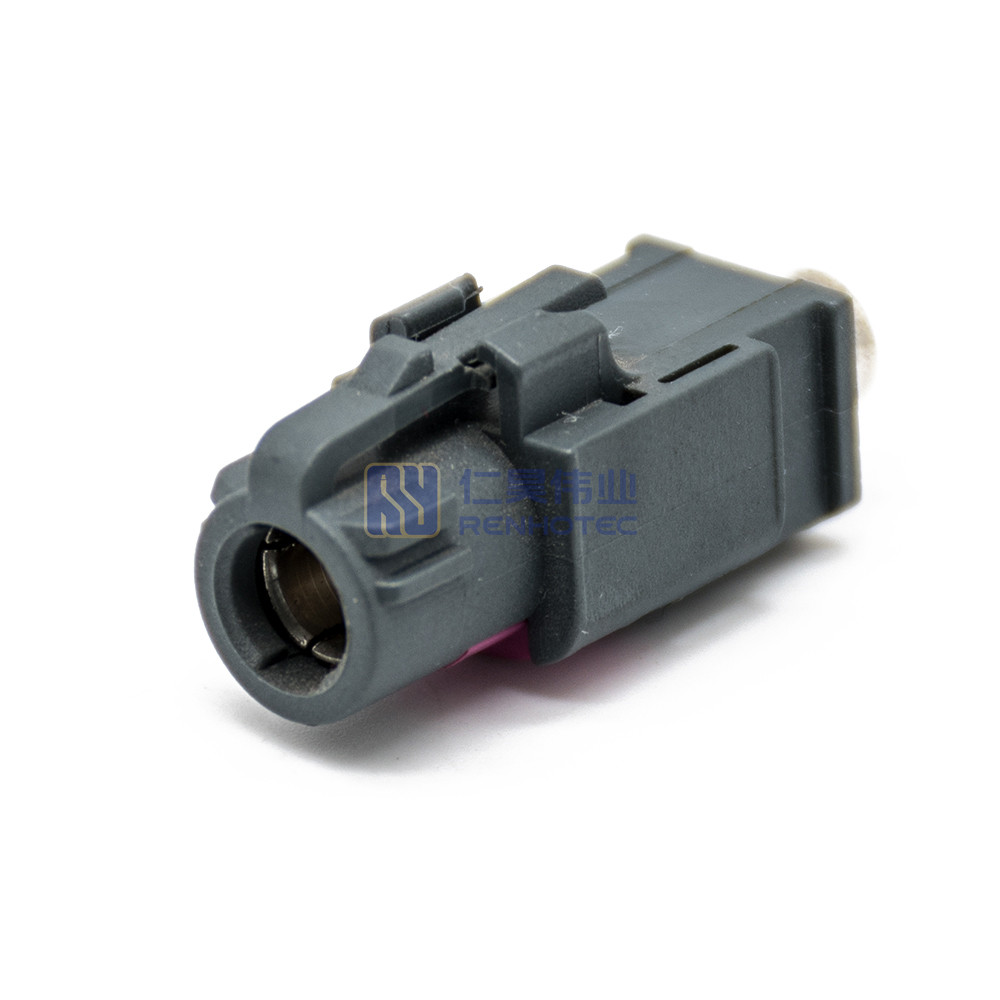

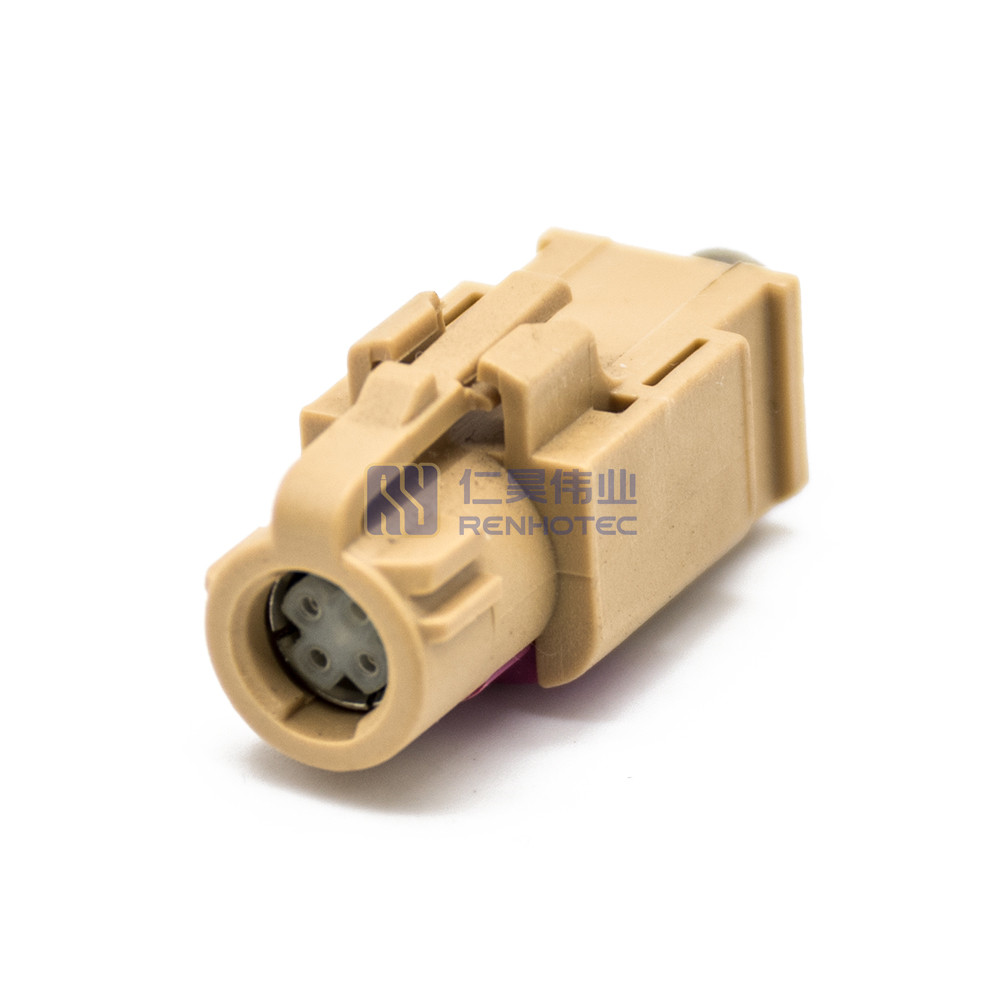

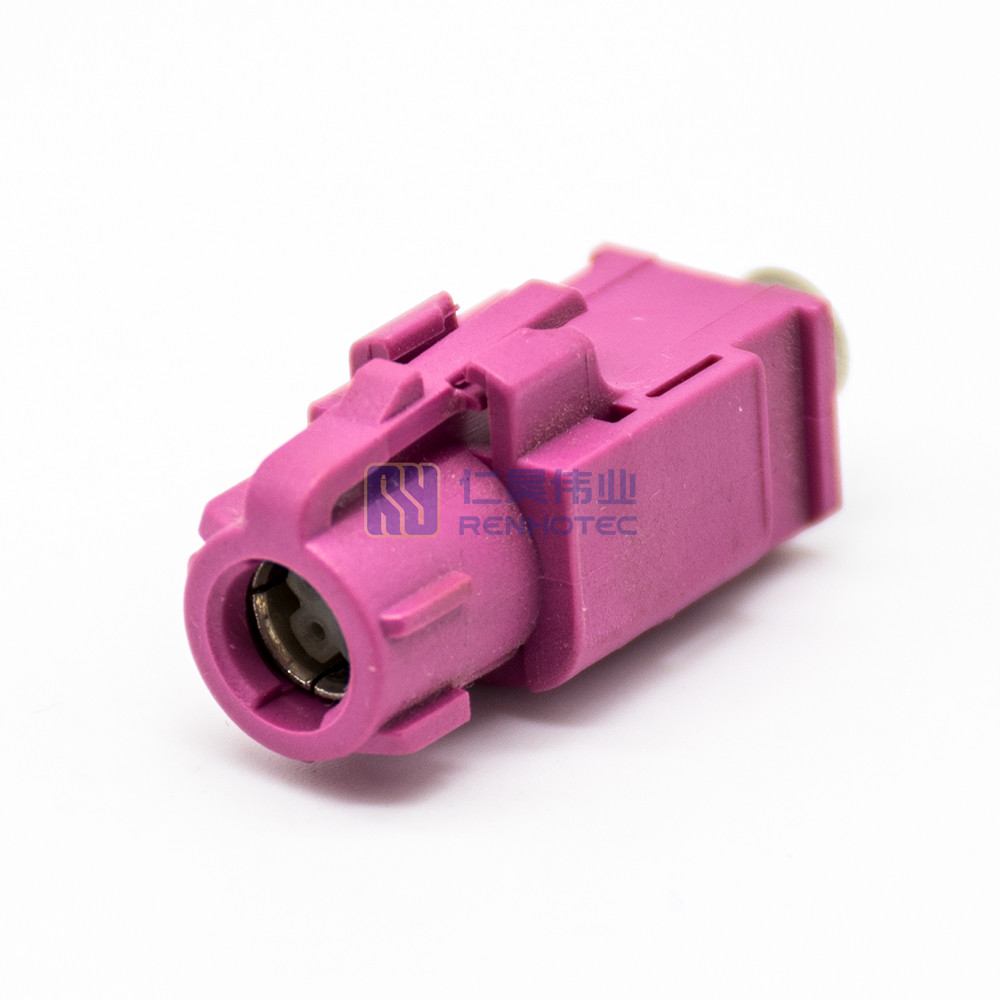

HSD Connector Jack Straight 4 Pin Cable Mount

  • 4-pin straight HSD connector jack with cable mount for secure, high-speed data transmission in automotive, industrial, and embedded applications
  • Straight design provides a clean and easy-to-install connection, minimizing cable strain and ensuring a reliable signal transfer
  • Durable construction with high-quality materials for resistance to mechanical stress, vibration, and harsh environmental conditions
  • Cable mount design ensures a secure, stable connection for flexible integration in a wide range of applications
  • Fully compatible with HSD systems for seamless high-definition video, audio, and data signal transmission in automotive and industrial systems

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST, and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB) and designated shield connection systems. These connectors can be used for sealing applications.

HSD stands for High Speed Data and is a 4-pin interface that can be used to create shielded high-speed connection systems. The interface is designed based on the “star-four principle”, which means that the opposite wires form a wire pair.

HSD plug and jack in schematic view with pin assignment

Code A B C D E F G
Color Jet black Cream Signal blue Claret violet Leaf green Nut brown Blue grey
Male
Female
Code H J K L M O Z
Color Heather violet Beige Curry Yellow green Pastel orange Pastel green Water blue
Male
Female


As included in the name, HSD serves the high speed data transfer. In addition to the interference safety just described, HSD offers high signal quality, which is why its main area of application is the automotive industry.

  • connects components of electrical engineering and electronics in vehicles
  • offers connection solutions for vehicle infotainment modules, camereas, device connectors for vehicle occupants and screens
  • creating connections for driver assistance systems

HSD connector systems can transmit USB signals, signals from LVDS cameras or from IEEE 1394. This makes HSD suitable for digital infotainment applications or head-up displays, HD entertainment, symmetrical networks, Ethernet data connections, telematics, video transmission via GVIF and also mobile phone base stations.

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

HSD
Connector Type

Jack
Contact Type

Female Pin
Orientation

Straight
Contacts

4 Pin
Contact Termination Style

Solder
Mounting Type

Cable Mount
Plastic Housing

PA, PBT
Contact Material

Copper
Insulator Material

PA, LCP
Contact Finish

Gold Plated
Impedance

100 ohm
Operating Voltage

100V rms
Withstand Voltage

250 V rms
Core Connection Resistance

≤ 10 MΩ
Mating Durability

≥ 25 Cycles
Latch Holding Force

≥110N
Temperature Range

-40°C to +105°C
Cable Color

Beige, Black, Blue, Claret Violet, Cream White, Curry, Gray, Heather Violet, Leaf Green, Light Green, Nut Brown, Pastel Orange, Water Blue, Yellow Green
RF Series

HSD

 Connector Type

Jack
Contact Type

Female Pin

 Orientation

Straight
Contacts

4 Pin

 Contact Termination Style

Solder
Mounting Type

Cable Mount

 Plastic Housing

PA, PBT
Contact Material

Copper

 Insulator Material

PA, LCP
Contact Finish

Gold Plated

 Impedance

100 ohm
Operating Voltage

100V rms

 Withstand Voltage

250 V rms
Core Connection Resistance

≤ 10 MΩ

 Mating Durability

≥ 25 Cycles
Latch Holding Force

≥110N

 Temperature Range

-40°C to +105°C
Cable Color

Beige, Black, Blue, Claret Violet, Cream White, Curry, Gray, Heather Violet, Leaf Green, Light Green, Nut Brown, Pastel Orange, Water Blue, Yellow Green
RF Series

HSD
Connector Type

Jack
Contact Type

Female Pin
Orientation

Straight
Contacts

4 Pin
Contact Termination Style

Solder
Mounting Type

Cable Mount
Plastic Housing

PA, PBT
Contact Material

Copper
Insulator Material

PA, LCP
Contact Finish

Gold Plated
Impedance

100 ohm
Operating Voltage

100V rms
Withstand Voltage

250 V rms
Core Connection Resistance

≤ 10 MΩ
Mating Durability

≥ 25 Cycles
Latch Holding Force

≥110N
Temperature Range

-40°C to +105°C
Cable Color

Beige, Black, Blue, Claret Violet, Cream White, Curry, Gray, Heather Violet, Leaf Green, Light Green, Nut Brown, Pastel Orange, Water Blue, Yellow Green

Yes, our HSD is compatible with other brands.

P1-P4,P2-P3,P3-P2,P4-P1, and customized contacts are available too.

HSD is for high speed data transmission, and Fakra is for RF signal transmission. Both of them are available.

The normal wires we used is 7/0,16TC*1.2*4C+MY+AL+128/0.1TC,0D:4.6mm.

Drawing for HSD Connector Jack Straight 4 Pin Cable MountDownload
