RK Series Power Waterproof Connectors are high-reliability, multipurpose connectors, compatible with LP series, and mainly used for power and signal transmission in harsh environments. It has a waterproof design to ensure connector stability and reliability in harsh environments. The connectors are waterproof, dust-proof, shock-proof and high-temperature resistant, suitable for a variety of outdoor environments and industrial applications. In addition, this series of power waterproof connectors also has the advantages of being easy to plug and pull, reliable contact, corrosion resistance, etc., and is a cost-effective connector.
According to the panel installation size, it can be divided into RK12 (12mm) series; RK16 (18mm) series; RK20 (22mm) series; RK24 (25mm) series.
How to choose
Product Dimensions
Docking Cable Plug
Plug
Panel Socket
Flange Socket
How to Order
Application
RK series waterproof power and data connectors are ideal for waterproof, dustproof and corrosion-resistant applications such as outdoor lighting, LED displays, solar photovoltaics, power tools, electric vehicles, marine vessels, marine engineering, petrochemical and other sectors.
New energy fields: photovoltaic systems, servo motors, e-bikes, inverters and solar chargers.
Automation equipment: mobile robots, automated warehouse handling systems and torque transducers.
Communication systems: disinfection robots, vehicle monitoring systems and monitors.
Lighting: horticultural LEDs, stage lighting, streetlights, LED video walls and landscape lighting.
Industrial Automation
Solar Photovoltaic System
Communication Equipment
LED Plant Growth Lamp
LED Display Screen
Aerospace

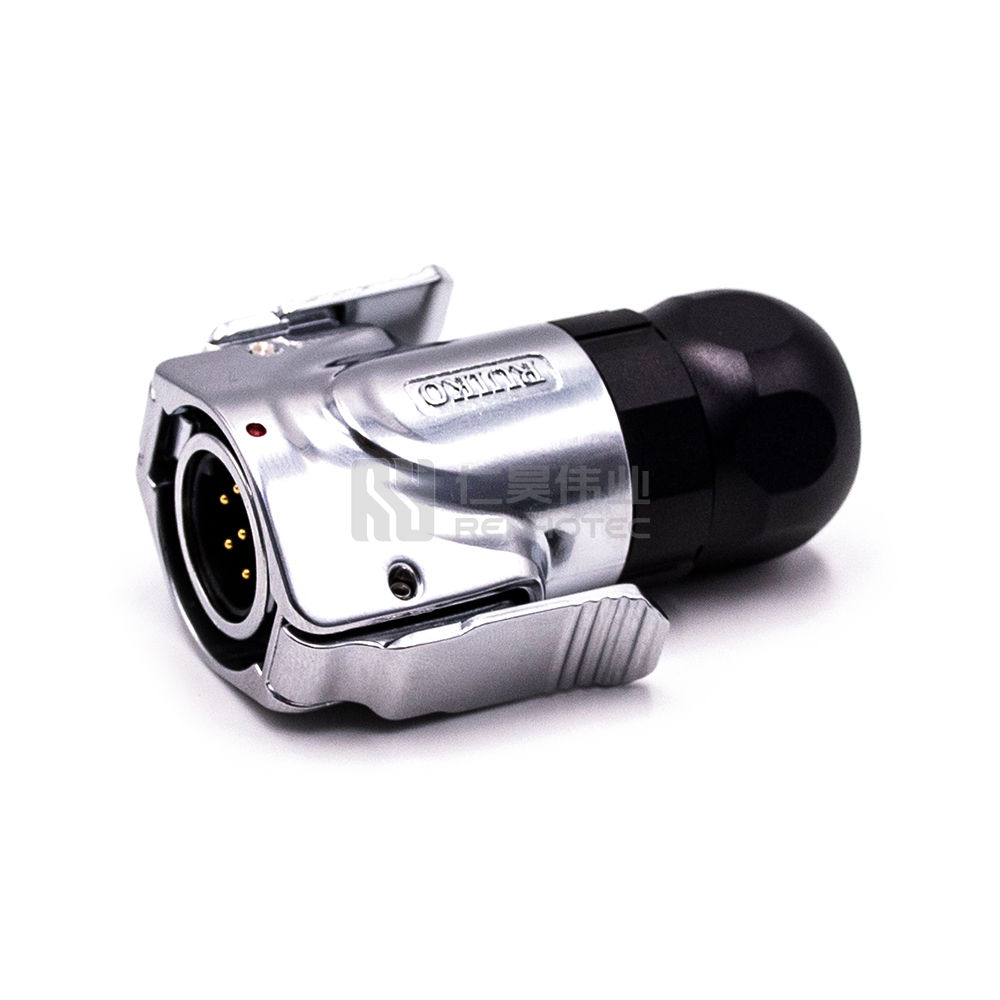

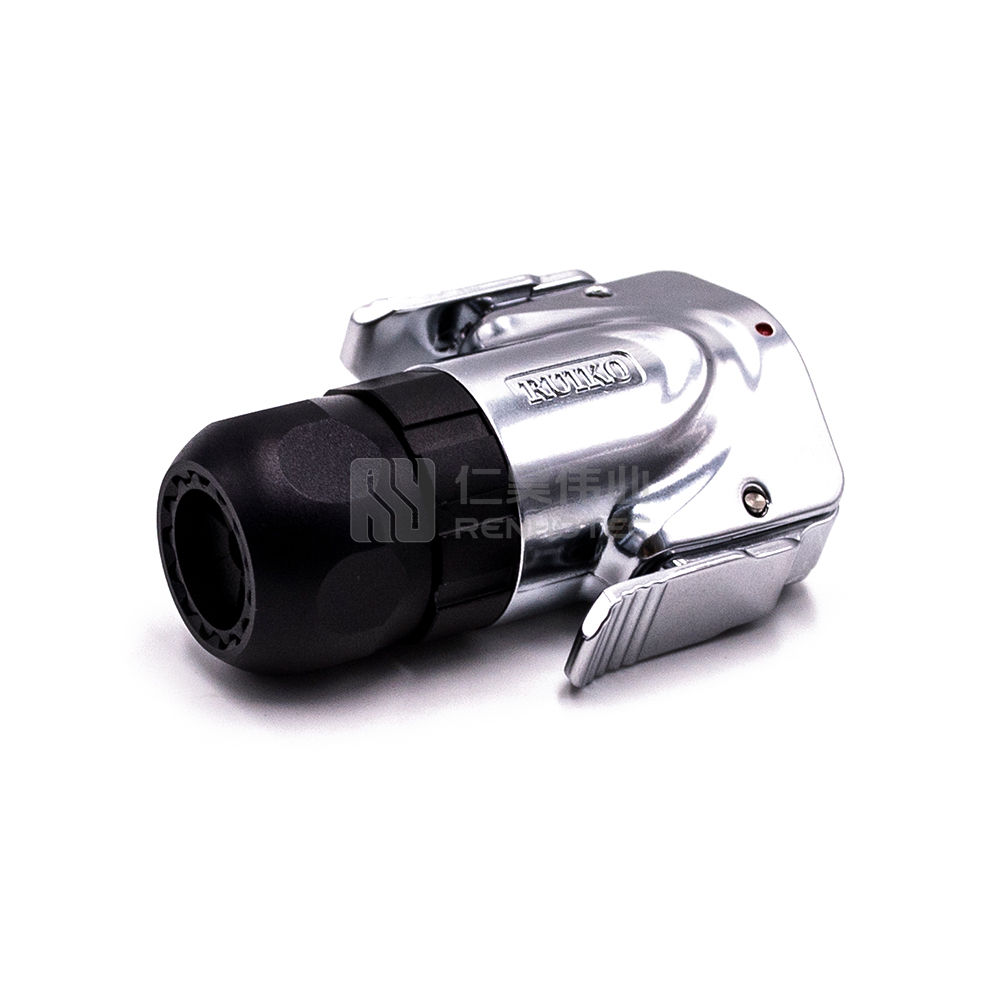

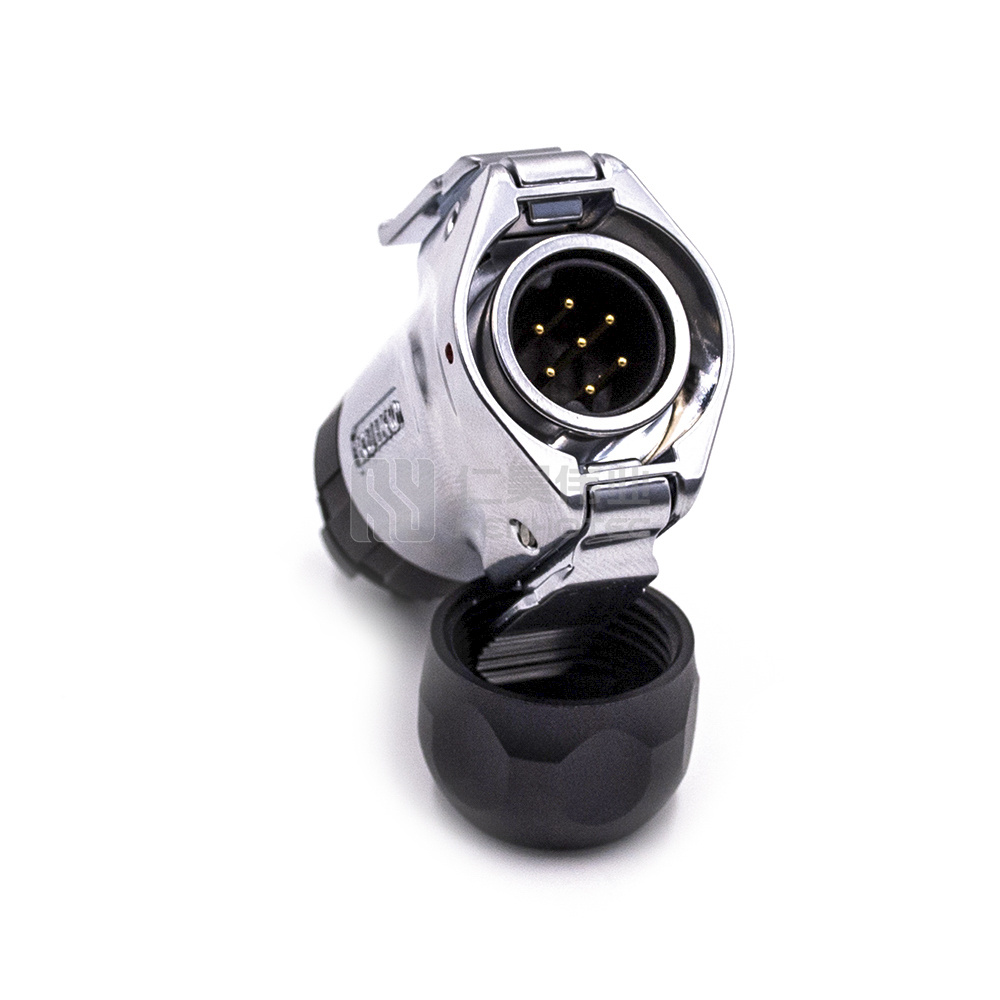

Product Specification
Connector Type
Plug
Orientation
Straight
Contact Type
Male Pin
Fastening Type
Push-Pull
Mounting Type
Panel Mount
Contact Termination Style
Solder
Contact Material
Brass
Ingress Protection
IP67
Shell Material
Zinc Alloy
Number of Ports
7
Shell Finish
Chromium Plating
Temperature Range
-20°C to +85°C
Features
Metal Chain
Connector Type
Plug
Orientation
Straight
Contact Type
Male Pin
Fastening Type
Push-Pull
Mounting Type
Panel Mount
Contact Termination Style
Solder
Contact Material
Brass
Ingress Protection
IP67
Shell Material
Zinc Alloy
Number of Ports
7
Shell Finish
Chromium Plating
Temperature Range
-20°C to +85°C
Features
Metal Chain
Connector Type
Plug
Orientation
Straight
Contact Type
Male Pin
Fastening Type
Push-Pull
Mounting Type
Panel Mount
Contact Termination Style
Solder
Insulation Material
PA66
Contact Material
Brass
Ingress Protection
IP67
Rated Current
5A
Shell Material
Zinc Alloy
Number of Ports
7
Shell Finish
Chromium Plating
Wire Range
0.3-0.5mm2/22-20AWG
Temperature Range
-20°C to +85°C
Features
Metal Chain
