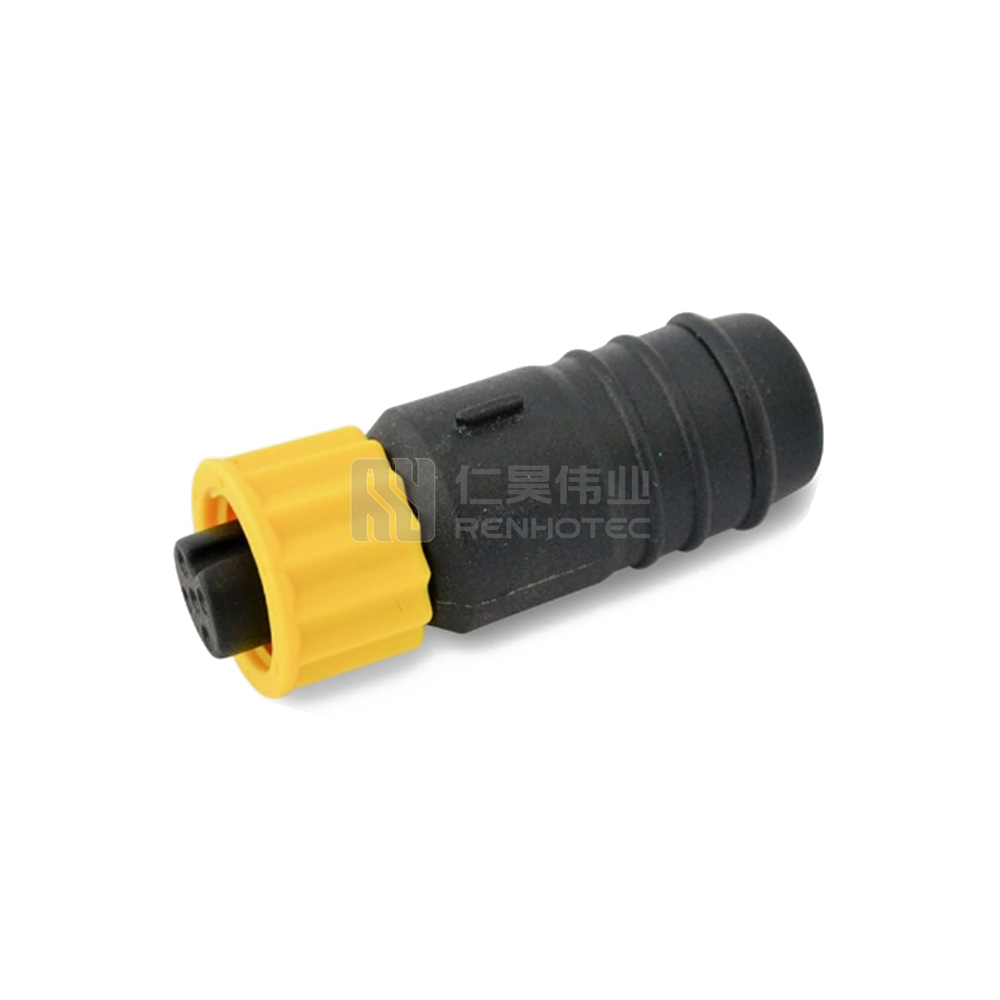

Marine NMEA 2000 Female Terminator

  • Efficient: Multiple devices can be connected to efficient communication and data sharing between devices.
  • Flexibility: It can be easily expanded to add new devices and sensors as needed.
  • Reliability: Modern communication protocols and technologies are used to provide a high degree of reliability and stability.
  • Easy to install: Can be connected by simple plugs, making the installation process easier and faster.
  • Data standardization: Standardized data formats and protocols are used to ensure compatibility between different devices and accuracy of data exchange.
  • Low Power Consumption: Designed for low power consumption, it can operate effectively in resource-limited environments such as ships and boats.

NMEA 2000 is a plug-and-play communications protocol that makes it easy to integrate different devices on board. It provides a standardized way for devices to communicate with each other, so you can easily connect chartplotters, depth sounders, engine monitors and other devices to create a fully integrated shipboard system.
Key benefits of the NMEA 2000 include high data transfer rates that allow devices to exchange large amounts of data quickly and reliably. This is particularly useful for devices that require real-time data, such as GPS. The protocol also supports bi-directional communication, which is critical for devices that require feedback or control, such as autopilots or leveling devices.

Product Specification

NMEA 2000 Series

NMEA 2000 Connectors

This connector is typically a waterproof twist-lock type with a 5-pin configuration for easy installation and removal of equipment.

NMEA 2000 T-Type Cables

These cables utilize a T-type connector on one end, allowing for easy branching of the network to connect multiple devices. The cables are designed to be rugged and weatherproof for use in harsh marine environments. They are available at a variety of lengths to meet different installation requirements.

NMEA 2000 Trunk Cables

These cables, usually with a standard connector at each end, are the backbone of the NMEA 2000 network and form the main communication channel for data exchange. These cables are suitable for marine environments and are available in a variety of lengths.

NMEA 2000 Field Installation Connectors M12 & 7/8″

Establish connections between NMEA 2000 devices. These connectors are designed to withstand harsh environmental conditions and provide reliable data communications within the NMEA 2000 network.

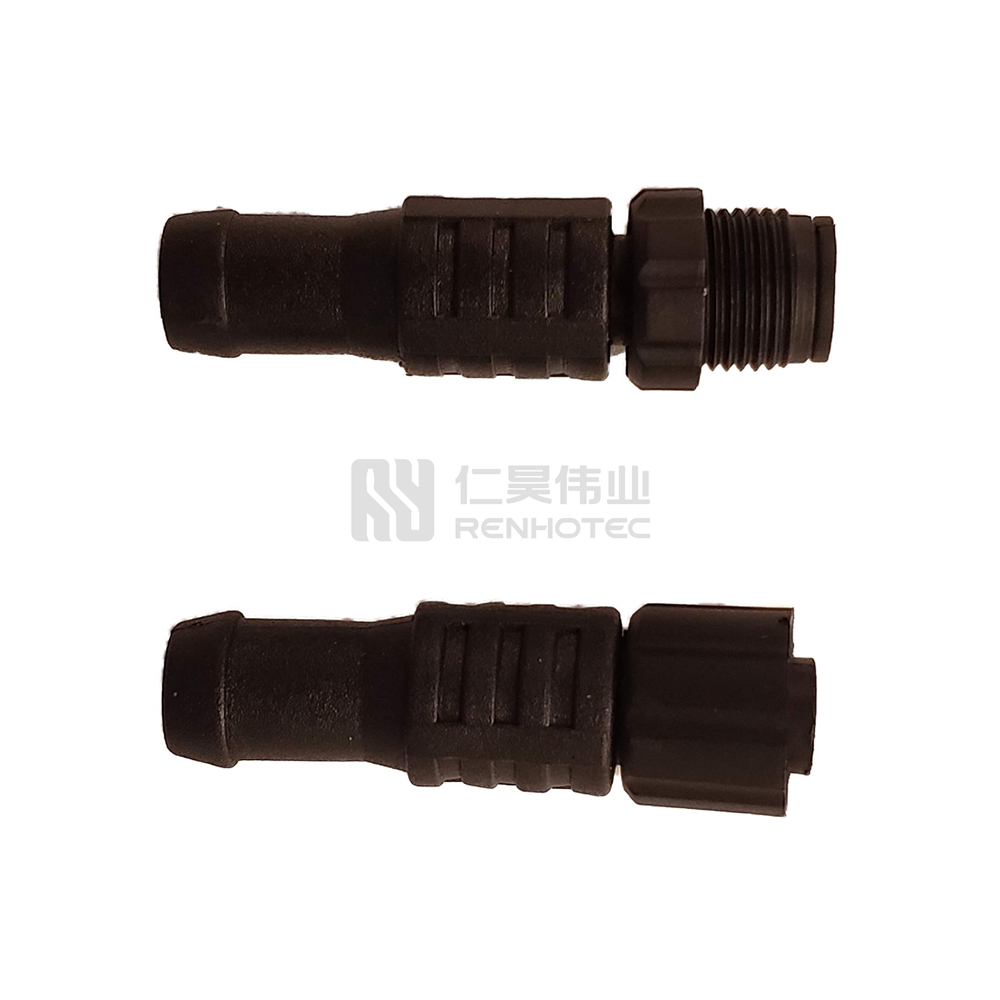

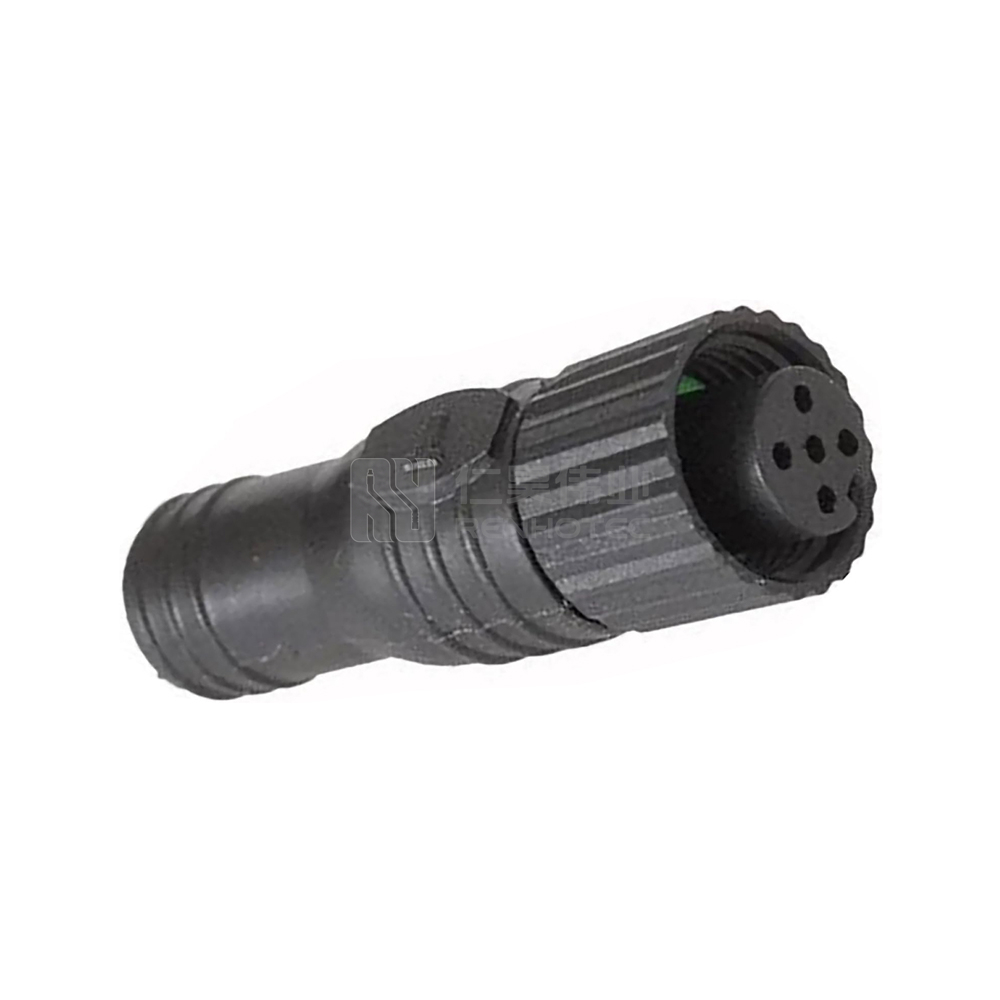

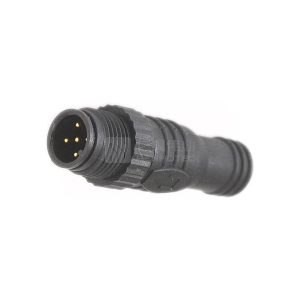

NMEA 2000 Terminators

A NMEA 2000 terminator is a device used to terminate the two ends of a NMEA 2000 network. The terminator is a resistor that is placed at the end of the network to prevent signal reflections that can cause data errors.

Applications

Multi-function displays
Depth sounder and fish finder
Autopilot Systems
Wind Sensors
Compass Heading Sensors

Engine Monitoring
Fuel Flow Sensors
Tank Level Sensors
Oil Pressure and Temperature Sensors

AIS Transceivers
Radio equipment
GPS antennas
DSC Systems

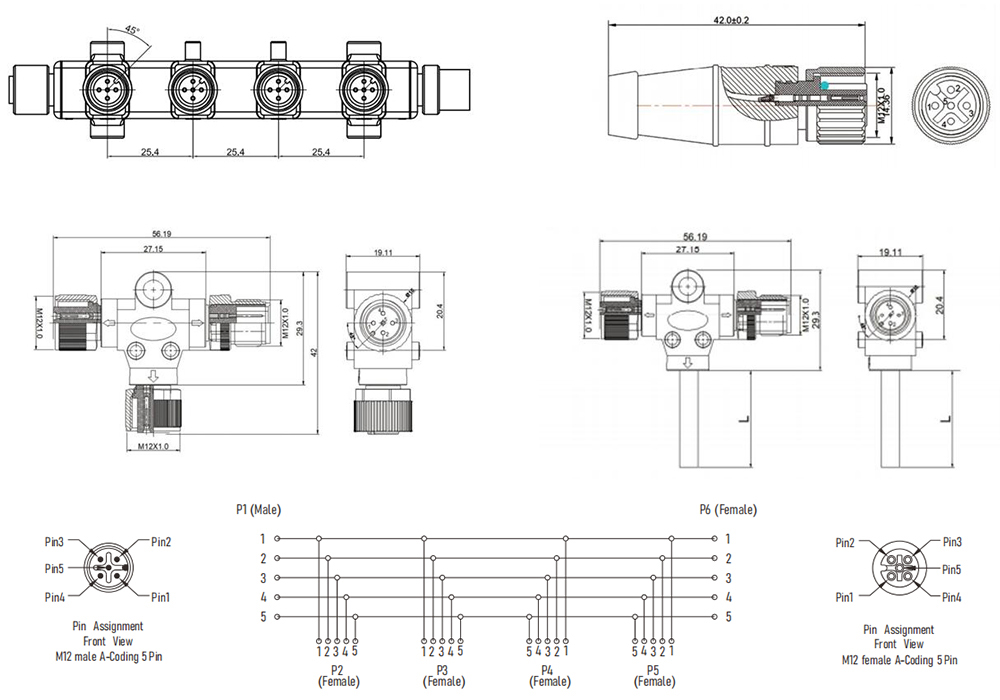

Product Specification

Connector Type

Jack
Number of Positions

5 Pin
Key

A
Fastening Type

Threaded
Shell Material

TPU
Conductor Material

Brass
Ingress Protection

IP67
Rated Current

4A
Rated Voltage

25V
Operating Temperature

-20°C～+80°C
Connector Type

Jack

 Number of Positions

5 Pin
Key

A

 Fastening Type

Threaded
Shell Material

TPU

 Conductor Material

Brass
Ingress Protection

IP67

 Rated Current

4A
Rated Voltage

25V

 Operating Temperature

-20°C～+80°C
Connector Type

Jack
Number of Positions

5 Pin
Key

A
Fastening Type

Threaded
Shell Material

TPU
Conductor Material

Brass
Ingress Protection

IP67
Rated Current

4A
Rated Voltage

25V
Operating Temperature

-20°C～+80°C
