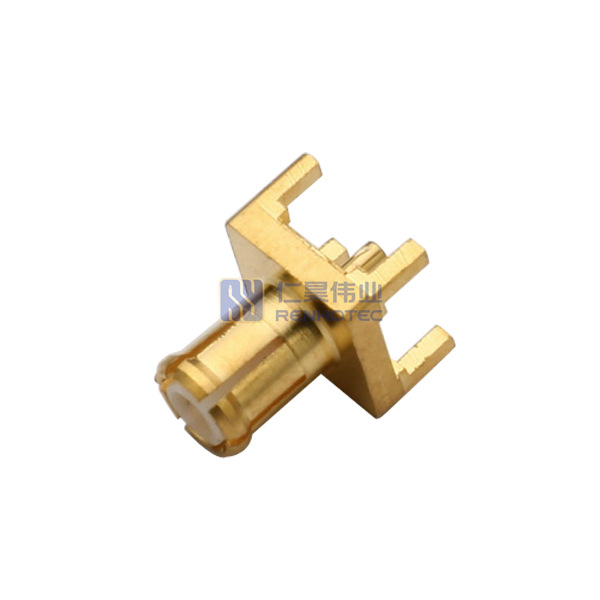

MCX Connector Male Solder Panel Mount Through Hole 50ohm – RHT-617-1025

High-quality MCX connector designed for easy soldering onto panels, featuring a durable construction and 50 ohm impedance for reliable signal transmission in various applications.

MCX / MMCX (Micro-Miniature Coaxial) connector are developed in Europe during the 1980s to 1990s, broadband capability of DC to 6 GHz and secure, fast and easy snap-on/snap-off coupling. Conforms to the European CECC 22000 specification.With small size, less weight, compact structure and easy fit, they are widely used in small sized communication equipment.

Broadband performance with low reflection

Quick connect/disconnect snap-on mating reduces installation time

Available in straight and right angle plugs and printed circuit board connectors

High-quality solution at a low cost

Complete Variety

MCX Connector

Crimp Type

Solder Type

Through Hole

SMT Type

Flange Mount

Edge Type

MMCX Connector

Crimp Type

Solder Type

R/A Solder Type

Through Hole

R/A Through Hole

Surface Type

Product Application

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

After sales system

Actively follow up andpromptly address anyissues

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

MCX Type
Connector Type

Plug
Orientation

Straight
Contact Type

Male Pin
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Fastening Type

Push-Pull
Number of Ports

1
Impedance

50 ohm
Frequency - Max

6GHz
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Insulator Material

Teflon White
Contact Material

Brass
Contact Finish

Gold Plated
Rated Voltage

500 Volts RMS Max Continuous
Dielectric Withstanding Voltage

1000 VRMS Max
Insultation Resistance

500MΩ Min
Center Contact Resistance

5 MΩ Min
Outer Contact Resistance

1 MΩ Min
Temperature Range

-65°C to +165°C
Mating Durability

≥ 500 Cycles
VSWR

≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz)
Vibration

MIL-STD-202 Meth. 204
Corrosion Resistance

MIL-STD-202 Meth. 101
RF Series

MCX Type

 Connector Type

Plug
Orientation

Straight

 Contact Type

Male Pin
Contact Termination Style

Solder

 Shield Termination

Solder
Mounting Type

Panel Mount

 Mounting Feature

Through Hole
Fastening Type

Push-Pull

 Number of Ports

1
Impedance

50 ohm

 Frequency - Max

6GHz
Shell Material

Copper Alloy

 Shell Finish

Gold Plated
Insulator Material

Teflon White

 Contact Material

Brass
Contact Finish

Gold Plated

 Rated Voltage

500 Volts RMS Max Continuous
Dielectric Withstanding Voltage

1000 VRMS Max

 Insultation Resistance

500MΩ Min
Center Contact Resistance

5 MΩ Min

 Outer Contact Resistance

1 MΩ Min
Temperature Range

-65°C to +165°C

 Mating Durability

≥ 500 Cycles
VSWR

≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz)

 Vibration

MIL-STD-202 Meth. 204
Corrosion Resistance

MIL-STD-202 Meth. 101
RF Series

MCX Type
Connector Type

Plug
Orientation

Straight
Contact Type

Male Pin
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Fastening Type

Push-Pull
Number of Ports

1
Impedance

50 ohm
Frequency - Max

6GHz
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Insulator Material

Teflon White
Contact Material

Brass
Contact Finish

Gold Plated
Rated Voltage

500 Volts RMS Max Continuous
Dielectric Withstanding Voltage

1000 VRMS Max
Insultation Resistance

500MΩ Min
Center Contact Resistance

5 MΩ Min
Outer Contact Resistance

1 MΩ Min
Temperature Range

-65°C to +165°C
Mating Durability

≥ 500 Cycles
VSWR

≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz)
Vibration

MIL-STD-202 Meth. 204
Corrosion Resistance

MIL-STD-202 Meth. 101

The MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It has the all features of the MCX series, including 50 Ω impedance with a broadband capability of DC to 6 GHz and secure, fast and easy snap-on/ snap-off coupling, and a wide range of available connectors. However, MMCX connectors have a smaller foot print than the MCX series.

MCX

MMCX

They offer broadband capability from DC to 6Ghz.

It's push-on/pull-off mating design facilitates a quick connect/disconnect capability. Connex MCX connectors are popularly used in the cellular telephone, information systems and communications markets.

Drawing for MCX Connector Male Solder Panel Mount Through Hole 50ohmDownload
