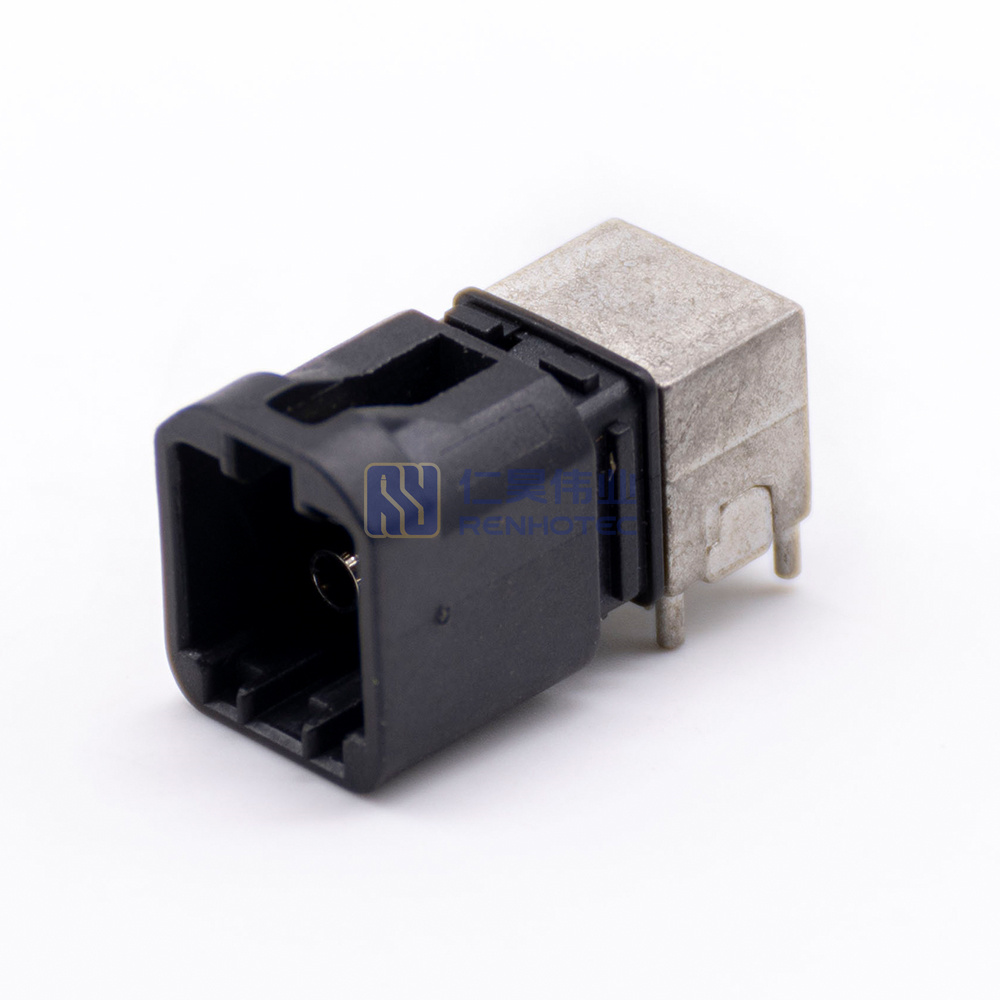

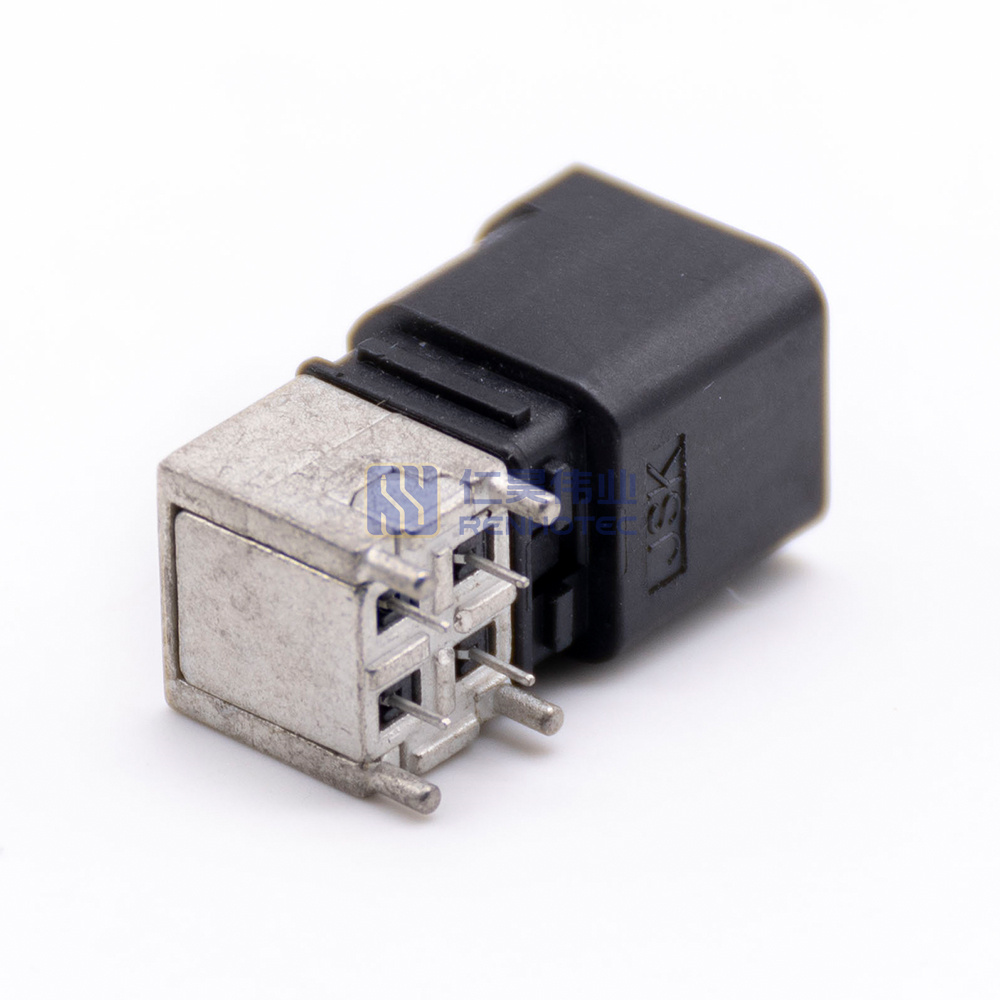

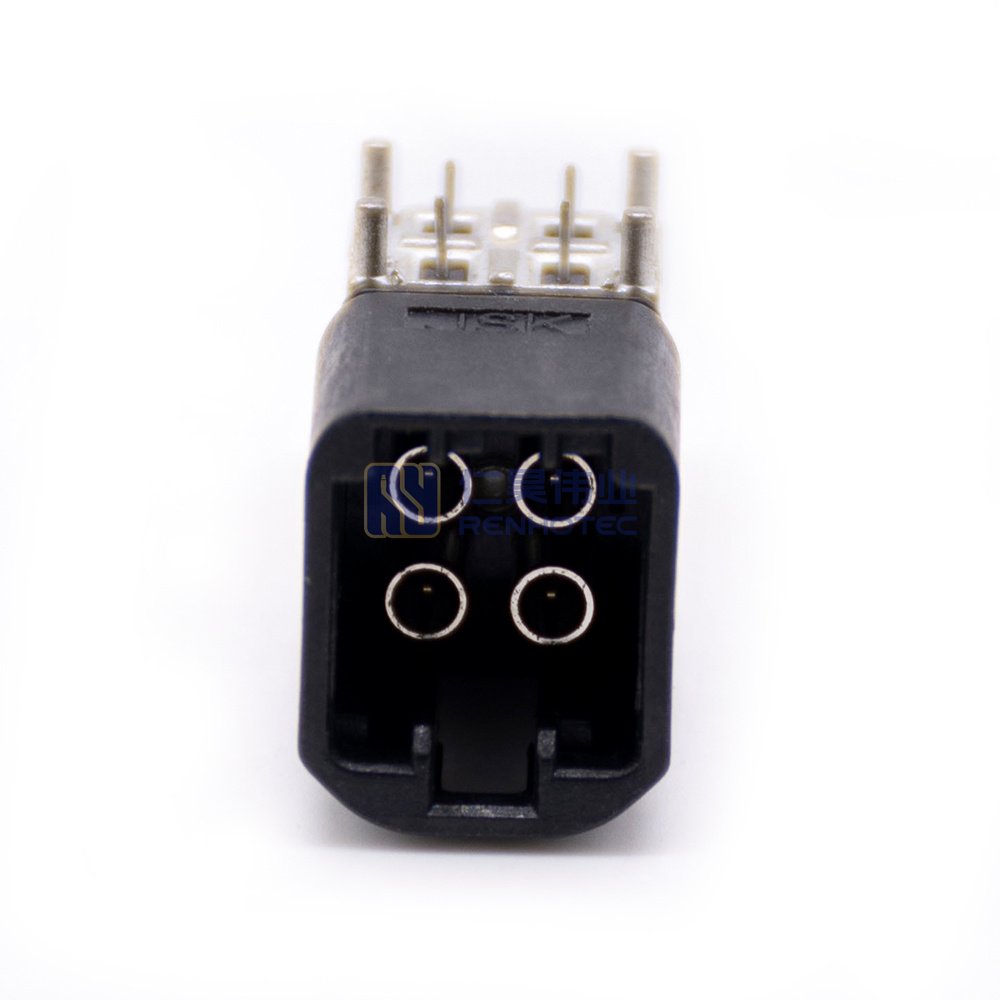

Mini Fakra Connector Plug Right Angle Male Pin Panel Mount Through Hole Black A Code Solder – 101-11-10024
Efficiently connect components with this Mini Fakra Connector. Featuring a compact design, right-angle male pin, and black color, this panel mount connector ensures reliable connections for various applications.
FAKRA is an acronym for Fachkreis Automobile or Working Group Automobile. These versatile connectors are in widespread use in the global automotive industry, primarily in telematics, safety, and communications applications. An average connected car contains at least 15 FAKRA connectors.
The FAKRA standard defines the connector’s interface and mechanical and electrical characteristics. FAKRA connectors consist of a plug and jack that mate via a push-on mechanism embedded within a plastic housing. An audible locking confirmation lets operators know a connection has been made. Some variations include a secondary lock. They are available in 14 different mechanical layouts. Color-coding enables easy identification and prevents mismatching. FAKRA connectors can operate up to 6 GHz.
FAKRA connectors are used throughout automotive vehicles in applications such as telematic and GPS navigation, entertainment systems, Bluetooth, cellular, keyless entry, climate controls, and radio antennas. They are also used in sensor systems for autonomous controls. Other non-auto applications include outdoor routers, industrial process control boxes, machine-to-machine modules, and IoT devices.
There are several subtypes of FAKRA connectors: The original FAKRA I connectors are now primarily used in antenna applications. FAKRA II, the second generation of FAKRA, is considered the current base standard. They are available in a variety of angles and configurations, including an IP6K9K sealed and weather-resistant version for use in outdoor applications. Customized and miniaturized versions are available from some manufacturers.
Fakra Code
Interface Dimensions
Application
- Cameras
- Sensors for detection, evaluation and reaction
- High Performance Computing
- Radio antenna
- GPS telematics or navigation
- Infotainment & television
- Mobile communication
- RF bluetooth / WLAN applications
- Radio frequency remote control for keyless entry
- Vehicle auxiliary heating
Specifications
Style | Mini Fakra |
---|---|
Style | Mini Fakra |
Product Specification
Connector Type | Plug |
||
---|---|---|---|
Orientation | Right Angle |
||
Contact Type | Male Pin |
||
Mounting Type | Panel Mount |
||
Mounting Feature | Through Hole |
||
Fastening Type | Push-On |
||
Number of Ports | 4 |
||
Impedance | 50 ohm |
||
Frequency - Max | 6GHz |
||
Plastic Housing | PA66+30%GF |
||
Shell Material | Zinc Alloy |
||
Shell Finish | Nickel Plated |
||
Insulator Material | PTFE |
||
Contact Material | Copper Alloy |
||
Contact Finish | Gold Plated |
||
Cable Color | Black |
||
Temperature Range | -40°C to +105°C |
||
Withstand Voltage | 750V r.m.s |
||
Operating Voltage | 335V r.m.s at sea level |
||
Mating Durability | ≥ 25 Cycles |
||
Insultation Resistance | ≥1000MΩ |
||
Anti-error Force | ≥40N |
||
Latch Holding Force | ≥110N |
||
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Male Pin |
Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
Fastening Type | Push-On |
Number of Ports | 4 |
Impedance | 50 ohm |
Frequency - Max | 6GHz |
Plastic Housing | PA66+30%GF |
Shell Material | Zinc Alloy |
Shell Finish | Nickel Plated |
Insulator Material | PTFE |
Contact Material | Copper Alloy |
Contact Finish | Gold Plated |
Cable Color | Black |
Temperature Range | -40°C to +105°C |
Withstand Voltage | 750V r.m.s |
Operating Voltage | 335V r.m.s at sea level |
Mating Durability | ≥ 25 Cycles |
Insultation Resistance | ≥1000MΩ |
Anti-error Force | ≥40N |
Latch Holding Force | ≥110N |
Style | Mini Fakra |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Male Pin |
Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
Fastening Type | Push-On |
Number of Ports | 4 |
Impedance | 50 ohm |
Frequency - Max | 6GHz |
Plastic Housing | PA66+30%GF |
Shell Material | Zinc Alloy |
Shell Finish | Nickel Plated |
Insulator Material | PTFE |
Contact Material | Copper Alloy |
Contact Finish | Gold Plated |
Cable Color | Black |
Temperature Range | -40°C to +105°C |
Withstand Voltage | 750V r.m.s |
Operating Voltage | 335V r.m.s at sea level |
Mating Durability | ≥ 25 Cycles |
Insultation Resistance | ≥1000MΩ |
Anti-error Force | ≥40N |
Latch Holding Force | ≥110N |
Mini-FAKRA connectors are a smaller version of the popular FAKRA connectors and are used in automotive as well as personal electric vehicles (PEVs) and light electric vehicles (LEVs) due to their small size and light weight, which is particularly important in electric vehicle applications.
Mini Fakra are 80% smaller than FAKRA connectors. And it can reach 20 Ghz and 28 Gb/s.
The size of these two brands are different, TE type would be smaller and shorter than Rosenberger type. And they can not be mated mixed. Pls feel free to contact with us to get more size details.
Yes, in order to make the cable performance better, we use 1.5DS for cables within 5M, and SYWV-50-2 for cables above 5M. pls feel free to contact us to get the cable specification.
