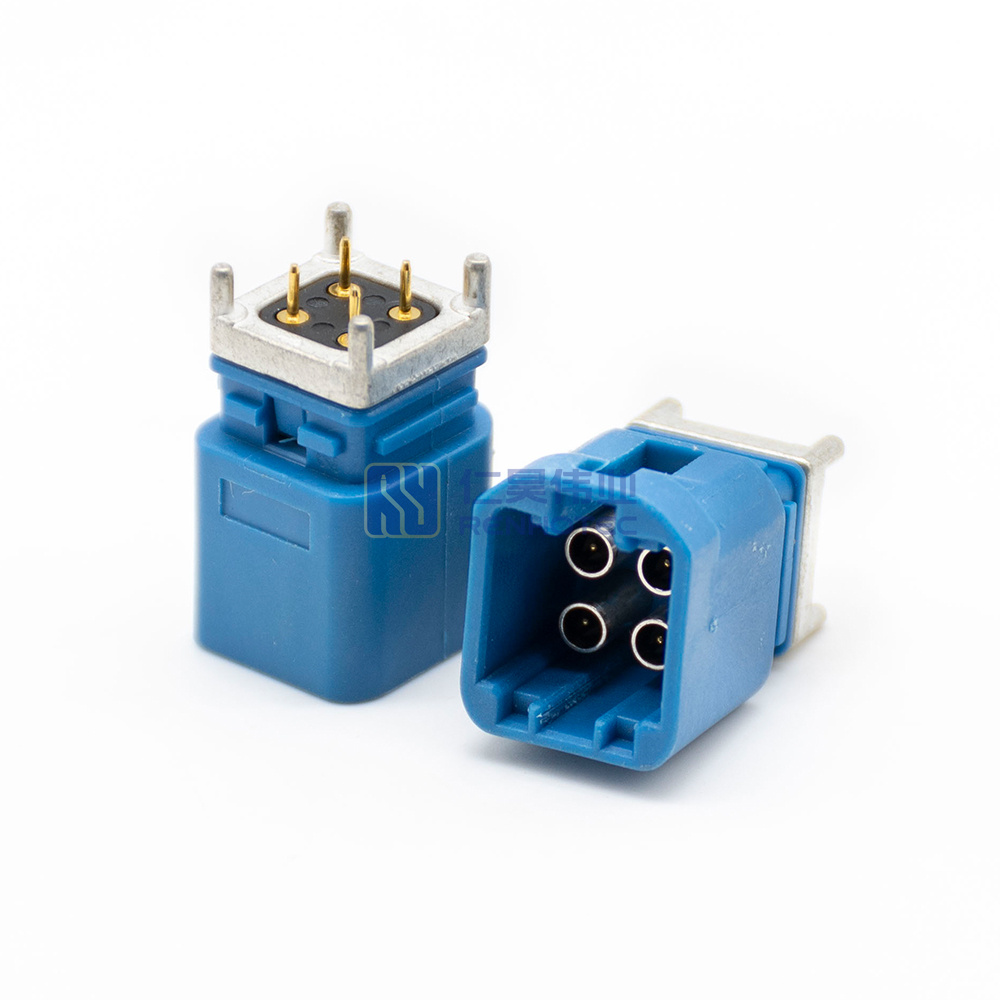

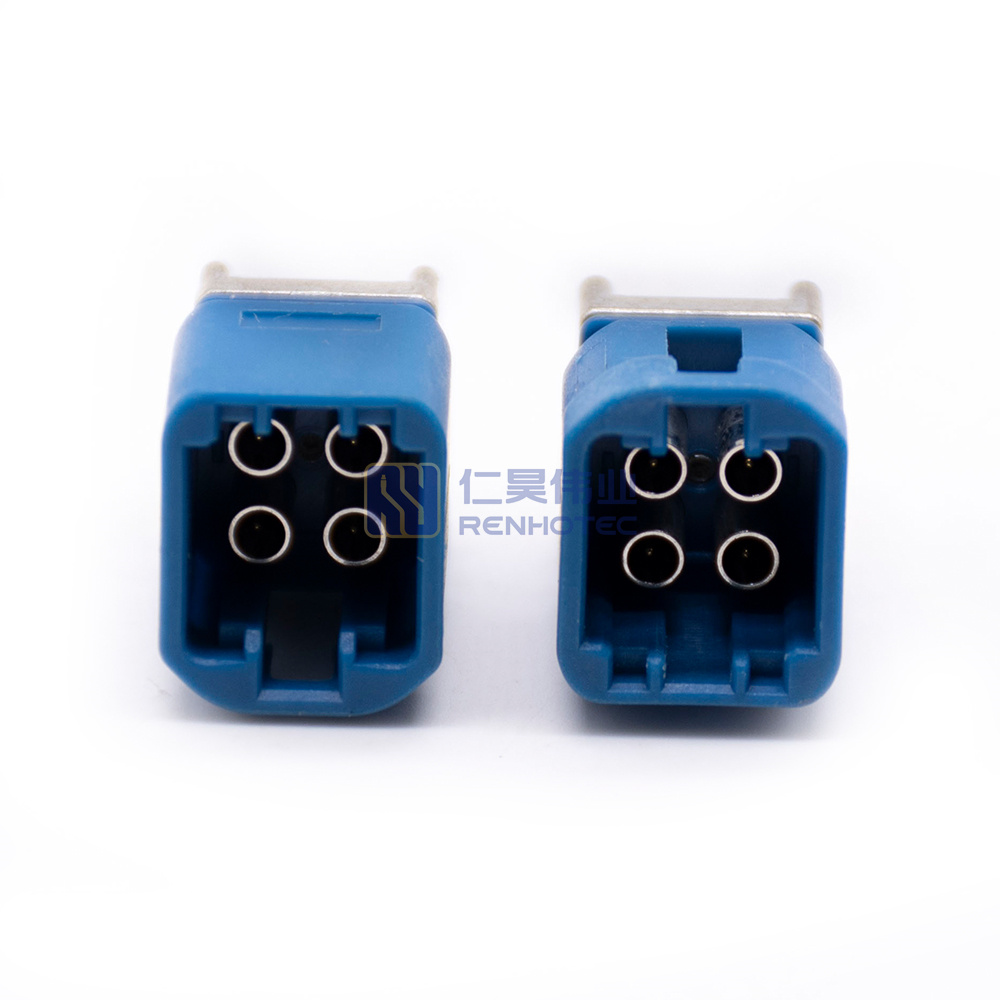

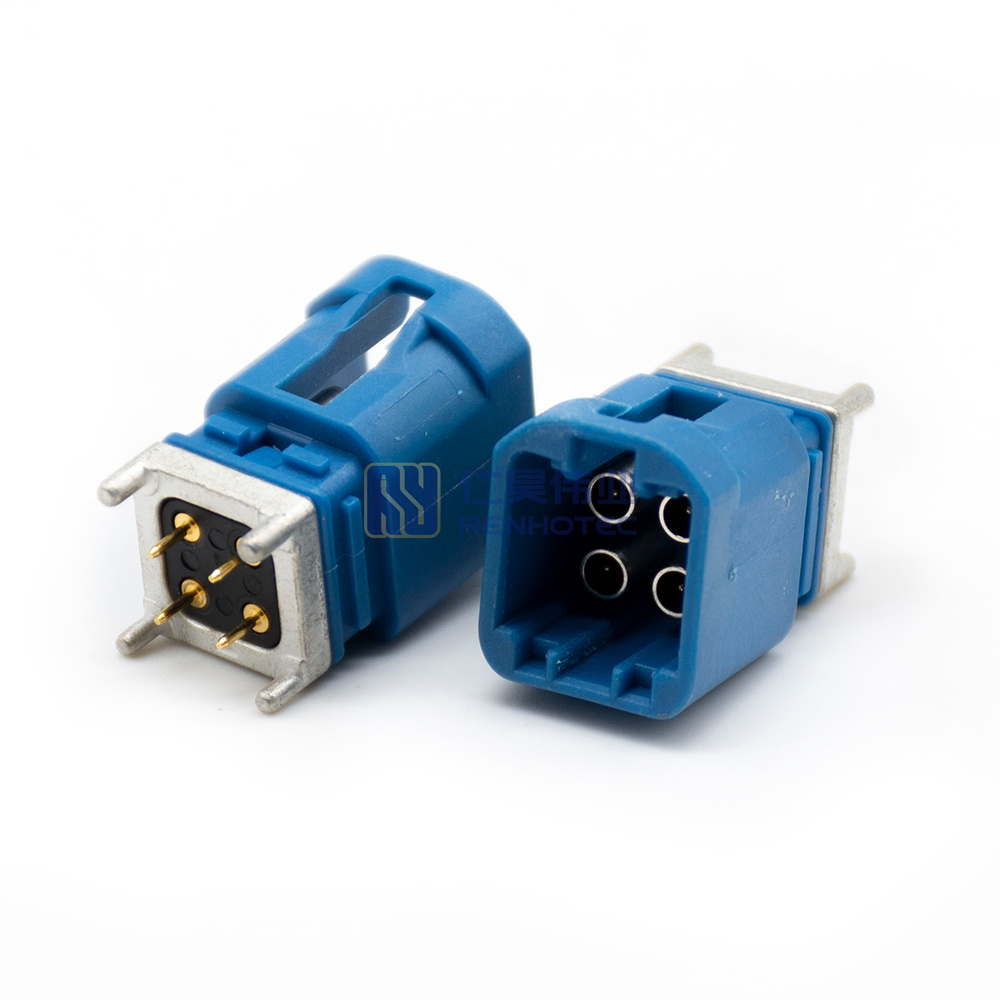

Mini Fakra Connector Plug Straight Male Pin Panel Mount Through Hole Blue C Code Solder – 101-11-10022

This Mini Fakra Connector features a Straight Male Pin design for easy panel mounting through hole installation. The blue C code solder adds a distinctive touch. Ideal for various connectivity applications where a secure connection is needed.

HFM is the automotive industry’s highest performance “Mini-Coax” connector system. With frequencies up to 20 GHz, it can rapidly transmit data rates up to 28 Gbps. Its innovative design meets the need for cost-effectiveness and reduced weight and size. Space is reduced by up to 80% compared to conventional FAKRA connectors, allowing multiple modules to fit into a small frame. The optimal cost comes from a fully stamped and molded manufacturing process, as well as automated connector mounting and cable assembly.The HFM connector system is adaptable to future automotive networks, applications and protocols. Exclusive use of cutting edge technology.

High-Frequency Performance

With frequencies up to 20 GHz, the Mini FAKRA connector can quickly transmit data rates of up to 28 Gbps, making it the highest performing “Mini-Coax” connector system in the automotive industry.

Space-Efficient Design

It takes up to 80% less space than conventional FAKRA connectors, allowing multiple modules to fit into a small frame. Its innovative design meets the need for cost-effectiveness and weight and size reduction.

Cost-Effective Manufacturing

The optimal cost of Mini FAKRA connectors comes from a fully stamped and molded manufacturing process, as well as automated connector mounting and cable assembly, ensuring cost-effective automotive networks, applications and protocols.

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Specifications

Style

Mini Fakra
Style

Mini Fakra

Product Specification

Connector Type

Plug
Orientation

Straight
Contact Type

Male Pin
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Fastening Type

Push-On
Number of Ports

4
Impedance

50 ohm
Frequency - Max

6GHz
Plastic Housing

PA66+30%GF
Shell Material

Zinc Alloy
Shell Finish

Nickel Plated
Insulator Material

PTFE
Contact Material

Copper Alloy
Contact Finish

Gold Plated
Cable Color

Blue
Temperature Range

-40°C to +105°C
Withstand Voltage

750V r.m.s
Operating Voltage

335V r.m.s at sea level
Mating Durability

≥ 25 Cycles
Insultation Resistance

≥1000MΩ
Anti-error Force

≥40N
Latch Holding Force

≥110N
Connector Type

Plug

 Orientation

Straight
Contact Type

Male Pin

 Mounting Type

Panel Mount
Mounting Feature

Through Hole

 Fastening Type

Push-On
Number of Ports

4

 Impedance

50 ohm
Frequency - Max

6GHz

 Plastic Housing

PA66+30%GF
Shell Material

Zinc Alloy

 Shell Finish

Nickel Plated
Insulator Material

PTFE

 Contact Material

Copper Alloy
Contact Finish

Gold Plated

 Cable Color

Blue
Temperature Range

-40°C to +105°C

 Withstand Voltage

750V r.m.s
Operating Voltage

335V r.m.s at sea level

 Mating Durability

≥ 25 Cycles
Insultation Resistance

≥1000MΩ

 Anti-error Force

≥40N
Latch Holding Force

≥110N
Style

Mini Fakra
Connector Type

Plug
Orientation

Straight
Contact Type

Male Pin
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Fastening Type

Push-On
Number of Ports

4
Impedance

50 ohm
Frequency - Max

6GHz
Plastic Housing

PA66+30%GF
Shell Material

Zinc Alloy
Shell Finish

Nickel Plated
Insulator Material

PTFE
Contact Material

Copper Alloy
Contact Finish

Gold Plated
Cable Color

Blue
Temperature Range

-40°C to +105°C
Withstand Voltage

750V r.m.s
Operating Voltage

335V r.m.s at sea level
Mating Durability

≥ 25 Cycles
Insultation Resistance

≥1000MΩ
Anti-error Force

≥40N
Latch Holding Force

≥110N

Mini-FAKRA connectors are a smaller version of the popular FAKRA connectors and are used in automotive as well as personal electric vehicles (PEVs) and light electric vehicles (LEVs) due to their small size and light weight, which is particularly important in electric vehicle applications.

Mini Fakra are 80% smaller than FAKRA connectors. And it can reach 20 Ghz and 28 Gb/s.

The size of these two brands are different, TE type would be smaller and shorter than Rosenberger type. And they can not be mated mixed. Pls feel free to contact with us to get more size details.

Yes, in order to make the cable performance better, we use 1.5DS for cables within 5M, and SYWV-50-2 for cables above 5M. pls feel free to contact us to get the cable specification.
