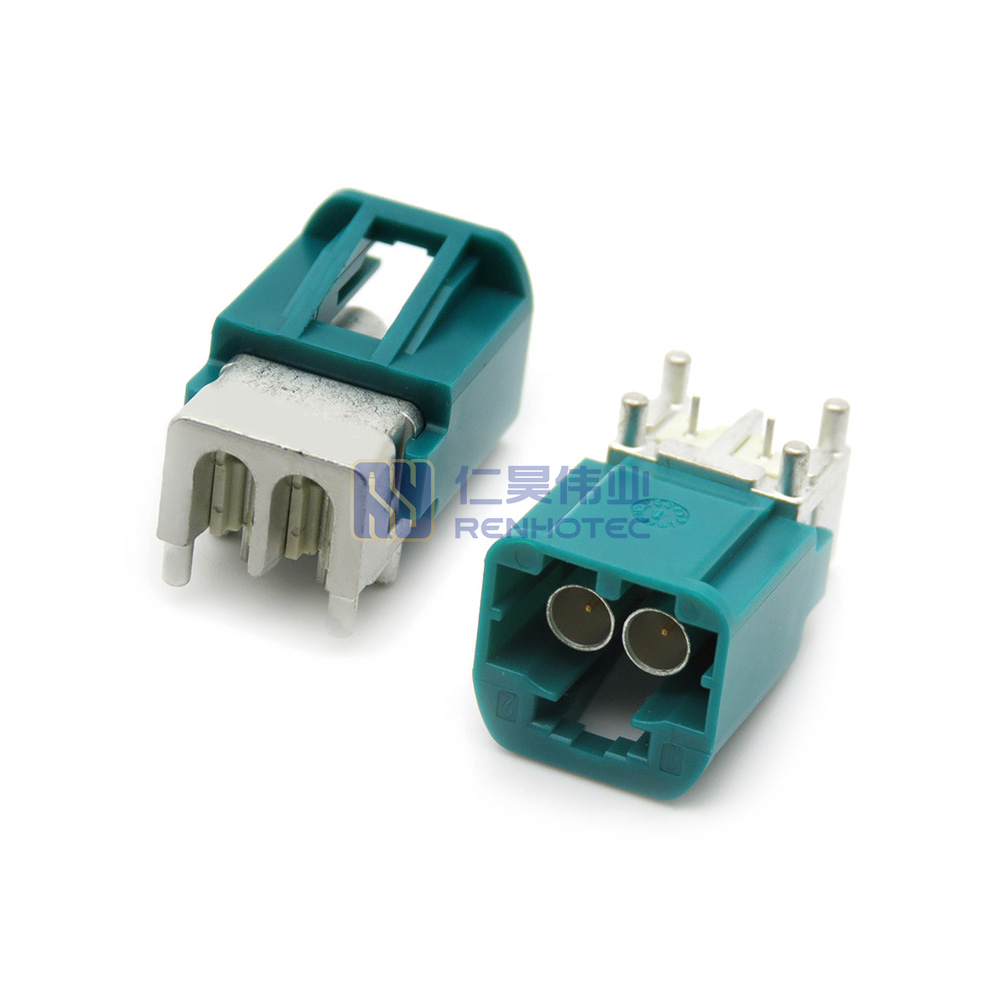

Mini Fakra Right Angle 2-in-1 Connector Through Hole

  • Mini Fakra right angle connector with through hole mounting, offering space-saving design for tight installations in automotive and electronic systems.
  • Engineered for reliable signal transmission, ideal for applications such as automotive infotainment, GPS systems, and antennas.
  • Durable construction with robust materials to ensure long-term performance and resistance to vibrations and environmental factors.
  • Provides secure and stable connections, preventing signal loss and interference in demanding automotive environments.
  • Compatible with various cable types and wiring systems, making it versatile for a wide range of automotive and industrial applications.

HFM is the automotive industry’s highest performance “Mini-Coax” connector system. With frequencies up to 20 GHz, it can rapidly transmit data rates up to 28 Gbps. Its innovative design meets the need for cost-effectiveness and reduced weight and size. Space is reduced by up to 80% compared to conventional FAKRA connectors, allowing multiple modules to fit into a small frame. The optimal cost comes from a fully stamped and molded manufacturing process, as well as automated connector mounting and cable assembly.The HFM connector system is adaptable to future automotive networks, applications and protocols. Exclusive use of cutting edge technology.

High-Frequency Performance

With frequencies up to 20 GHz, the Mini FAKRA connector can quickly transmit data rates of up to 28 Gbps, making it the highest performing “Mini-Coax” connector system in the automotive industry.

Space-Efficient Design

It takes up to 80% less space than conventional FAKRA connectors, allowing multiple modules to fit into a small frame. Its innovative design meets the need for cost-effectiveness and weight and size reduction.

Cost-Effective Manufacturing

The optimal cost of Mini FAKRA connectors comes from a fully stamped and molded manufacturing process, as well as automated connector mounting and cable assembly, ensuring cost-effective automotive networks, applications and protocols.

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

Connector Type

Plug
Contact Type

Male Pin
Number of Ports

2
Number of Positions

1 Pin
Orientation

Right Angle
Impedance

50 ohm
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Operating Voltage

335V max
VSWR

≤1.5
Operating Temperature

-40°C to +100°C
Connector Type

Plug

 Contact Type

Male Pin
Number of Ports

2

 Number of Positions

1 Pin
Orientation

Right Angle

 Impedance

50 ohm
Mounting Type

Panel Mount

 Mounting Feature

Through Hole
Operating Voltage

335V max

 VSWR

≤1.5
Operating Temperature

-40°C to +100°C
Connector Type

Plug
Contact Type

Male Pin
Number of Ports

2
Number of Positions

1 Pin
Orientation

Right Angle
Impedance

50 ohm
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Operating Voltage

335V max
VSWR

≤1.5
Operating Temperature

-40°C to +100°C
