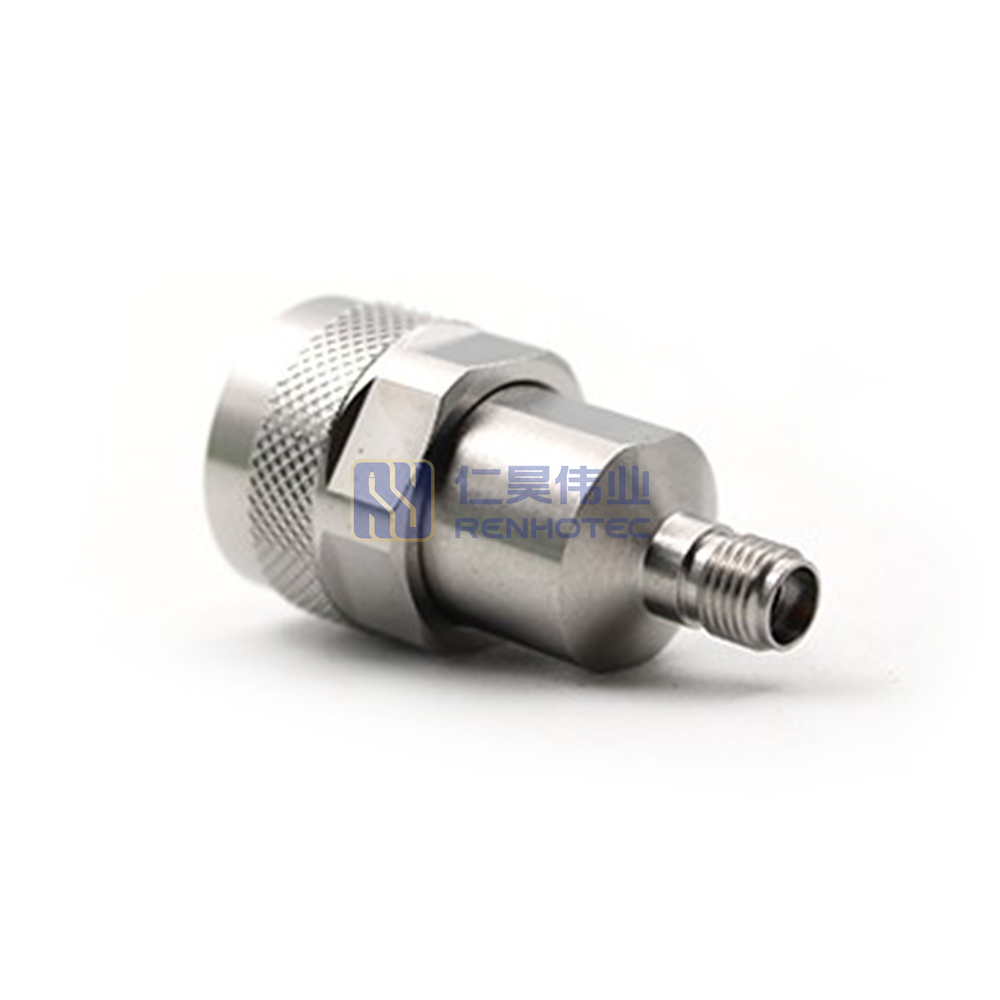

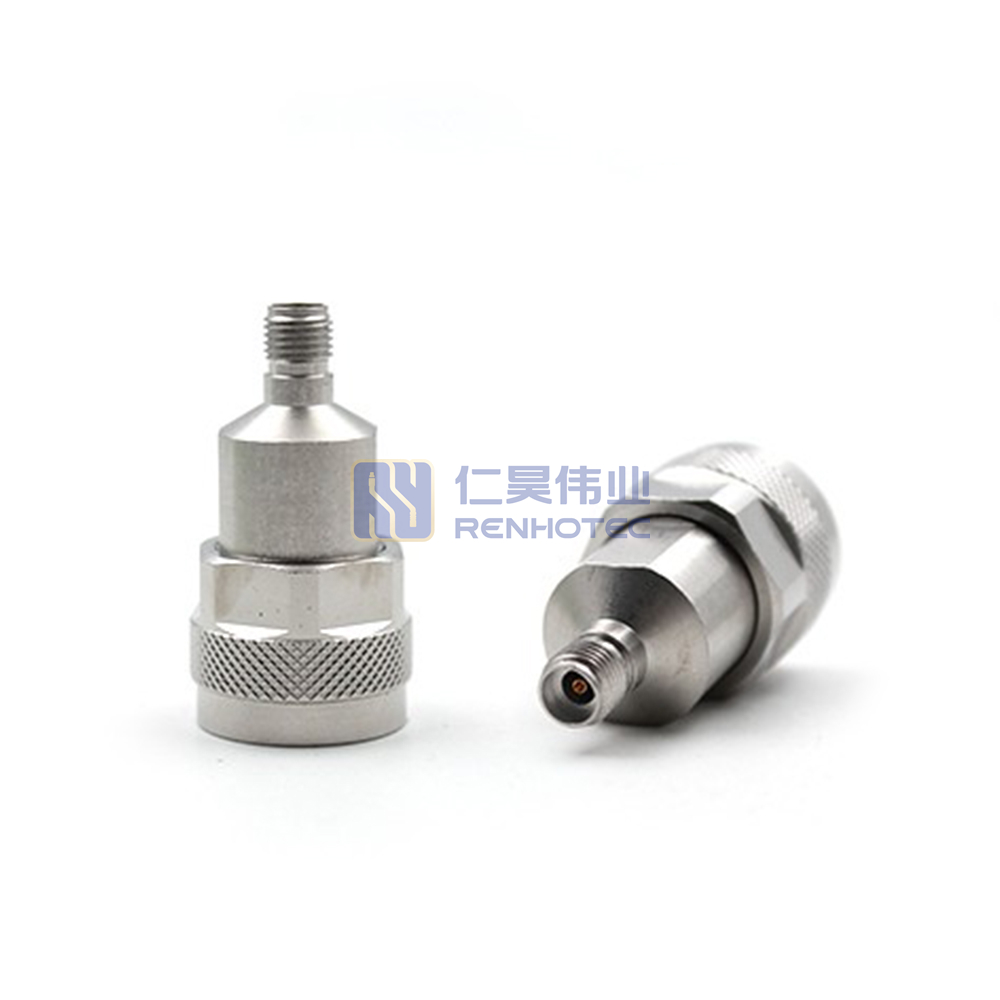

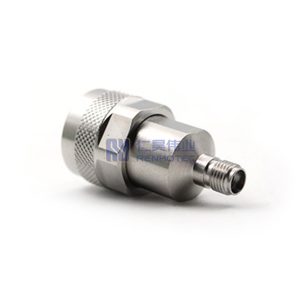

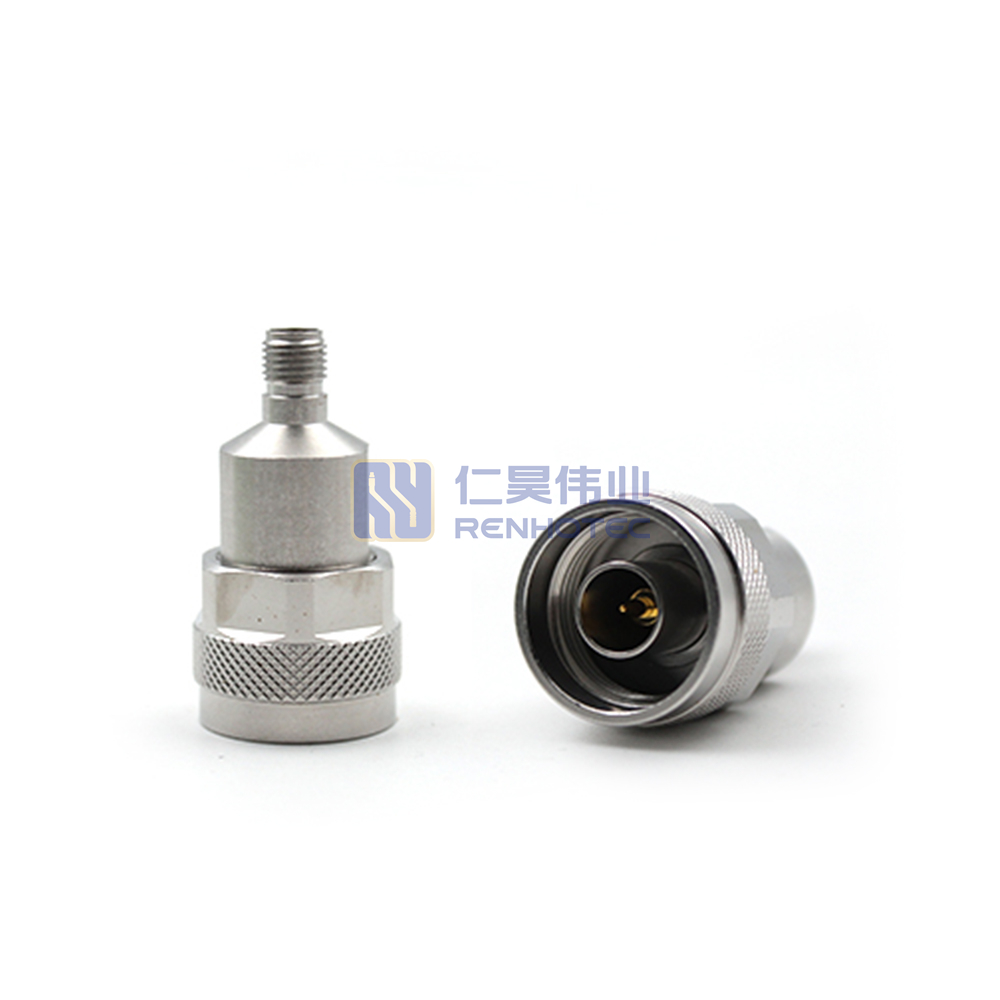

N Male to 2.92mm Female Precision RF Adapter DC-40GHZ – RHT-N-2.92-JKG
- Frequency Range: DC to 40GHz
- Connector Type: N Male to 2.92mm Female
- Low Insertion Loss: Ensures minimal signal attenuation for optimal performance
- Precision Design: Provides accurate, stable, and reliable signal transmission
- Durability: Built to withstand harsh environments and ensure long-lasting performance
- Applications: Ideal for RF testing, telecommunications, signal measurement, and industrial systems
High Frequency Connectors are precision connectors used for test and measurement or for sensitive low loss, phase stable, high frequency microwave applications up to 110GHz. They are made of high grade materials in order to allow for longer life cycle and higher durability. Thanks to their high mechanical stability and screw-on design, high frequency connectors provide best electrical performance with superior repeatability and excellent reliability.
RF Flexible Cables bring a revolutionary cabling solution for offshore applications and weigh up to 50% less than conventional cables. These cables are lightweight RF cables built with copper/silver plated center and outer conductors and are protected with highly insulated jackets, making them flame retardant. This high-grade cabling solution ensures safety and operational efficiency.
Microwave High-Frequency RF Adapters are designed for a wide range of use in the microwave industry. These connectors are manufactured with a precise tolerance interface to ensure superior repeatability and high mechanical stability. These adapters allow conversion between two different RF interconnect series, gender conversions, gender extensions, and orientation transformation.
Product Feature
1. Provide multiple interfaces: suitable for all standard interfaces, including 1.0mm, 1.35mm,1.85mm, 2.4mm, 2.92mm, 3.5mm, 7mm,SMA,SSMA, N, BNC, SMB, SSMB, MCX, IPEX, BMA, GPO/SMP, GPPO/Mini SMP, G3PO/SMPS, etc. By obtaining ISO9001 certification, we ensure high quality.
2. Phase stability, low insertion loss, wide bandwidth, low standing wave ratio, high attenuation accuracy, and frequencies up to 110GHz.
3. This series of products has the characteristics of small size, strong anti-interference ability, high temperature resistance,and corrosion resistance.
Connector Type1 | 1.0mm, 1.35mm,1.85mm, 2.4mm, 2.92mm, 3.5mm, 7mm, SMA, SSMA, N, BNC |
Connector Type2 | SMB, SSMB, MCX, IPEX, BMA, GPO/SMP, GPPO/Mini SMP, G3PO/SMPS,etc |
Frequency | DC-110GHz |
Applications
Widely used in high-frequency applications such as radar, testing, point-to-point communication, radio, satellite communication, broadcasting, microwave, etc..
Our Advantages
Physical factory
Having a professional production team, selfproduced and self sold
Quality assurance
Through strict qualitycontrol, ensure quality
Customized
We can customize diff-erent specifications ac-cording to your needs
After sales system
Actively follow up andpromptly address anyissues
Production Process
1. Put forward demand
2. Sketch design
3. Production equipment
4. Production measurement
5. Product assembly
6. Quality test
7. Product packaging
8. Product packag box
9. Deliver goods
Product Specification
Adapter Style | N to 2.92mm |
||
---|---|---|---|
Convert From(Adapter 1) | N |
||
1st Connector | Plug |
||
1st Contact Type | Male Pin |
||
Convert To(Adapter 2) | 2.92mm |
||
2nd Connector | Jack |
||
2nd Contact Type | Female Pin |
||
Orientation | Straight |
||
Impedance | 50 ohm |
||
Frequency Range | DC-40GHz |
||
VSWR | ≤ 1.25:1 |
||
Temperature Range | -45°C to +125°C |
||
Mating Durability | ≥ 500 Cycles |
||
Shell Material | Stainless Steel |
||
Insulator Material | PEI |
||
Contact Material | Beryllium Copper |
||
Contact Finish | Gold Plated |
||
Adapter Style | N to 2.92mm |
Convert From(Adapter 1) | N |
1st Connector | Plug |
1st Contact Type | Male Pin |
Convert To(Adapter 2) | 2.92mm |
2nd Connector | Jack |
2nd Contact Type | Female Pin |
Orientation | Straight |
Impedance | 50 ohm |
Frequency Range | DC-40GHz |
VSWR | ≤ 1.25:1 |
Temperature Range | -45°C to +125°C |
Mating Durability | ≥ 500 Cycles |
Shell Material | Stainless Steel |
Insulator Material | PEI |
Contact Material | Beryllium Copper |
Contact Finish | Gold Plated |
Adapter Style | N to 2.92mm |
---|---|
Convert From(Adapter 1) | N |
1st Connector | Plug |
1st Contact Type | Male Pin |
Convert To(Adapter 2) | 2.92mm |
2nd Connector | Jack |
2nd Contact Type | Female Pin |
Orientation | Straight |
Impedance | 50 ohm |
Frequency Range | DC-40GHz |
VSWR | ≤ 1.25:1 |
Temperature Range | -45°C to +125°C |
Mating Durability | ≥ 500 Cycles |
Shell Material | Stainless Steel |
Insulator Material | PEI |
Contact Material | Beryllium Copper |
Contact Finish | Gold Plated |
