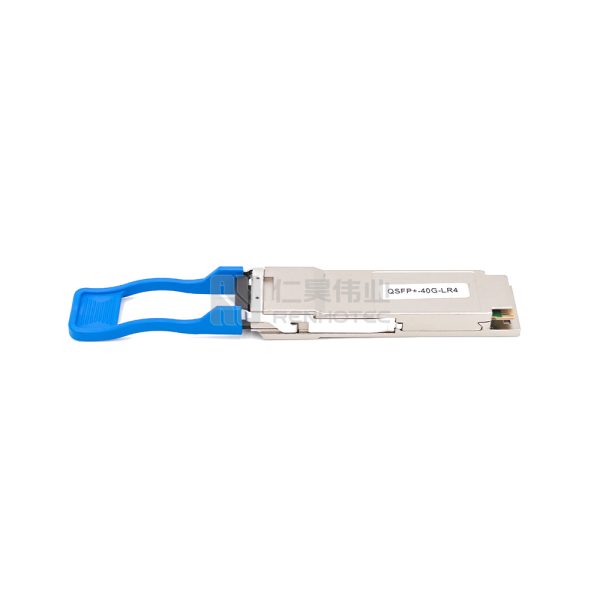

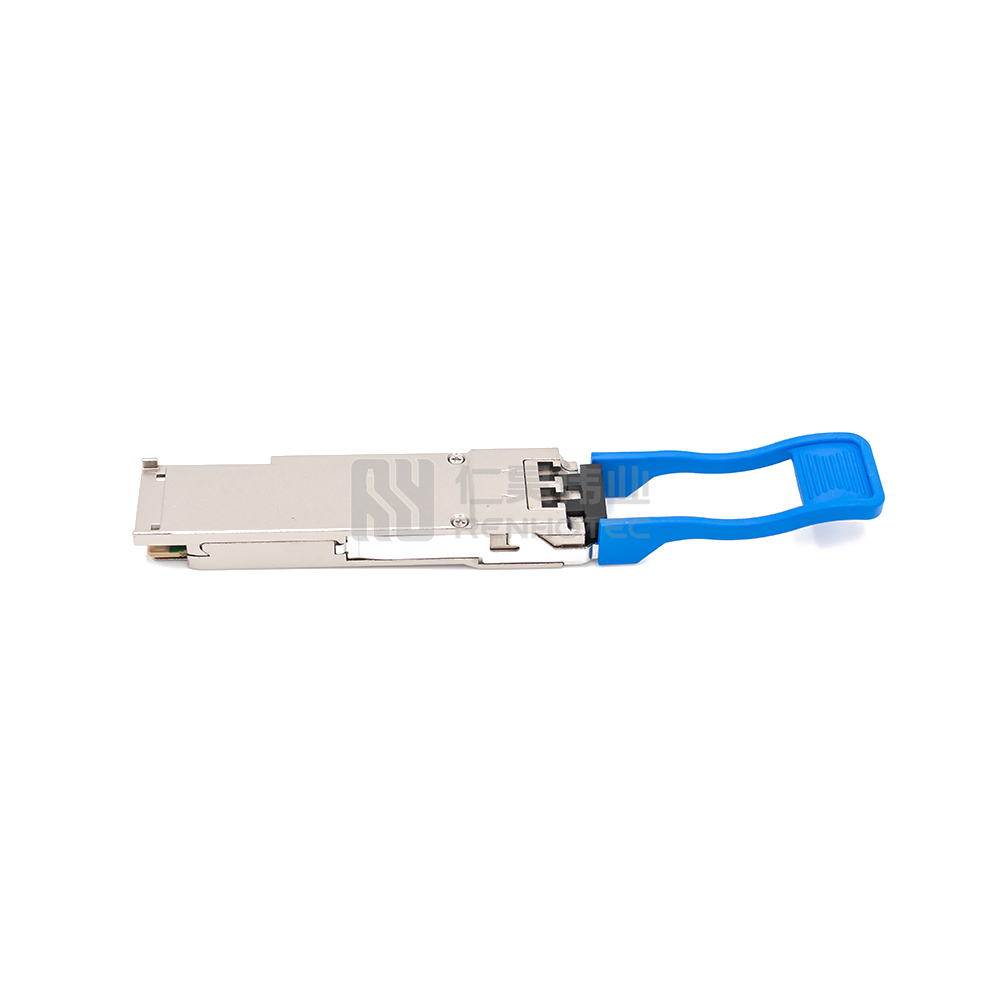

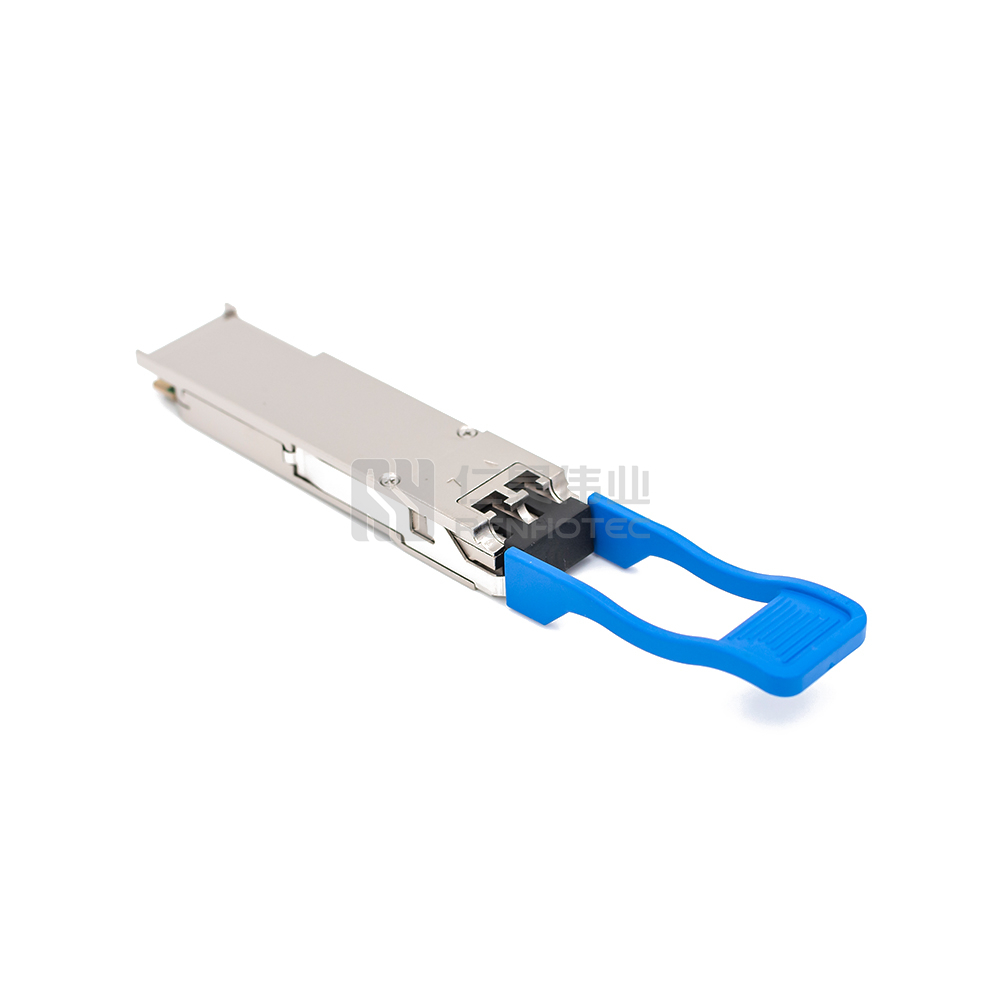

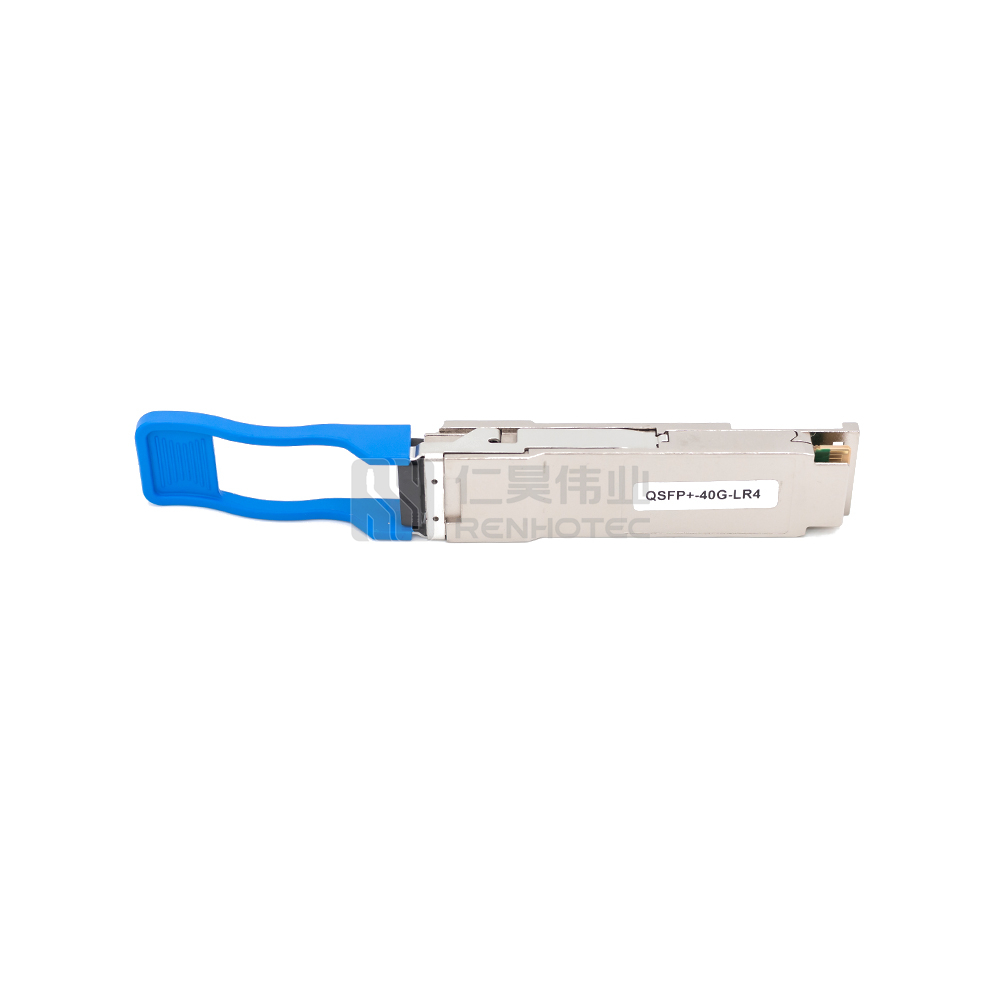

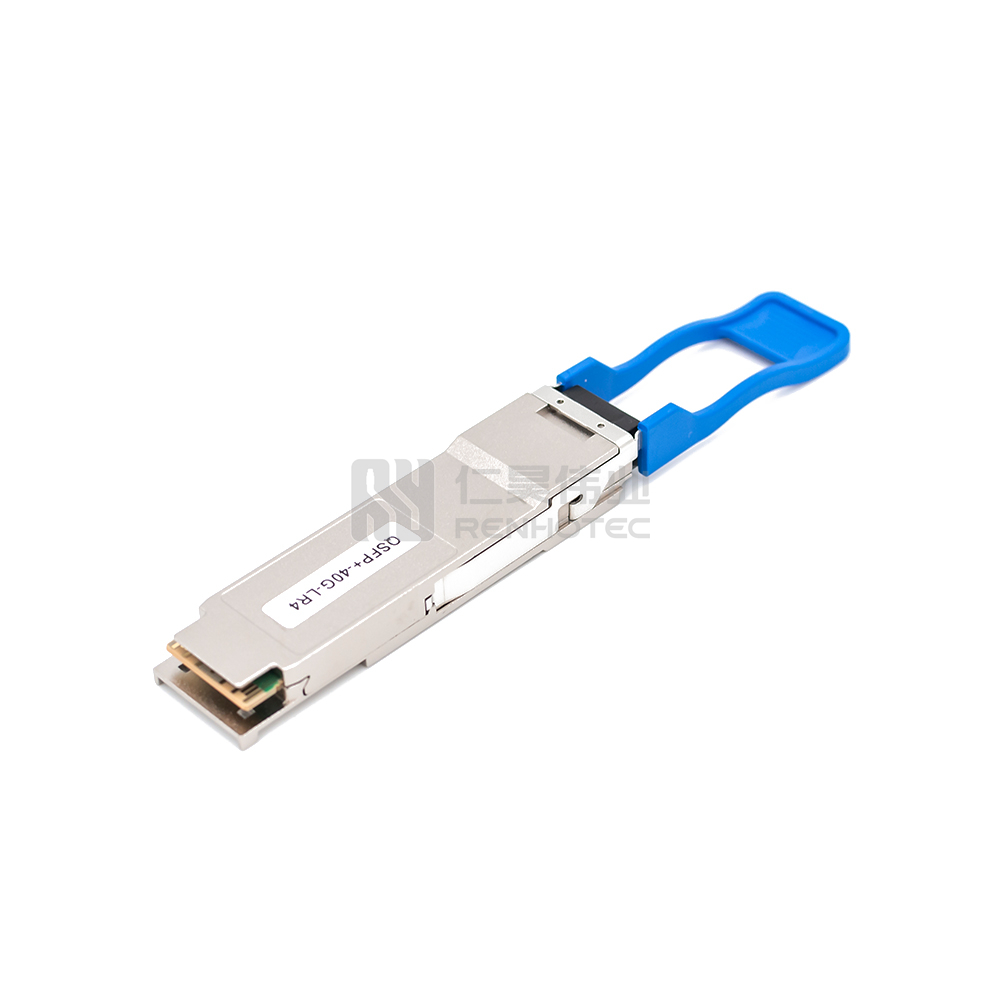

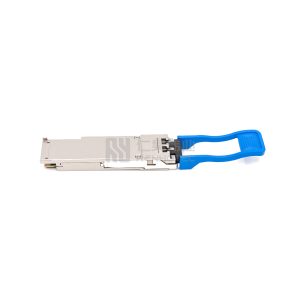

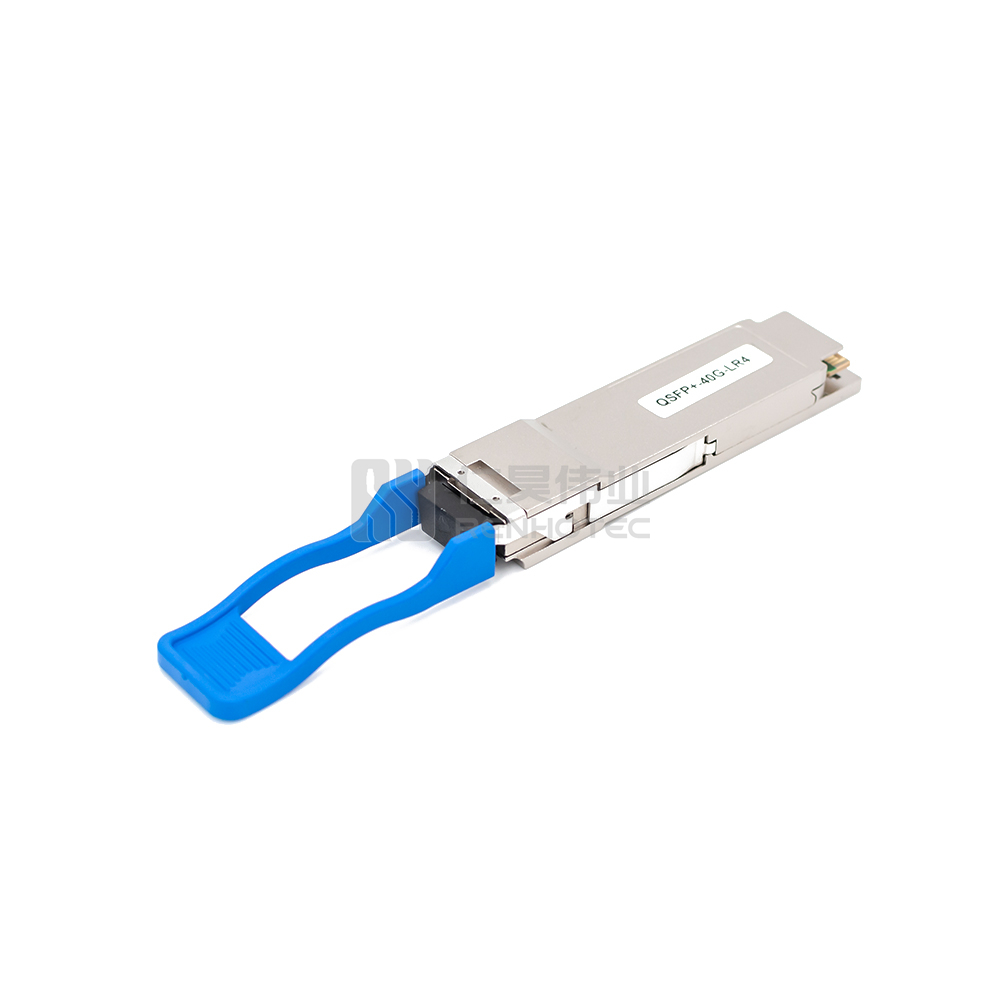

QSFP+ -40G-LR4, 40G, 1270nm~1330nm 10km DOC LC SMF Optical Transceiver Module
- High-speed data transfer rate of up to 40Gbps
- Easy to install and compatible with a wide range of networking equipment
- Energy-efficient with low power consumption
- Long transmission distance of up to 100 meters over multimode fiber and up to 10 kilometers over single-mode fiber
- High reliability for consistent performance over time
Renhotec QSFP+ 40Gb Modules
Renhotec QSFP+ 40Gb Modules are high-speed, hot-pluggable optical transceivers designed for use in 40 Gigabit Ethernet and other high-speed networking applications. They support data rates up to 40Gbps and can operate over a range of distances depending on the specific module. They are available in various configurations to suit different networking needs, including single-mode and multi-mode fiber options and can be customized to meet specific requirements.
Connectivity Solution
Features
40G Connectivity & Low-Power
The Optical Transceiver provides fast and reliable 40G connectivity in data center environments. Its low power consumption feature makes it an energy-efficient option for large-scale data center environments, reducing power costs and minimizing environmental impact.
Strict Quality Control Requirements
Renhotec follows strict quality control requirements to ensure the reliable performance of its optical modules. By adhering to these requirements, they can provide high-quality products that meet the needs of their customers and provide reliable performance over an extended period.
Specifications
Compatible Brands | Cisco, Huawei, ZTE, HP |
---|---|
Form Factor | QSFP+ |
Max Data Rate | 40Gbps |
Wavelength | 1270nm~1330nm |
Max Cable Distance | 10km |
DOM/DDM | Supported |
Mode | Single Mode |
Transmitter Type | DFB |
Receiver Type | PIN |
TX Power | -7~2.3dBm |
Receiver Sensitivity | <-11.1dBm |
Protocols | OTN OTU3,40G Ethernet,Fiber Channel,SATA/SAS3,MSA |
Product Specification
Connector | Duplex LC |
---|
Compatible Brands | Cisco, Huawei, ZTE, HP |
---|---|
Form Factor | QSFP+ |
Max Data Rate | 40Gbps |
Wavelength | 1270nm~1330nm |
Max Cable Distance | 10km |
Connector | Duplex LC |
DOM/DDM | Supported |
Mode | Single Mode |
Transmitter Type | DFB |
Receiver Type | PIN |
TX Power | -7~2.3dBm |
Receiver Sensitivity | <-11.1dBm |
Protocols | OTN OTU3,40G Ethernet,Fiber Channel,SATA/SAS3,MSA |
