SKU: RHT-QSFP+ -40G-ZR4 Category: Tags: , Datasheet

Authorized Sellers


Request for Quotation

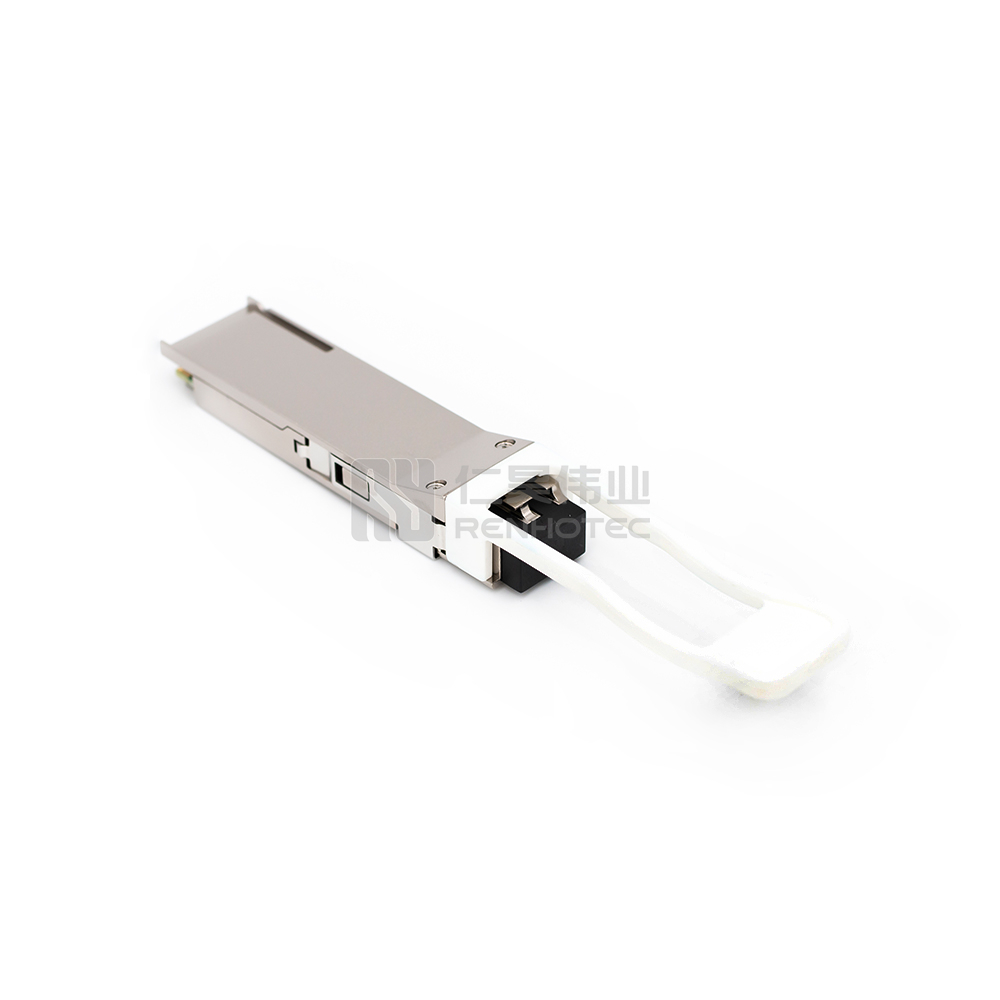

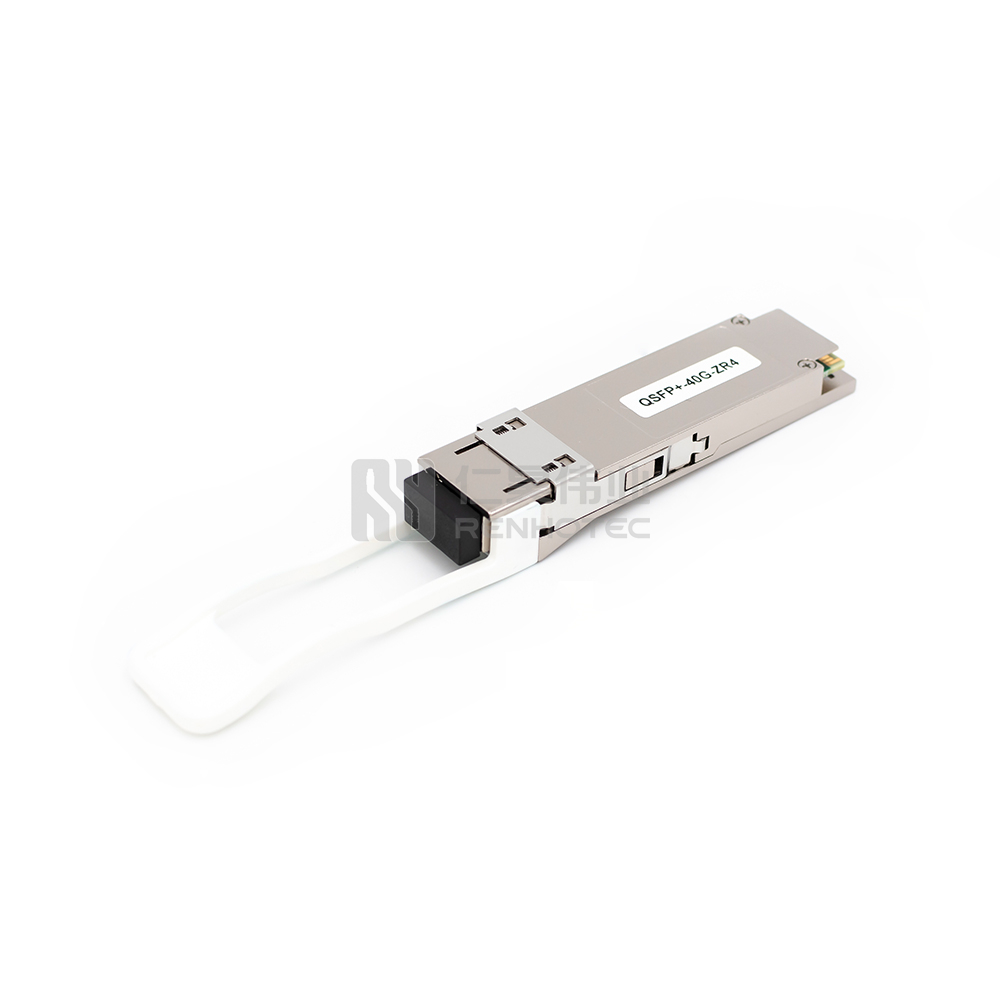

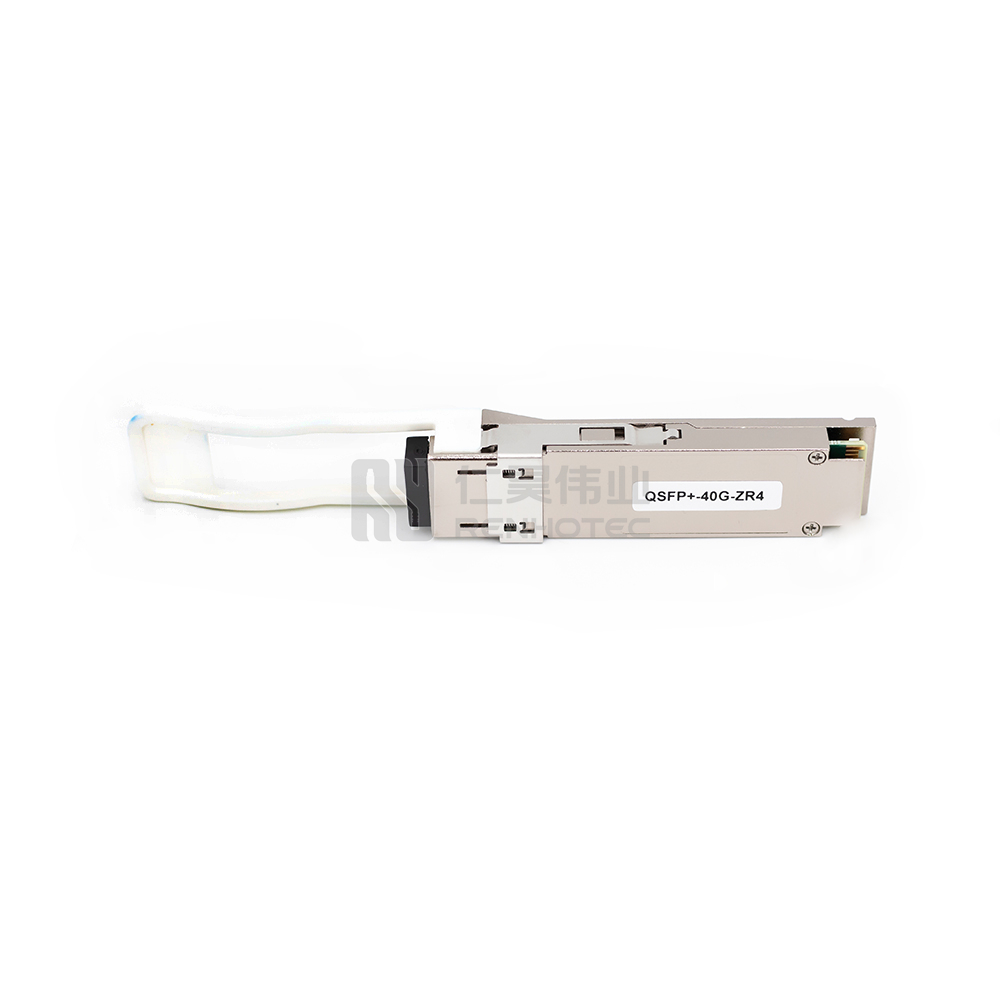

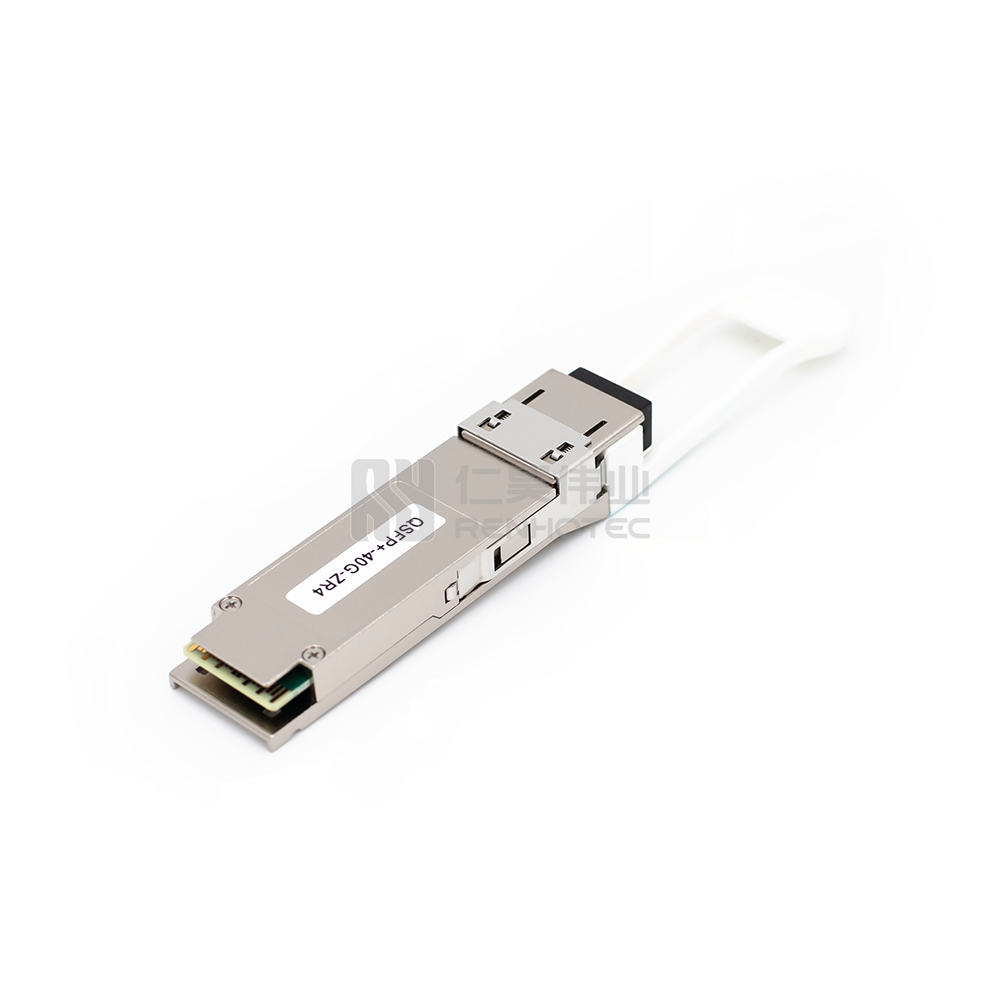

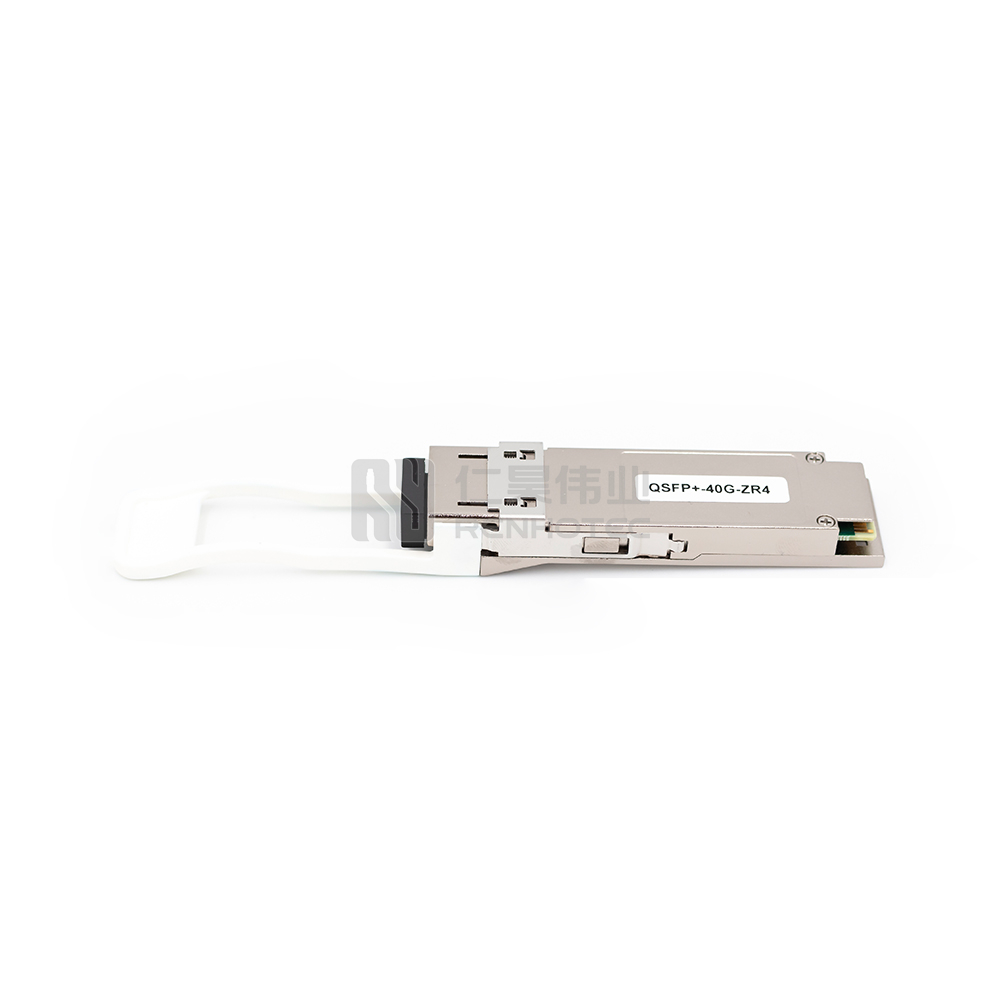

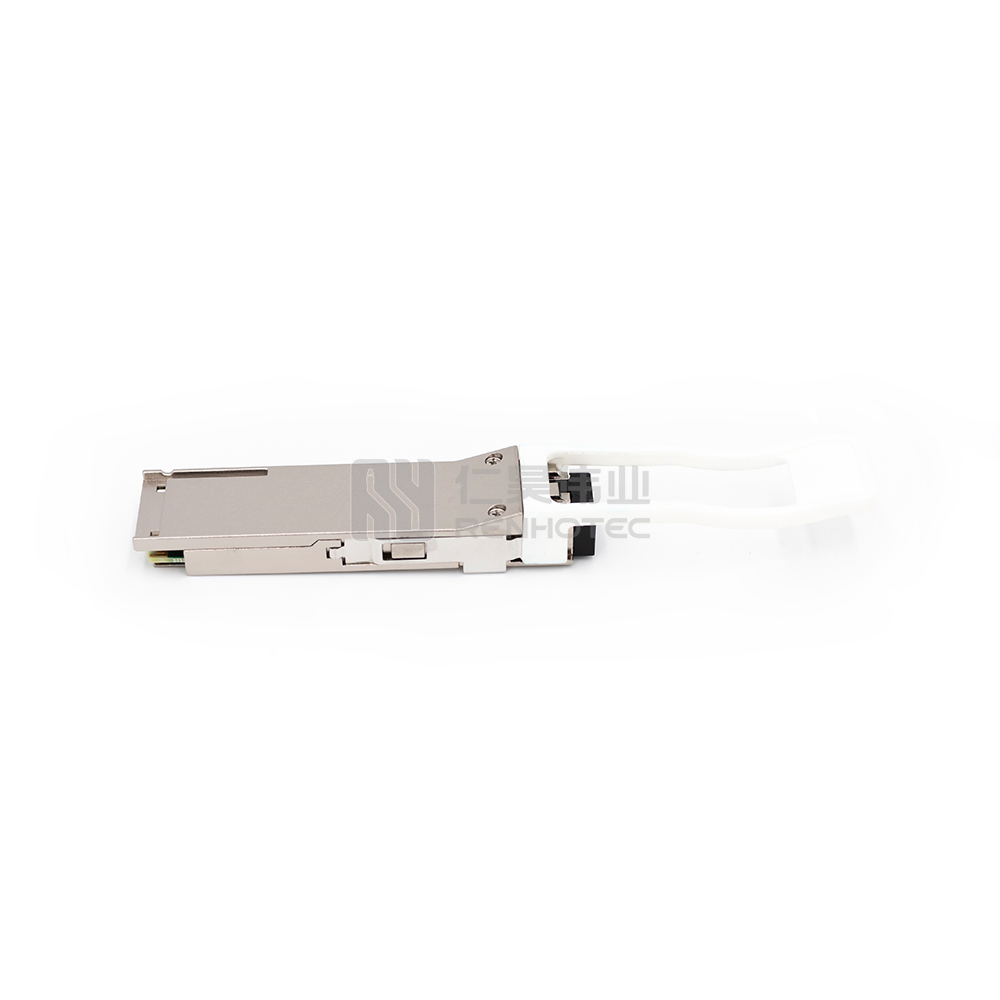

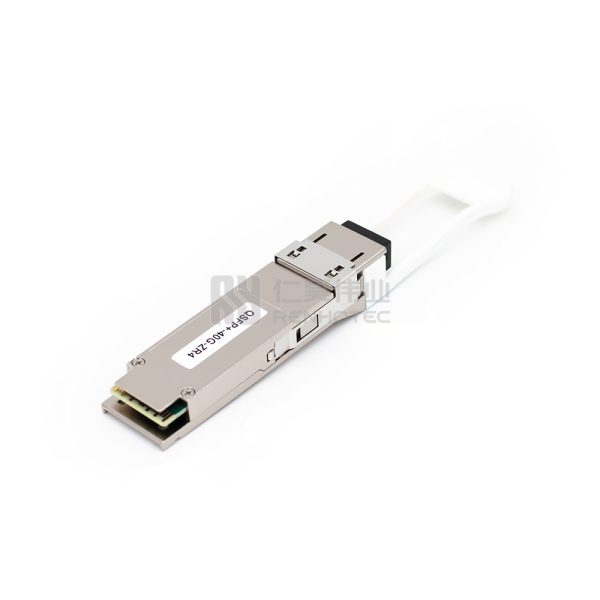

QSFP+ -40G-ZR4, 40G, 1295nm~1310nm 80km DOC LC SMF Optical Transceiver Module

  • High-speed data transfer rate of up to 40Gbps
  • Easy to install and compatible with a wide range of networking equipment
  • Energy-efficient with low power consumption
  • Long transmission distance of up to 100 meters over multimode fiber and up to 10 kilometers over single-mode fiber
  • High reliability for consistent performance over time

Renhotec QSFP+ 40Gb Modules

Renhotec QSFP+ 40Gb Modules are high-speed, hot-pluggable optical transceivers designed for use in 40 Gigabit Ethernet and other high-speed networking applications. They support data rates up to 40Gbps and can operate over a range of distances depending on the specific module. They are available in various configurations to suit different networking needs, including single-mode and multi-mode fiber options and can be customized to meet specific requirements.

Connectivity Solution

connectivity-solution
connectivity-solution-2

Features

40G Connectivity & Low-Power

High-Speed & Low- Power

The Optical Transceiver provides fast and reliable 40G connectivity in data center environments. Its low power consumption feature makes it an energy-efficient option for large-scale data center environments, reducing power costs and minimizing environmental impact.

Strict Quality Control Requirements

optical-transceiver-Testing

Renhotec follows strict quality control requirements to ensure the reliable performance of its optical modules. By adhering to these requirements, they can provide high-quality products that meet the needs of their customers and provide reliable performance over an extended period.

Specifications

Compatible Brands

Cisco, Huawei, ZTE, HP

Form Factor

QSFP+

Max Data Rate

40Gbps

Wavelength

1295nm~1310nm

Max Cable Distance

80km

DOM/DDM

Supported

Mode

Single Mode

Transmitter Type

EML

Receiver Type

PIN

TX Power

1~6dBm

Receiver Sensitivity

<-25dBm

Protocols

QSFP+ MSA, IEEE 802.3ba

Product Specification

Connector

Duplex LC

Compatible Brands

Cisco, Huawei, ZTE, HP

Form Factor

QSFP+

Max Data Rate

40Gbps

Wavelength

1295nm~1310nm

Max Cable Distance

80km

Connector

Duplex LC

DOM/DDM

Supported

Mode

Single Mode

Transmitter Type

EML

Receiver Type

PIN

TX Power

1~6dBm

Receiver Sensitivity

<-25dBm

Protocols

QSFP+ MSA, IEEE 802.3ba
