SKU: RHT-2.92-J280A Category: Datasheet

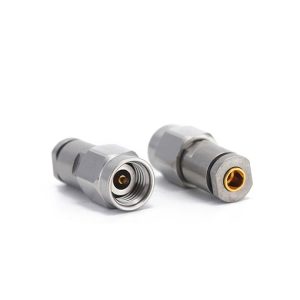

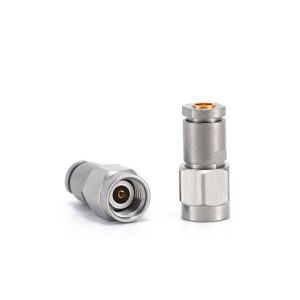

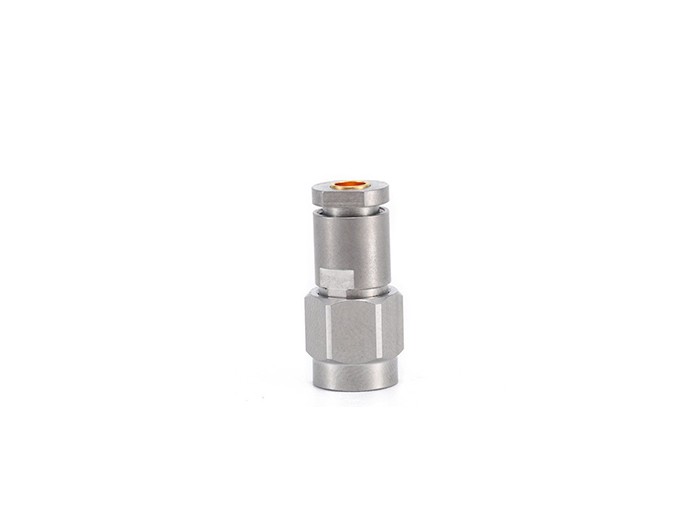

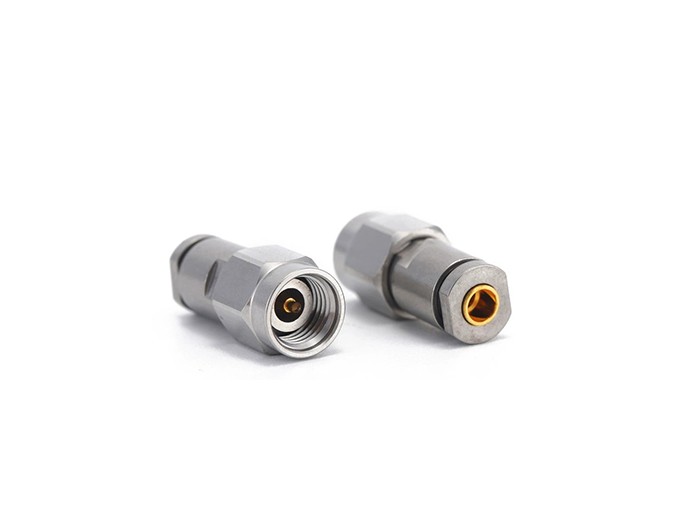

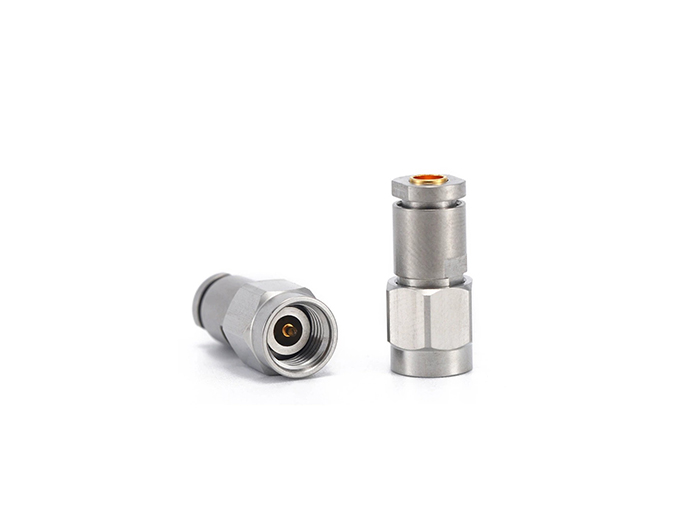

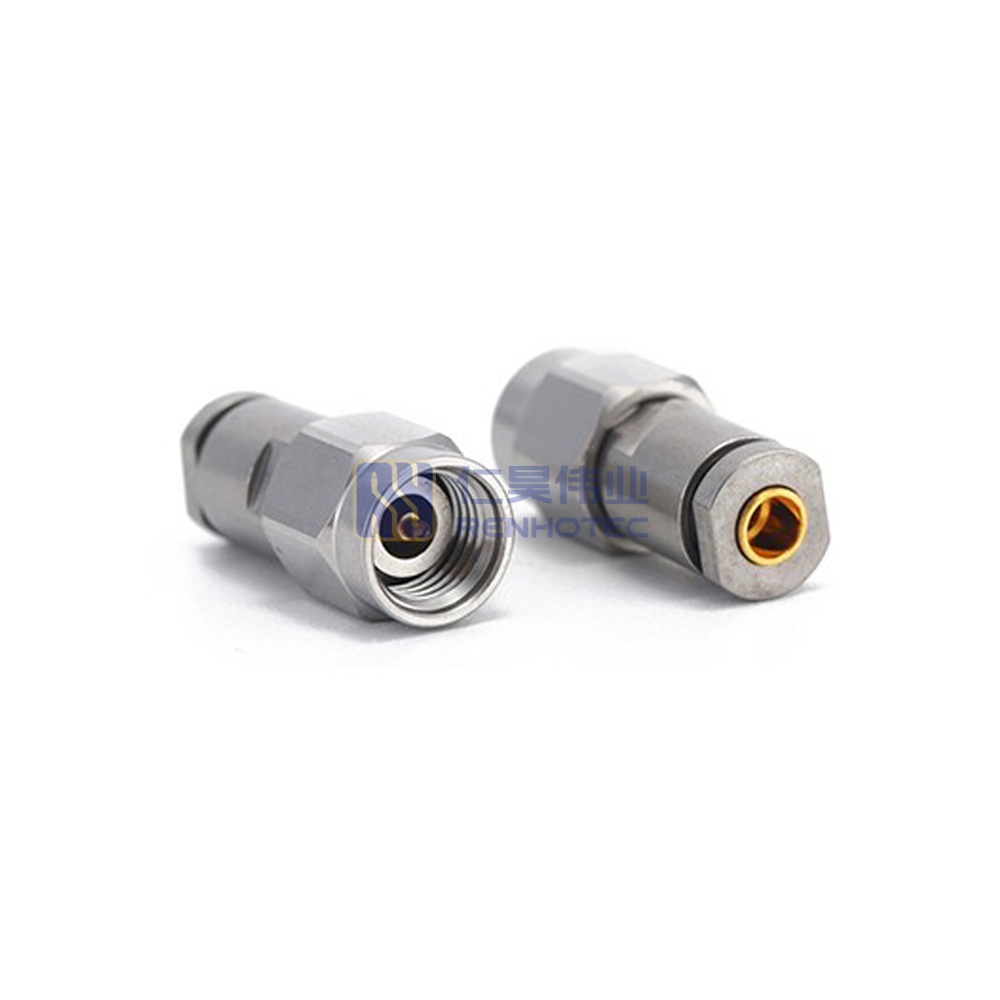

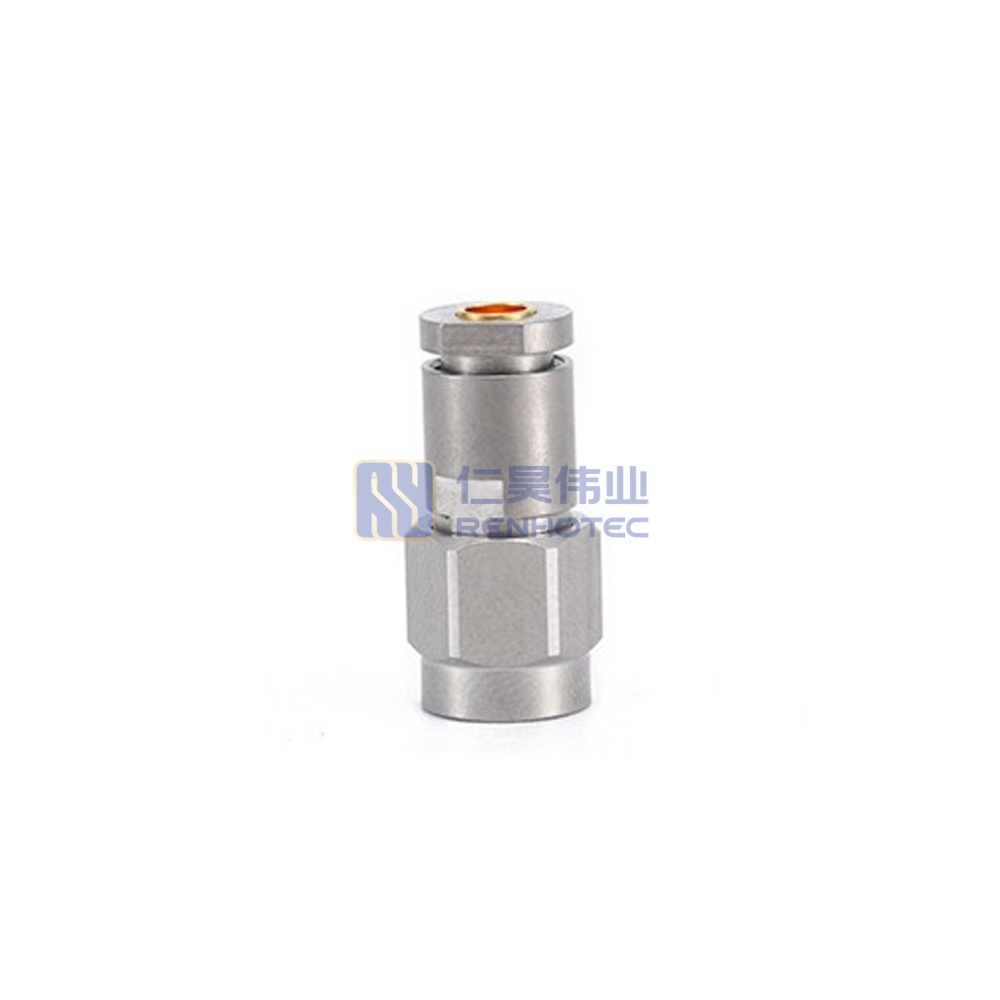

Renhotec 2.92mm Male RF Connector for LMR280 Cable

  • Frequency range: DC to 40GHz, ensuring high-frequency performance
  • Optimized for use with LMR280 cables for reliable, low-loss connections
  • Precision-machined for minimal signal loss and maximum reliability
  • Durable construction with corrosion-resistant materials for long-lasting performance
  • Ideal for telecommunications, RF testing, and high-performance systems

The 2.92mm connector, also known as a K connector, is a precision coaxial connector used in high-frequency applications. Known for its excellent electrical performance and mechanical stability, this connector operates at frequencies up to 40 GHz, making it suitable for microwave and high-speed digital applications. The 2.92mm connector features a bayonet coupling mechanism for quick and secure mating, ensuring reliable connections in critical applications such as telecommunications, test and measurement equipment, and laboratory setups. Its small size and high-frequency capabilities make it a preferred choice for engineers and technicians working with advanced RF systems.

Features

  • High performance up to 40 GHz
  • Low VSWR
  • Excellent return loss and insertion loss
  • Ruggedized construction for repeatability
  • Compitable to mate with SMA, 3.5 mm and other K or 2.92 mm connectors

2.92mm Connector Types

Cable Mount

Panel Mount

2.92mm Adaptor

Applications

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

After sales system

Actively follow up andpromptly address anyissues

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

Temperature Range

-55°C to +165°C
Frequency Range

DC-40GHz
VSWR

≦1.25:1
Impedance

50 ohm
Temperature Range

-55°C to +165°C

 Frequency Range

DC-40GHz
VSWR

≦1.25:1

 Impedance

50 ohm
Temperature Range

-55°C to +165°C
Frequency Range

DC-40GHz
VSWR

≦1.25:1
Impedance

50 ohm

High frequency connectors are precision connectors used for test and measurement or for sensitive low loss, phase stable, high frequency microwave applications up to 67 GHz. They are made of high grade materials in order to allow for longer life cycle and higher durability.

1.0mm, 1.35mm, 1.85mm, 2.4mm, 2.92mm, 3.5mm, BMA

SMP(GPO), SMPS (G3PO), mini SMP(GPPO), SMPM

Also we could provide high frequency adapters and cable assemblies.

It offers in both push-on and snap-on mating styles.

The available detent systems, full,limited,and smooth bore, provide respective levels of engagement/disengagement forces.

Of course, and we had customized many different types high frequency connectors for our customers based on original brand like Amphenol/TE/Radiall. Our state-of-the-art facilities adhere to the highest quality standards, ensuring that each replacement part meets or exceeds the specifications of the original component. Additionally, our skilled technicians meticulously oversee the production process to guarantee precision and reliability.
