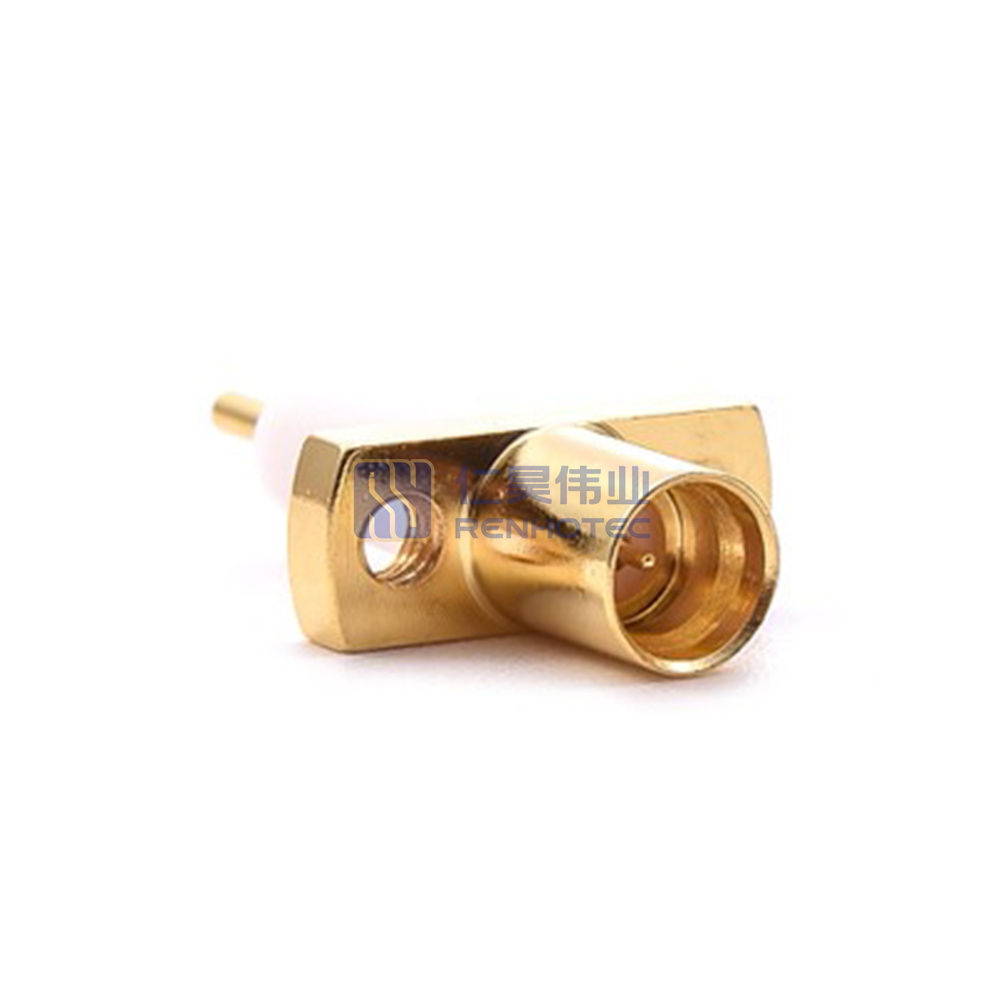

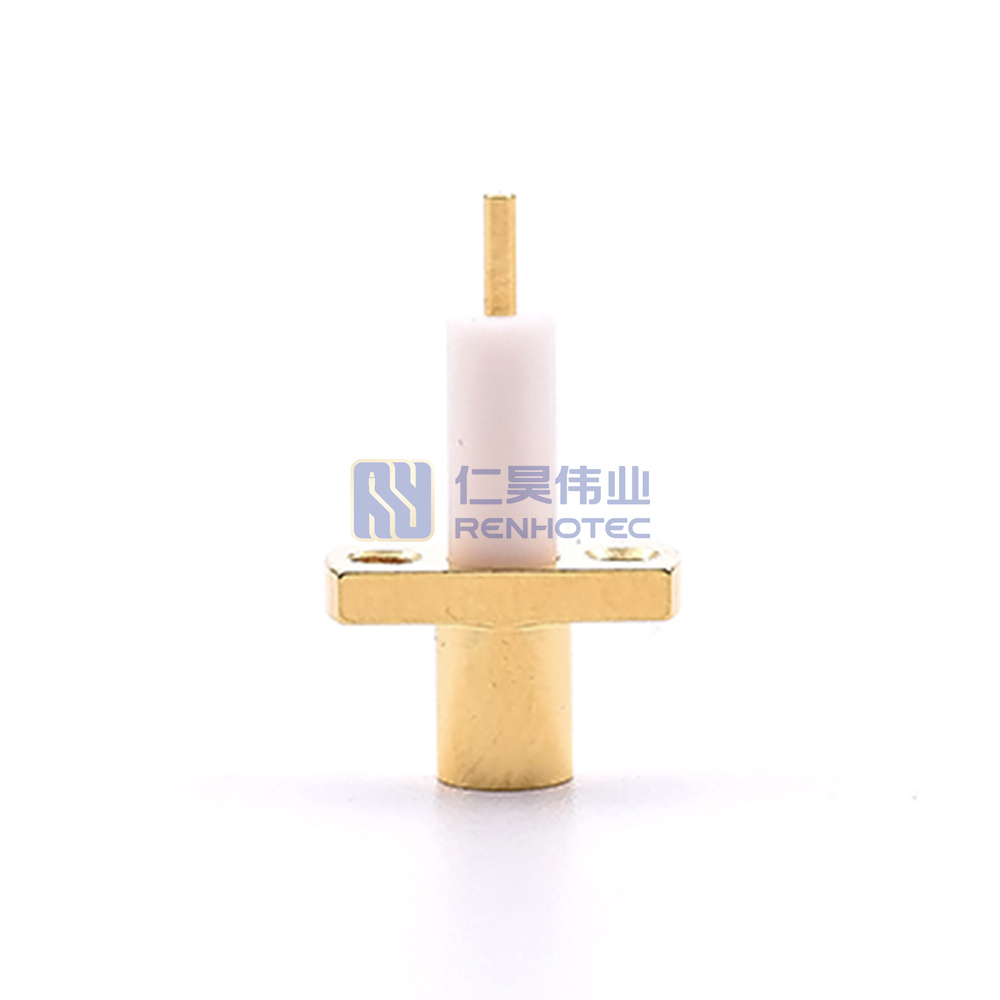

RF Connector SMP Male Flange DC-18GHZ – RHT-SMP-JFD2A

  • Frequency Range: DC to 18GHz
  • Connector Type: SMP Male Flange
  • Flange Mount Design: Provides easy installation and secure mounting
  • Minimal Signal Loss: Ensures clear, stable signal transmission with low insertion loss
  • Durable Construction: Built for reliability in demanding RF and microwave environments
  • Applications: Perfect for use in telecommunications, test equipment, and communication systems

The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.

Features

  • Full detent, limited detent, smooth bore or catcher’s mitt
  • Standard surface mount (versus swept contact) for best performance
  • 50 ohm impedance
  • Performance to 40 GHz
  • Cable-to-board or board-to-board applications
  • Push-on interface for quick installation, or blind mate

SMP Connector Types

Cable Mount

Panel Mount

SMP Adaptor

Applications

  • Antennas
  • Broadband
  • Instrumentation
  • Medical
  • Quantum Computing

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

After sales system

Actively follow up andpromptly address anyissues

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

SMP Type
Connector Type

Plug
Contact Type

Male Pin
Orientation

Straight
Frequency Range

DC-18GHz
Impedance

50 ohm
VSWR

≤1.25:1
Operating Temperature

-45℃ ~ +125℃
Shell Material

Brass
Contact Material

Bronze
Shell Finish

Gold Plated
Contact Finish

Gold Plated
RF Series

SMP Type

 Connector Type

Plug
Contact Type

Male Pin

 Orientation

Straight
Frequency Range

DC-18GHz

 Impedance

50 ohm
VSWR

≤1.25:1

 Operating Temperature

-45℃ ~ +125℃
Shell Material

Brass

 Contact Material

Bronze
Shell Finish

Gold Plated

 Contact Finish

Gold Plated
RF Series

SMP Type
Connector Type

Plug
Contact Type

Male Pin
Orientation

Straight
Frequency Range

DC-18GHz
Impedance

50 ohm
VSWR

≤1.25:1
Operating Temperature

-45℃ ~ +125℃
Shell Material

Brass
Contact Material

Bronze
Shell Finish

Gold Plated
Contact Finish

Gold Plated
