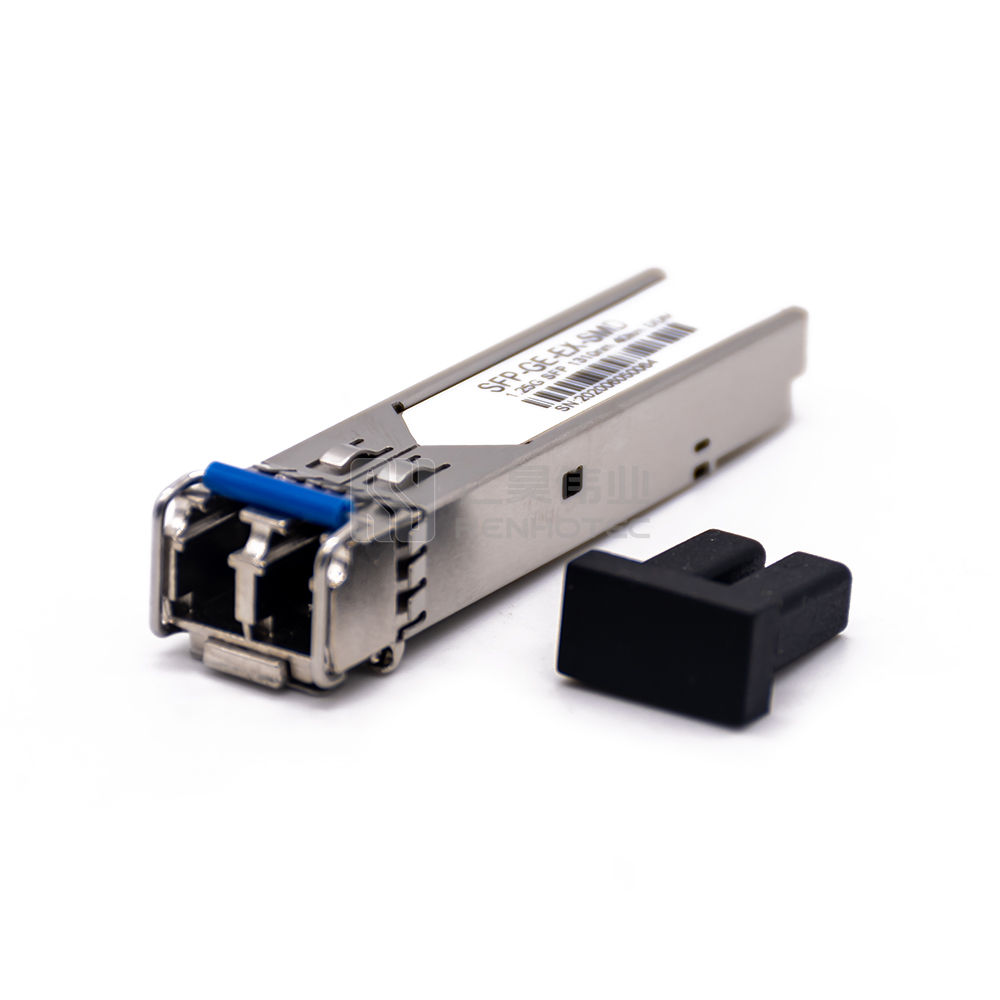

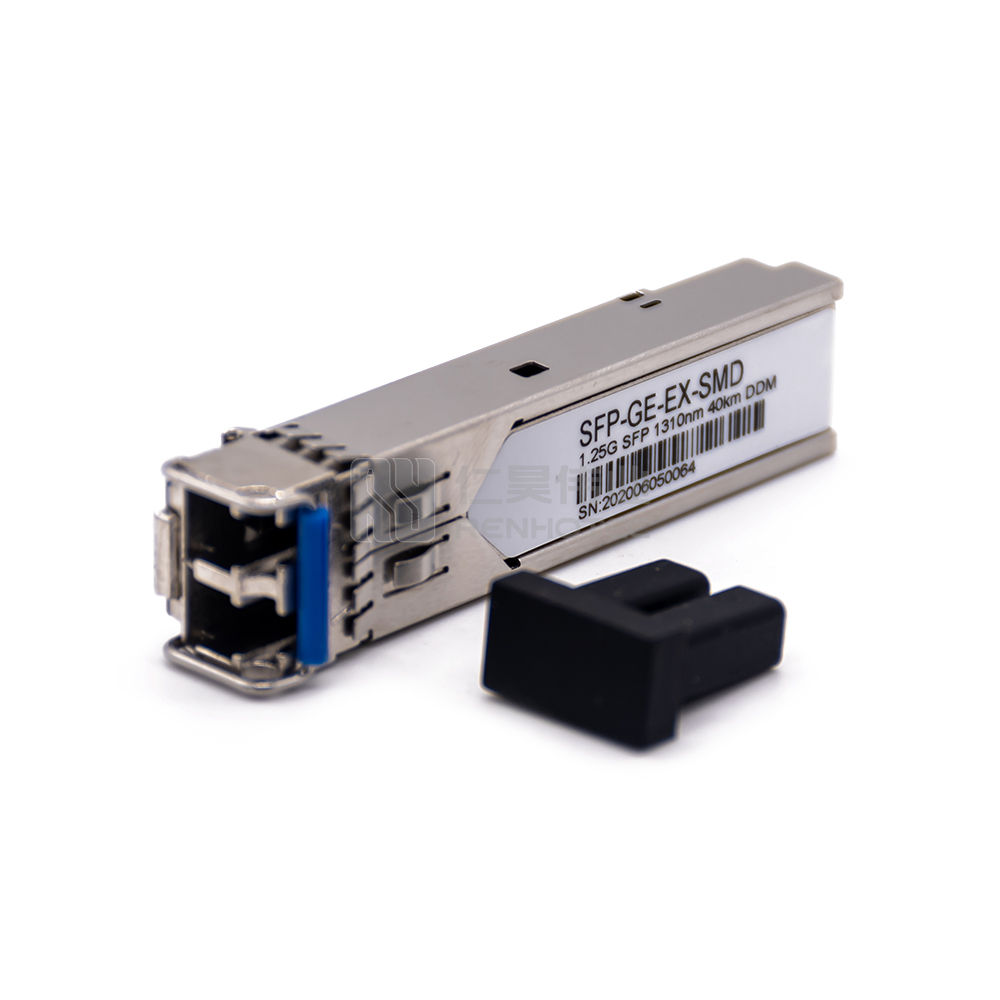

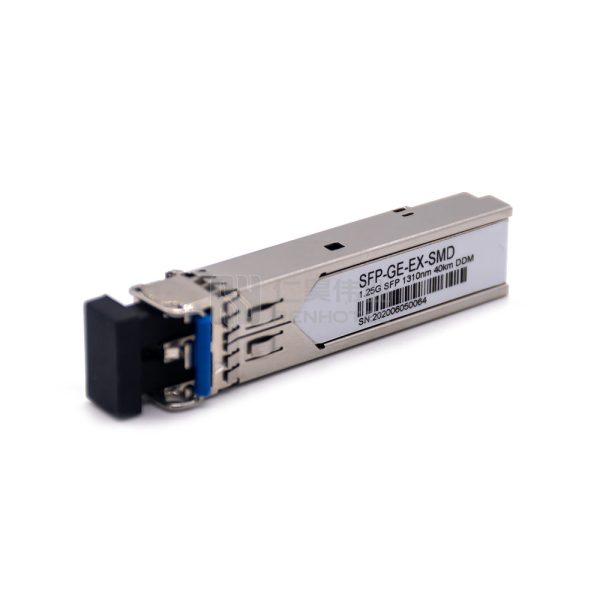

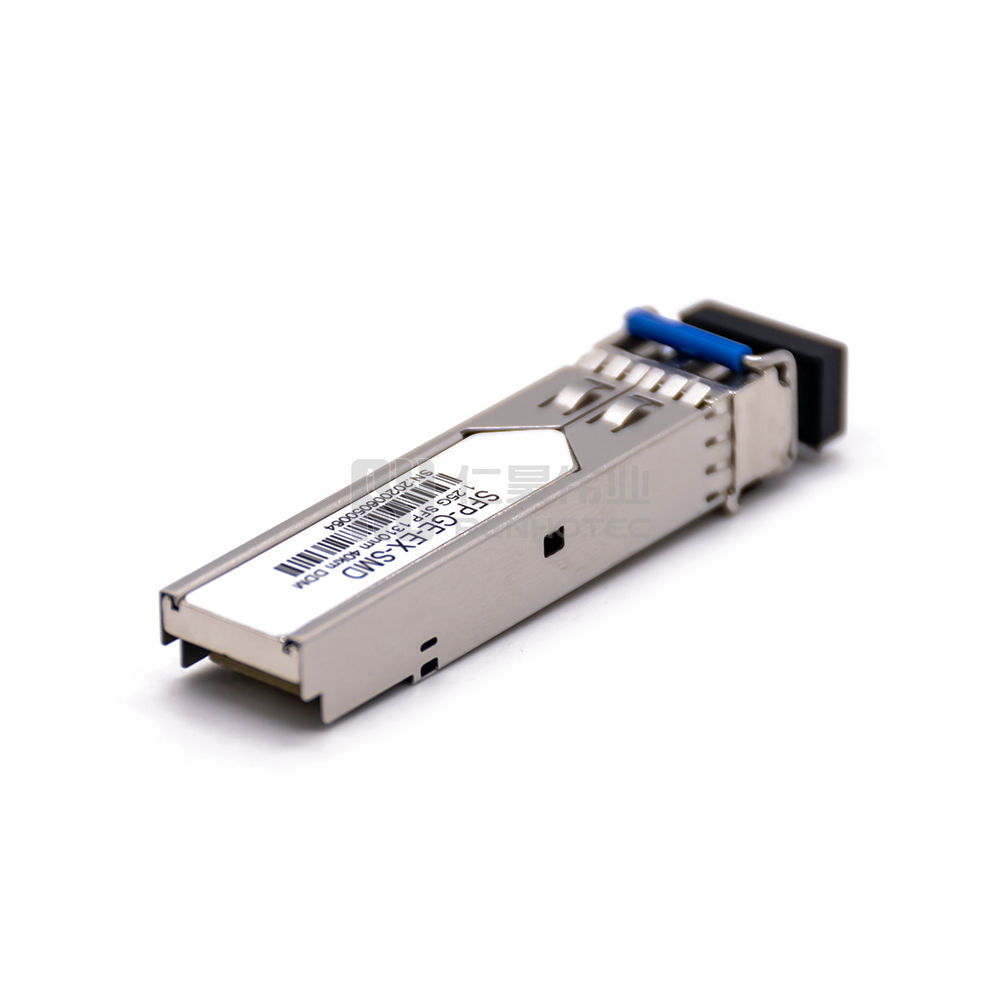

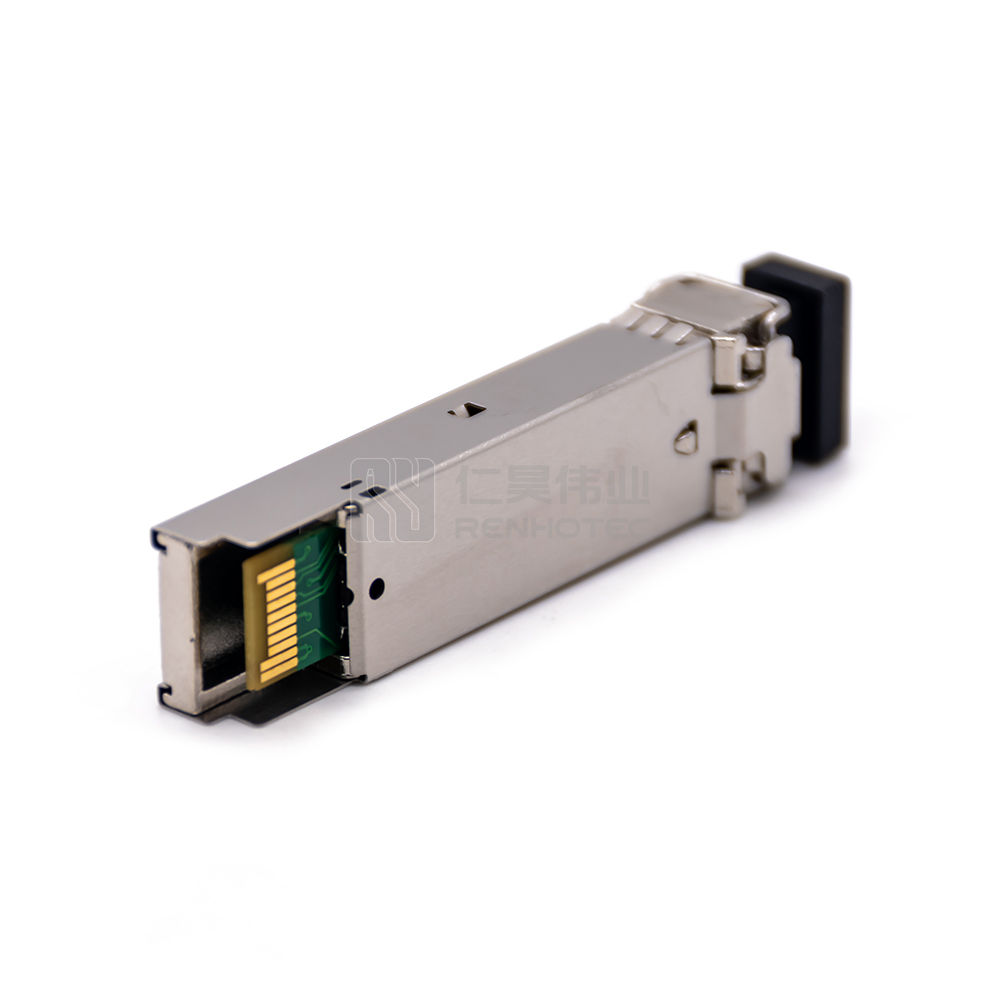

SFP-EX-SMD, 1.25G SFP 1310nm 40km DOM Duplex LC SMF Optical Transceiver Module

  • Supports data transfer rates up to 1.25 Gbps
  • Works with both single-mode and multi-mode fiber optic cables
  • Energy efficient with low power consumption
  • Durable metal casing for protection and longevity
  • Ideal for use in data centers, telecommunications networks, and other high-speed networking applications

Renhotec SFP/SFP+ 1.25Gb Modules

The Renhotec 1.25Gb SFP/SFP+ modules are high-performance, reliable optical transceivers for various networking applications. They support data rates up to 1.25Gbps and are compatible with a wide range of networking equipment. With their compact form factor and hot-pluggable design, these modules are easy to install and replace, making them an ideal choice for network administrators looking for a cost-effective and flexible solution.

Connectivity Solution

connectivity-solution
connectivity-solution-2

Features

1.25G Connectivity & Low-Power

High-Speed & Low- Power

The Optical Transceiver provides fast and reliable 1.25G connectivity in data center environments. Its low power consumption feature makes it an energy-efficient option for large-scale data center environments, reducing power costs and minimizing environmental impact.

Strict Quality Control Requirements

optical-transceiver-Testing

Renhotec follows strict quality control requirements to ensure the reliable performance of its optical modules. By adhering to these requirements, they can provide high-quality products that meet the needs of their customers and provide reliable performance over an extended period.

Specifications

Compatible Brands

Cisco, Huawei, ZTE, HP

Form Factor

SFP

Max Data Rate

1.25Gbps

Wavelength

1310nm

Max Cable Distance

40km

DOM/DDM

Supported

Mode

Single Mode

Transmitter Type

DFP

Receiver Type

PIN

TX Power

-3~2dBm

Receiver Sensitivity

<-24dBm

Protocols

IEEE 802.3z, SFP MSA

Product Specification

Connector

Duplex LC

Compatible Brands

Cisco, Huawei, ZTE, HP

Form Factor

SFP

Max Data Rate

1.25Gbps

Wavelength

1310nm

Max Cable Distance

40km

Connector

Duplex LC

DOM/DDM

Supported

Mode

Single Mode

Transmitter Type

DFP

Receiver Type

PIN

TX Power

-3~2dBm

Receiver Sensitivity

<-24dBm

Protocols

IEEE 802.3z, SFP MSA
