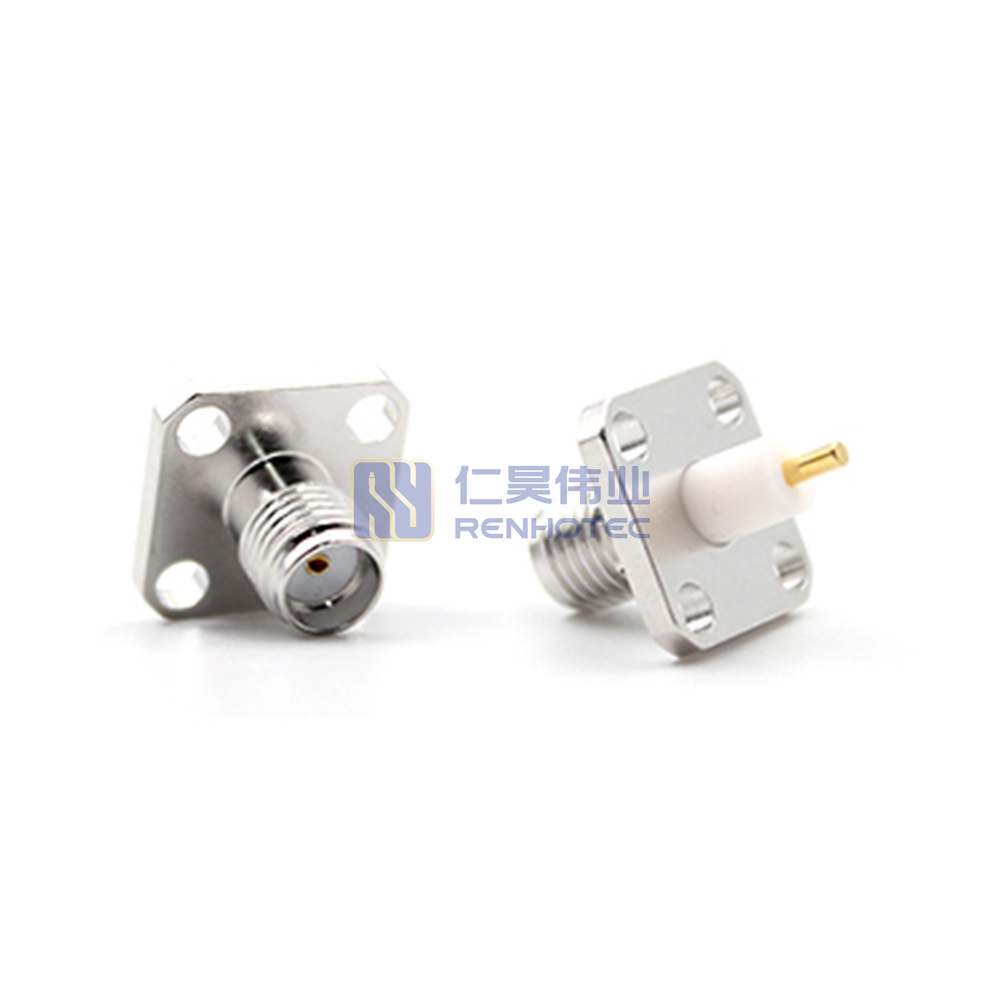

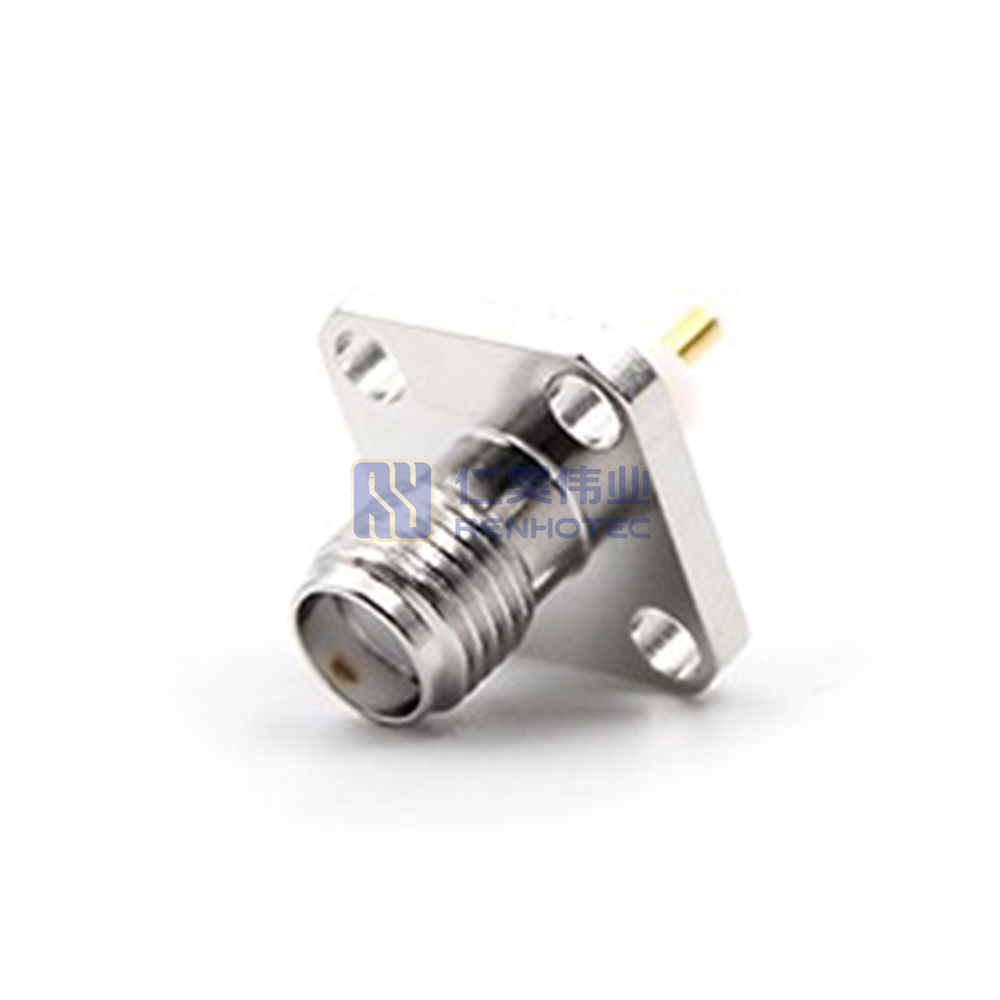

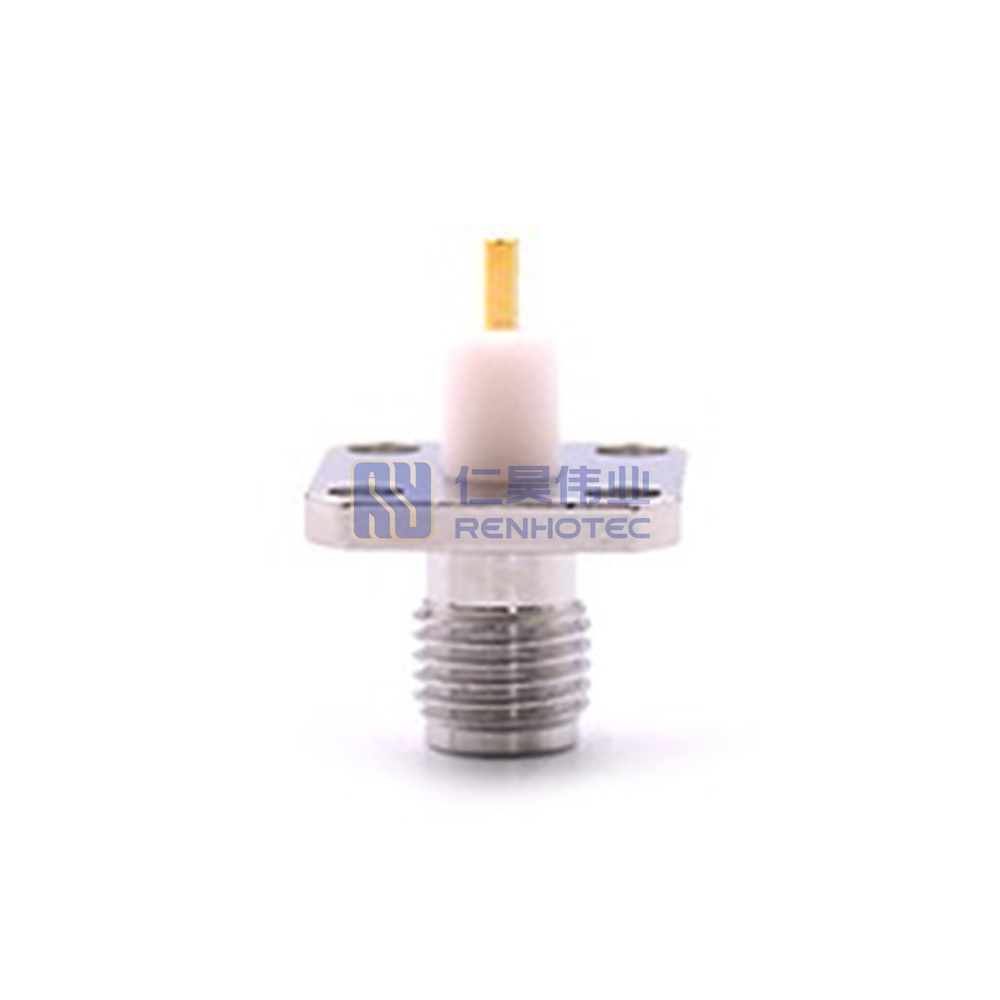

SMA Female 4 Holes Flange Connector for Terminal DC-18GHz – RHT-SMA-KFD1024A

  • Frequency Range: DC to 18GHz
  • Connector Type: SMA Female 4 Holes Flange
  • Flange Mount: 4 holes for secure and stable installation
  • Minimal Signal Loss: Ensures stable transmission with low insertion loss
  • Versatile: Suitable for RF, communication, and testing systems
  • Durable Construction: Built for high-frequency and demanding applications

The SMA connector is a semi-precision, ultra-compact RF and microwave connector that is widely used, especially for RF connections in electronic systems with frequencies up to 18 GHz and beyond. While SMA connectors are now widely used, their use is likely to expand further as the operating frequencies of many new RF systems extend into the microwave region.

Light weight, compact and antivibration design for harsh environments

Available in brass and stainless steel with gold, nickel and passivated plating

Terminates to all standard flexible coaxial cables,as semi-rigid and conformable cable

Subminiature design:Space-saving vertical mating

Complete Variety

SMA Male

SMA Female

RP-SMA Male

RP-SMA Female

Crimp Type

Crimp with Solder

Solder Typ

Solder Cup

For Antenna

Through Hole

Edge Mount

Offset Type

Flange Type

Bulkhead Type

Product Application

Telecommunications

PC / LAN

Antenna

Instrumentation

GPS

Base Stations

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

After sales system

Actively follow up andpromptly address anyissues

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

SMA Type
Connector Type

Jack
Contact Type

Female Pin
Orientation

Straight
Frequency Range

DC-18GHz
Impedance

50 ohm
VSWR

≤1.20:1
Operating Temperature

-55℃ ~ +155℃
Shell Material

Brass
Contact Material

Beryllium Copper
Shell Finish

Gold Plated
Contact Finish

Gold Plated
RF Series

SMA Type

 Connector Type

Jack
Contact Type

Female Pin

 Orientation

Straight
Frequency Range

DC-18GHz

 Impedance

50 ohm
VSWR

≤1.20:1

 Operating Temperature

-55℃ ~ +155℃
Shell Material

Brass

 Contact Material

Beryllium Copper
Shell Finish

Gold Plated

 Contact Finish

Gold Plated
RF Series

SMA Type
Connector Type

Jack
Contact Type

Female Pin
Orientation

Straight
Frequency Range

DC-18GHz
Impedance

50 ohm
VSWR

≤1.20:1
Operating Temperature

-55℃ ~ +155℃
Shell Material

Brass
Contact Material

Beryllium Copper
Shell Finish

Gold Plated
Contact Finish

Gold Plated
