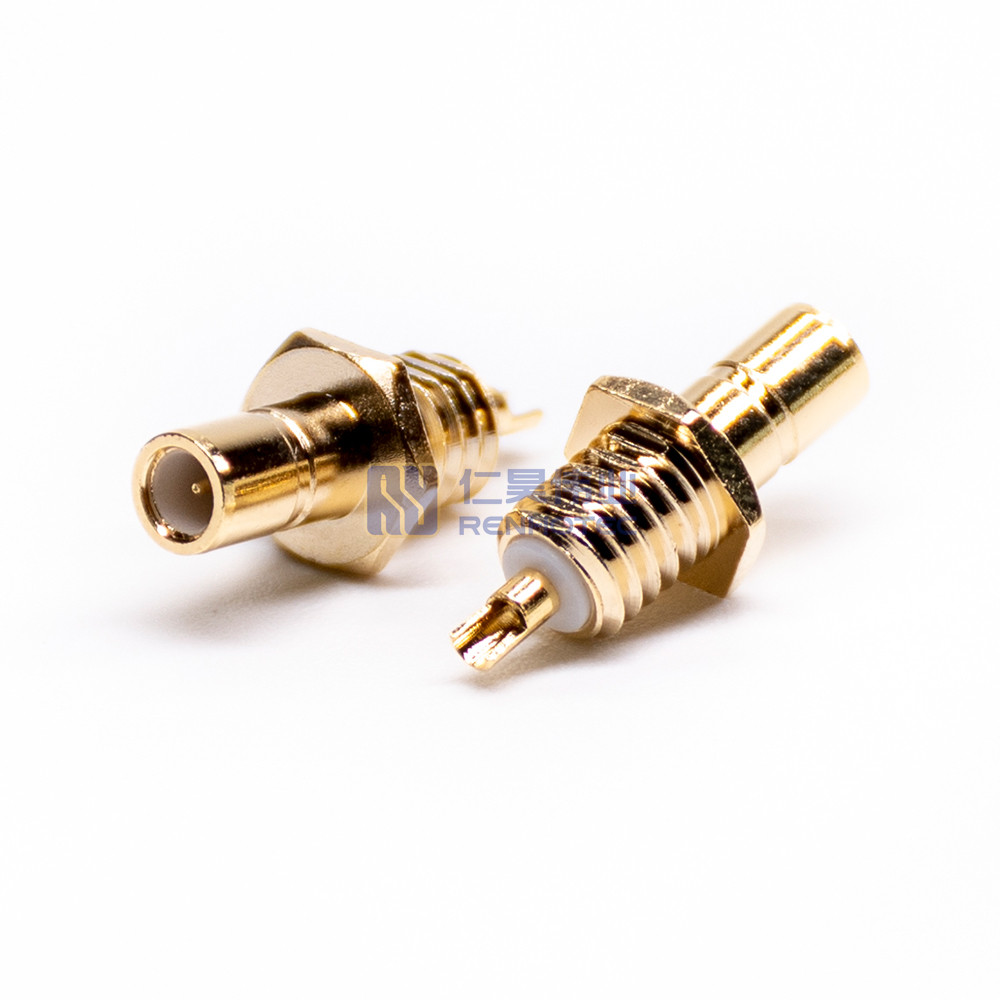

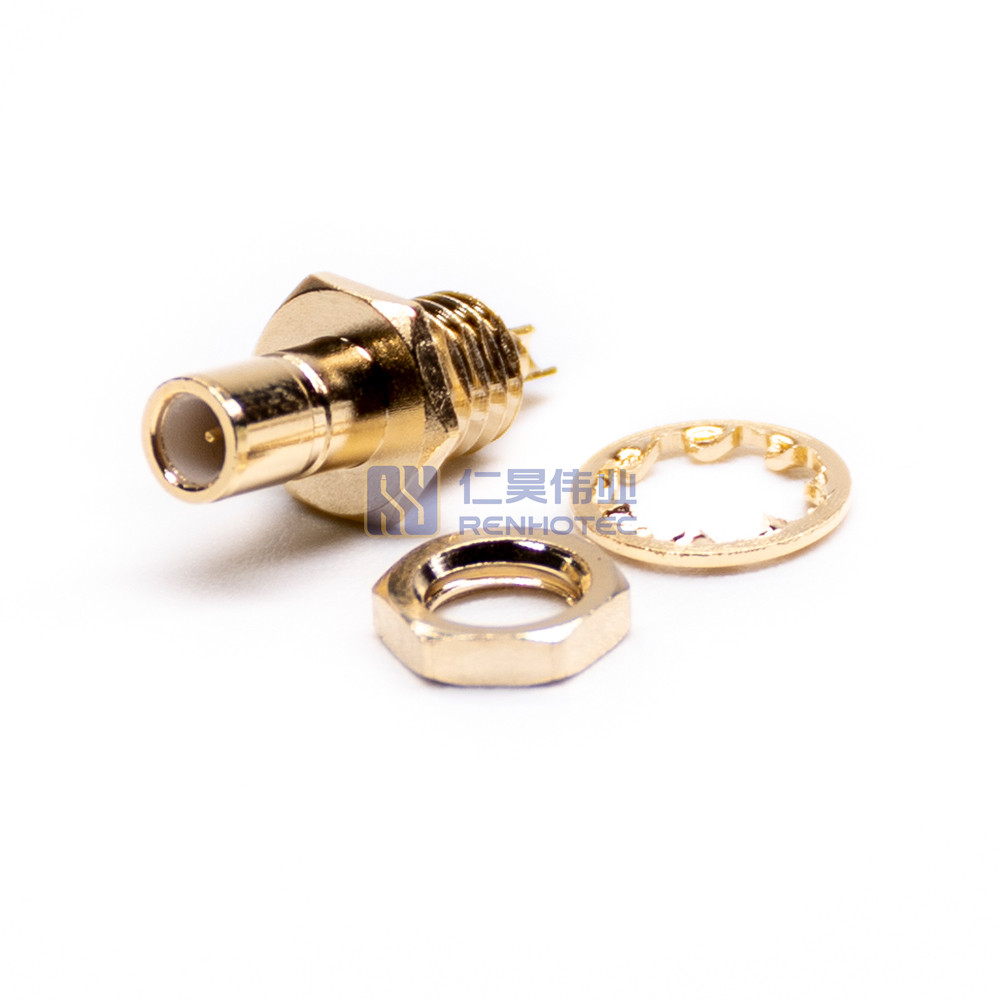

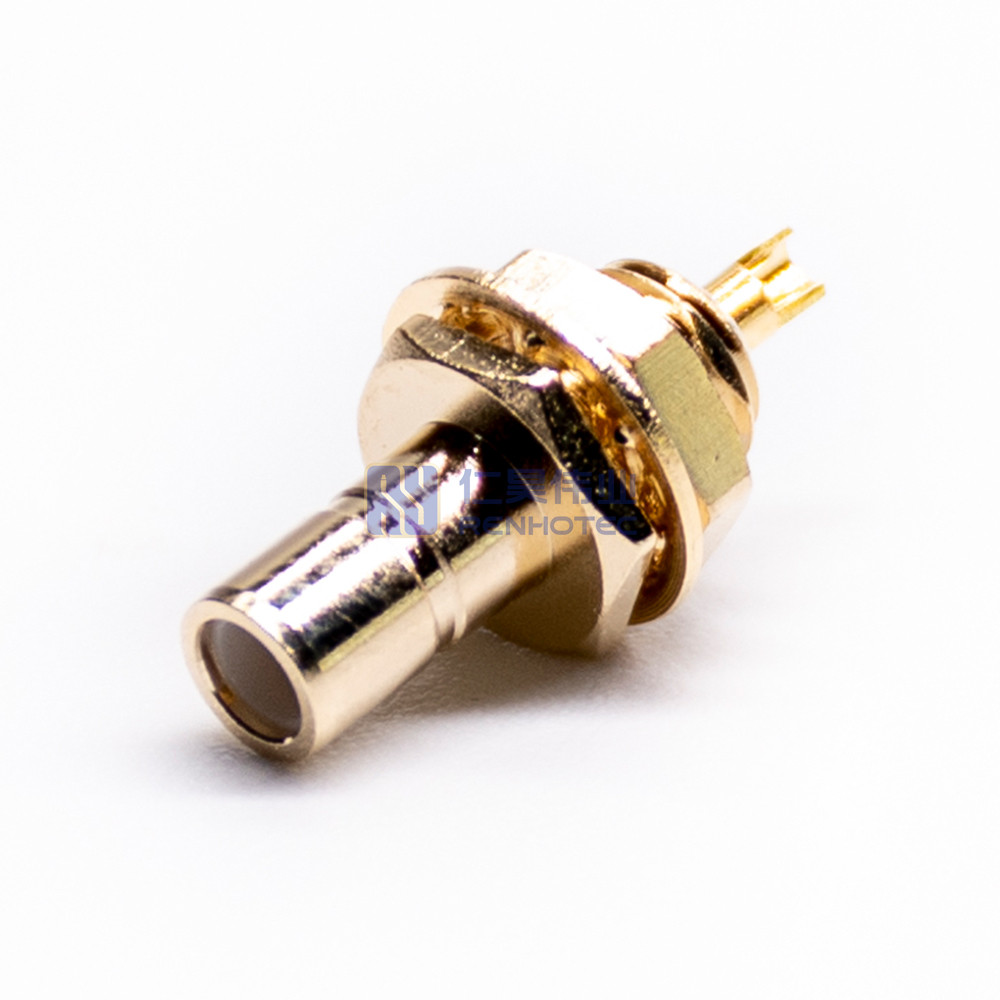

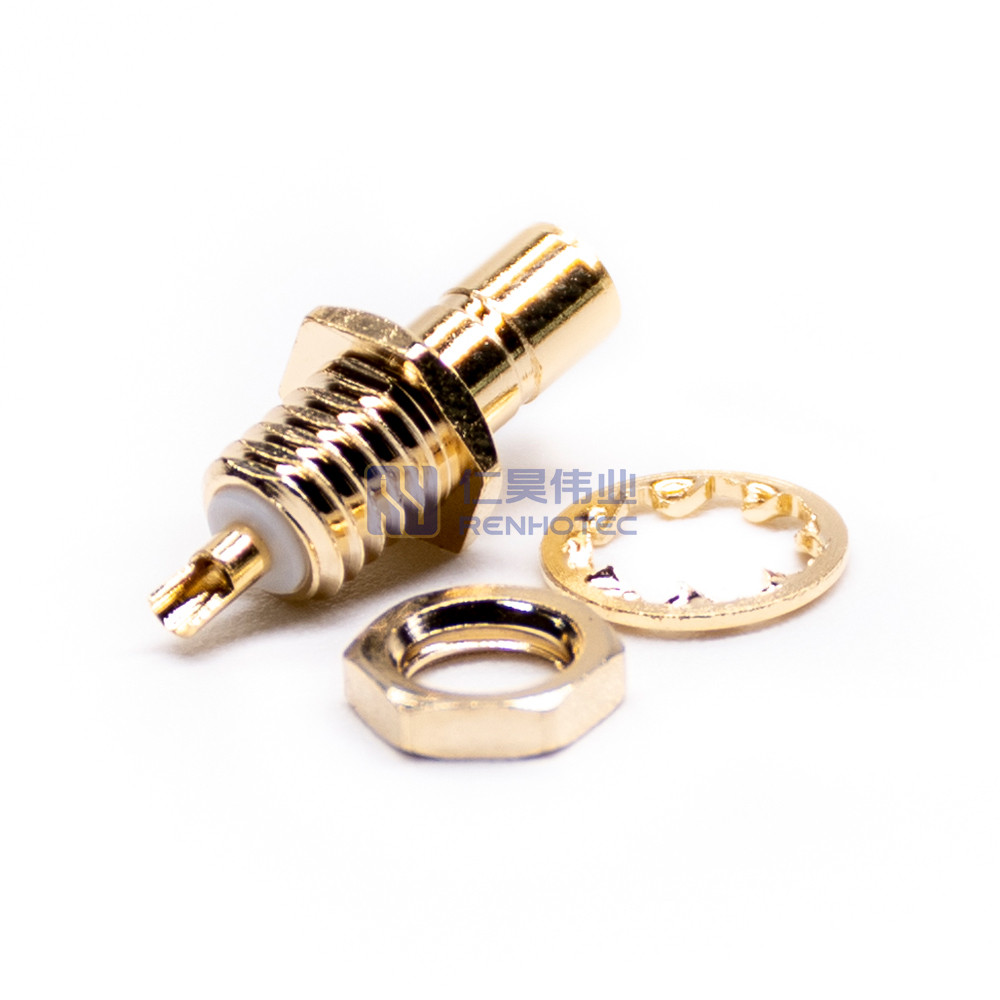

SMB Connector Straight Jack Male Pin Panel Mount Bulkhead 50 Ohm – RHT-626-0223

High-quality SMB connector with a straight jack, male pin, and bulkhead design. Ideal for secure and stable panel mounting applications. Features a impedance of 50 Ohm for reliable signal transmission.

The SMB (Sub-Miniature version B) connector is a quick-lock mating miniature connector that operates up to 4 GHz in frequency. The SMB interface features a snap-on coupling mechanism and is available in 50-ohm configurations.

SMB connectors are smaller than SMA connectors. However, these connectors are not ideal for harsh environmental conditions, as they are not robust as SMA connectors.

Available in 50 Ohm and 75 Ohm configurations, the SMB connectors are built in accordance with MIL-C-39012, IEC 60169-10, and CECC 22130 interface standards.

Interface

Application Scenarios



Product Specification

RF Series

SMB Type
Connector Type

Jack
Orientation

Straight
Contact Type

Male Pin
Contact Termination Style

Solder
Mounting Type

Panel Mount
Mounting Feature

Bulkhead
Fastening Type

Snap On
Number of Ports

1
Impedance

50 ohm
Frequency - Max

4GHz
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Insulator Material

Teflon White
Contact Material

Brass
Contact Finish

Gold Plated
Dielectric Withstanding Voltage

1000 VRMS Max
Insultation Resistance

≥1000MΩ
Center Contact Resistance

6 MΩ Max
Outer Contact Resistance

1 MΩ Max
Mating Durability

≥ 500 Cycles
Temperature Range

-65°C to +165°C
RF Series

SMB Type

 Connector Type

Jack
Orientation

Straight

 Contact Type

Male Pin
Contact Termination Style

Solder

 Mounting Type

Panel Mount
Mounting Feature

Bulkhead

 Fastening Type

Snap On
Number of Ports

1

 Impedance

50 ohm
Frequency - Max

4GHz

 Shell Material

Copper Alloy
Shell Finish

Gold Plated

 Insulator Material

Teflon White
Contact Material

Brass

 Contact Finish

Gold Plated
Dielectric Withstanding Voltage

1000 VRMS Max

 Insultation Resistance

≥1000MΩ
Center Contact Resistance

6 MΩ Max

 Outer Contact Resistance

1 MΩ Max
Mating Durability

≥ 500 Cycles

 Temperature Range

-65°C to +165°C
RF Series

SMB Type
Connector Type

Jack
Orientation

Straight
Contact Type

Male Pin
Contact Termination Style

Solder
Mounting Type

Panel Mount
Mounting Feature

Bulkhead
Fastening Type

Snap On
Number of Ports

1
Impedance

50 ohm
Frequency - Max

4GHz
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Insulator Material

Teflon White
Contact Material

Brass
Contact Finish

Gold Plated
Dielectric Withstanding Voltage

1000 VRMS Max
Insultation Resistance

≥1000MΩ
Center Contact Resistance

6 MΩ Max
Outer Contact Resistance

1 MΩ Max
Mating Durability

≥ 500 Cycles
Temperature Range

-65°C to +165°C

"SMB" is a type of small push-on locking RF coaxial connector, characterized by its small size, light weight, convenient use, and excellent electrical performance. It is suitable for connecting coaxial cables in high-frequency circuits of radio equipment and electronic instruments.

Kindly pls see the blew sheet:

Difference Dimension Impedance Frequency Connection type Advantage
SMA Small 50 Ohm 0-18G(26.5G) Screw High frequency,
Small size,
Stable connection
SMB Smaller 50 Ohm
75 Ohm		 0-4G Push-on Small volume,
Easy to plug
Good at anti-vibration

For Cable Type:

Clamp

Solder

For Panel Type:

Through Hole

Edge Mount

Clamp

Bulkhead

Flange

Of course, Renhotec has been specialized in supplying RF connector and cable series for over 15 years, just talk with Renhotec freely, the more details you share, the best support you will get.

Drawing for SMB Connector Straight Jack Male Pin Panel Mount Bulkhead 50 OhmDownload
