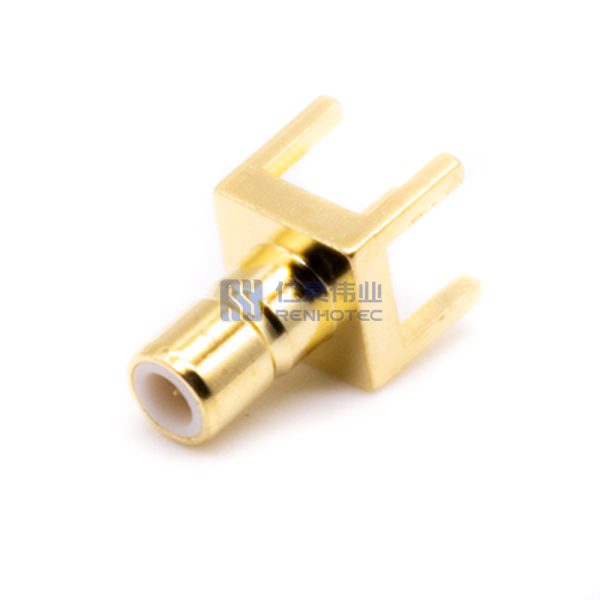

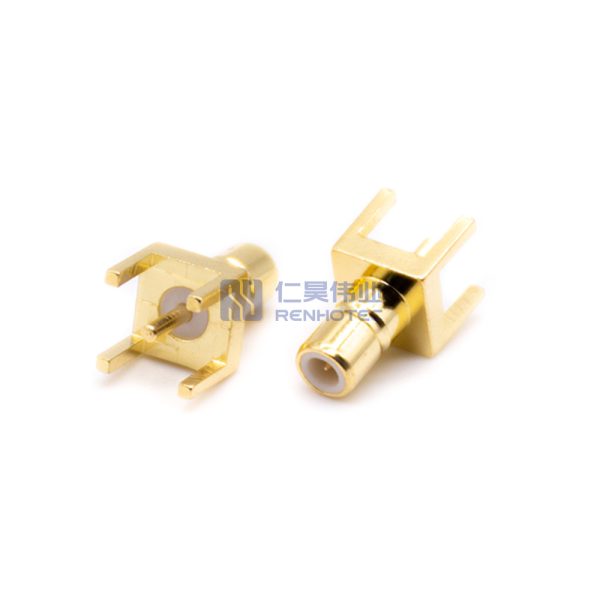

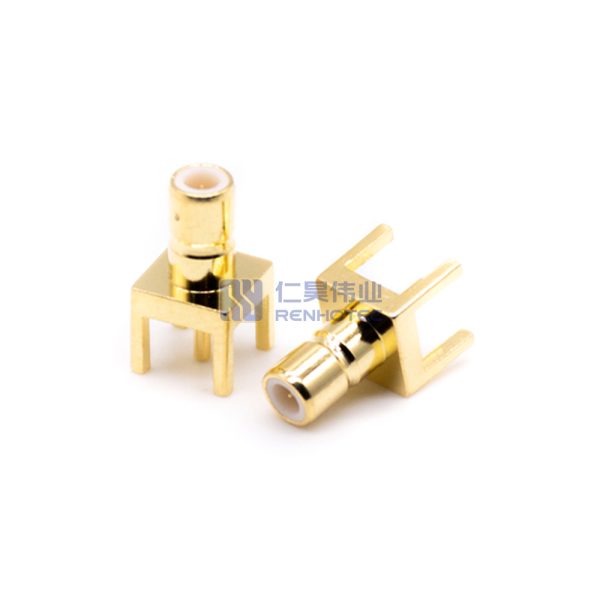

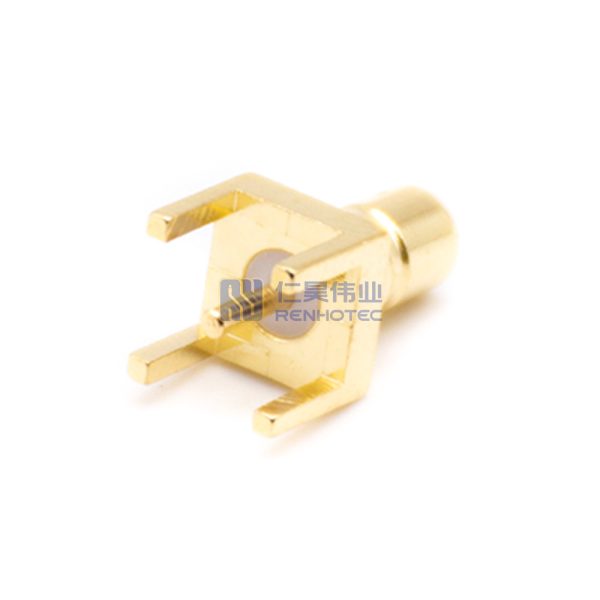

SMB Connector Straight Jack Male Pin Panel Mount Through Hole 50 Ohm – RHT-626-0231
High-quality SMB connector featuring a straight jack design with male pin, ideal for panel mounting and offers a secure Through Hole connection. Provides a reliable connection with 50 Ohm impedance for various applications.
The SMB (Sub-Miniature version B) connector is a quick-lock mating miniature connector that operates up to 4 GHz in frequency. The SMB interface features a snap-on coupling mechanism and is available in 50-ohm configurations.
SMB connectors are smaller than SMA connectors. However, these connectors are not ideal for harsh environmental conditions, as they are not robust as SMA connectors.
Available in 50 Ohm and 75 Ohm configurations, the SMB connectors are built in accordance with MIL-C-39012, IEC 60169-10, and CECC 22130 interface standards.
Interface
Application Scenarios
Product Specification
RF Series | SMB Type |
||
---|---|---|---|
Connector Type | Jack |
||
Orientation | Straight |
||
Contact Type | Male Pin |
||
Contact Termination Style | Solder |
||
Mounting Type | Panel Mount |
||
Mounting Feature | Through Hole |
||
Fastening Type | Snap On |
||
Number of Ports | 1 |
||
Impedance | 50 ohm |
||
Frequency - Max | 4GHz |
||
Shell Material | Copper Alloy |
||
Shell Finish | Gold Plated |
||
Insulator Material | Teflon White |
||
Contact Material | Brass |
||
Contact Finish | Gold Plated |
||
Dielectric Withstanding Voltage | 1000 VRMS Max |
||
Insultation Resistance | ≥1000MΩ |
||
Center Contact Resistance | 6 MΩ Max |
||
Outer Contact Resistance | 1 MΩ Max |
||
Mating Durability | ≥ 500 Cycles |
||
Temperature Range | -65°C to +165°C |
||
RF Series | SMB Type |
Connector Type | Jack |
Orientation | Straight |
Contact Type | Male Pin |
Contact Termination Style | Solder |
Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
Fastening Type | Snap On |
Number of Ports | 1 |
Impedance | 50 ohm |
Frequency - Max | 4GHz |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Insulator Material | Teflon White |
Contact Material | Brass |
Contact Finish | Gold Plated |
Dielectric Withstanding Voltage | 1000 VRMS Max |
Insultation Resistance | ≥1000MΩ |
Center Contact Resistance | 6 MΩ Max |
Outer Contact Resistance | 1 MΩ Max |
Mating Durability | ≥ 500 Cycles |
Temperature Range | -65°C to +165°C |
RF Series | SMB Type |
---|---|
Connector Type | Jack |
Orientation | Straight |
Contact Type | Male Pin |
Contact Termination Style | Solder |
Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
Fastening Type | Snap On |
Number of Ports | 1 |
Impedance | 50 ohm |
Frequency - Max | 4GHz |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Insulator Material | Teflon White |
Contact Material | Brass |
Contact Finish | Gold Plated |
Dielectric Withstanding Voltage | 1000 VRMS Max |
Insultation Resistance | ≥1000MΩ |
Center Contact Resistance | 6 MΩ Max |
Outer Contact Resistance | 1 MΩ Max |
Mating Durability | ≥ 500 Cycles |
Temperature Range | -65°C to +165°C |
"SMB" is a type of small push-on locking RF coaxial connector, characterized by its small size, light weight, convenient use, and excellent electrical performance. It is suitable for connecting coaxial cables in high-frequency circuits of radio equipment and electronic instruments.
Kindly pls see the blew sheet:
Difference | Dimension | Impedance | Frequency | Connection type | Advantage |
SMA | Small | 50 Ohm | 0-18G(26.5G) | Screw | High frequency, Small size, Stable connection |
SMB | Smaller | 50 Ohm 75 Ohm |
0-4G | Push-on | Small volume, Easy to plug Good at anti-vibration |
For Cable Type:
Clamp
Solder
For Panel Type:
Through Hole
Edge Mount
Clamp
Bulkhead
Flange
Of course, Renhotec has been specialized in supplying RF connector and cable series for over 15 years, just talk with Renhotec freely, the more details you share, the best support you will get.
